Canada - Hybrid System - MIL ON/DTC's P0AA6/P3009

Bulletin
TSB2229R

Issue Date
2005-04-21

Market
Canada

Title
M.I.L. "ON" DTC P0AA6 OR P3009, INFORMATION CODES 526 & 614

Component
ENGINE ELECTRICAL

Models
'04 - '05 Prius

TSB REVISION NOTICE:
- June 07, 2006: The Introduction has been updated and a note has been added to the Introduction.
- December 15, 2005: DTC P0AA6 has been added to the TSB.
Previous versions of this TSB should be discarded.

INTRODUCTION:
Some customers with 2004 or 2005 model year Prius vehicles may experience a M.I.L. "ON" condition with DTC P0AA6 or P3009 with information codes 526 and 614 (inverter/converter assembly). The inverter/converter assembly has been improved to prevent this condition.

NOTE:
This TSB applies ONLY if information codes 526 and 614 are present.

APPLICABLE VEHICLES:
- 2004 model year Prius vehicles.
- 2005 model year Prius vehicles produced BEFORE the Production Change Effective VINs shown below.

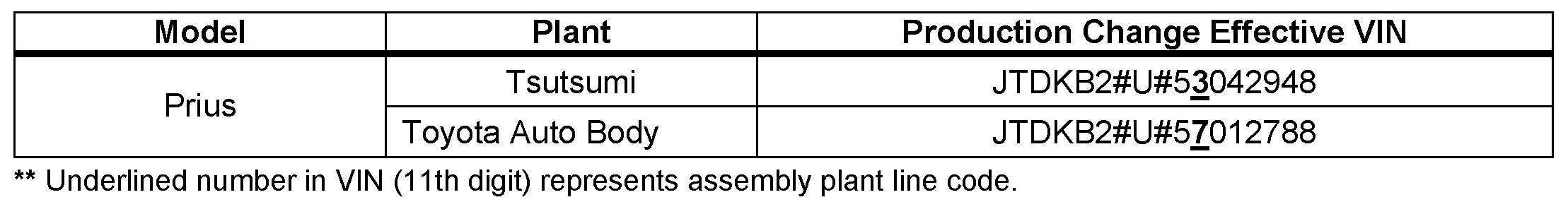

PRODUCTION CHANGE INFORMATION:

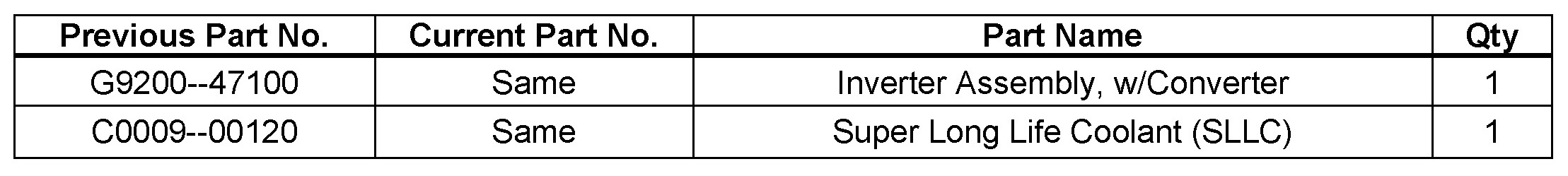

PARTS INFORMATION:

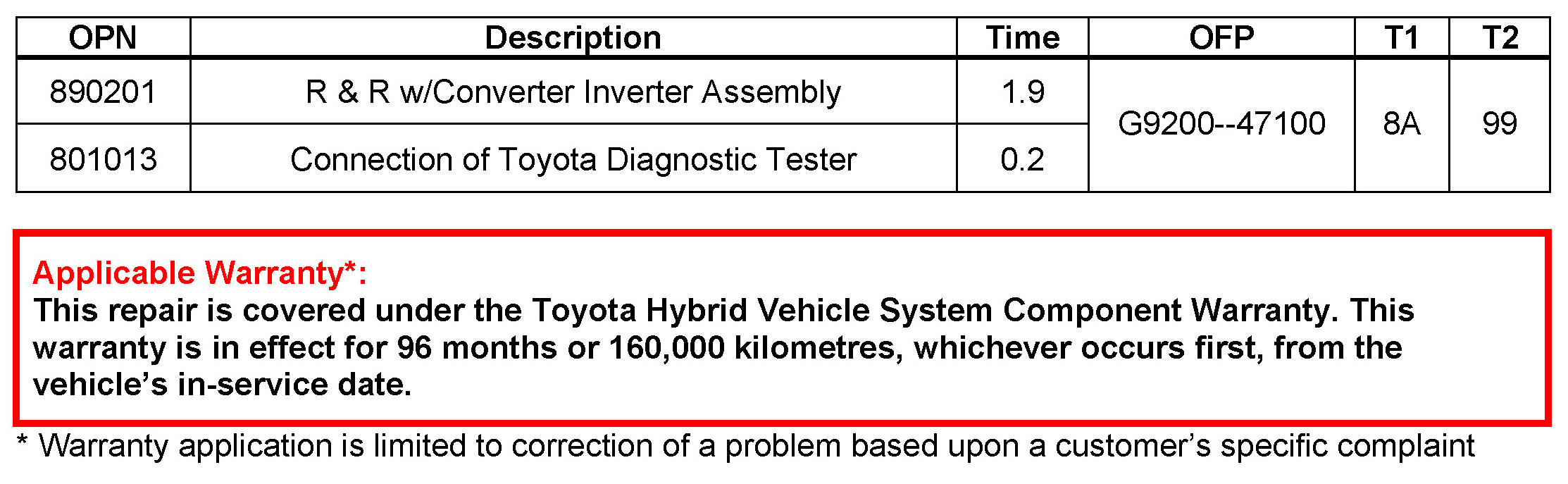

WARRANTY INFORMATION:

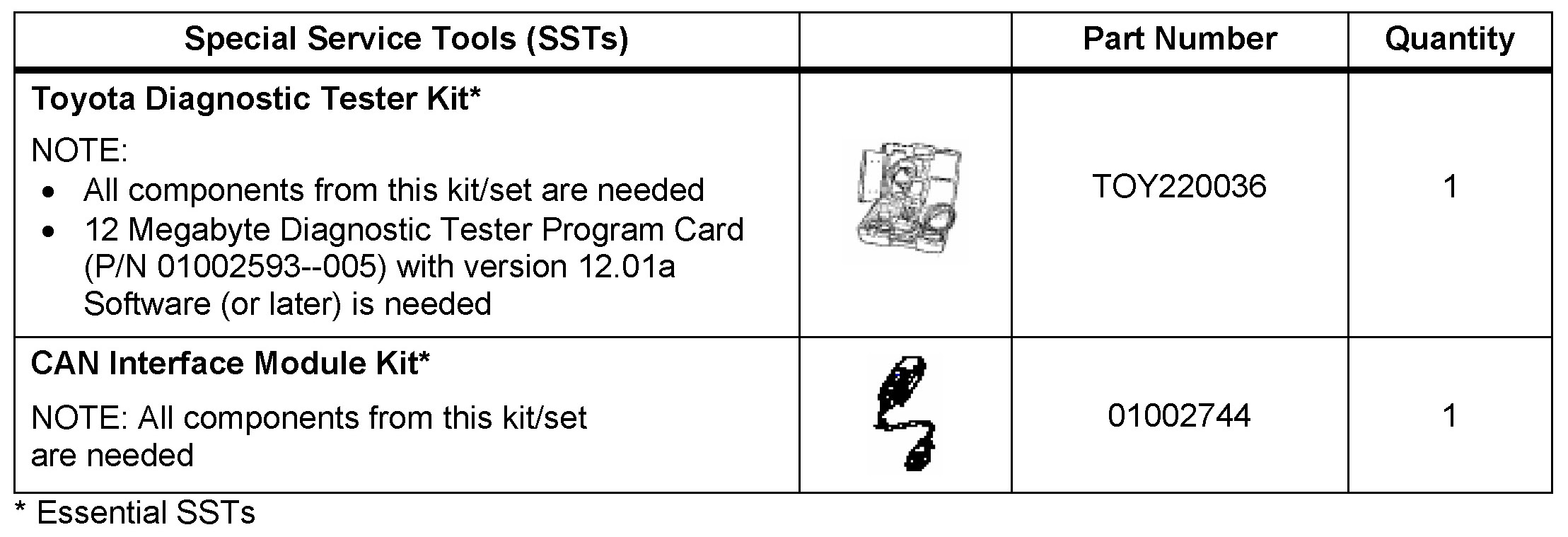

REQUIRED SSTs:

REPAIR PROCEDURE:
Remove and replace inverter/converter assembly. Refer to ETAS: 2004 or 2005 model year Prius Repair Manual, Hybrid Control System: W/converter Inverter Assy: Replacement.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
