Canada - Hybrid System - MIL ON/Multiple DTC's Set

Bulletin
TSB2245R

Issue Date
2007-04-04

Market
Canada

Title
M.I.L. "ON" DTC P0A60, P0A63, P0A72, P0A78, OR P0A7A

Component
ENGINE

Models
'04 - '05 Prius

TSB REVISION NOTICE:
- June 7, 2007: The note in the Introduction has been expanded to include DTC P0A94, information code 588, and a reference to TSB2655.
- April 4, 2007: A note has been added to the Introduction, and the Op Code for "Connection of Toyota Diagnostic Tester" has been updated in the Warranty Information table.
Previous versions of this TSB should be discarded.

INTRODUCTION:
Some customers with 2004 or 2005 model year Prius vehicles may experience a M.I.L. "ON" condition with DTC P0A60, P0A63, P0A72, P0A78, or P0A7A (Drive Motor "A" or Generator Phase W Malfunction). The inverter/converter assembly has been improved to address this condition.

NOTE:
Do NOT apply this TSB if DTC P3009 or P0AA6 is present. For DTC P3009 or P0AA6 refer to TSB2229 "M.I.L. 'ON' DTC P0AA6 OR P3009, Information Codes 526 & 614", or TSB2245 "M.I.L. 'ON' DTC P0A60, P0A63, P0A72, P0A78, or P0A7A".
Do NOT apply this TSB if DTC P0A94 with information code 588 is present. Refer to TSB2655, "Master, Hybrid, & M.I.L. 'ON' DTC P0A94, Information Code 588 & DTC P0A78, Information Code 279 or 306".

APPLICABLE VEHICLES:
- 2004 model year Prius vehicles.
- 2005 model year Prius vehicles produced BEFORE the Production Change Effective VINs shown below.

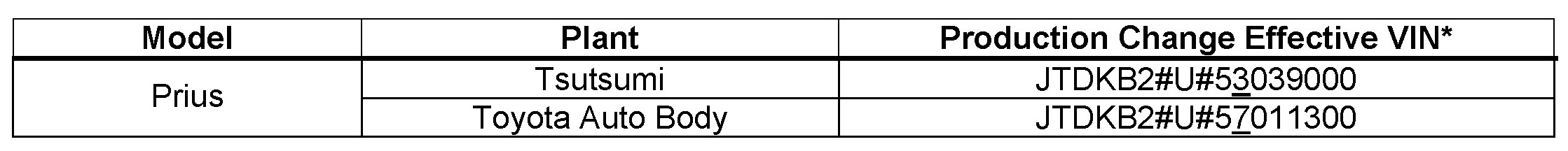

PRODUCTION CHANGE INFORMATION:

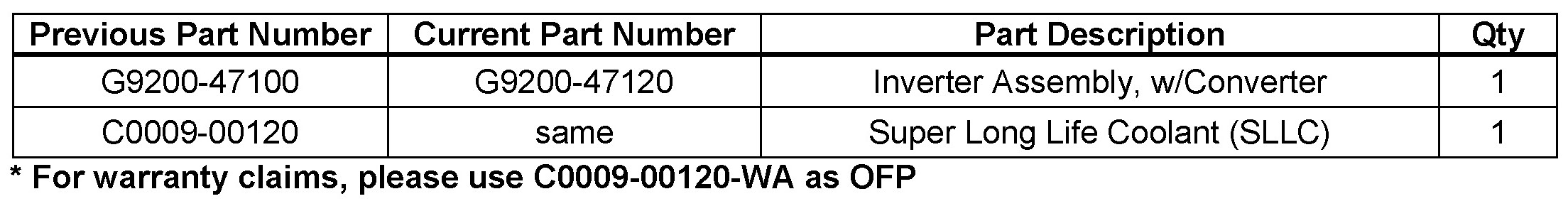

PARTS INFORMATION:

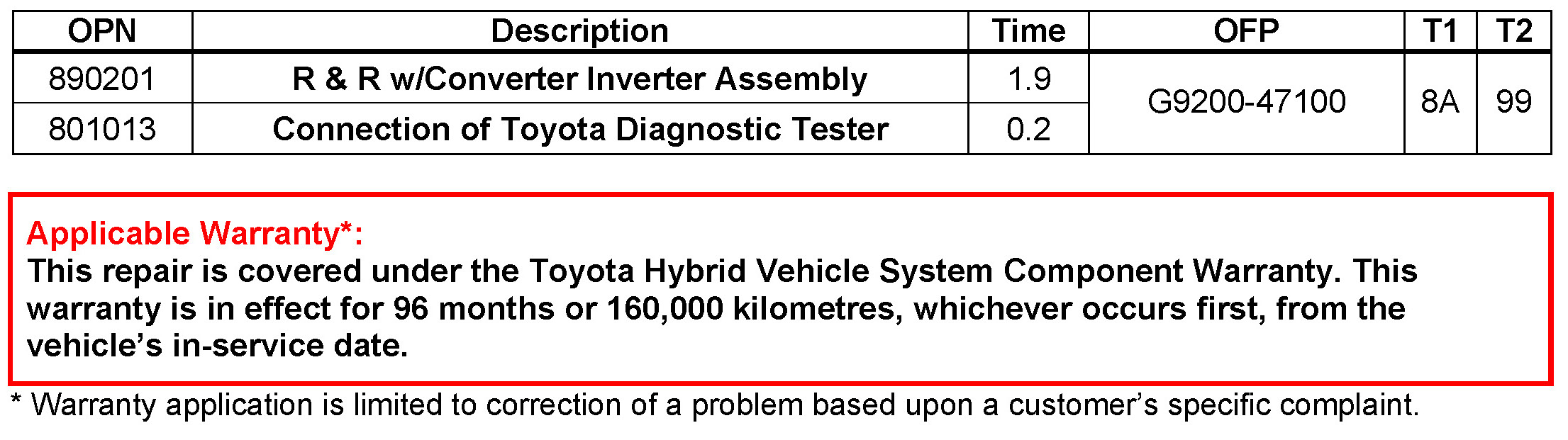

WARRANTY INFORMATION:

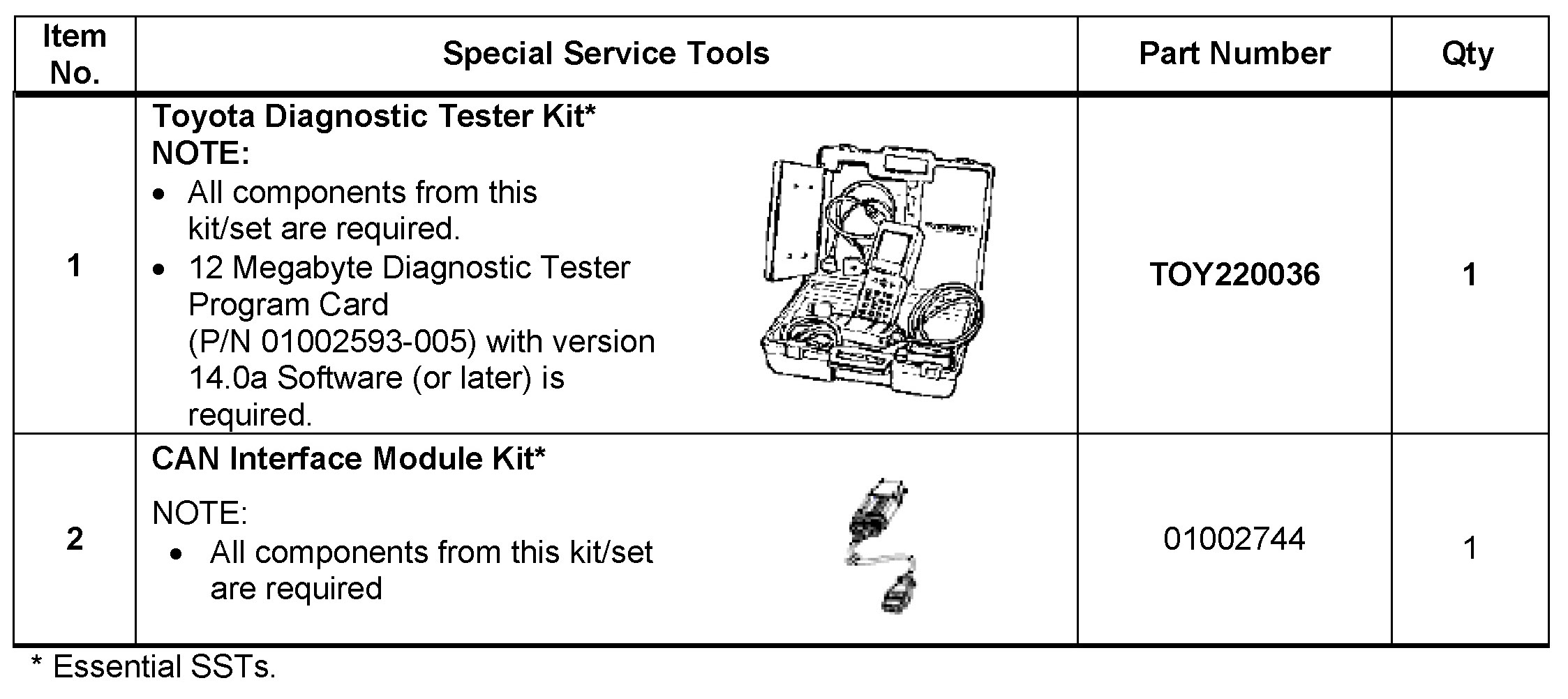

REQUIRED SSTs:

REPAIR PROCEDURE:

Remove and replace inverter/converter assembly.

Refer to the Repair Manual within E-TAS / TIS library:
- Division: Toyota
- Model: Prius
- Year: 2004 or 2005
- Service Category: Engine/Hybrid System
- Section: Hybrid/Battery Control System
- Keyword: 1NZ-FXE: w/Converter Inverter Assy: Replacement
