Repair and Diagnosis: Testing and Inspection

INITIALIZATION






NOTE: When disconnect the negative (-) battery terminal, initialize the following systems after the terminal is reconnected.

RESET (INITIALIZE) POWER WINDOW REGULATOR MOTOR (DRIVER SIDE)

NOTE:
- Resetting the power window regulator motor (initializing the pulse sensor) is necessary if:
1. the battery terminal cable is disconnected;
2. the power window regulator master switch assembly, wire harness, power window regulator switch, power window regulator assembly and power window regulator motor are replaced or removed/installed; or
3. the POWER fuse, FR Door fuse, GAUGE fuse and ECU-IG fuses are replaced. If resetting is not performed, the master switch assembly will not be able to operate the AUTO operation function, jam protection function and remote operation function.

- Whenever disconnecting the battery terminal cable, reset all the other systems besides the power window control system.

a. Change the power mode to ON(IG) by pushing the power switch.
b. Open the power window halfway by pressing the power window switch.
c. Fully pull up on the switch until the power window is fully closed and continue to hold the switch for at least 1 second.
d. Check that the AUTO UP/DOWN function operates normally.
If the AUTO UP/DOWN function operates normally, reset operations have been completed. If abnormal, follow steps (e) to (g) below.

e. Disconnect the negative battery terminal cable for 10 seconds.
f. Connect the battery terminal cable.
g. Perform the above steps (a) to (d) again.



CUSTOMIZE PARAMETERS

HINT: The following can be customized.

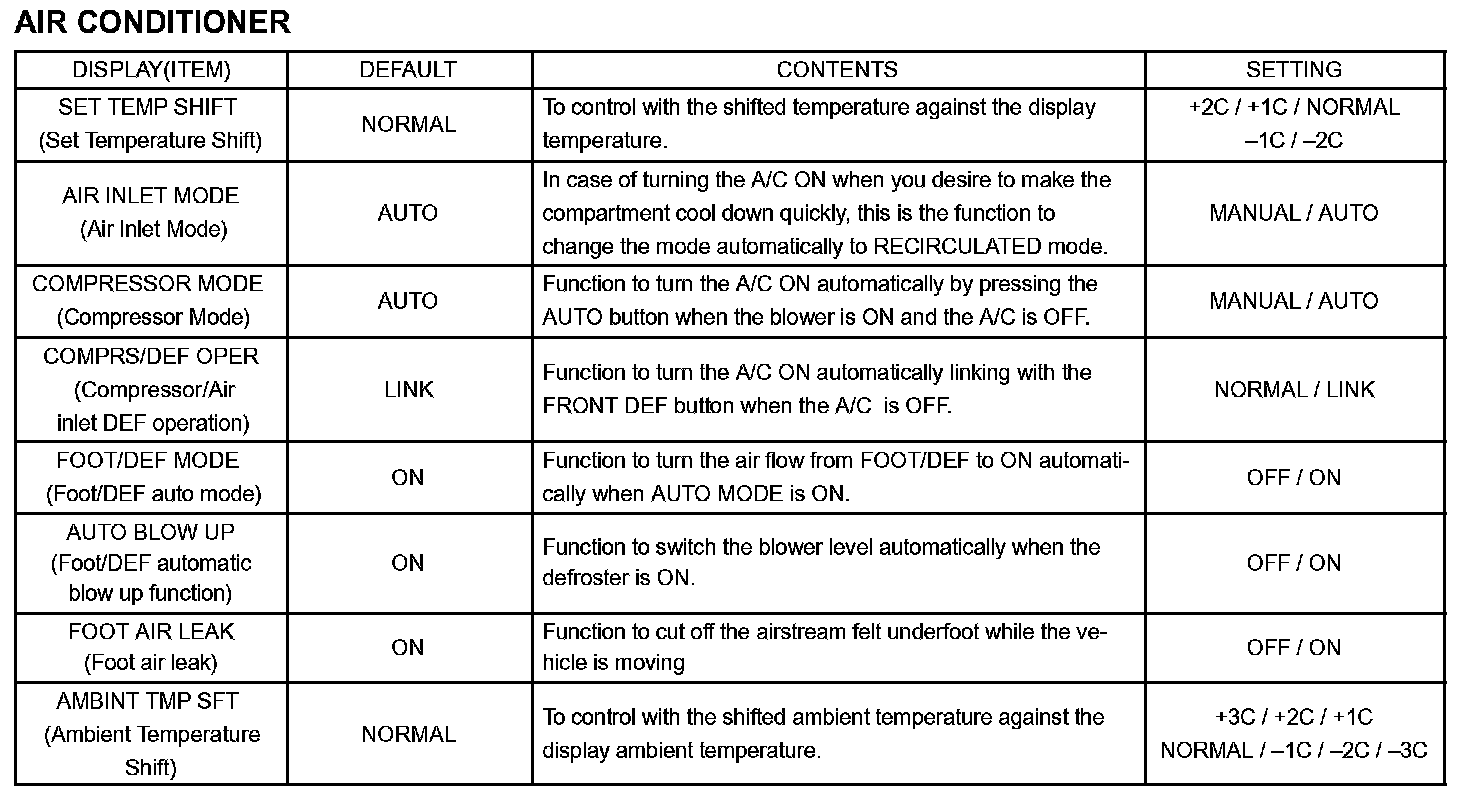

Air Conditioner:

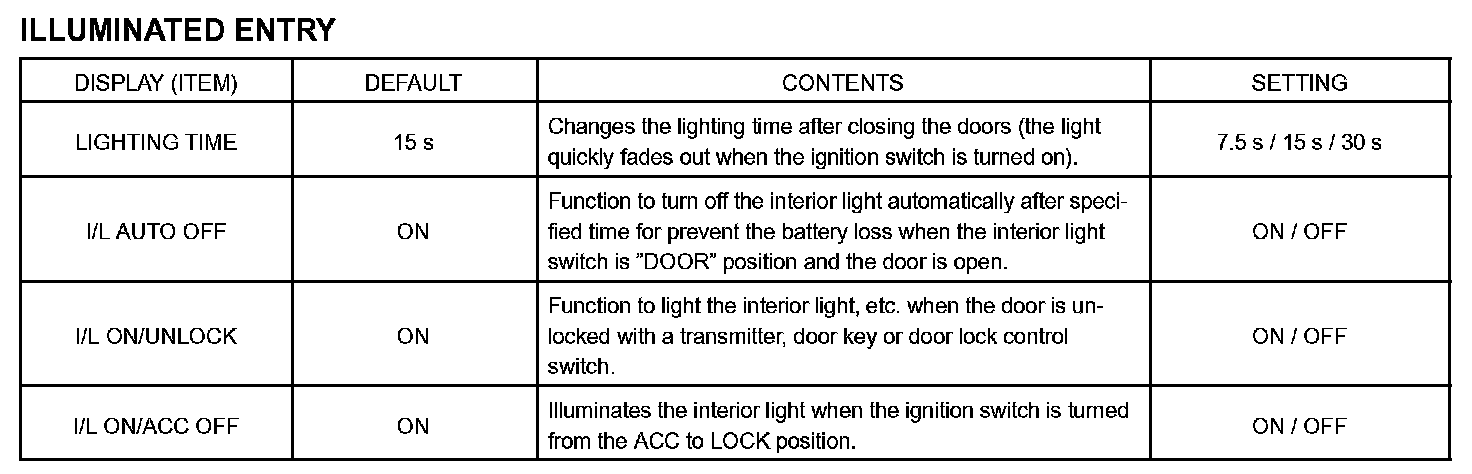

Illuminated Entry:

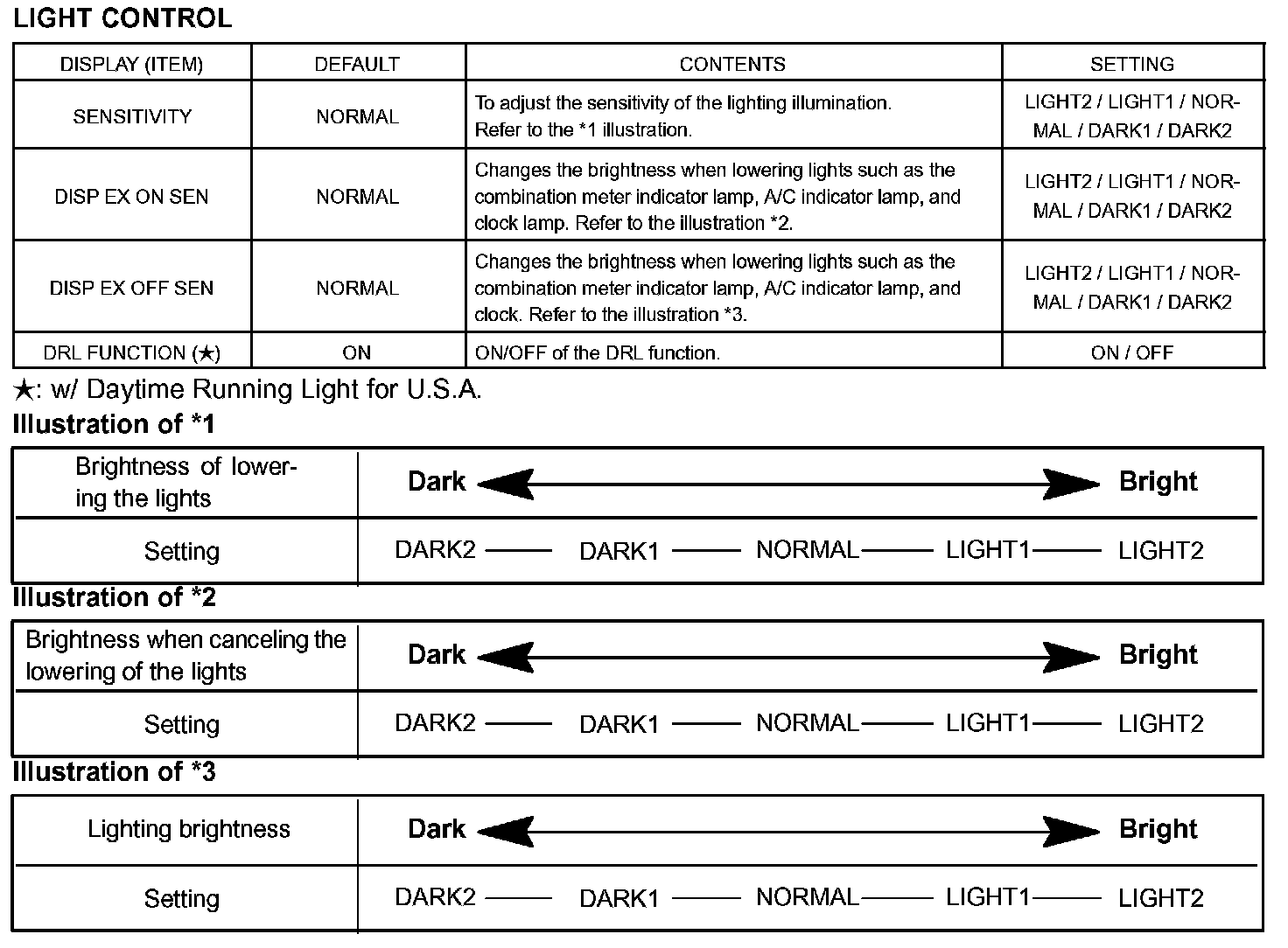

Light Control:

NOTE:
- After confirming whether the items of the customer's request are applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function"is displayed, check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

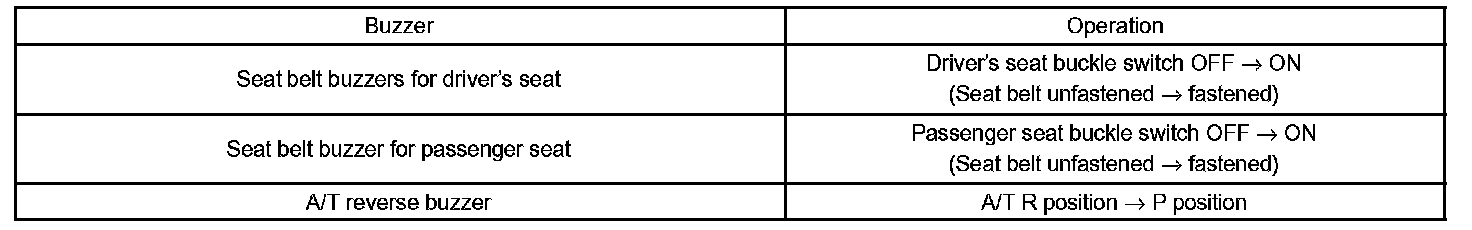

BUZZER CANCEL SETTING

h. Check that the ODO display is on, and turn the power switch off and then on. If other display is on, change it to the ODO display.
i. Within 6 seconds, push and hold the ODO/TRIP switch for 10 seconds or more.




j. Following the table, set the buzzer cancel setting.

HINT: The ODO/TRIP display changes from "b-on" to "b-off", entering the cancel mode.

k. During the cancel mode, each time the ODO/TRIP switch is pushed, the setting is switched between*1 b-on and *2 b-off.

HINT:
*1 b-on: Cancel is invalid
*2 b-off: Cancel is valid

l. After the setting, the mode will be canceled by either not operating the switch for 10 seconds or more, or turning the power switch from on to off.

HINT: The setting can be reset when reconnecting the battery connector or removing/installing the meter connector (Buzzer on).

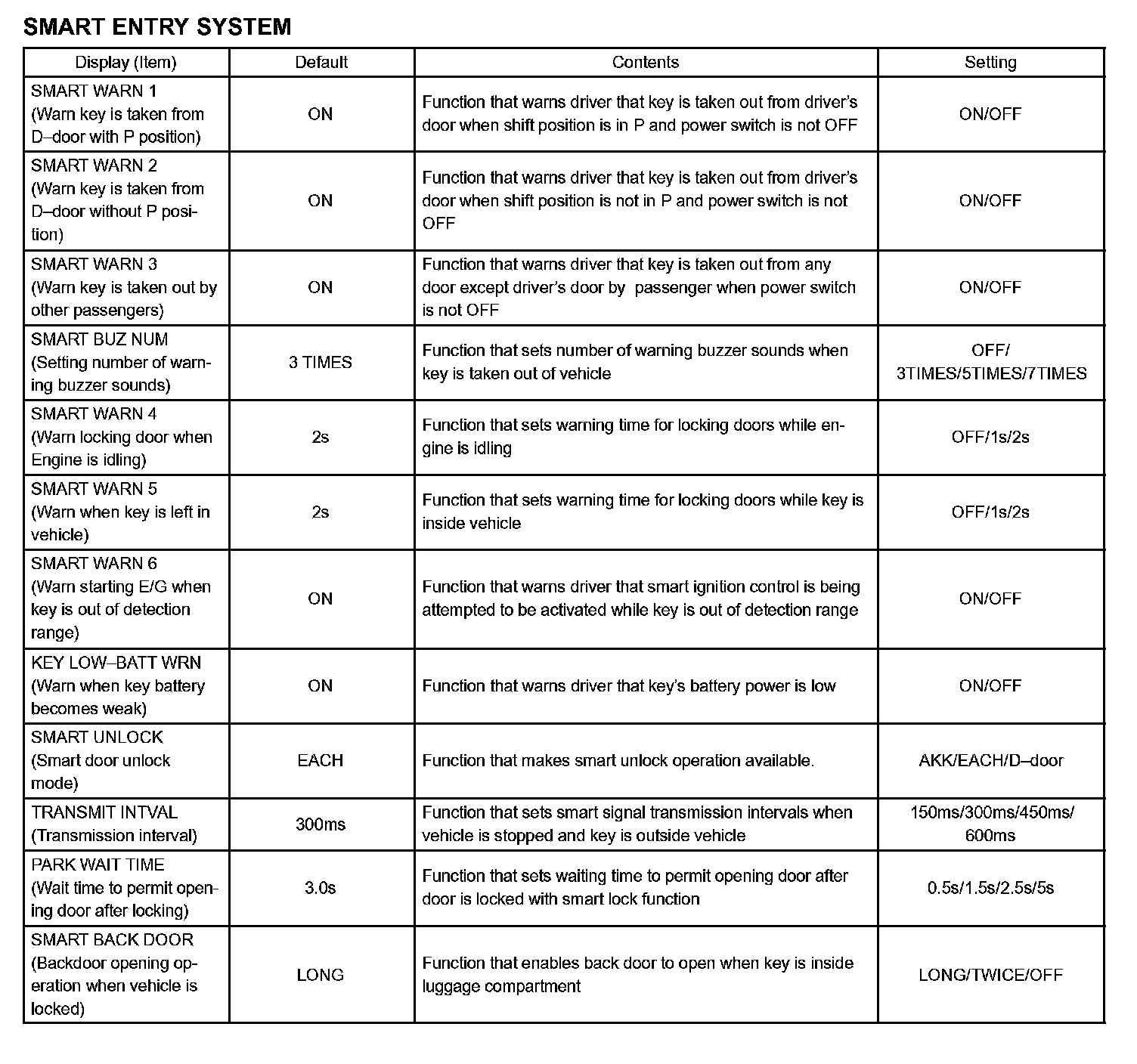

SMART ENTRY SYSTEM

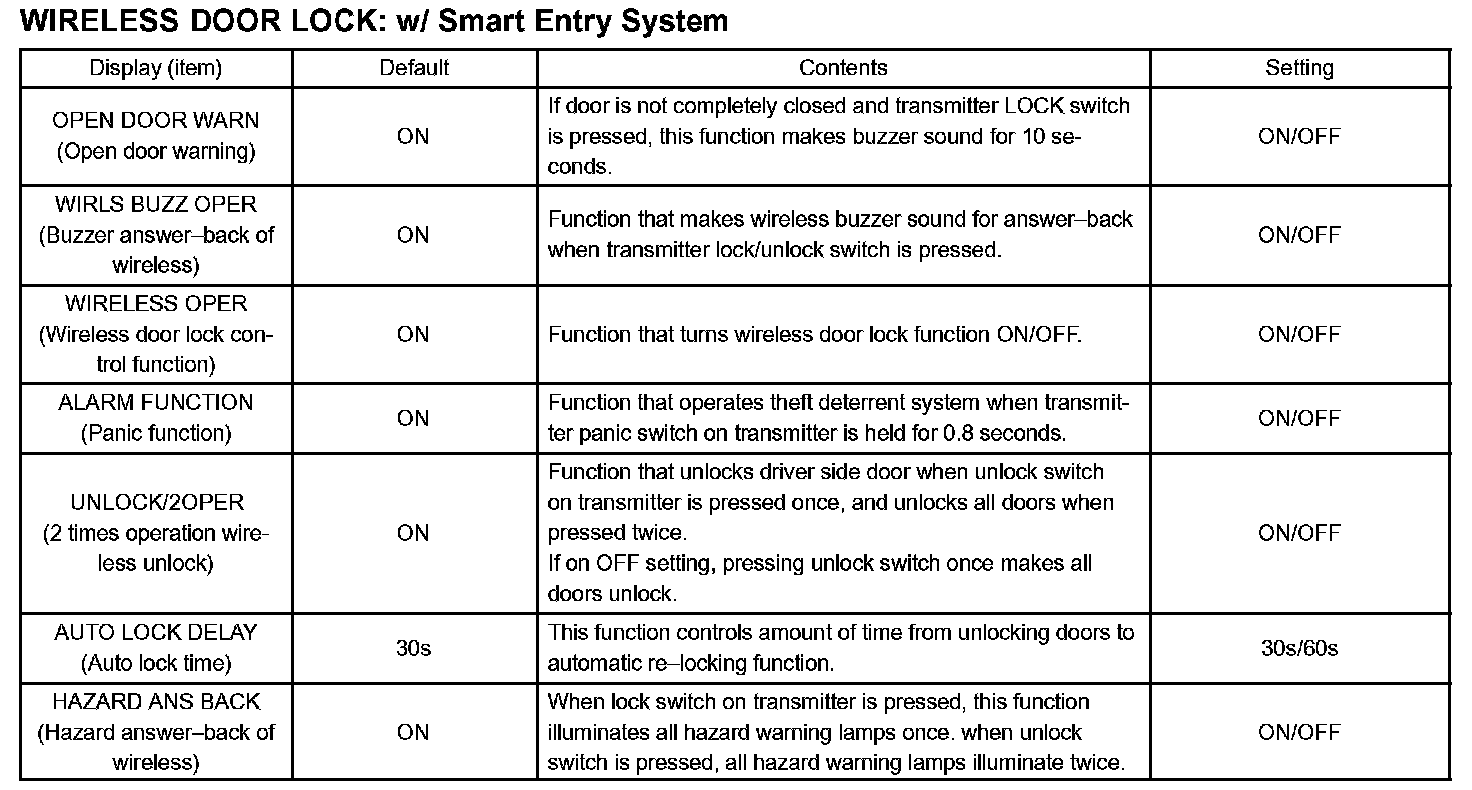

WIRELESS DOOR LOCK: w/ Smart Entry System

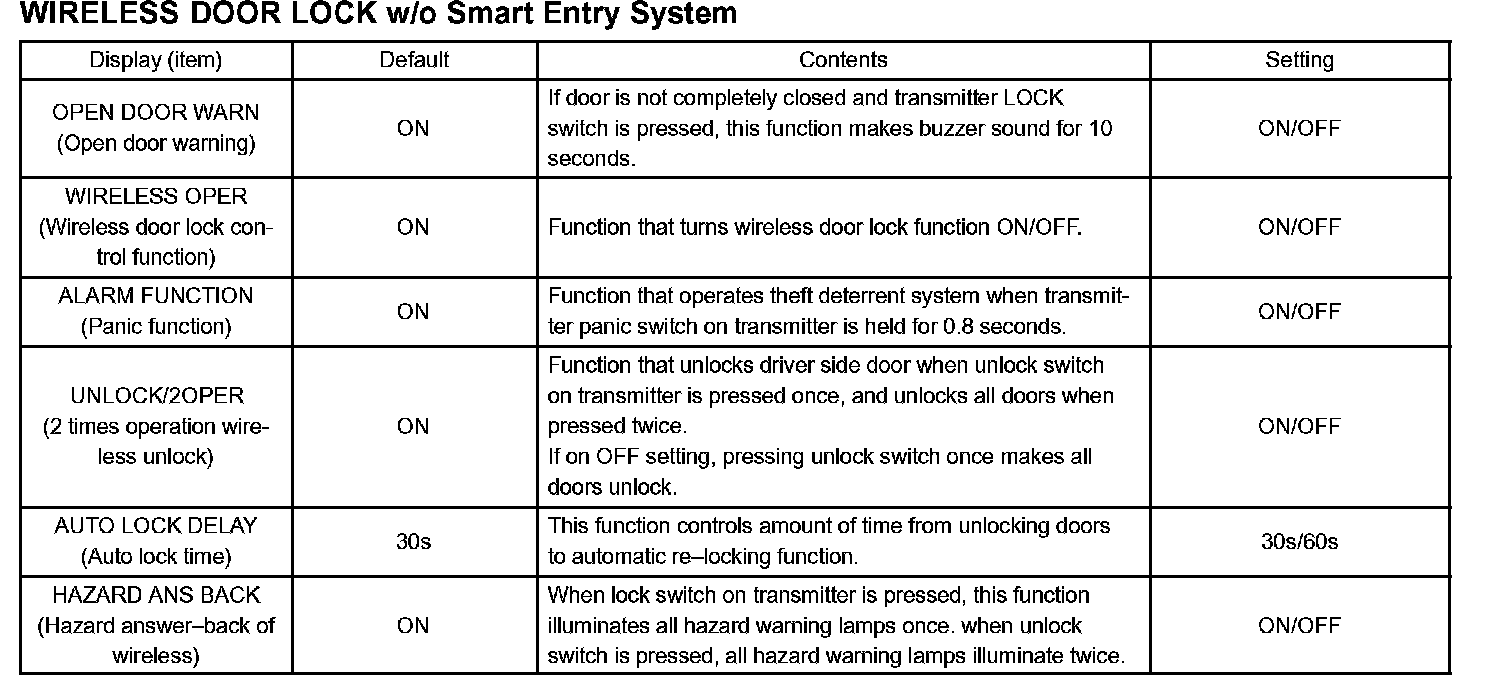

WIRELESS DOOR LOCK w/o Smart Entry System

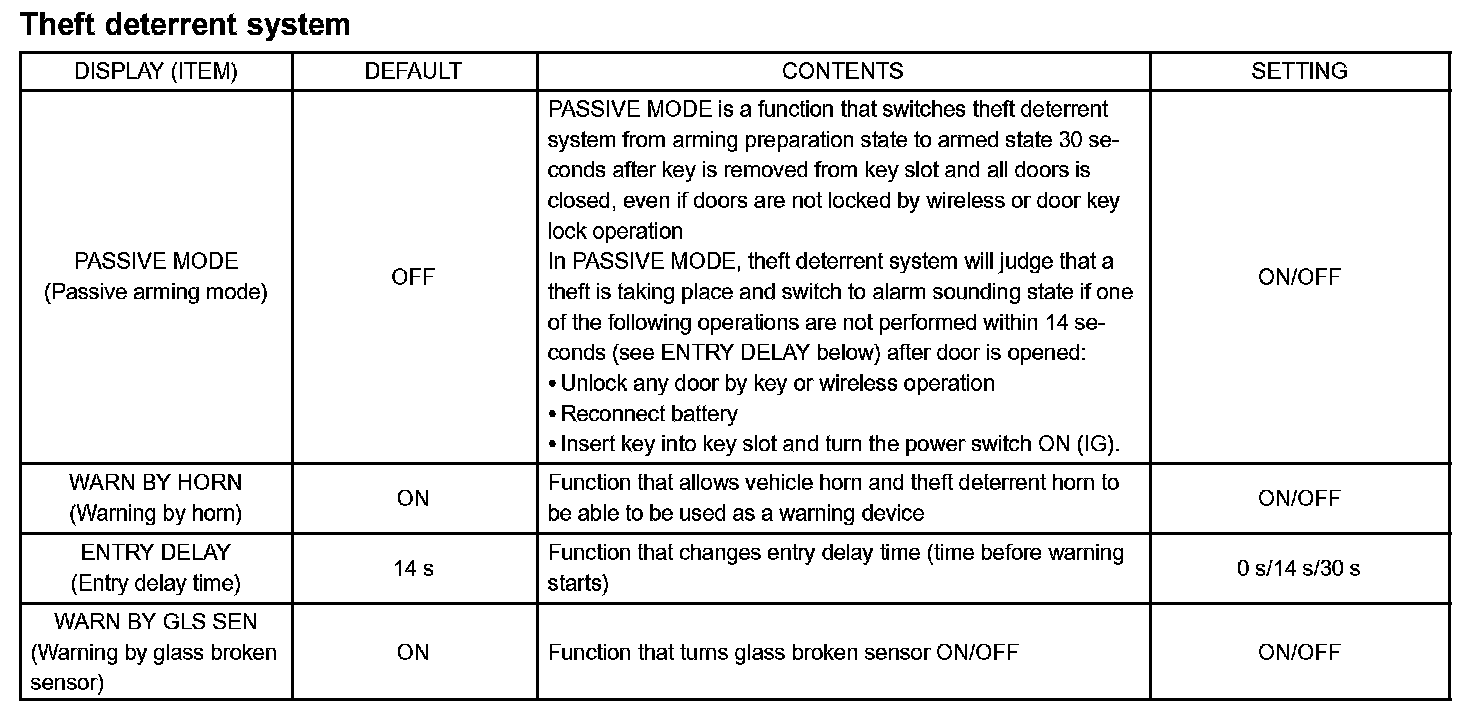

Theft deterrent system
