Fluid Pump: Service and Repair

OIL PUMP DRIVE SHAFT
REPLACEMENT
1. REMOVE FRONT WHEEL LH
2. REMOVE ENGINE UNDER COVER LH
3. DRAIN TRANSAXLE OIL
4. REMOVE TRANSMISSION OIL PUMP COVER SUB-ASSY

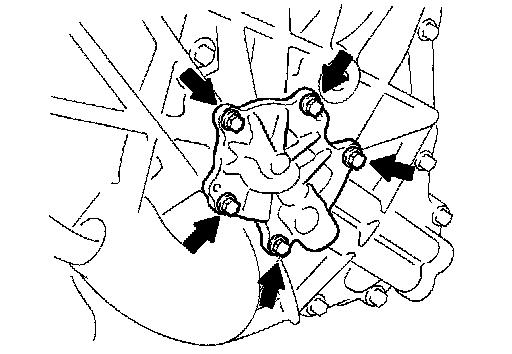

a. Remove the 5 bolts and oil pump cover.

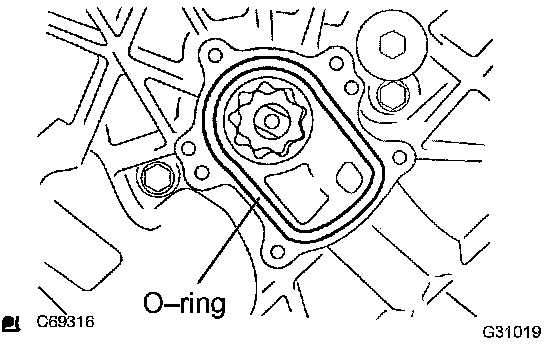

b. Remove the O-ring.

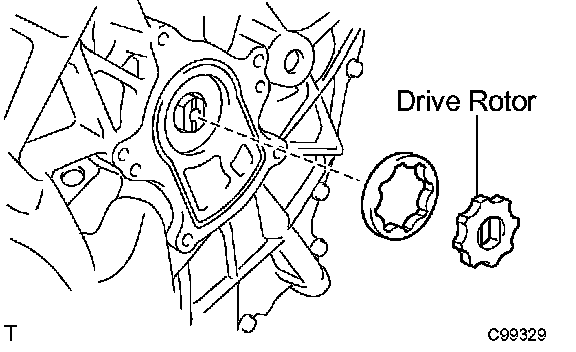

5. REMOVE TRANSAXLE OIL PUMP DRIVE ROTOR
a. Remove the transaxle oil pump driver rotor from the hybrid vehicle transaxle.

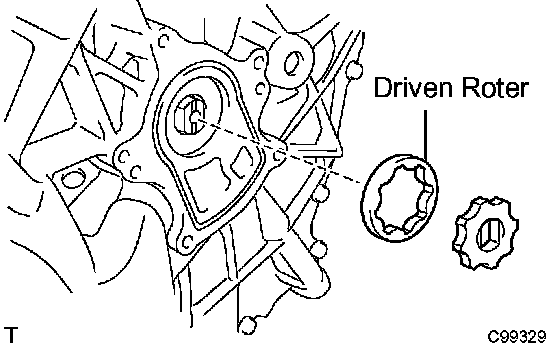

6. REMOVE OIL PUMP DRIVEN ROTOR
a. Remove the oil pump driven rotor from the hybrid vehicle transaxle.

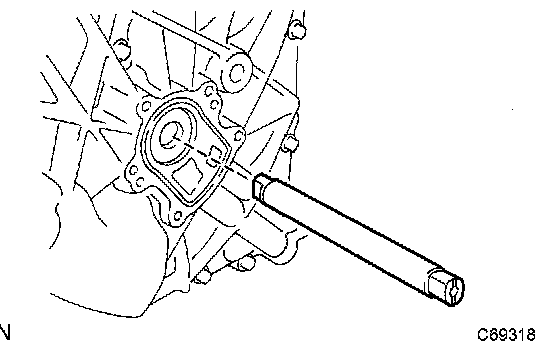

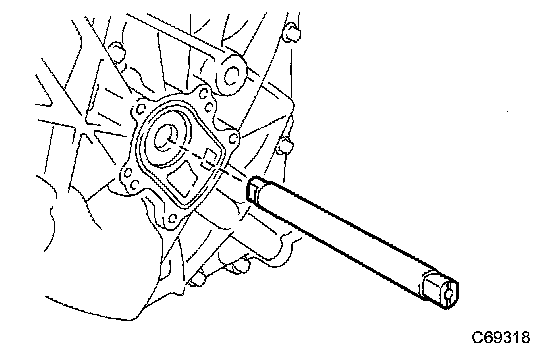

7. REMOVE OIL PUMP DRIVE SHAFT
a. Remove the oil pump drive shaft from the hybrid vehicle transaxle.





8. INSTALL OIL PUMP DRIVE SHAFT
a. Apply ATF WS to the oil pump drive shaft and install to the hybrid vehicle transaxle.

HINT: Use genuine ATF WS.

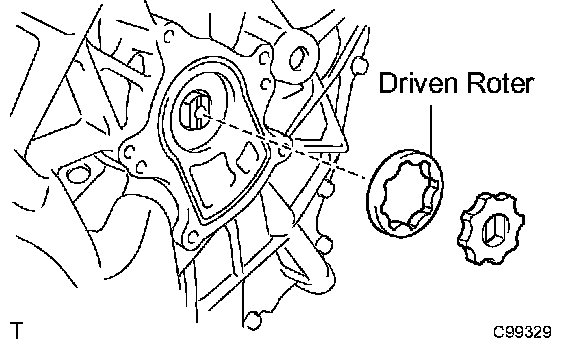

9. INSTALL OIL PUMP DRIVEN ROTOR
a. Apply ATF WS to the oil pump driven rotor and install to the hybrid vehicle transaxle.

HINT: Use genuine ATF WS.

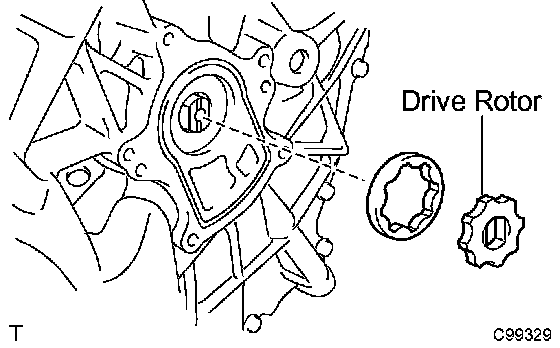

10. INSTALL TRANSAXLE OIL PUMP DRIVE ROTOR
a. Apply ATF WS to the oil pump drive rotor and install to the hybrid vehicle transaxle.

HINT: Use genuine ATF WS.

11. INSTALL TRANSMISSION OIL PUMP COVER SUB-ASSY

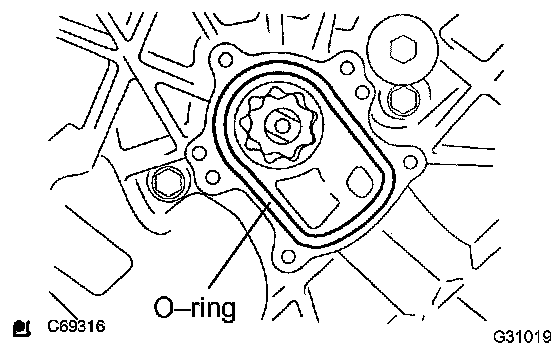

a. Install a new O-ring to the hybrid transaxle.

NOTICE: Do not twist the O-ring when installing it.





b. Apply liquid sealant 1344 to the first 2 or 3 threads of the bolt end.

NOTICE: Clean and degrease the bolts and bolt holes.

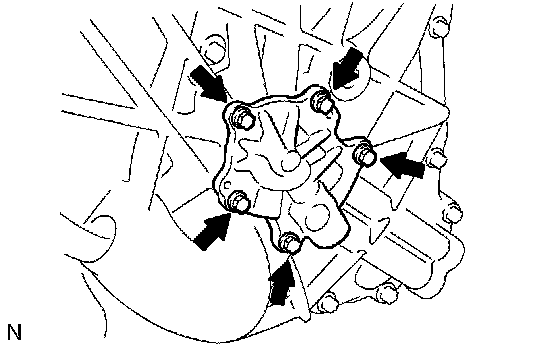

c. Install the oil pump cover with the 5 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 inch lbs.)
12. INSTALL FRONT WHEEL LH
13. ADD TRANSAXLE OIL
Fluid type: AUTO FLUID WS
Capacity: 3.8 liters (4.0 US qts, 3.3 Imp. qts)
14. INSPECT TRANSAXLE OIL
15. INSTALL ENGINE UNDER COVER LH
