Sprocket Driven & Counter Drive Gear

SPROCKET DRIVEN & COUNTER DRIVE GEAR
OVERHAUL
1. REMOVE COUNTER DRIVE GEAR RADIAL BALL BEARING

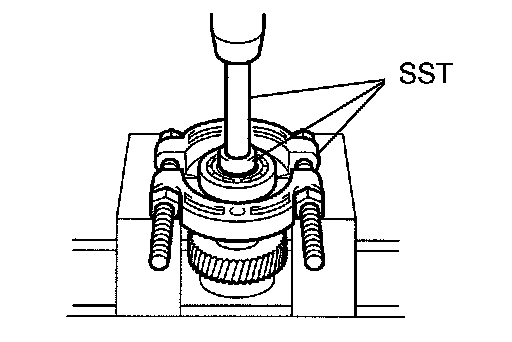

a. Using SST and a press, remove the bearing from the counter drive gear.
SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

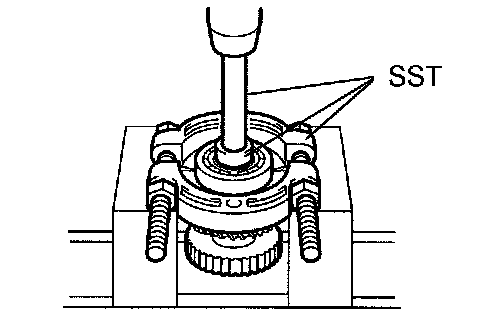

b. Using SST and a press, remove the bearing from the counter drive gear.
SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)
2. INSPECT COUNTER DRIVE GEAR RADIAL BALL BEARING
a. Check the bearing for abnormal wear or color change.

HINT: Replace the bearing with a new one if abnormal wear or color change is observed.

3. INSTALL COUNTER DRIVE GEAR RADIAL BALL BEARING

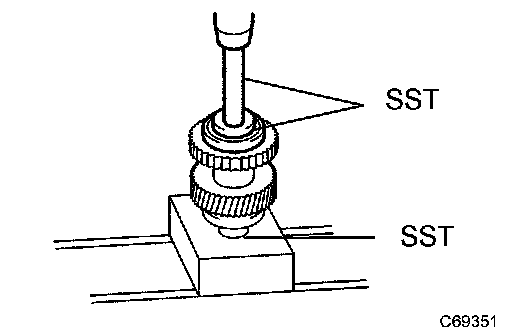

a. Using SST and a press, install a new bearing into the counter drive gear.
SST 09950-60010 (09951-00330, 09951-00460), 09950-70010 (09951-07100)

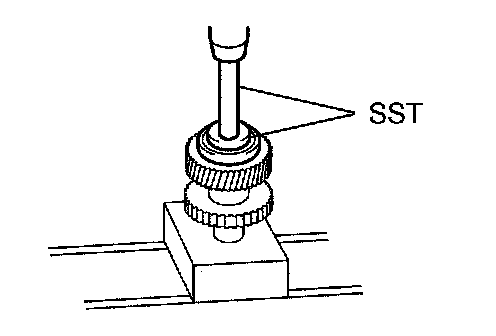

b. Using SST and a press, install a new bearing into the counter drive gear.
SST 09950-60010 (09951-00330, 09951-00460), 09950-70010 (09951-07100)
