Shifter CVT: Service and Repair

SHIFT LEVER ASSY
OVERHAUL
1. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
2. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER
3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER
4. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.3





5. REMOVE SHIFT LEVER ASSY

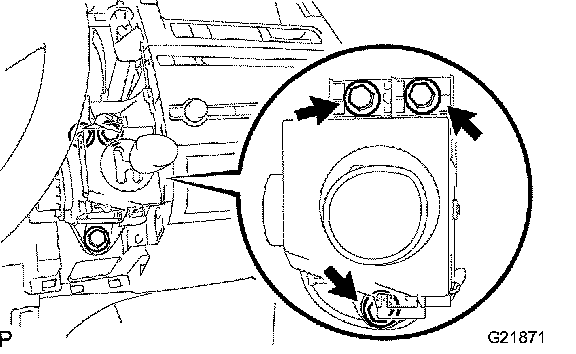

a. Remove the 3 bolts.
b. Disconnect the 2 connectors and remove the shift lever assy.
6. REMOVE INDICATOR LAMP WIRE SUB-ASSY





a. Remove the position indicator lamp wire from the position indicator housing.

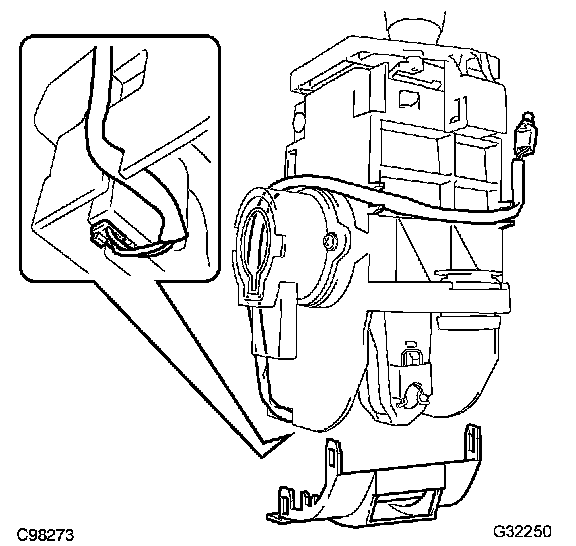

b. Separate the connector from the 3 clamps and remove the position indicator lamp wire.
c. Remove the cover.

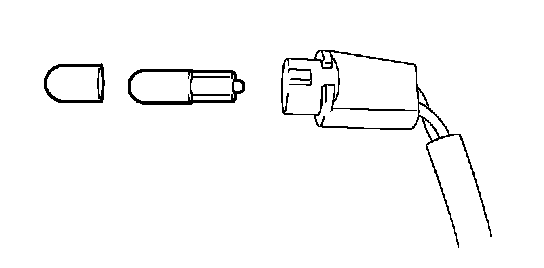

d. Remove the bulb and cap from the position indicator lamp wire.
7. INSTALL INDICATOR LAMP WIRE SUB-ASSY

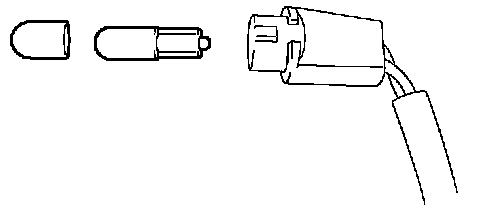

a. Install the bulb and cap to the position indicator lamp wire.

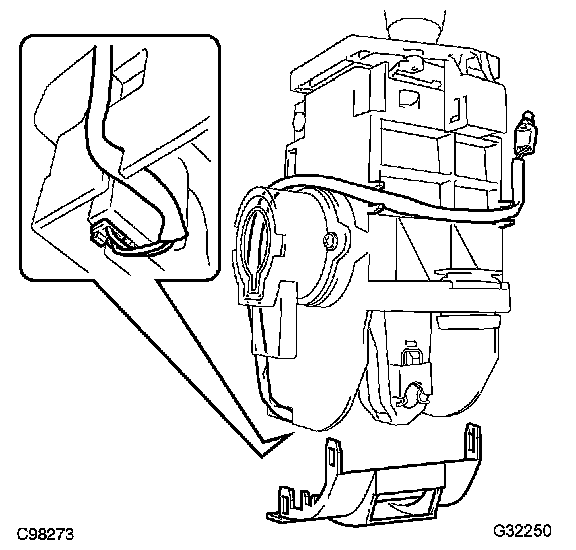

b. Connect the connector and 3 clamps.
c. Install the cover.

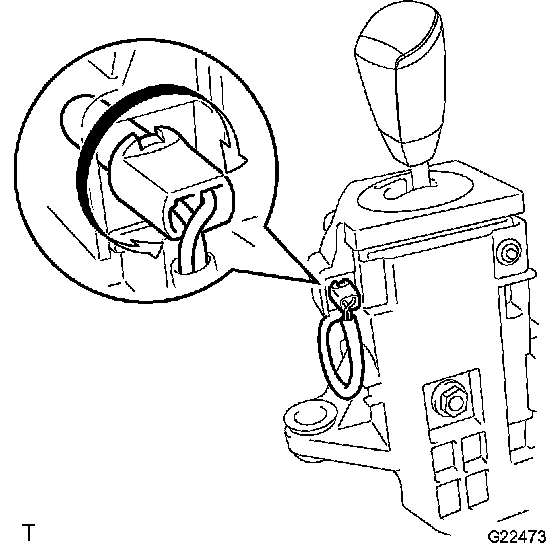

d. Install the position indicator lamp wire to the position indicator housing.

NOTICE: Securely attach by twisting to the right.





8. INSTALL SHIFT LEVER ASSY
a. Install the 2 connectors to the shift lever assy.

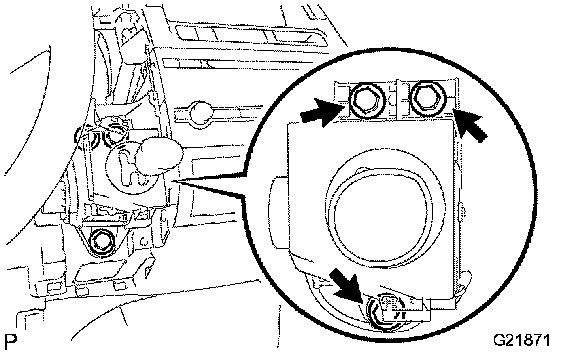

b. Install the shift lever assy with the 3 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft. lbs.)
9. INSPECT SHIFT LEVER ASSY
