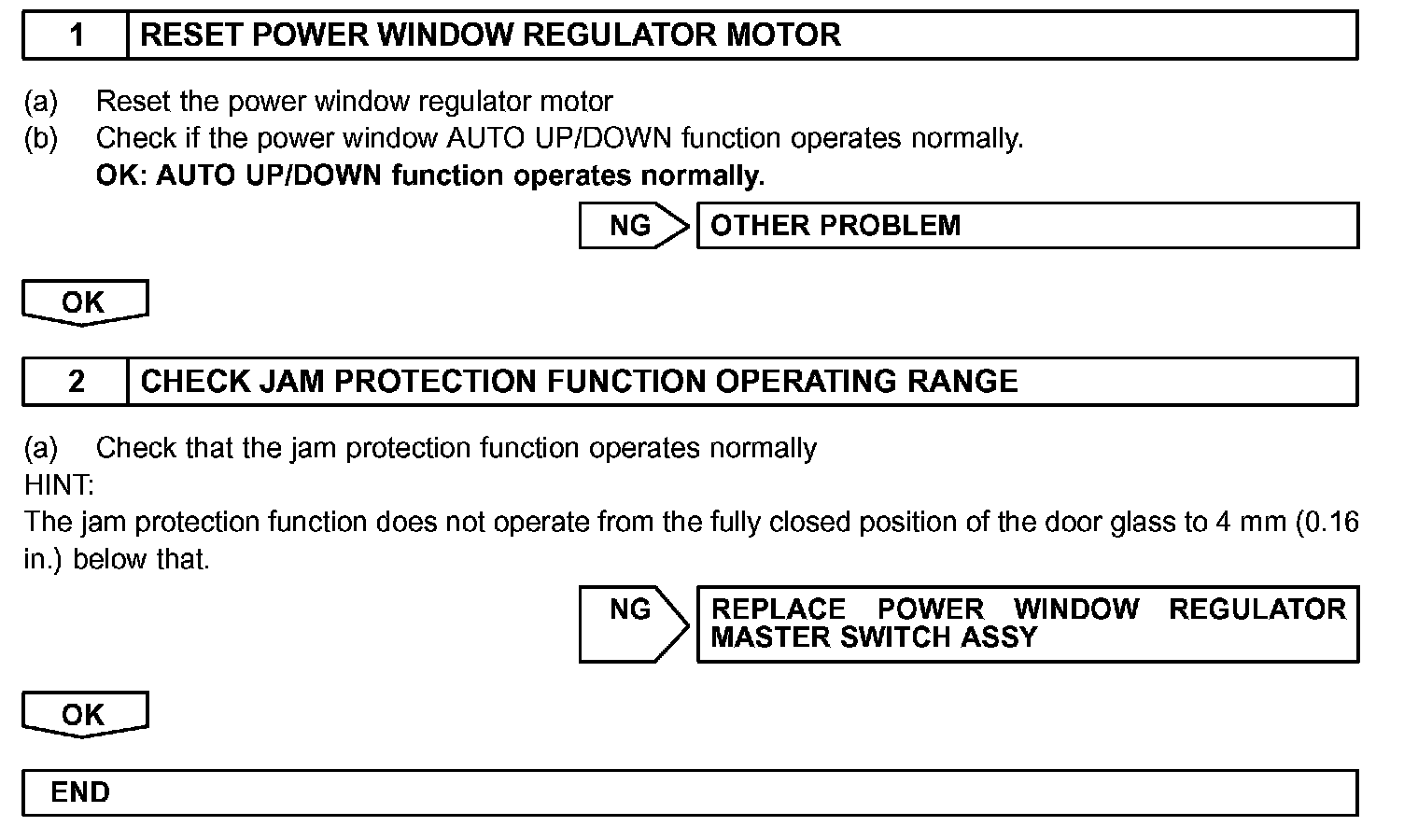

Jam Protection Function Does Not Operate

JAM PROTECTION FUNCTION DOES NOT OPERATE

CIRCUIT DESCRIPTION
The power window regulator master switch assembly controls the driver side power window regulator motor.
The jam protection function only operates within a specified range during AUTO UP operation or key-off manual UP operation.

HINT: The jam protection function is only available on the driver side power window.
