Manual Up/Down Function Does Not Operate On Driver Side

MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON DRIVER SIDE

CIRCUIT DESCRIPTION
If the manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator master switch assembly, the power window regulator motor assembly or the wire harness.

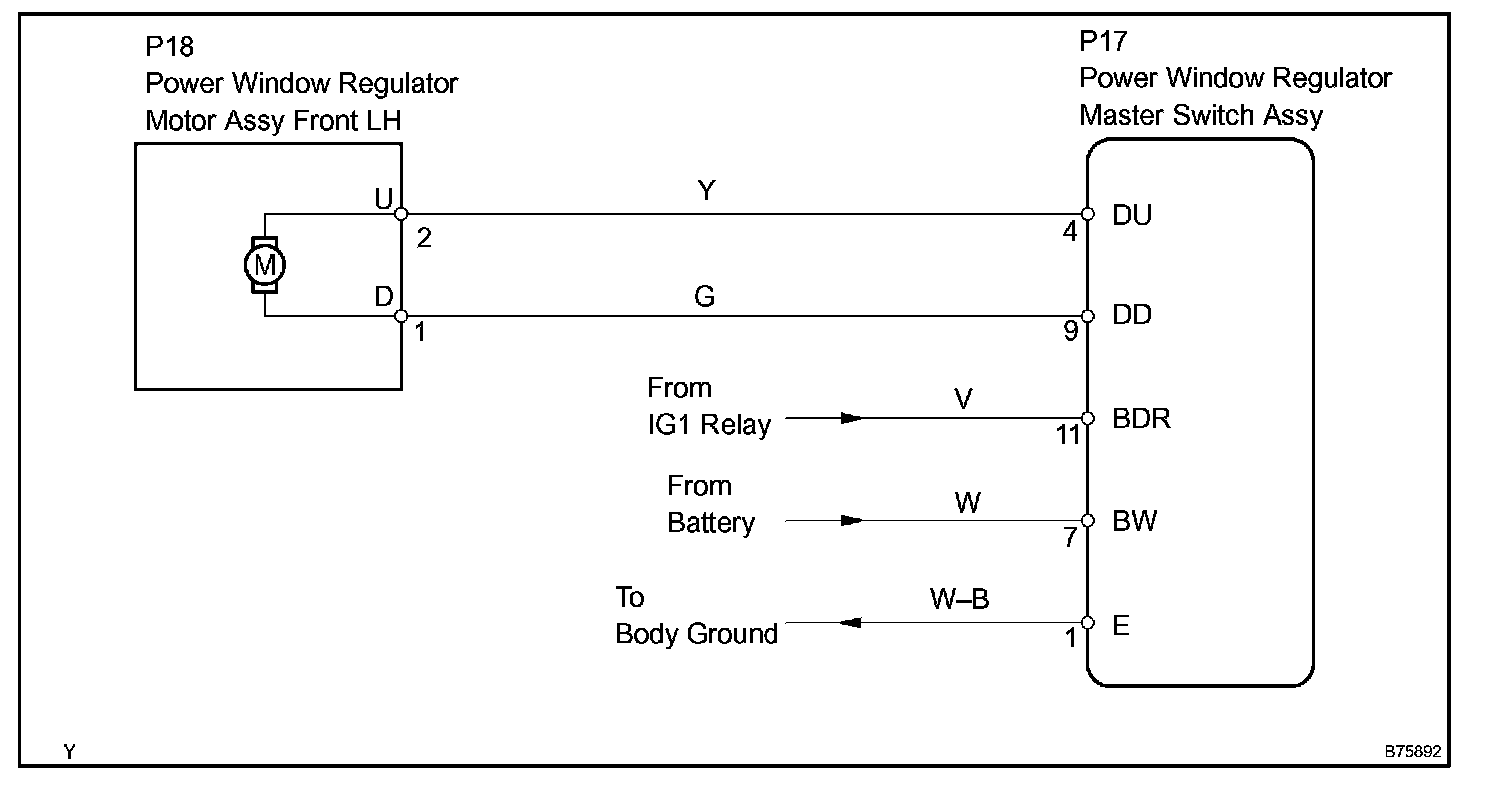

Wiring Diagram:

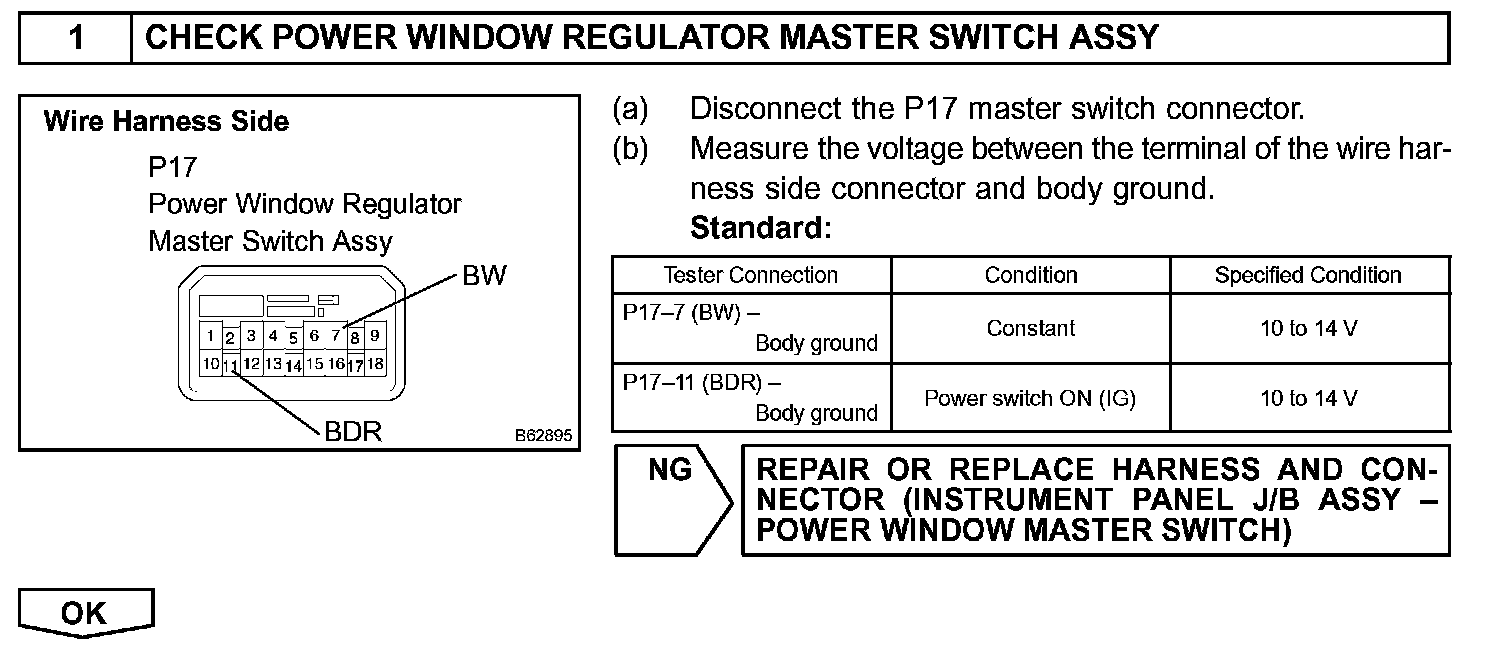

Step 1:

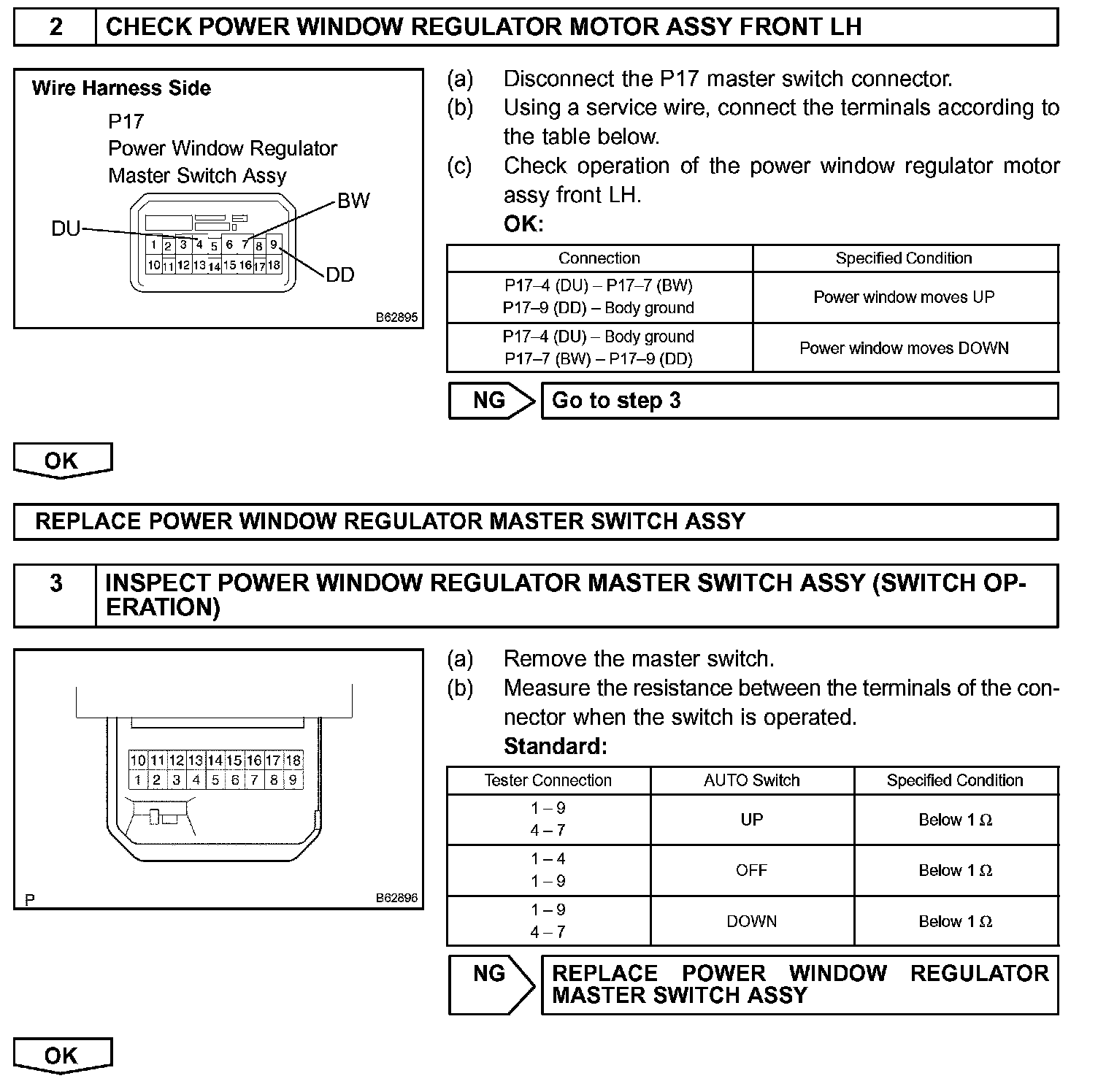

Step 2 - 3:

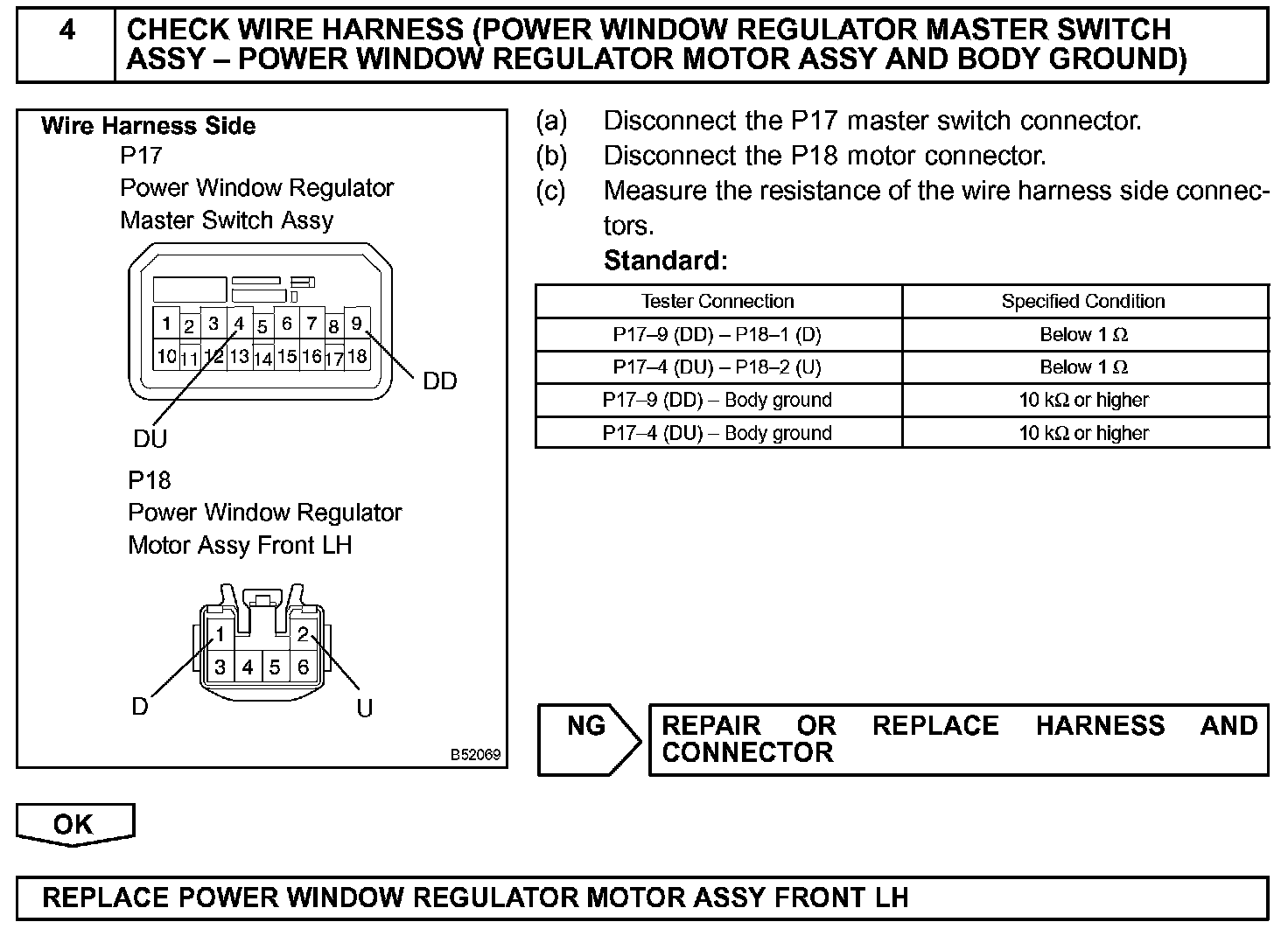

Step 4:

INSPECTION PROCEDURE
