Manual Up/Down Function Does Not Operate On Passenger Side Only

MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON PASSENGER SIDE ONLY

CIRCUIT DESCRIPTION
If the passenger side manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator motor assembly front RH, the power window regulator switch assembly front RH or the wire harness.

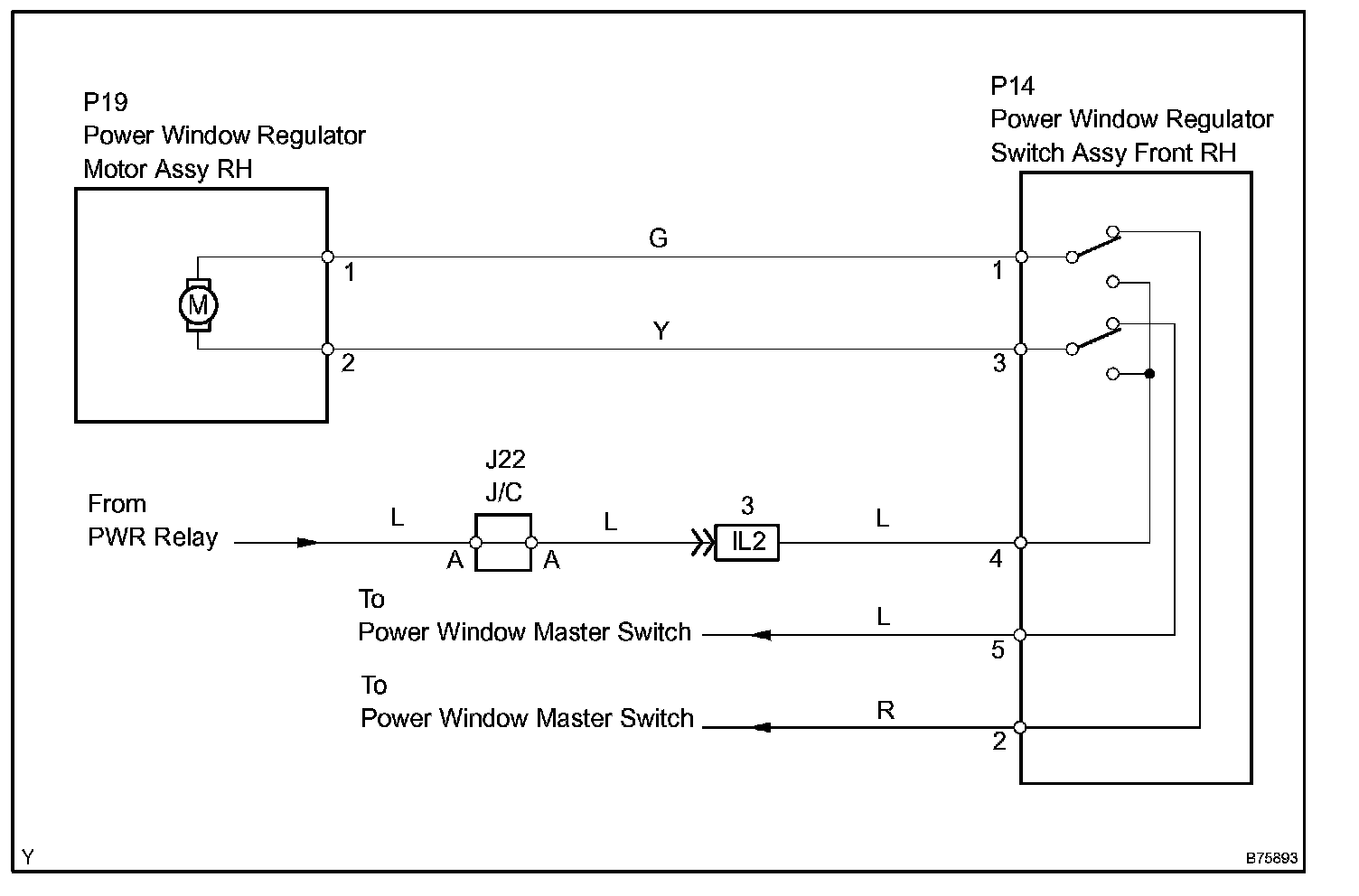

Wiring Diagram:

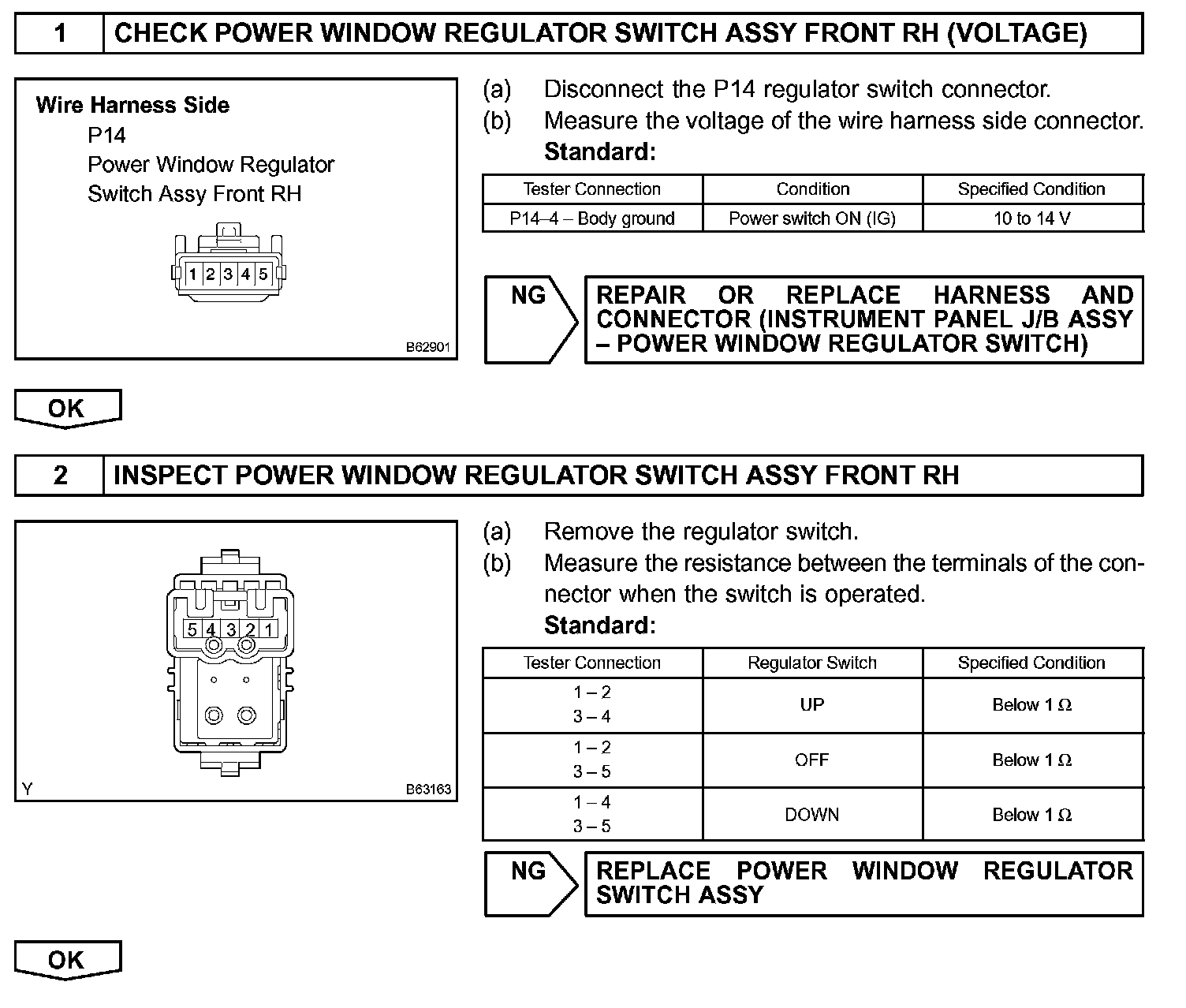

Step 1 - 2:

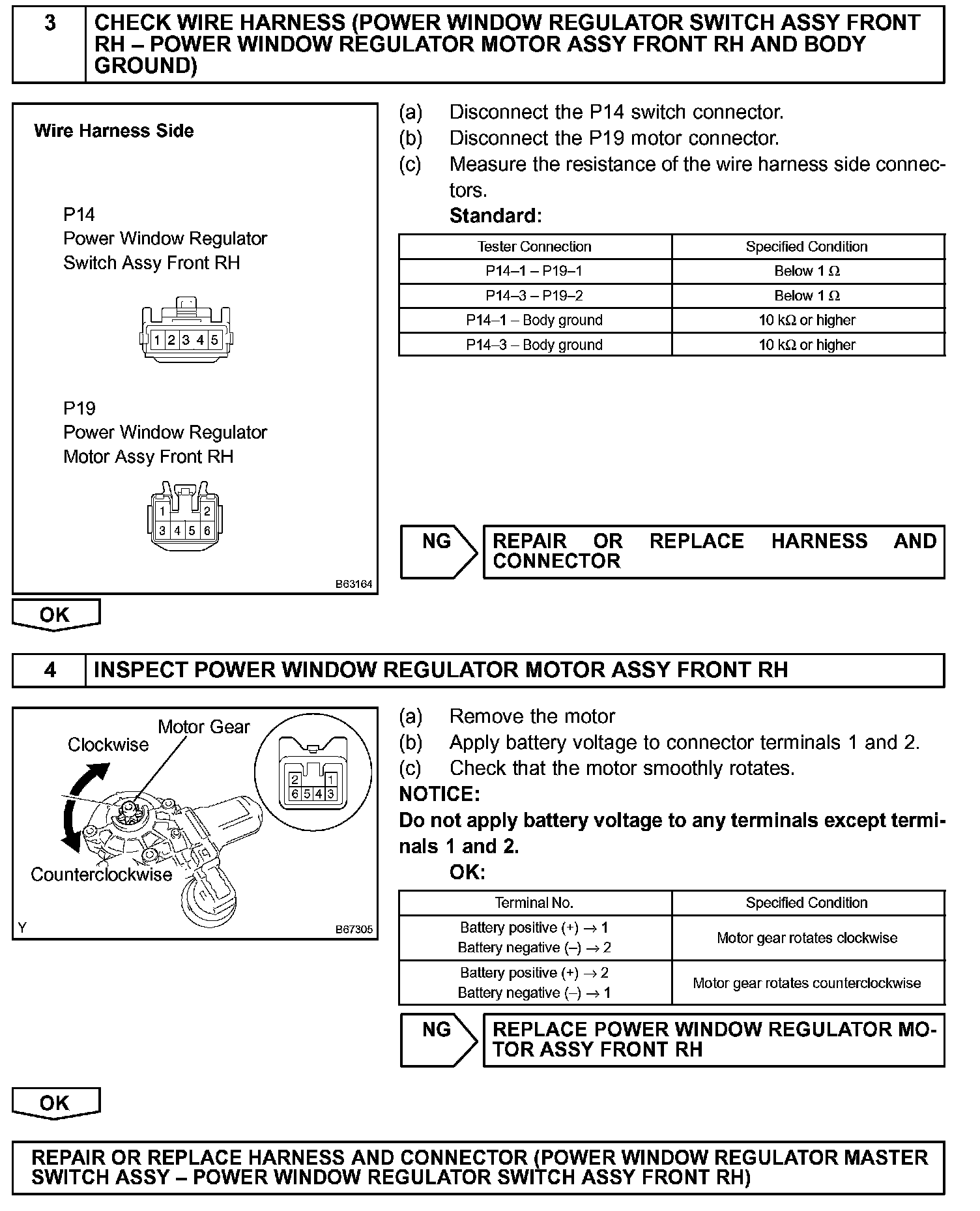

Step 3 - 4:

INSPECTION PROCEDURE
