Manual Up/Down Function Does Not Operate On Rear LH Side Only

MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON REAR LH SIDE ONLY

CIRCUIT DESCRIPTION
If the rear LH side manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator motor assembly rear LH, the power window regulator switch assembly rear LH or the wire harness.

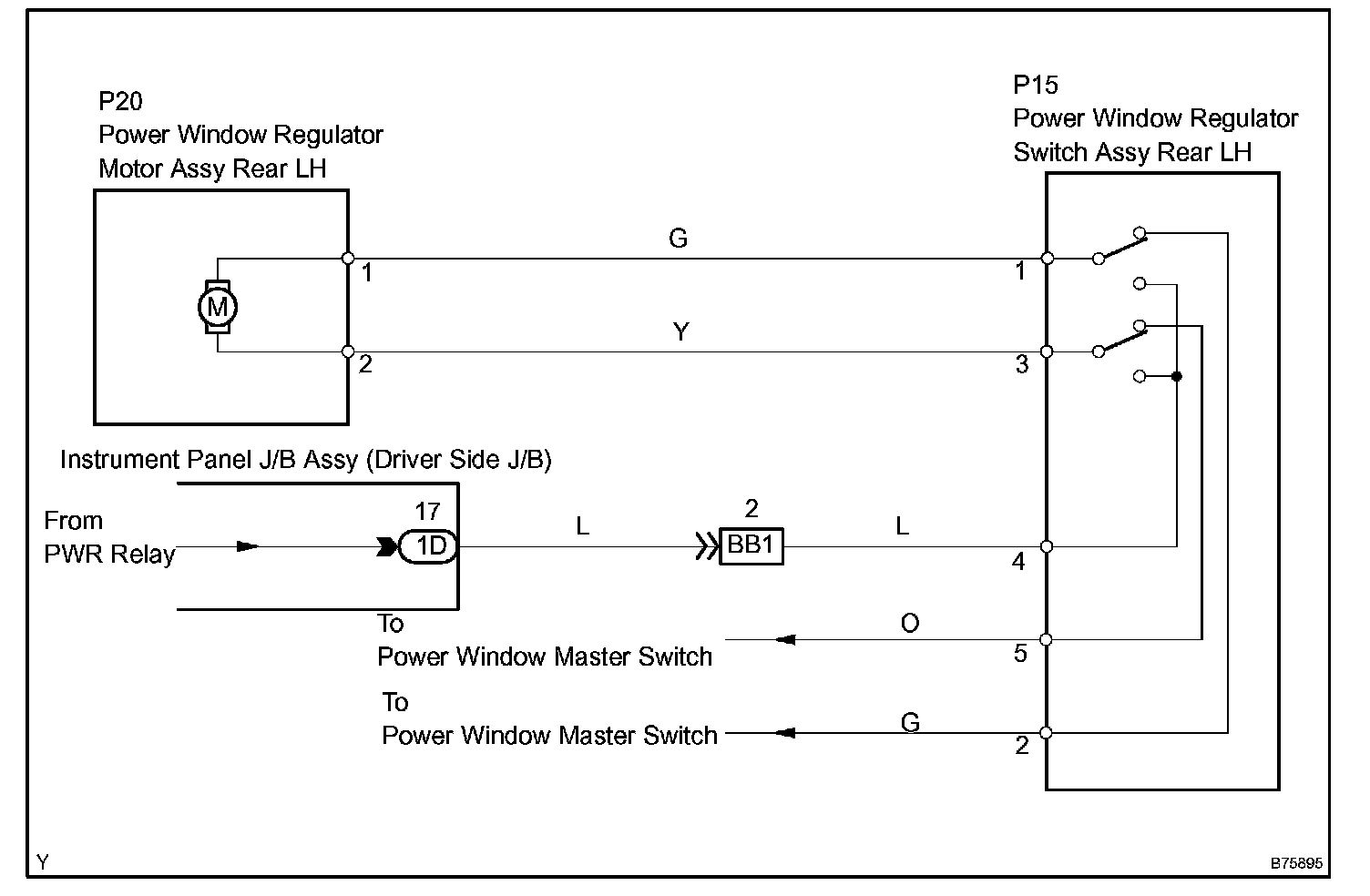

Wiring Diagram:

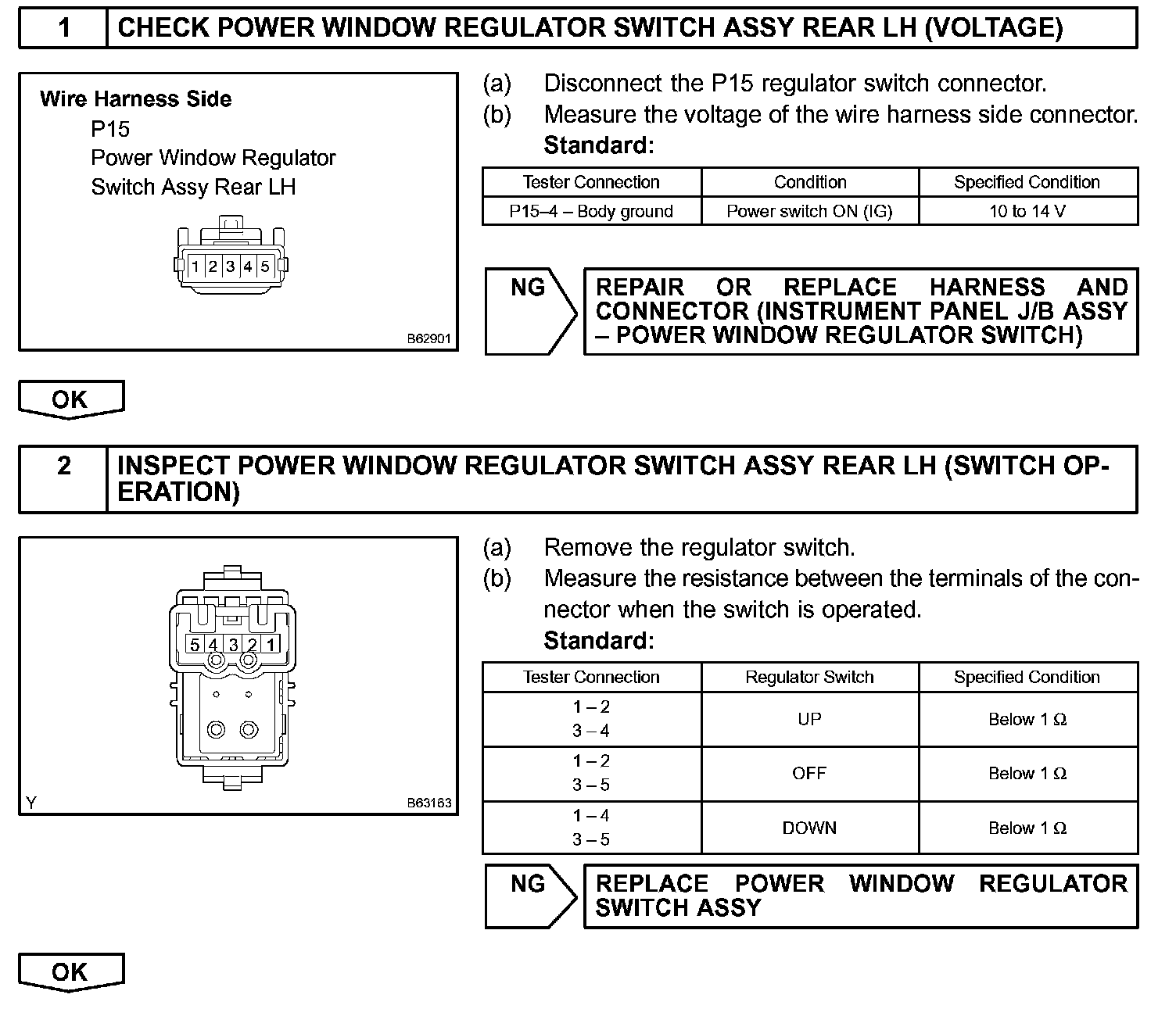

Step 1 - 2:

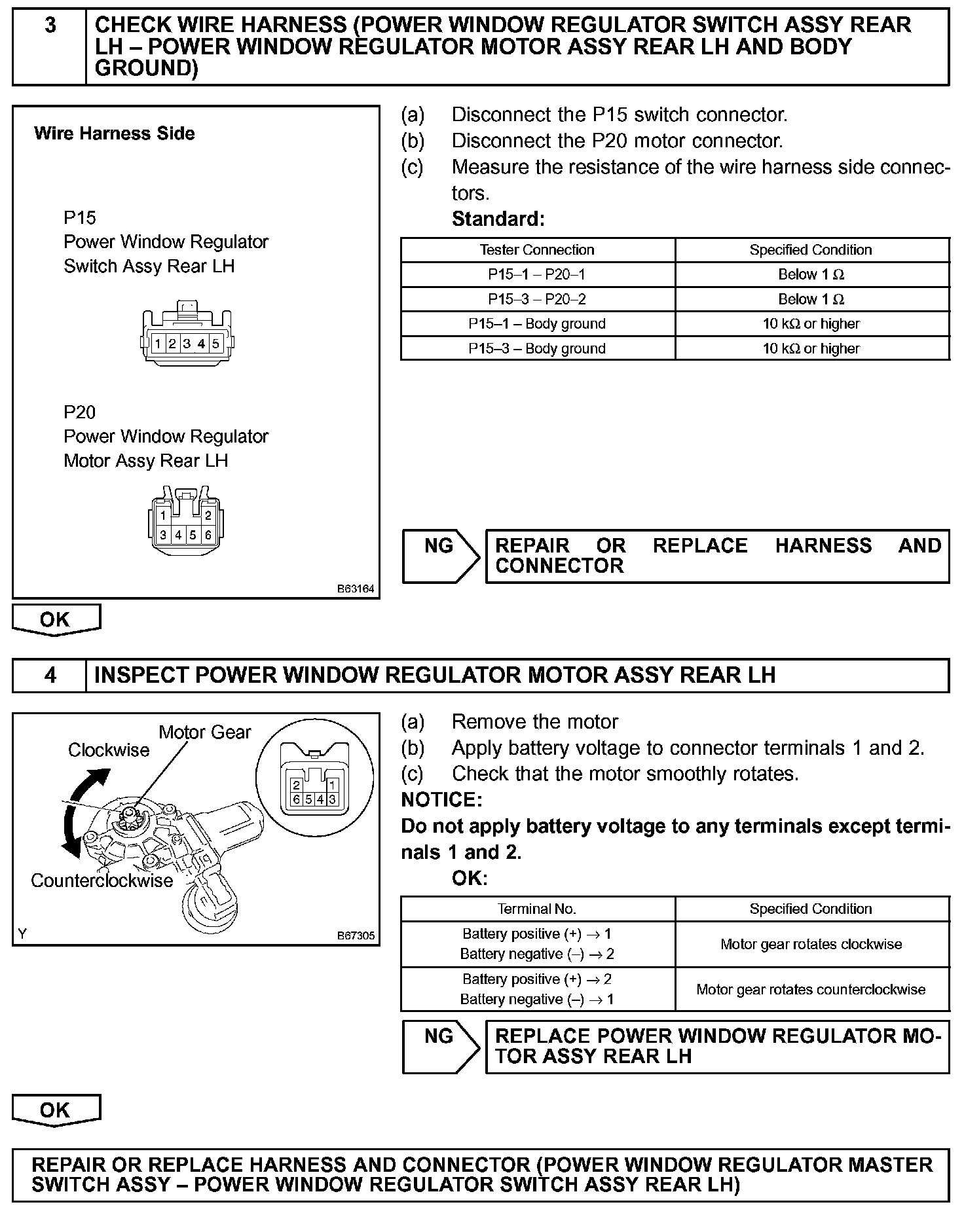

Step 3 - 4:

INSPECTION PROCEDURE
