Manual Up/Down Function Does Not Operate On Rear RH Side Only
MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON REAR RH SIDE ONLYCIRCUIT DESCRIPTION
If the rear RH side manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator motor assembly rear RH, the power window regulator switch assembly rear RH or the wire harness.

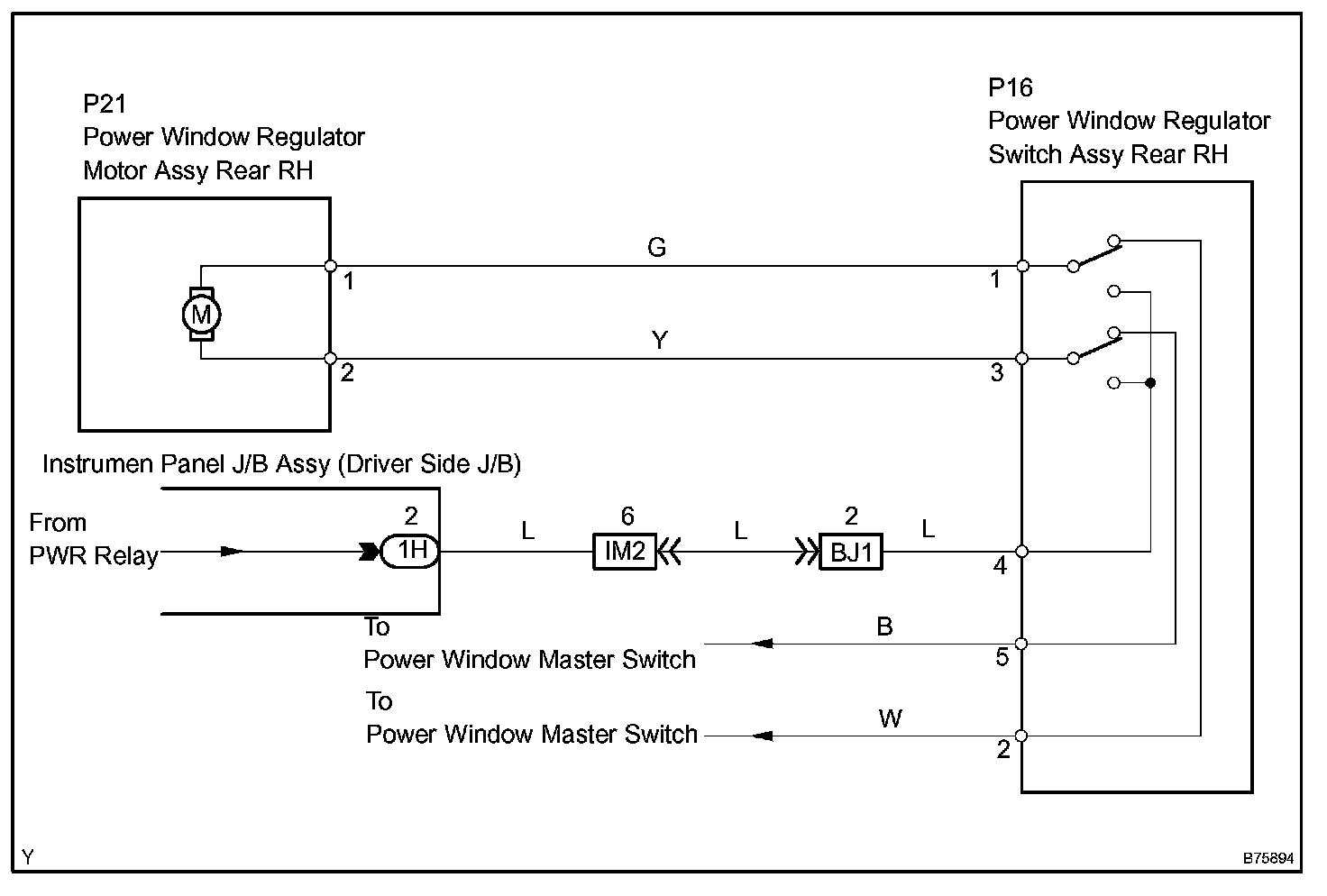

Wiring Diagram:

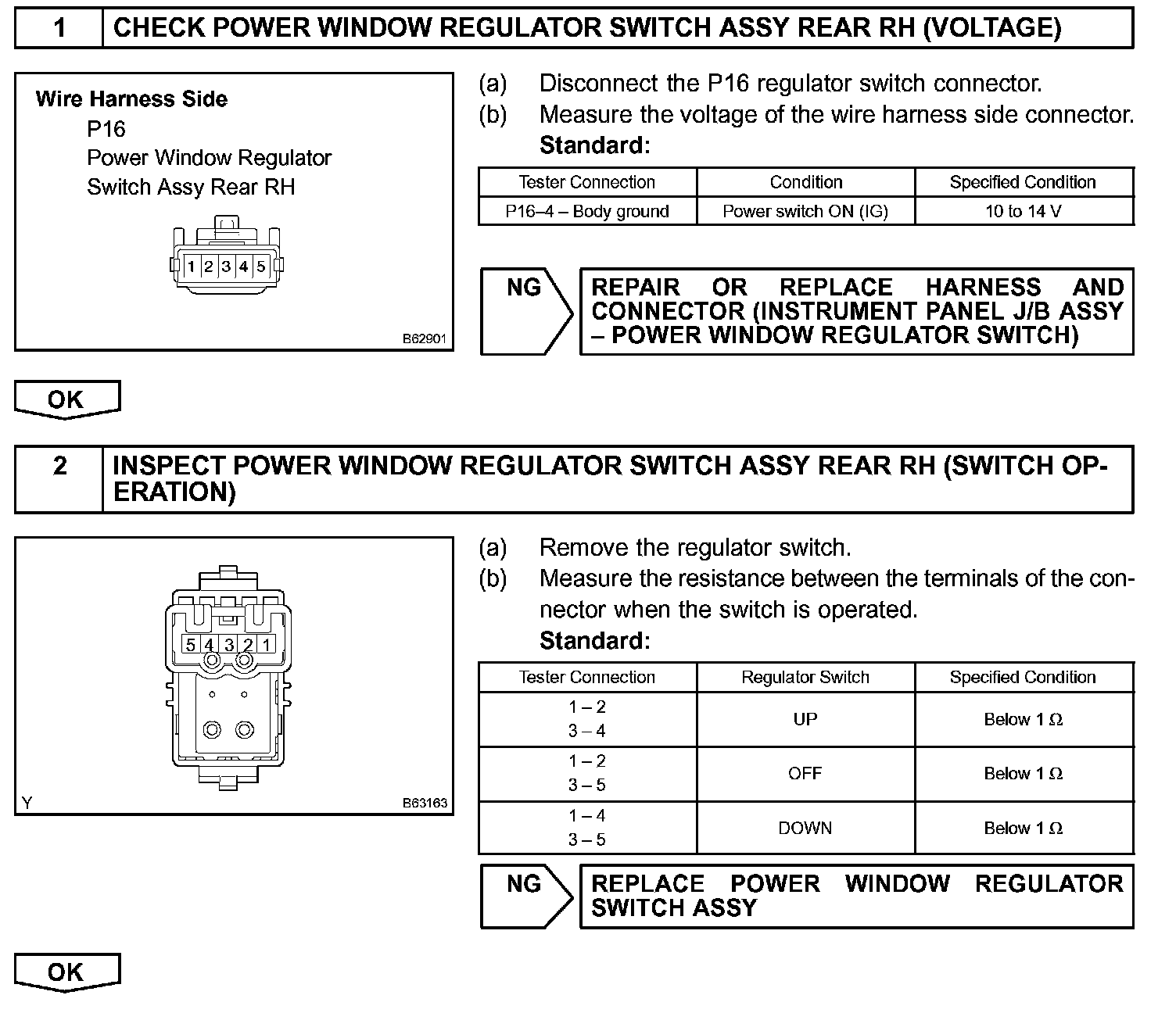

Step 1 - 2:

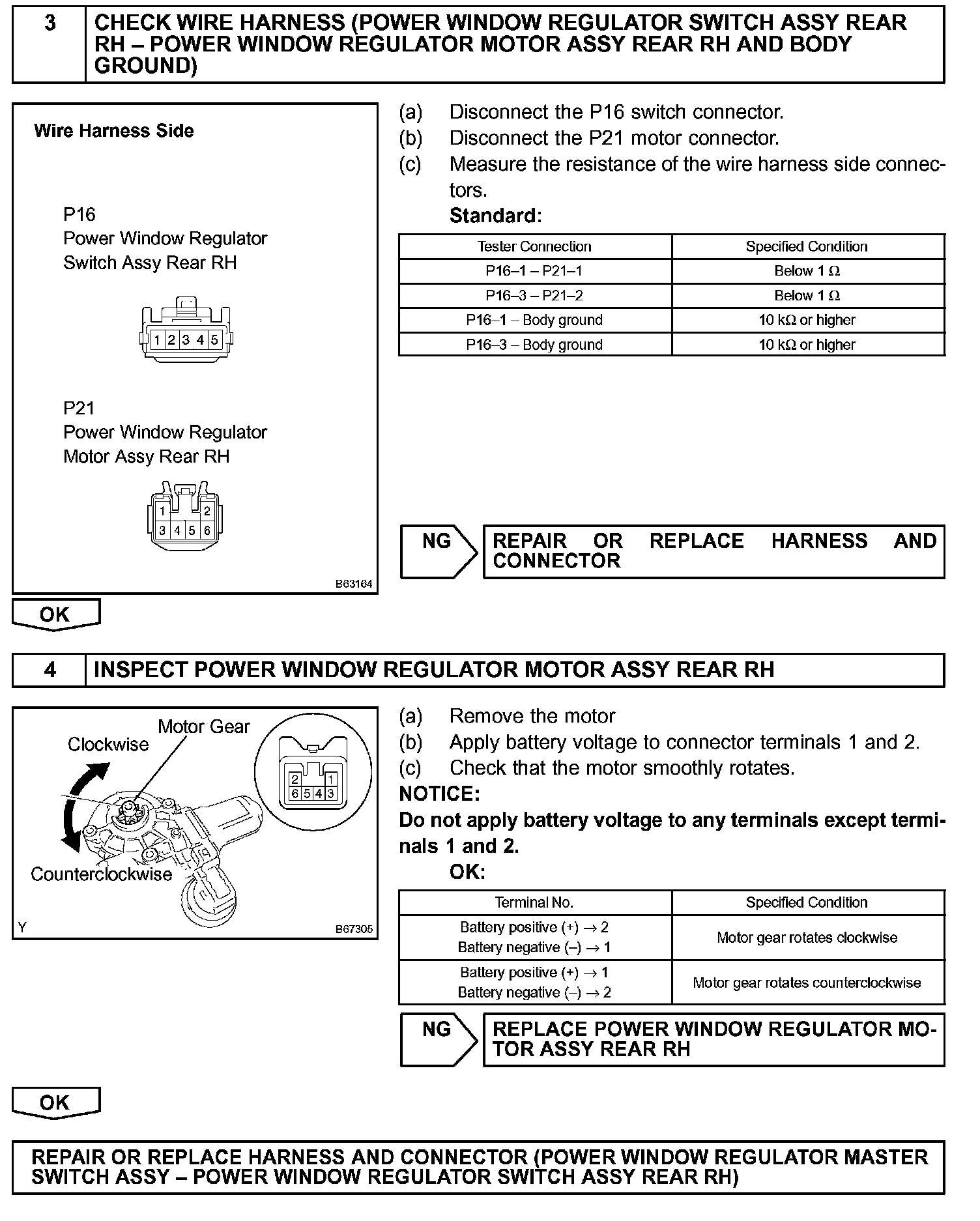

Step 3 - 4:
INSPECTION PROCEDURE
