Power Windows Do Not Operate At All

POWER WINDOWS DO NOT OPERATE AT ALL

CIRCUIT DESCRIPTION
If all of the power windows do not operate, the power window regulator master switch assembly may have no power or may be malfunctioning.

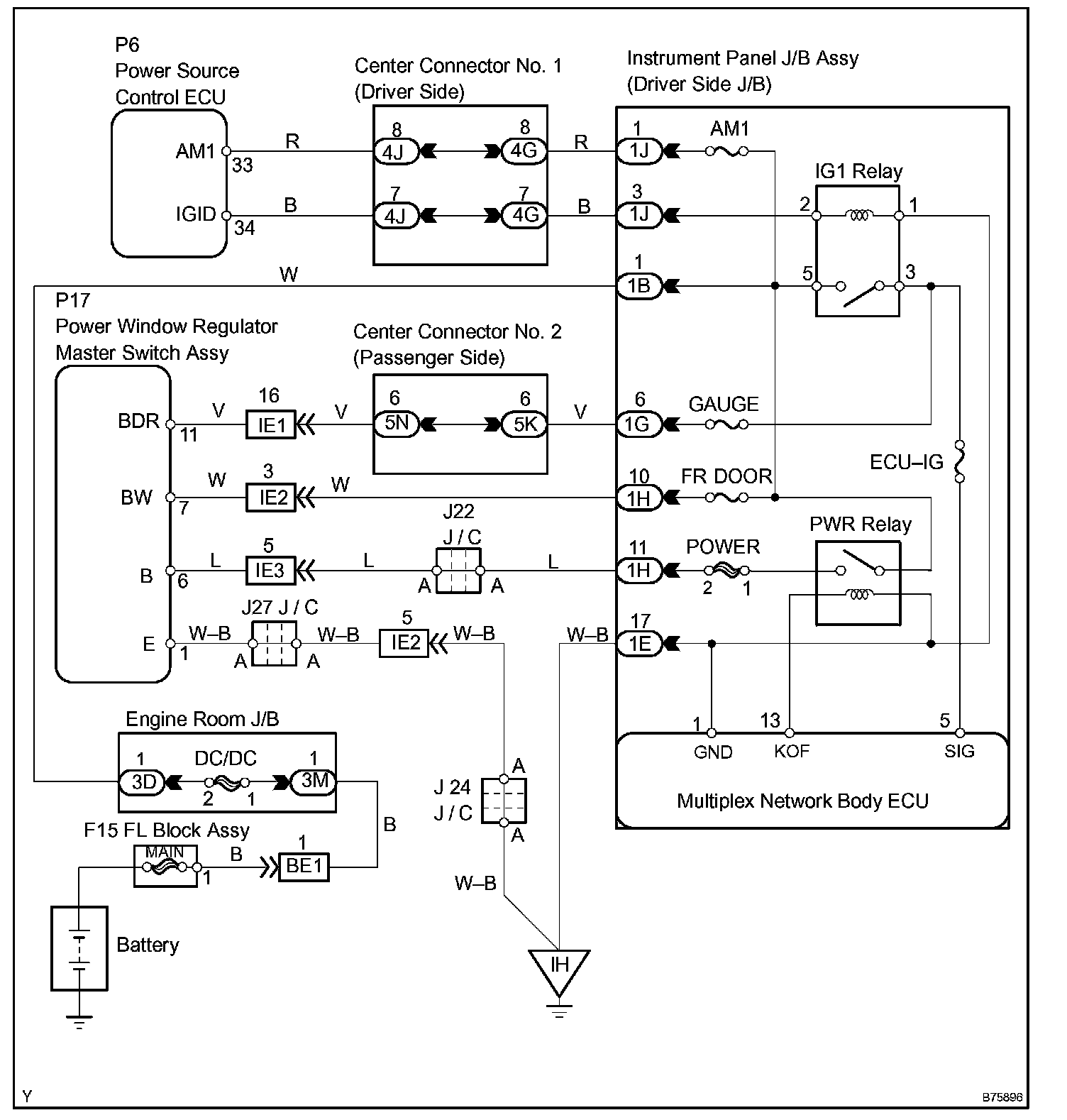

Wiring Diagram:

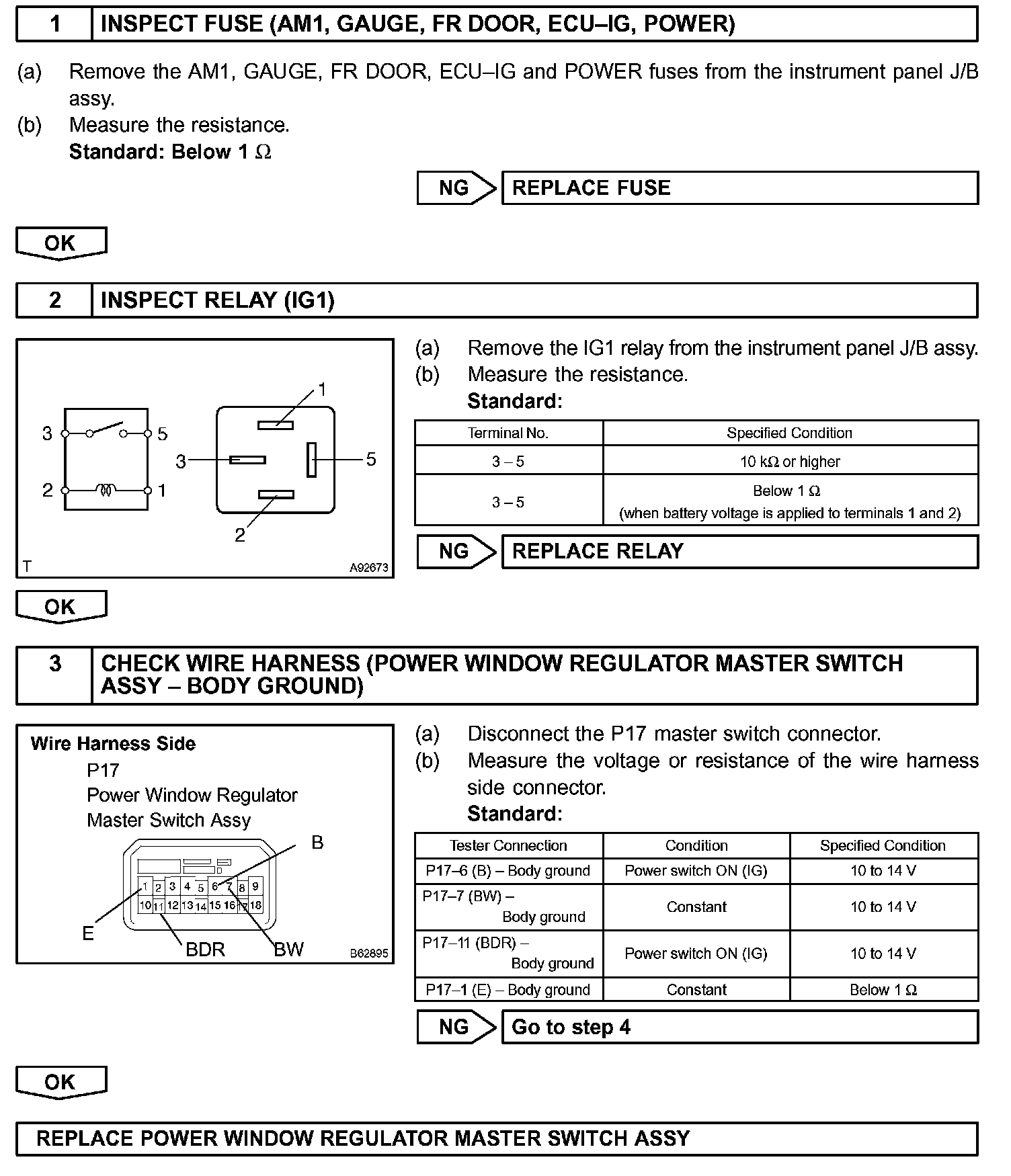

Step 1 - 3:

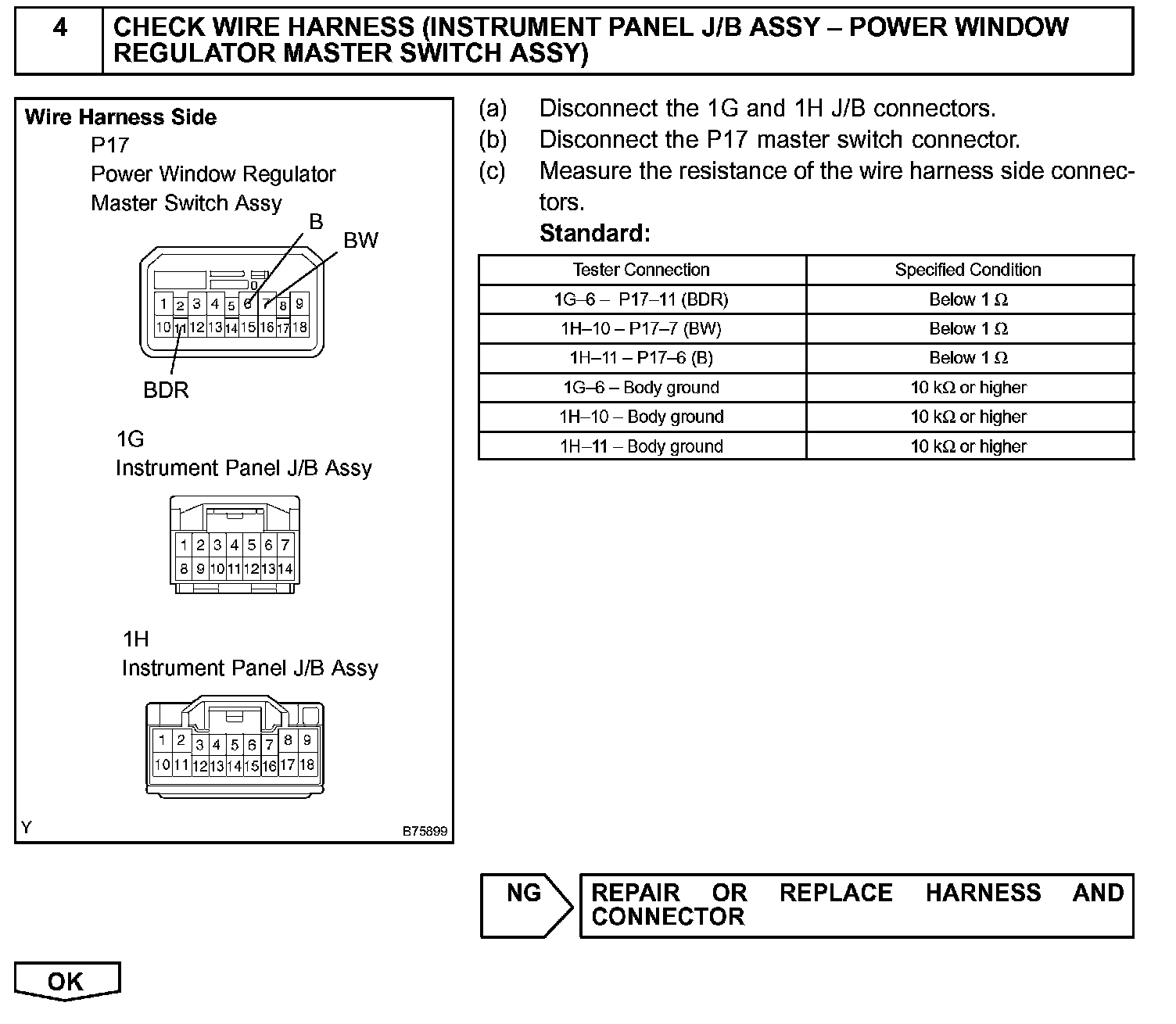

Step 4:

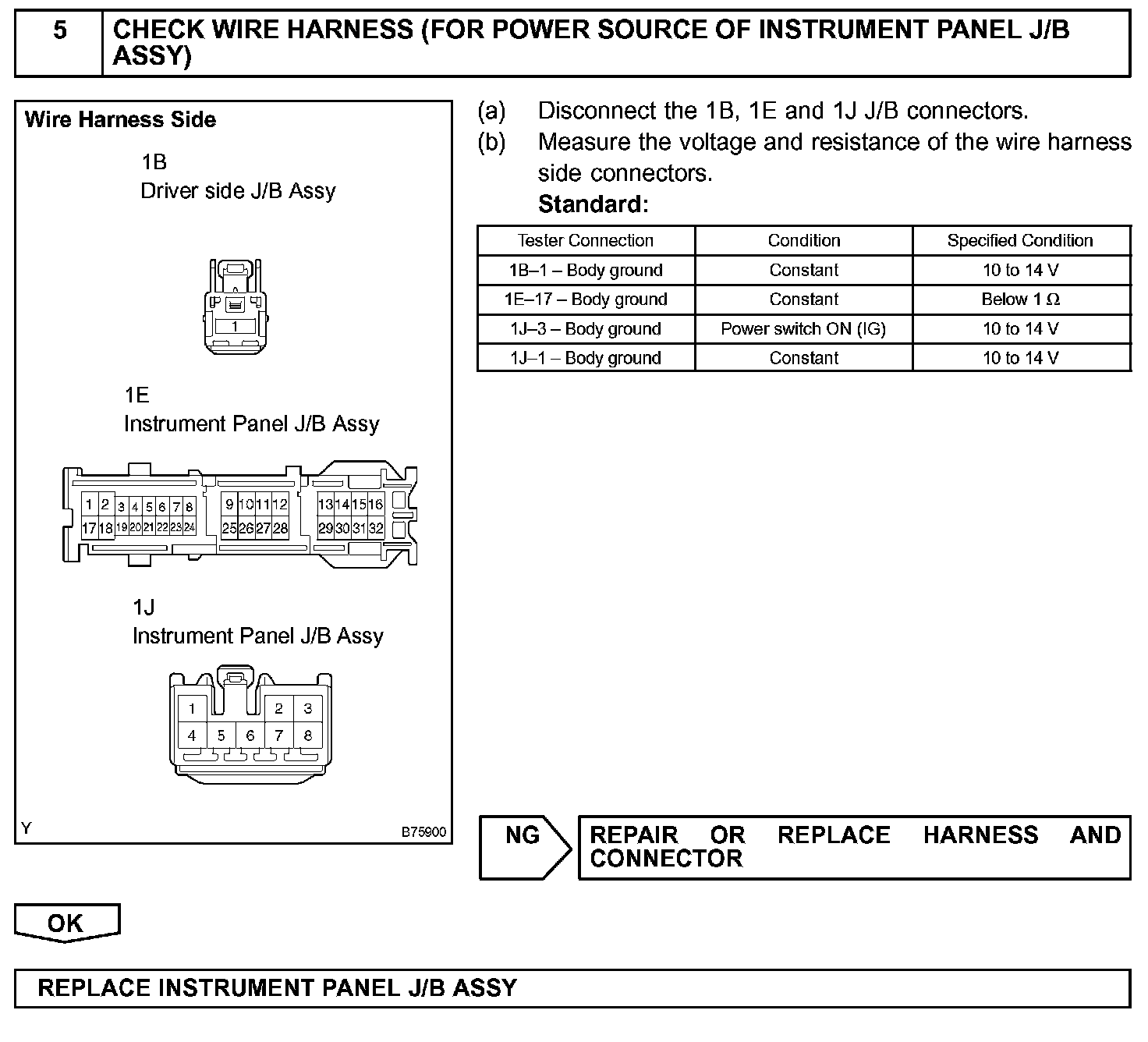

Step 5:




INSPECTION PROCEDURE
