Remote Up/Down Function Does Not Operate

REMOTE UP/DOWN FUNCTION DOES NOT OPERATE

CIRCUIT DESCRIPTION
With the power switch ON (IG), the power window regulator master switch assembly transmits remote switch signals to the regulator switches of the passenger door power window and rear door power windows. Then, the regulator switches drive the power window regulator motors.

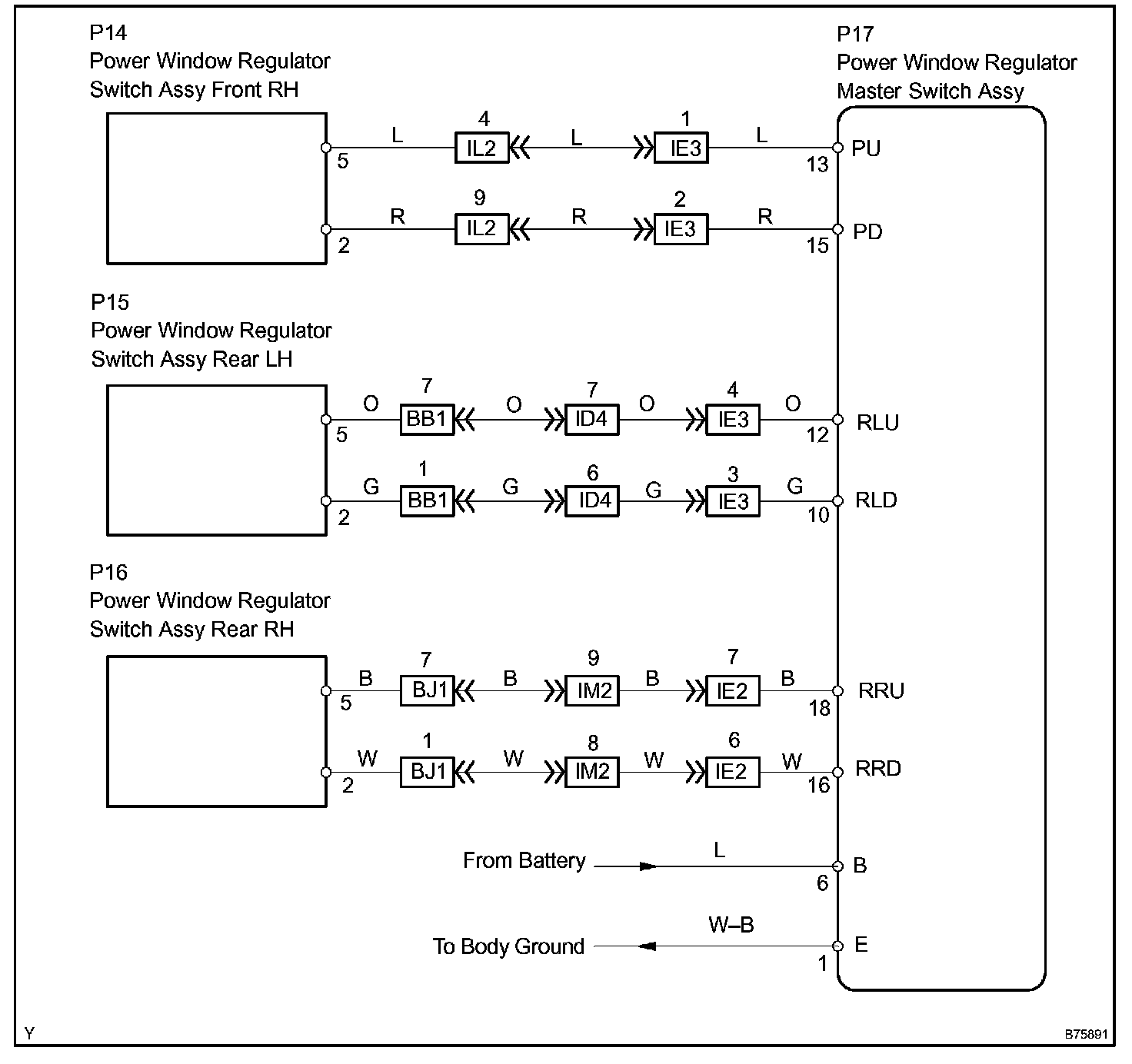

Wiring Diagram:

Step 1 - 3:

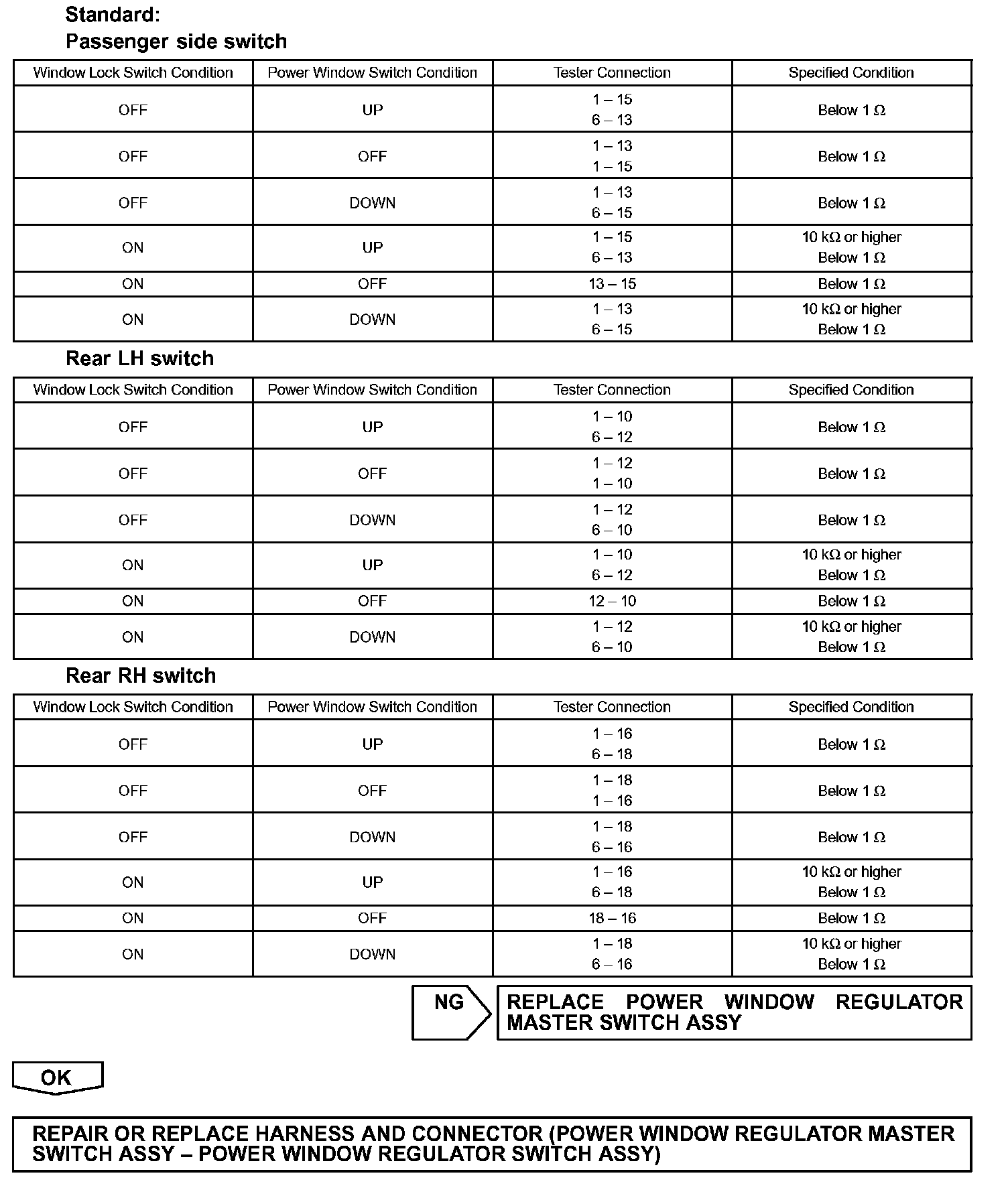

Step 3 (Continued):

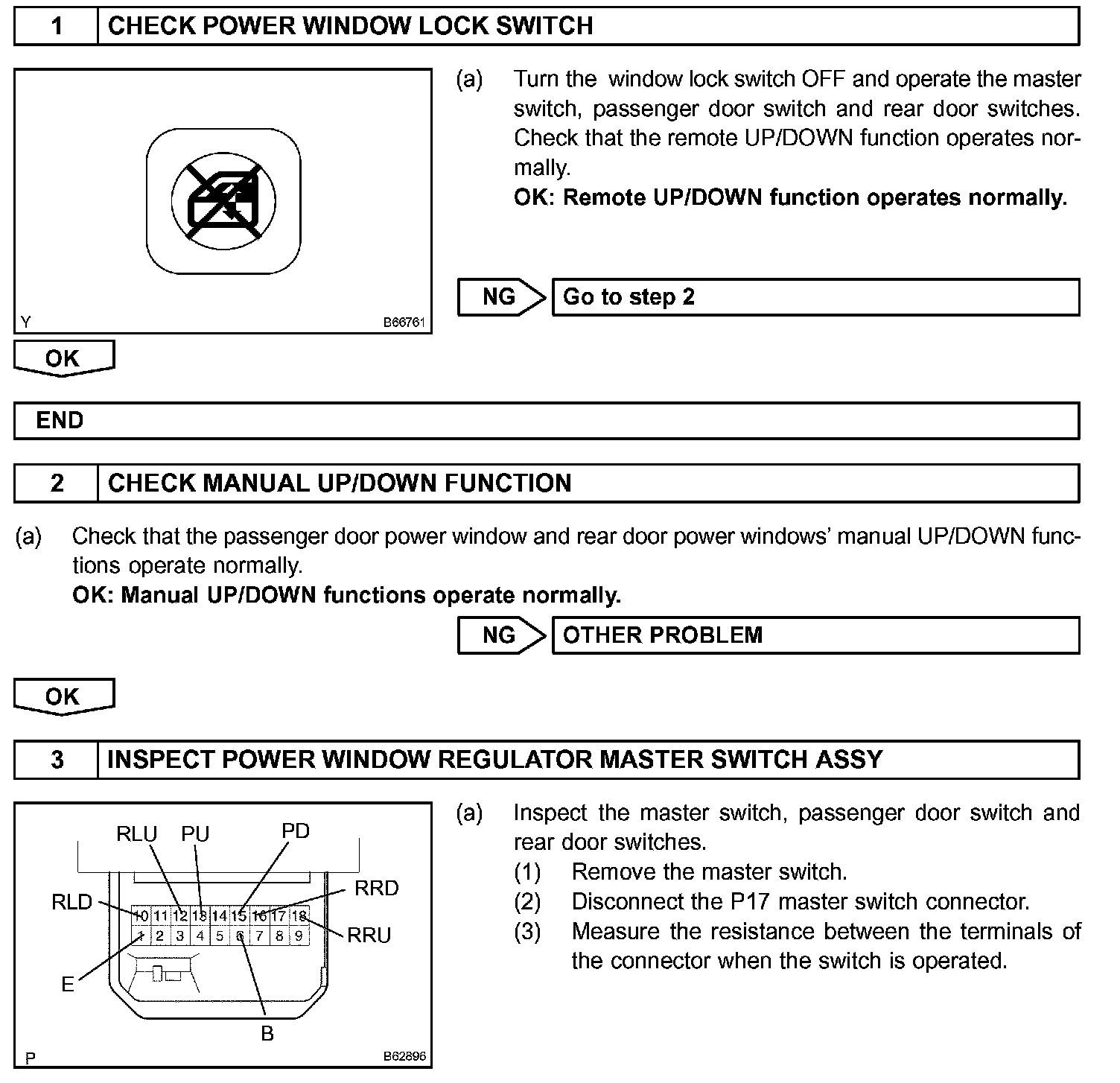

INSPECTION PROCEDURE
