Windshield Washer Spray Nozzle: Adjustments

WASHER NOZZLE

ADJUSTMENT




1. INSPECT WASHER NOZZLE
a. With the power switch on (IG), check the position that the washer fluid hits the windshield.

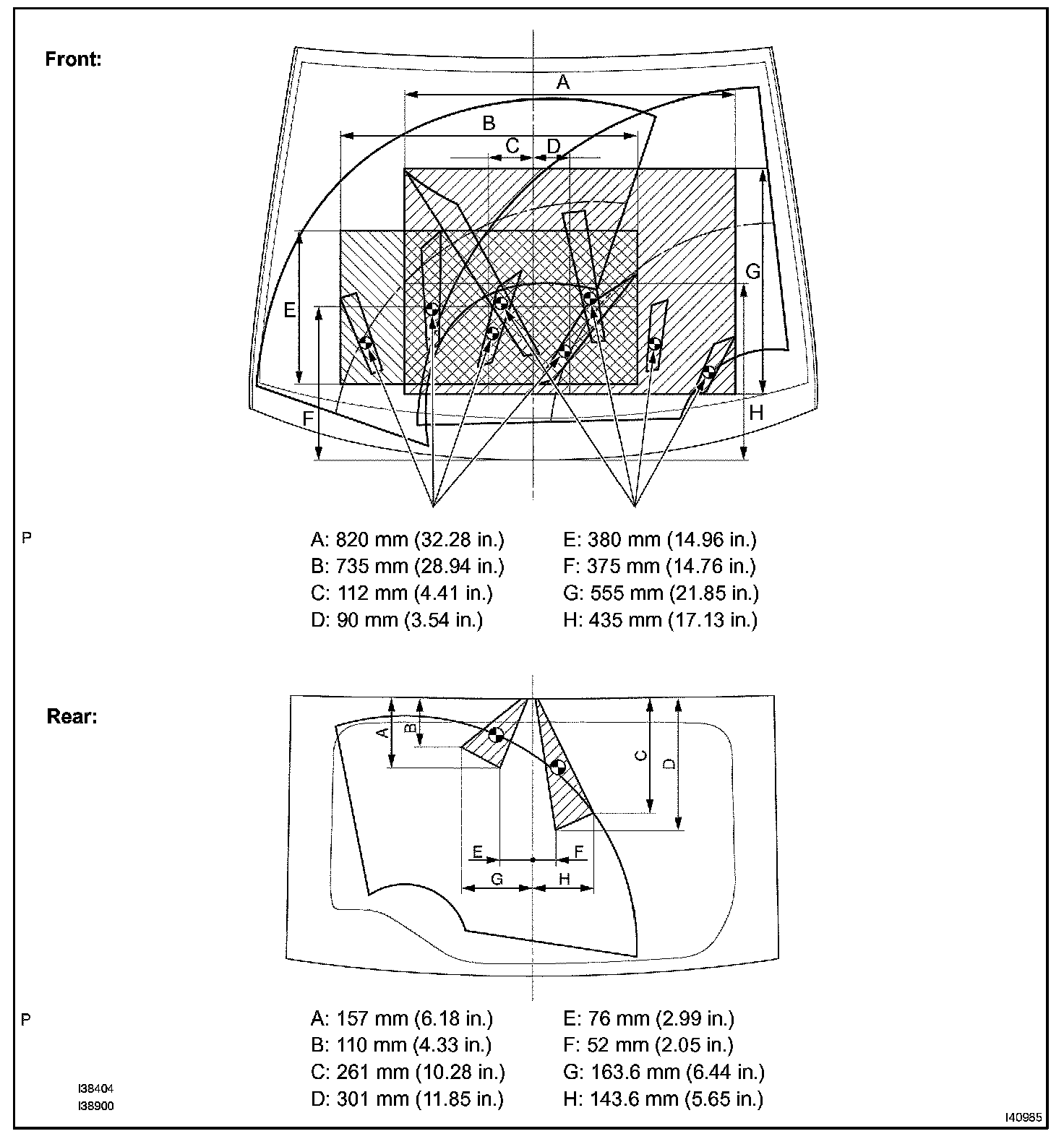

Standard: Washer fluid hits the windshield in the areas indicated in the illustration.




2. ADJUST WASHER NOZZLE

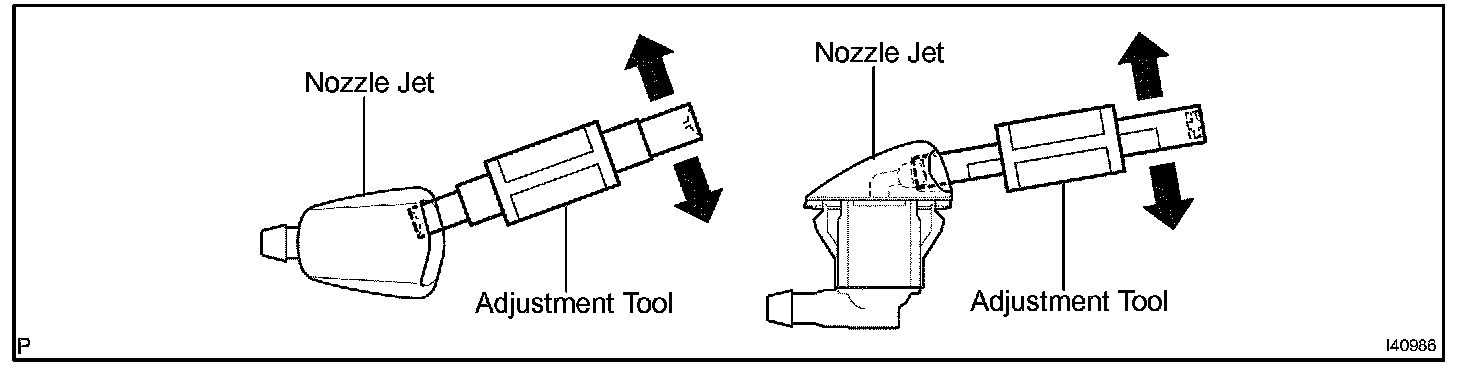

a. Using a TOYOTA 4 Way Nozzle Adjustment Tool (part number: 95060-10010), insert the bumpy potions of the adjustment tool into the bumpy potions of the nozzle jet and make the adjustment.

NOTE:
- Clarify which type of washer nozzle is being adjusted, as two types (4 mm and 5 mm diameter types) exist.
- Do not use a metal pin or other such tool as it may damage the nozzle jet.
