Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

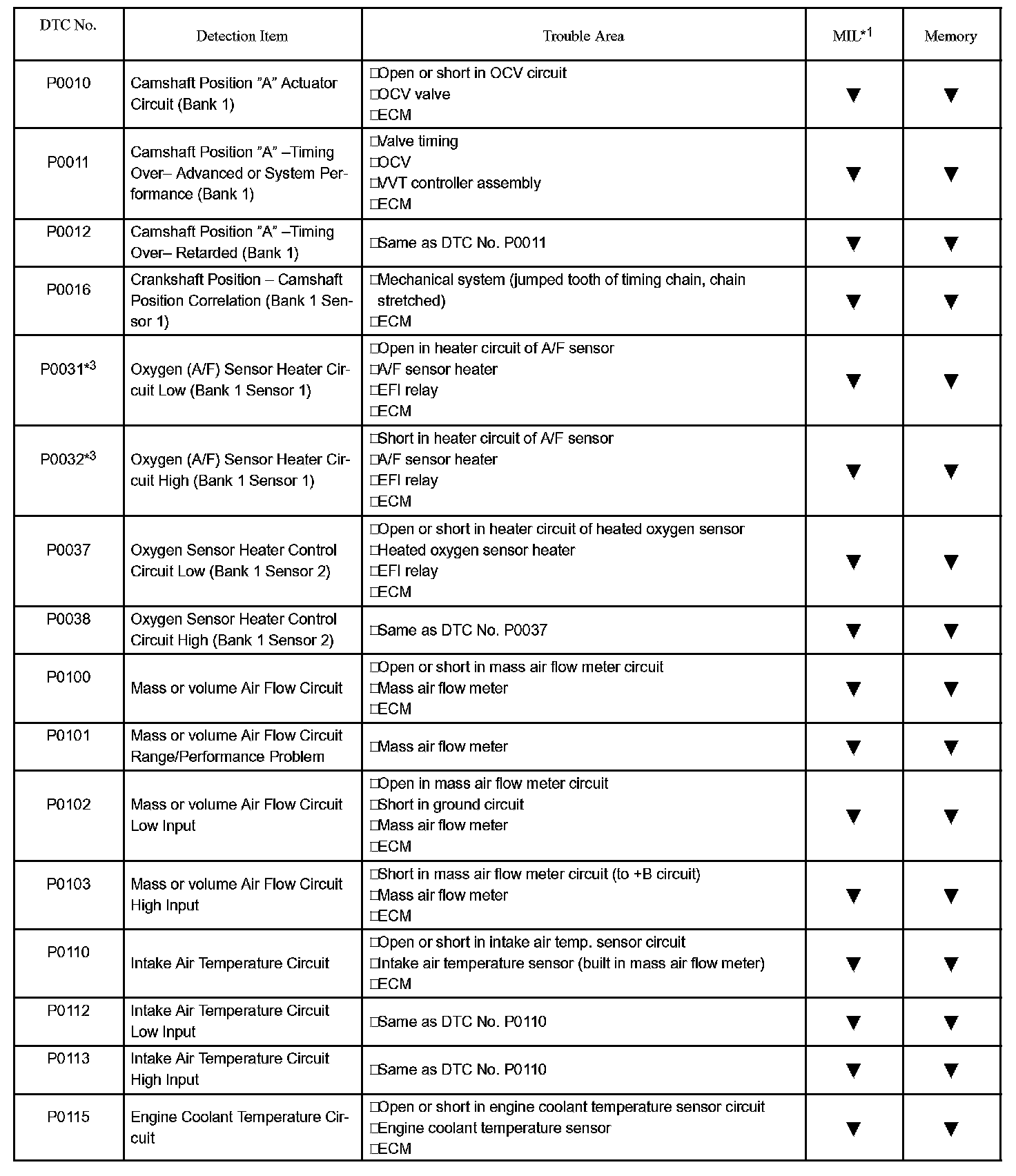

P0010 - P0115:

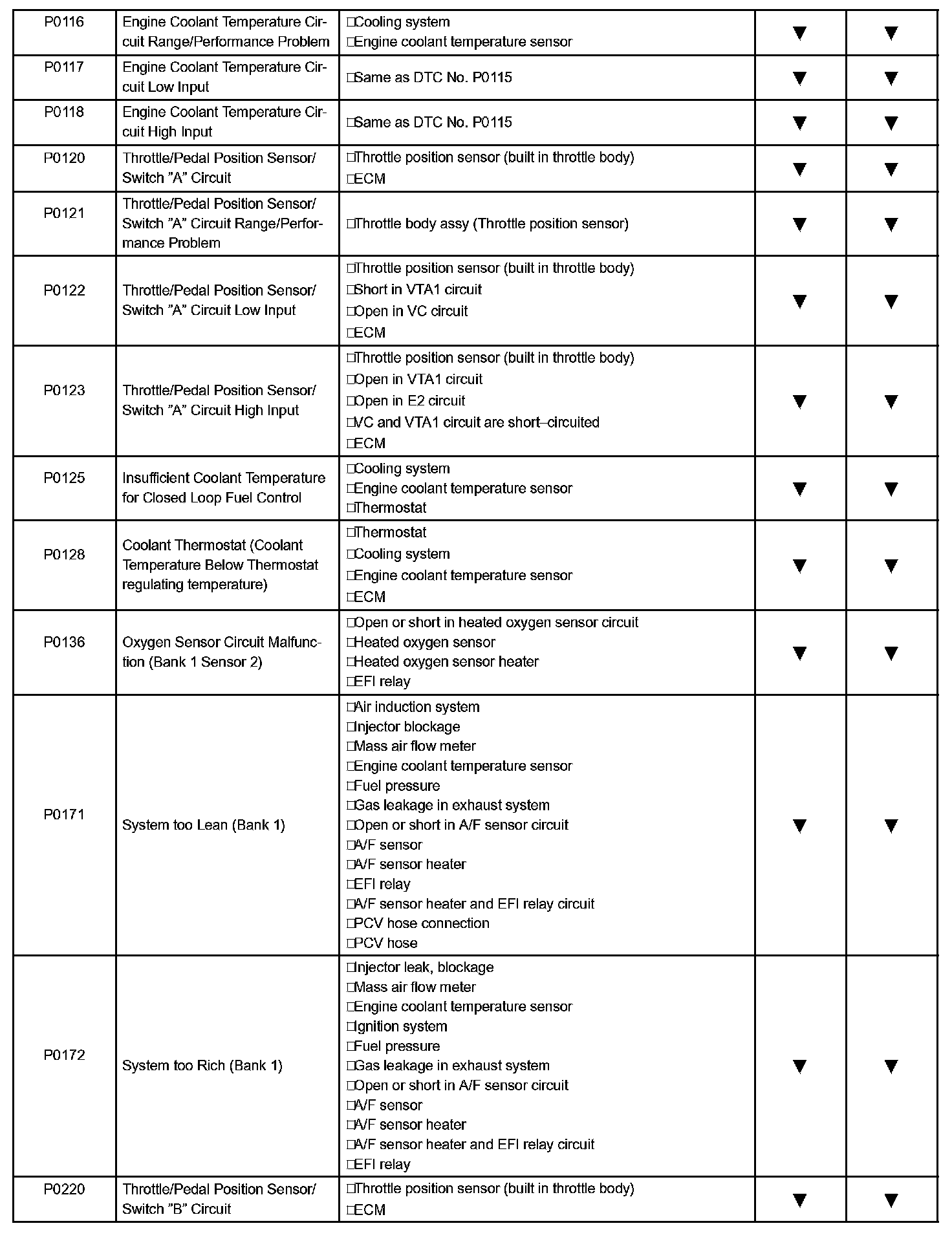

P0116 - P0220:

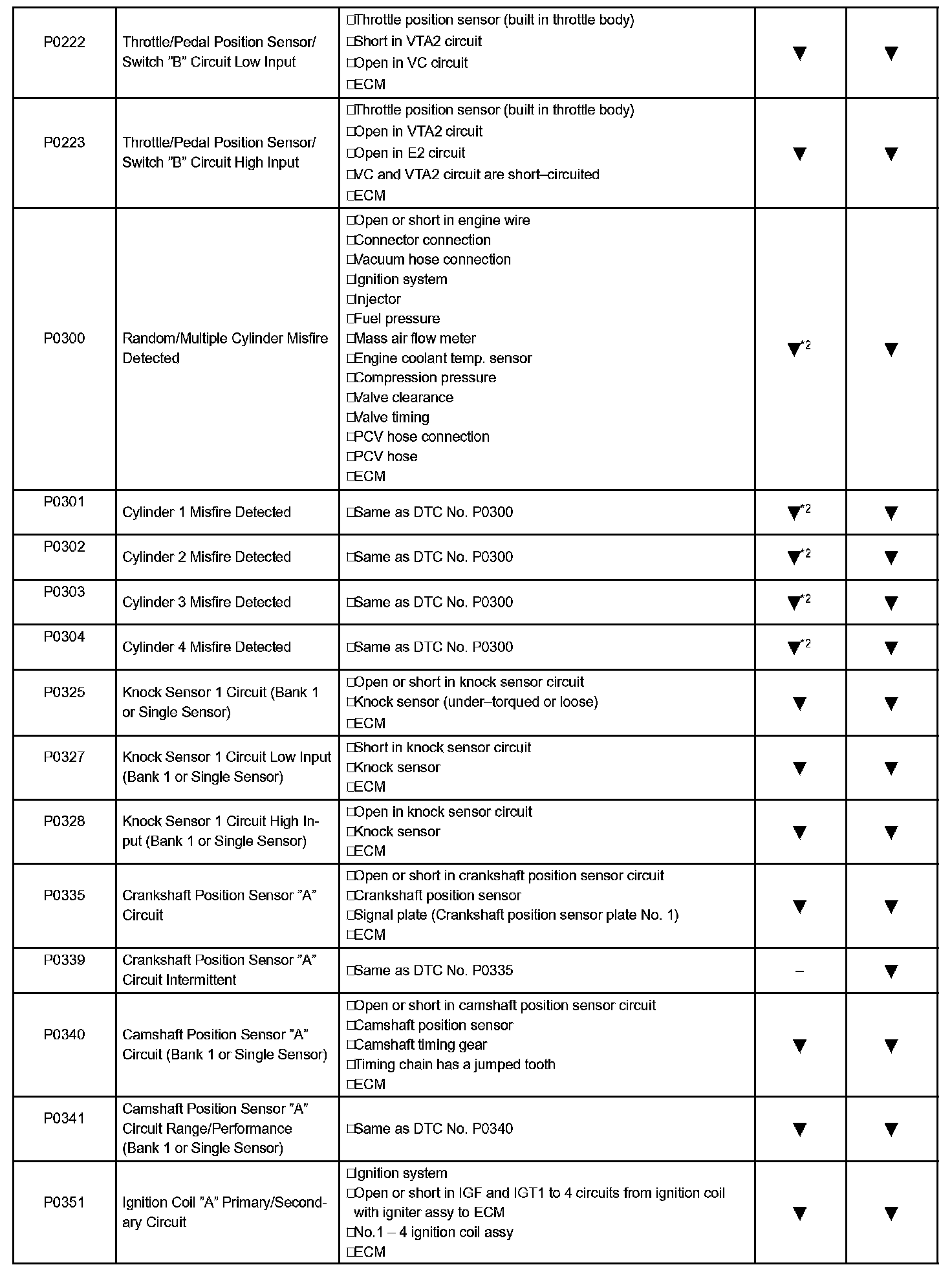

P0222 - P0351:

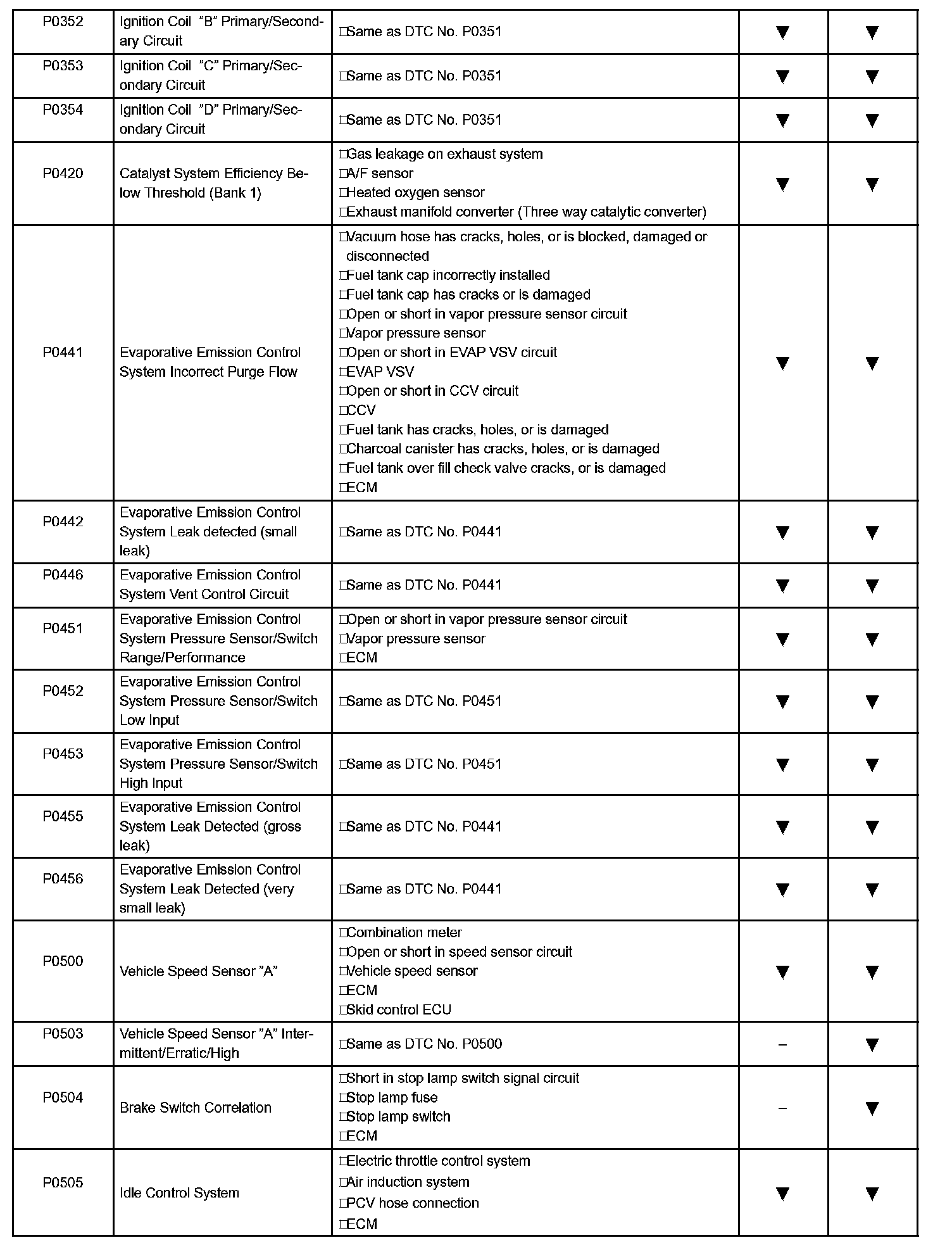

P0352 - P0505:

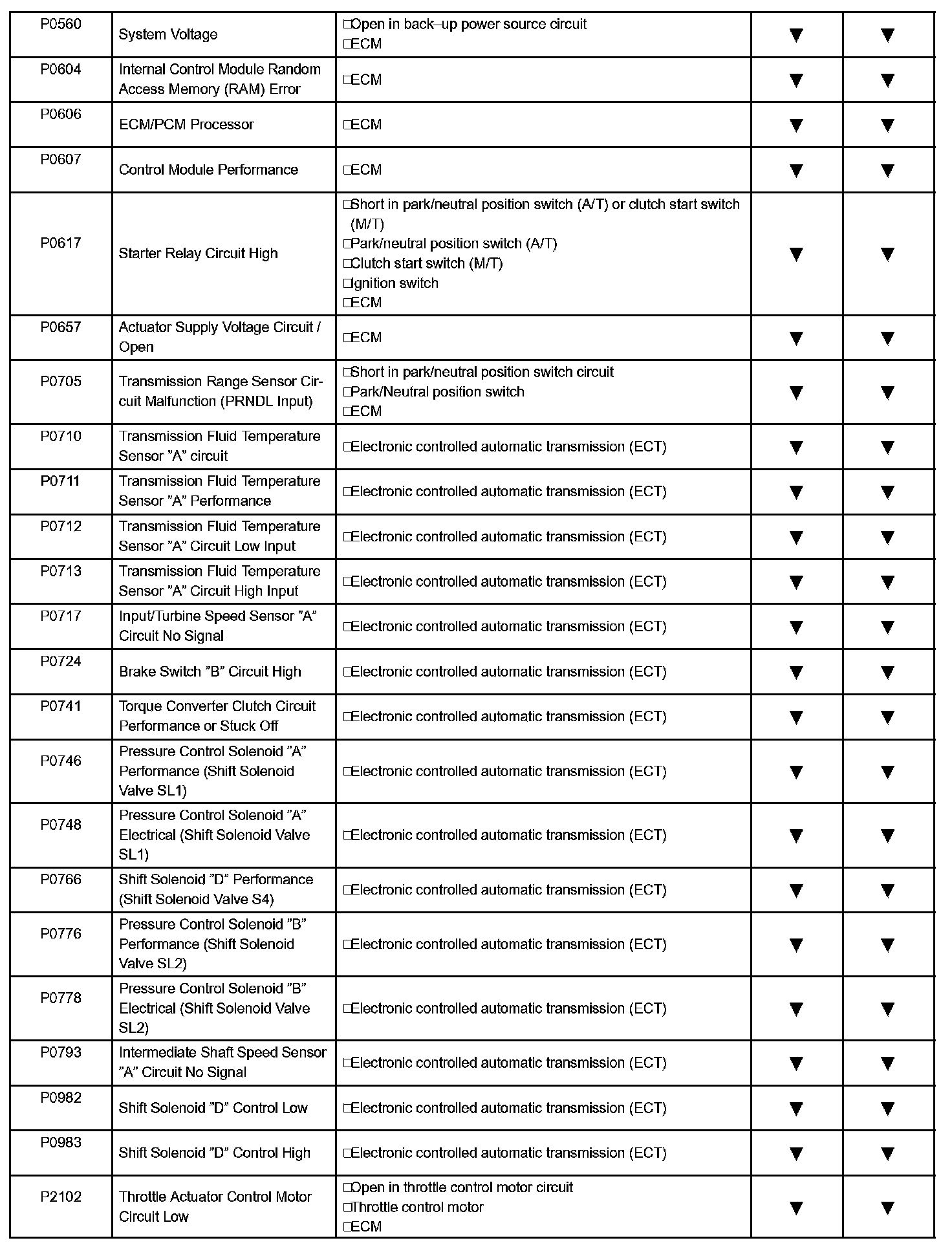

P0560 - P2102:

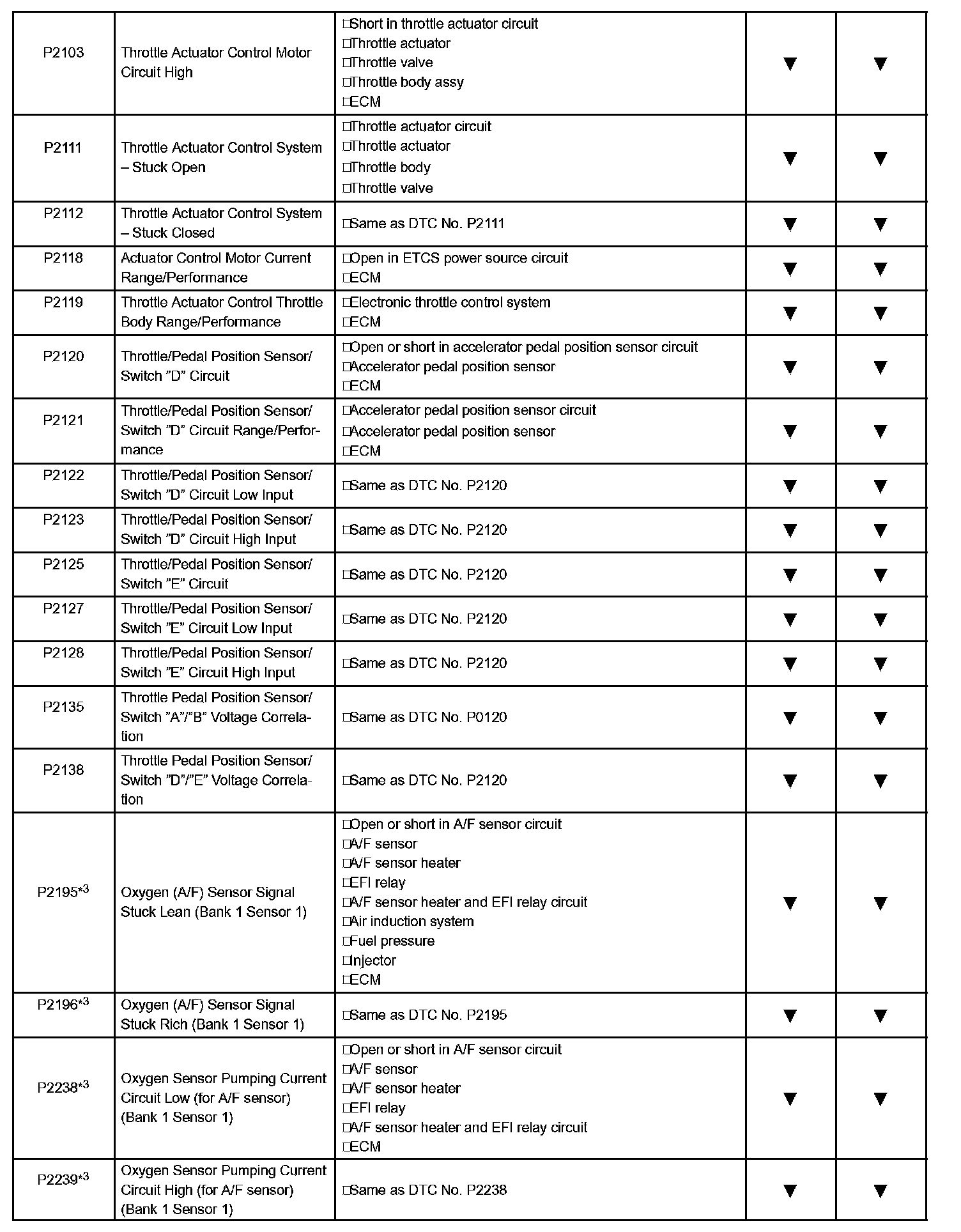

P2103 - P2239:

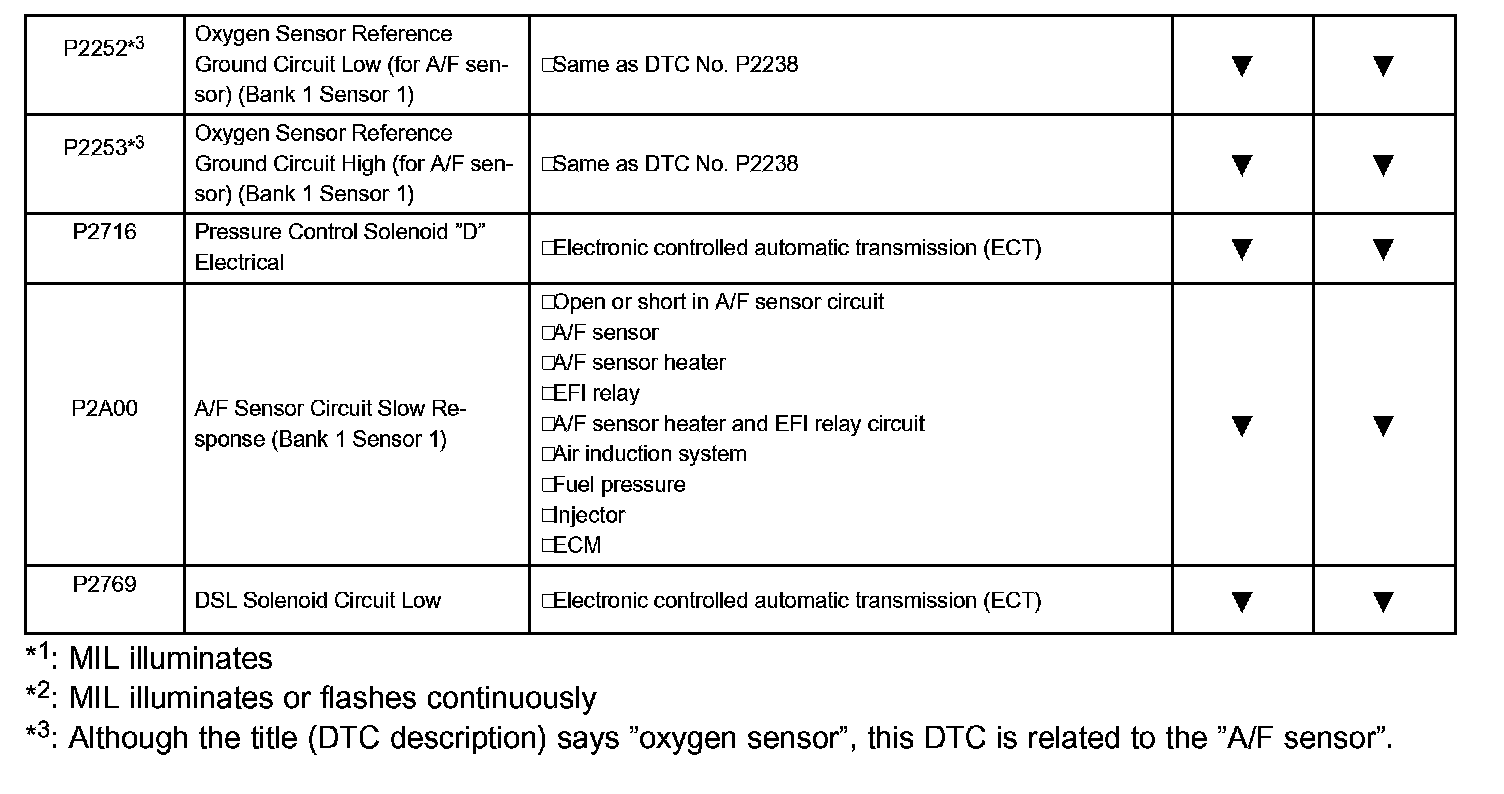

P2252 - P2769:

HINT: Parameters listed in the chart may be different from your readings depending on the type of instrument used and other factors.

During the DTC check, refer to the table if a malfunction code is displayed. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Charts".
