Air Conditioning System

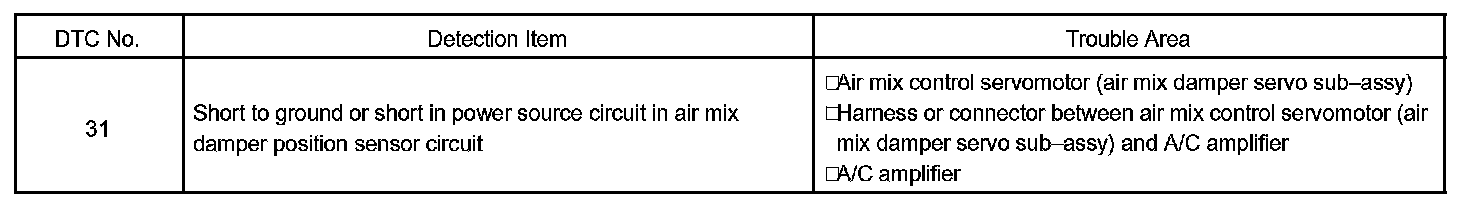

DTC 31 AIR MIX DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the position of the air mix control servomotor (air mix damper servo sub-assy) and sends the appropriate signals to the A/C amplifier. The position sensor is built in the air mix control servomotor (air mix damper servo sub-assy).

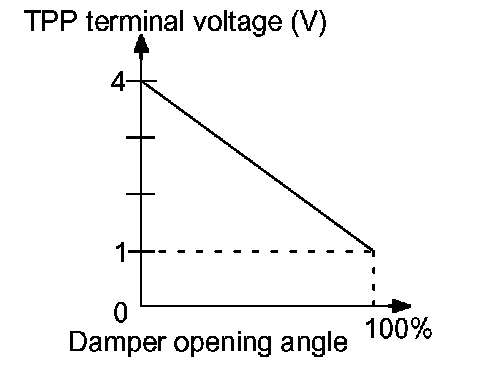

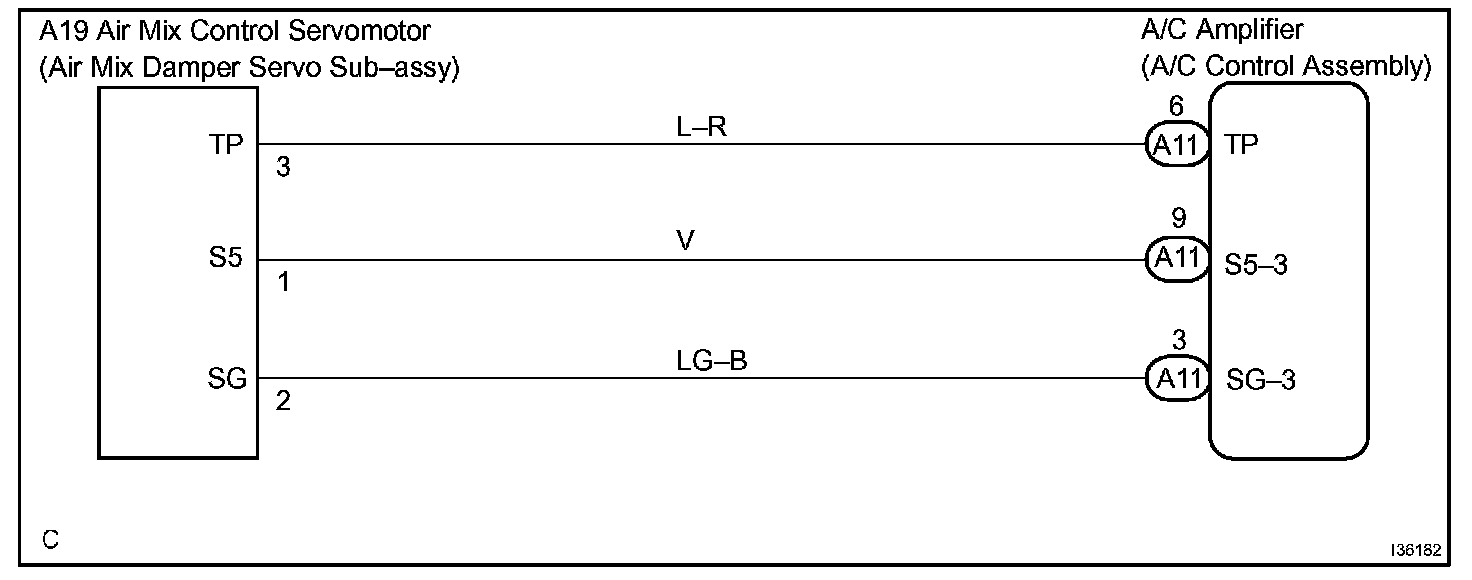

Wiring Diagram:

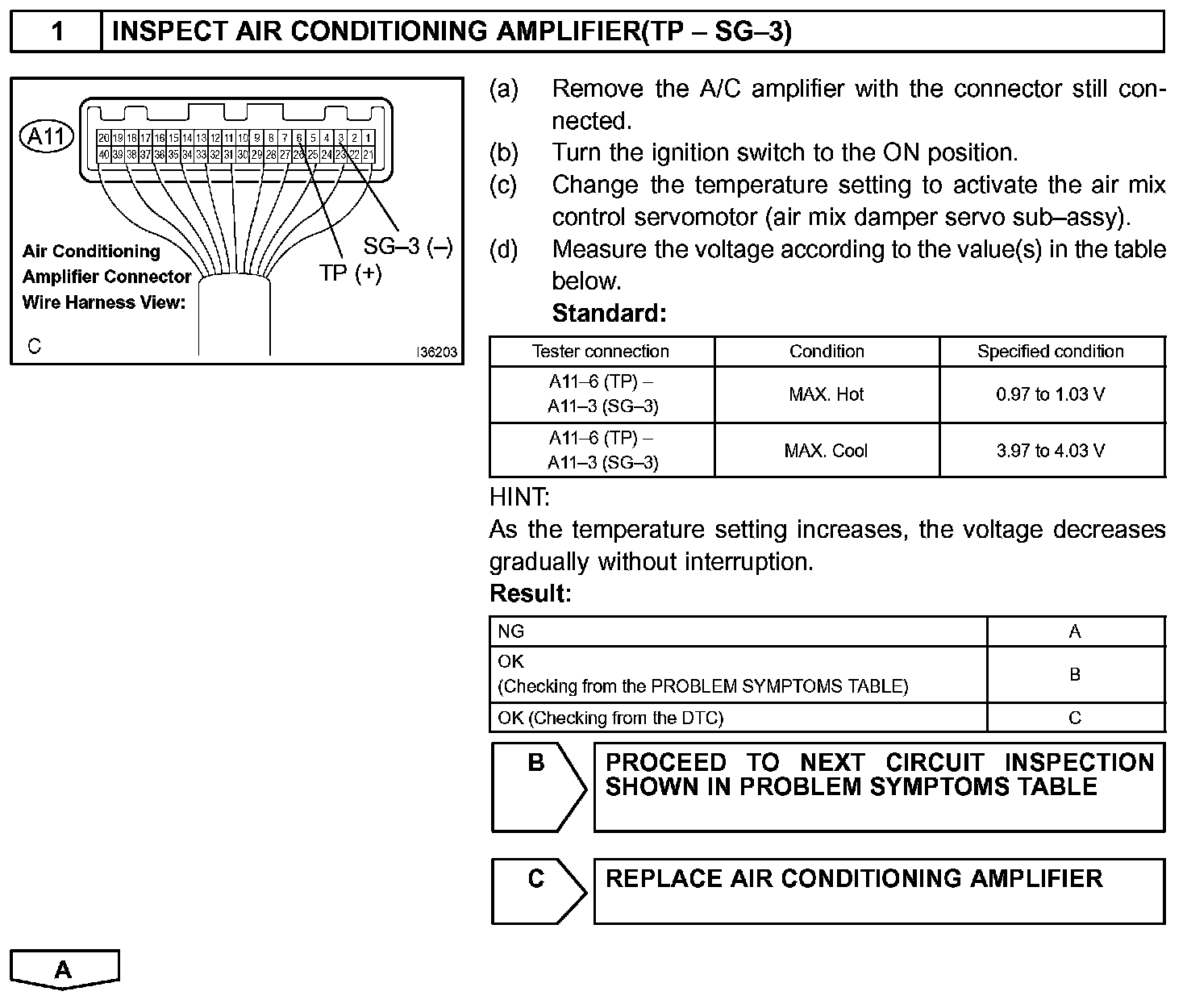

Step 1:

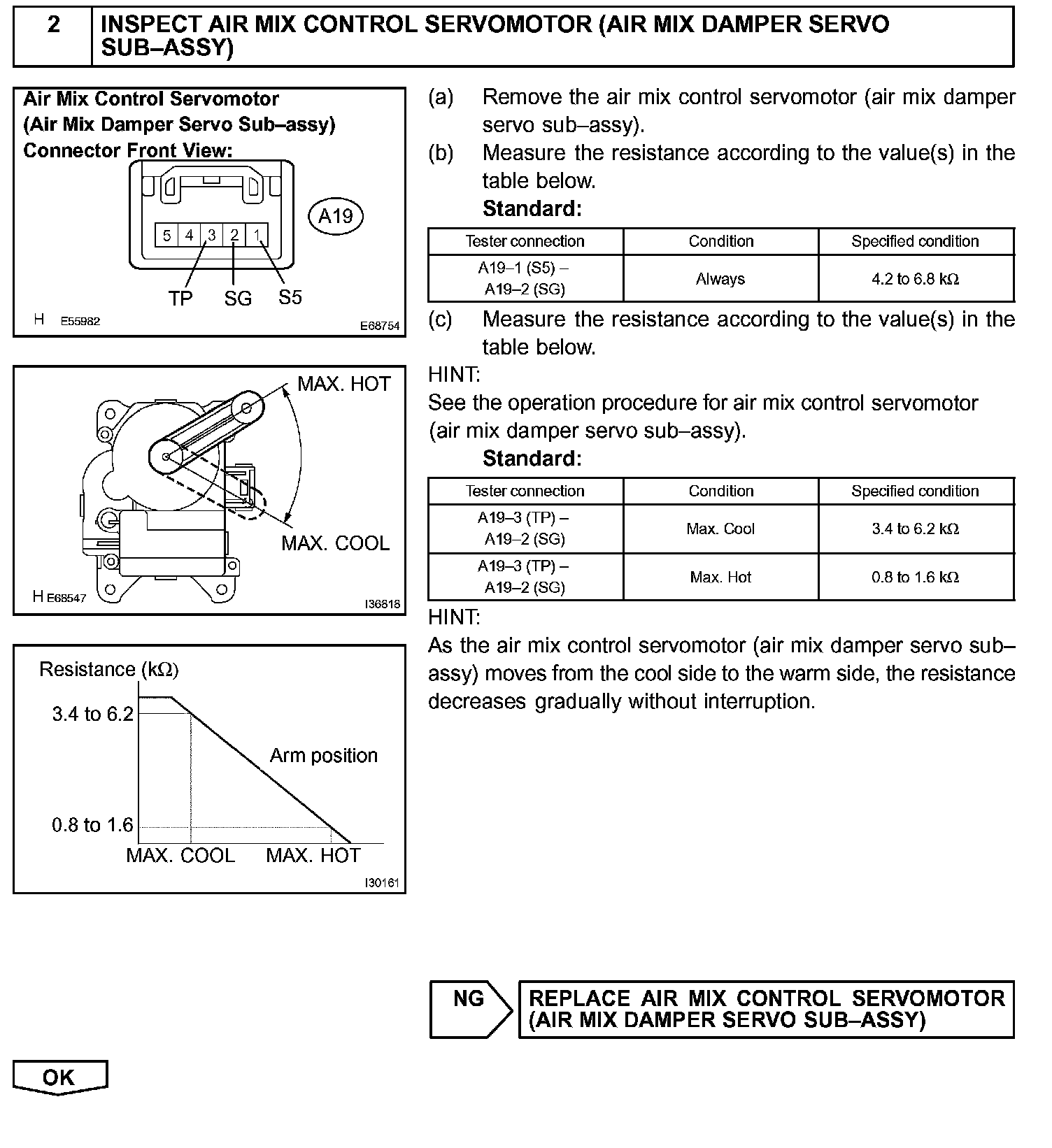

Step 2:

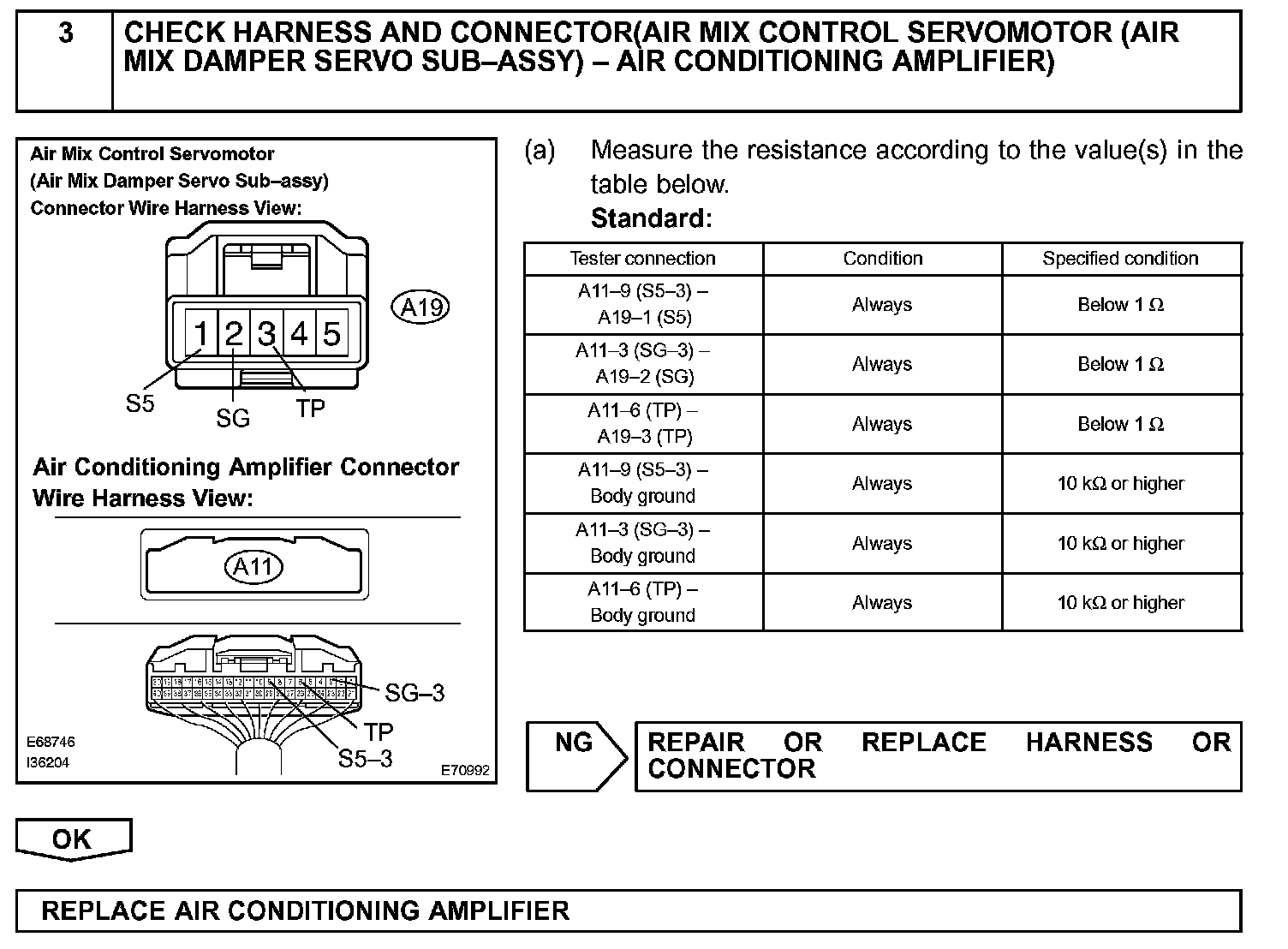

Step 3:

INSPECTION PROCEDURE
