ABS W/EBD System

DTC 41 LOW BATTERY POSITIVE VOLTAGE

CIRCUIT DESCRIPTION

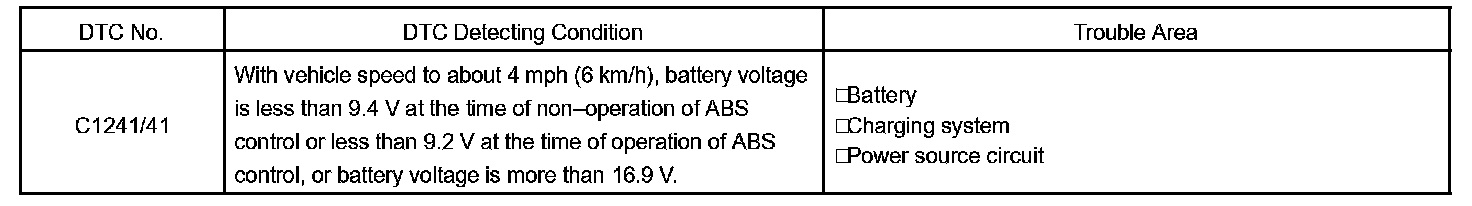

DTC Detecting Condition:

This is the power source circuit of the skid control ECU.

The brake actuator contains the skid control ECU.

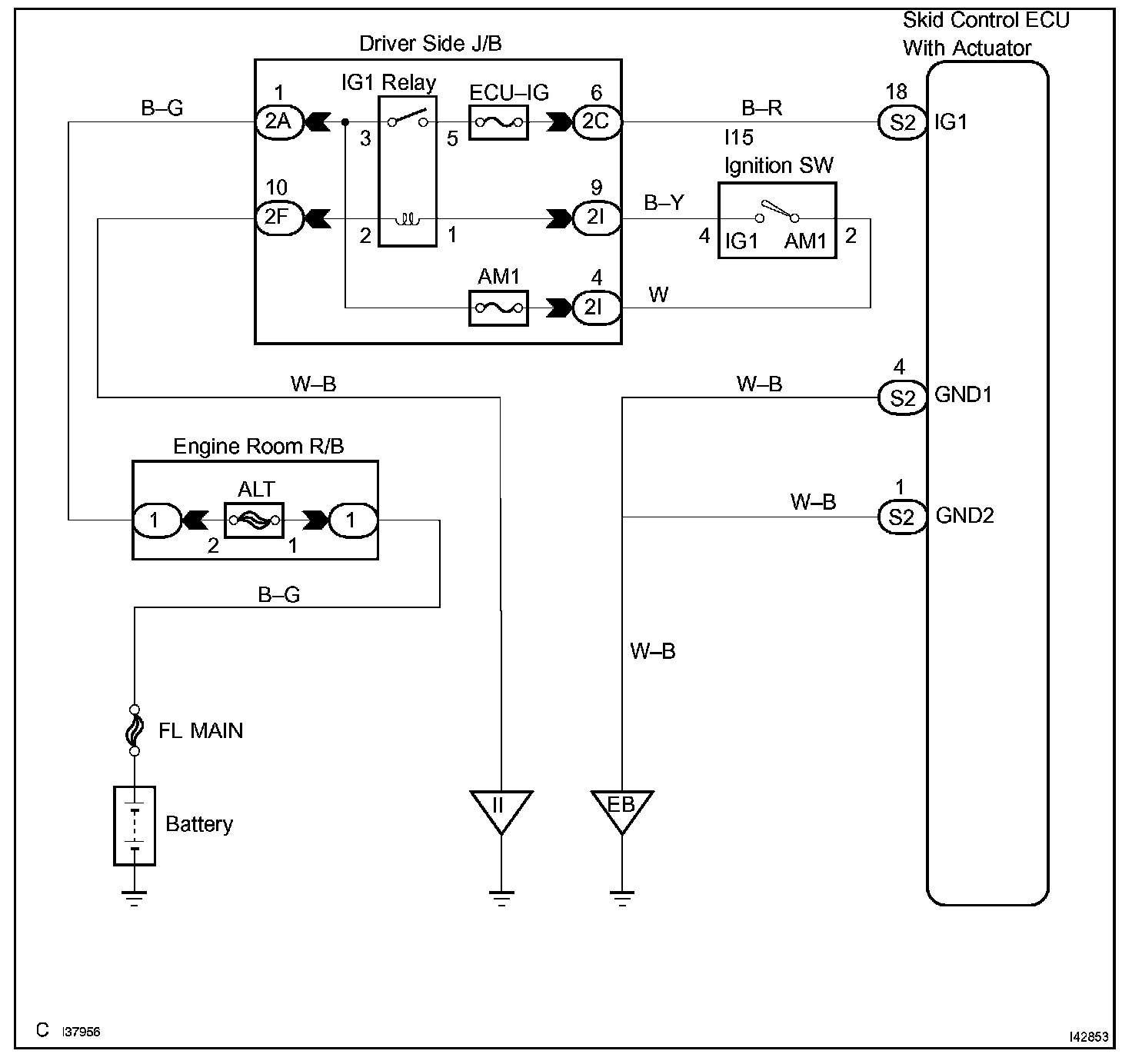

Wiring Diagram:

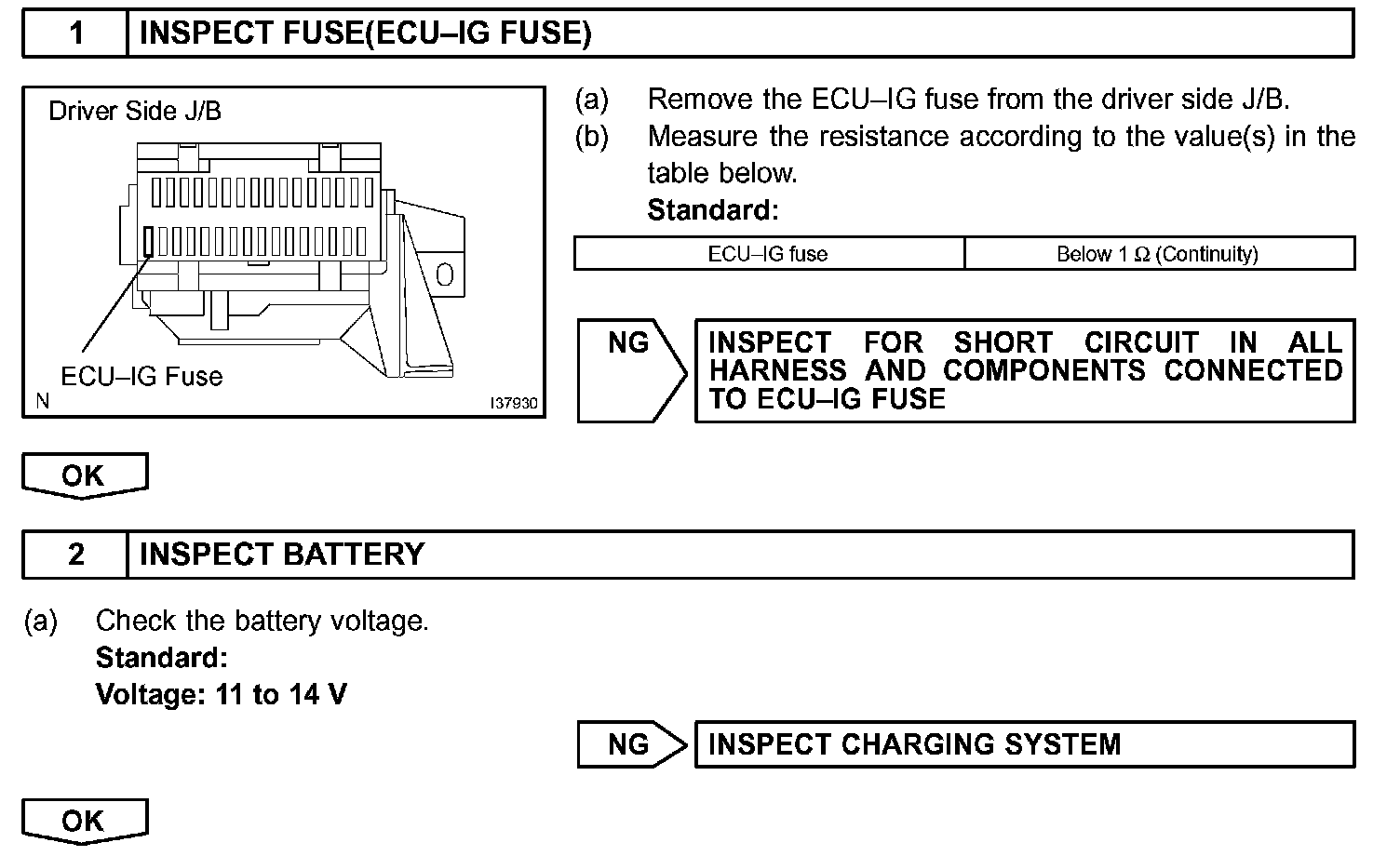

Step 1 - 2:

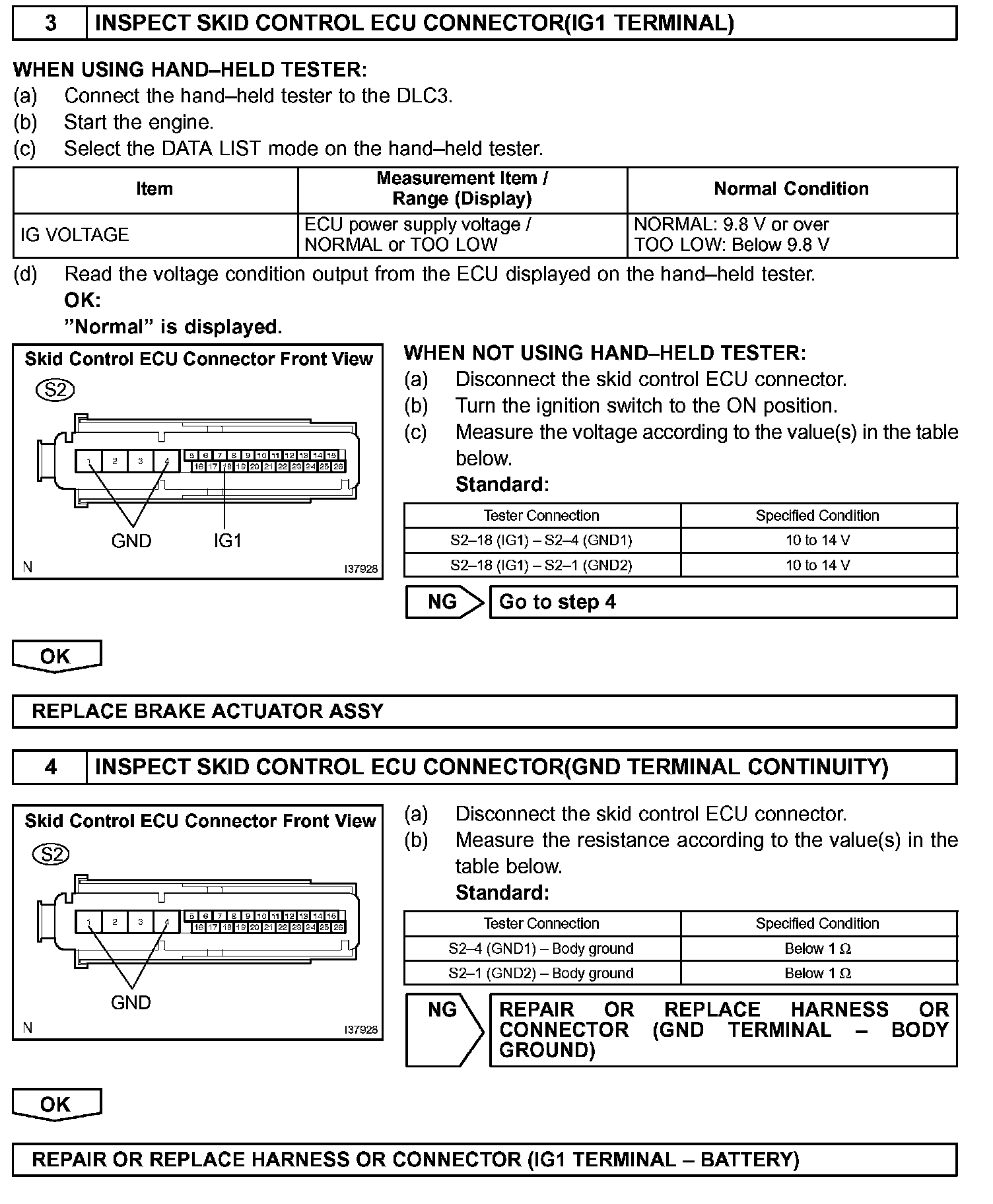

Step 3 - 4:

INSPECTION PROCEDURE
