Air Conditioning System

DTC 43 AIR OUTLET DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

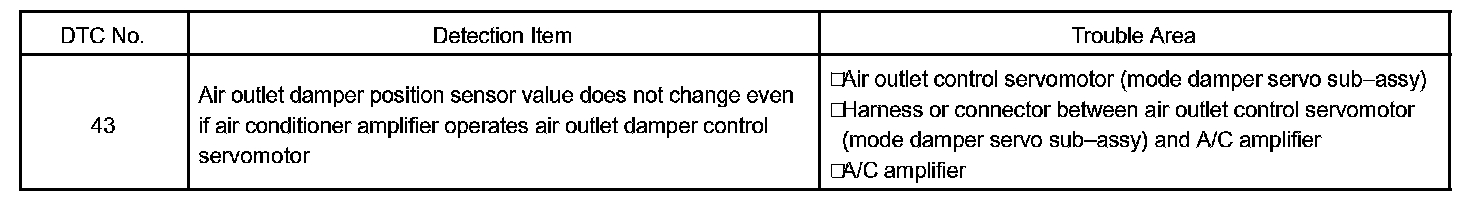

Detection Item:

This circuit turns the servomotor and changes each damper position by receiving the signals from the A/C amplifier assy. When the AUTO switch is on, the A/C amplifier changes the mode between "FACE", "BI-LEVEL" and "FOOT" according to the temperature setting.

Wiring Diagram:

Step 1:

Step 2:

Step 3:

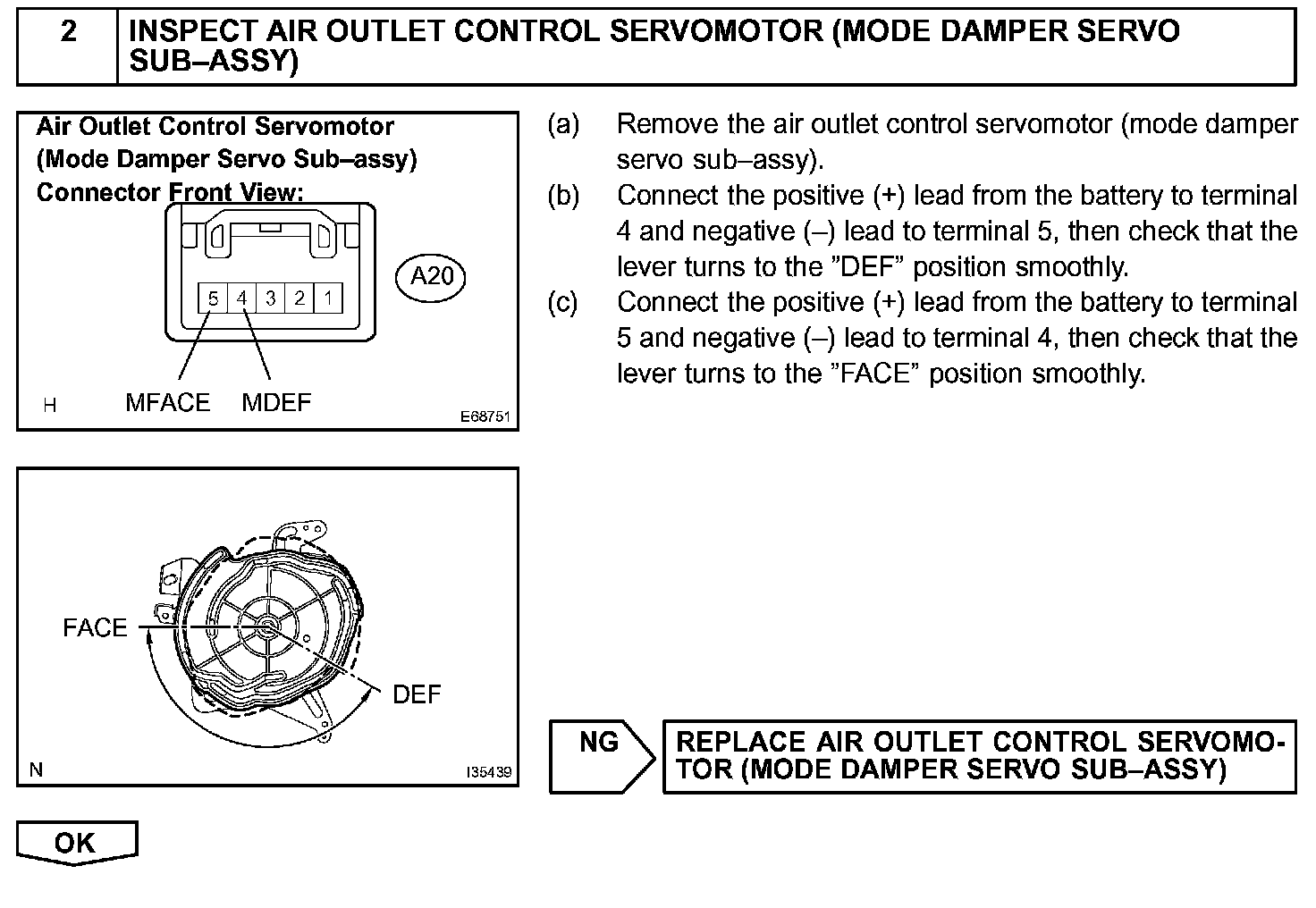

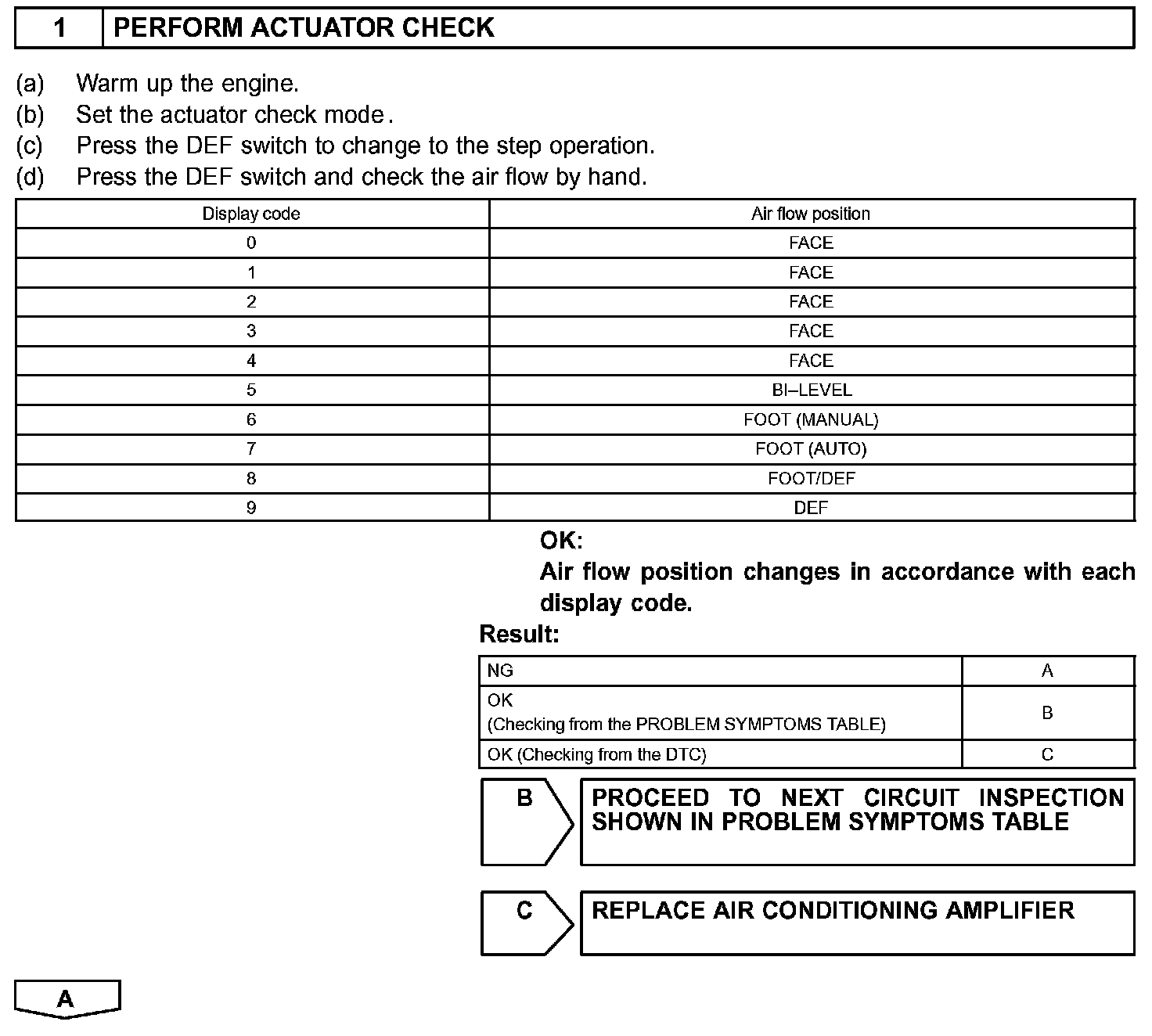

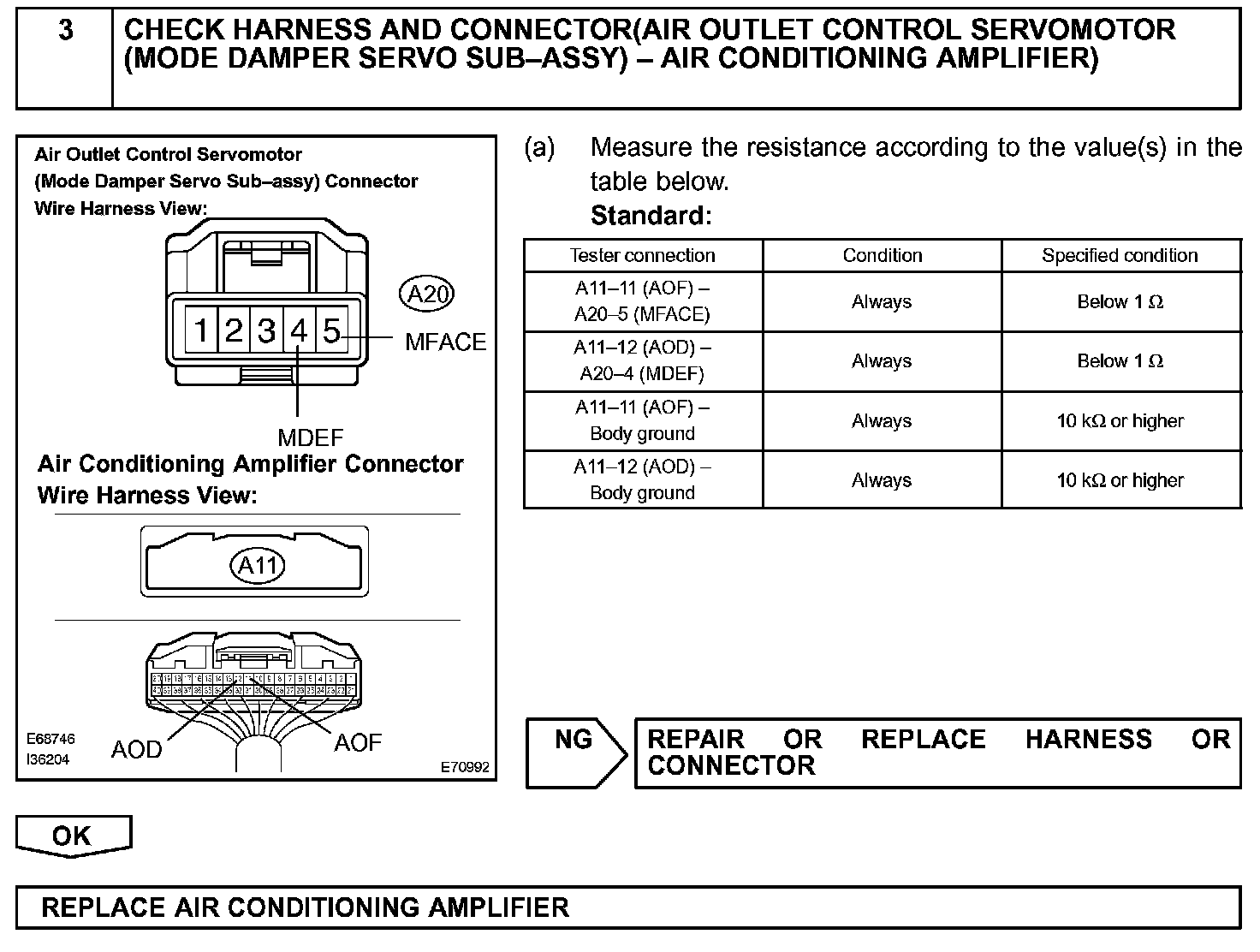

INSPECTION PROCEDURE
