DTC 63
DTC 63
STEERING SENSOR COMMUNICATION STOP MODE

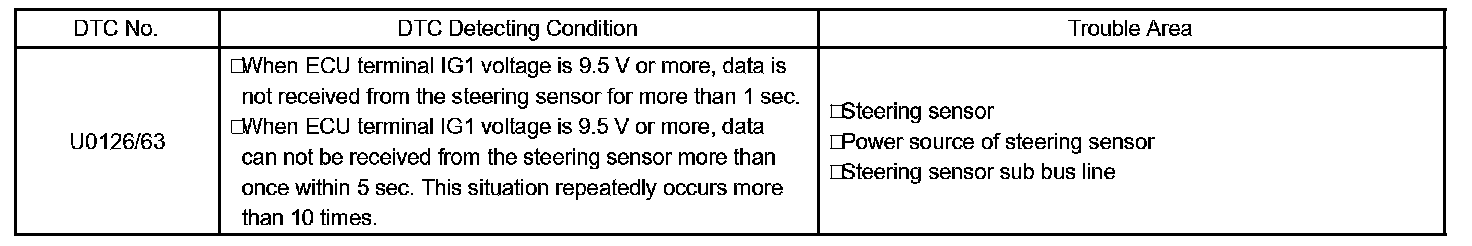

DTC Detecting Condition:
CIRCUIT DESCRIPTION

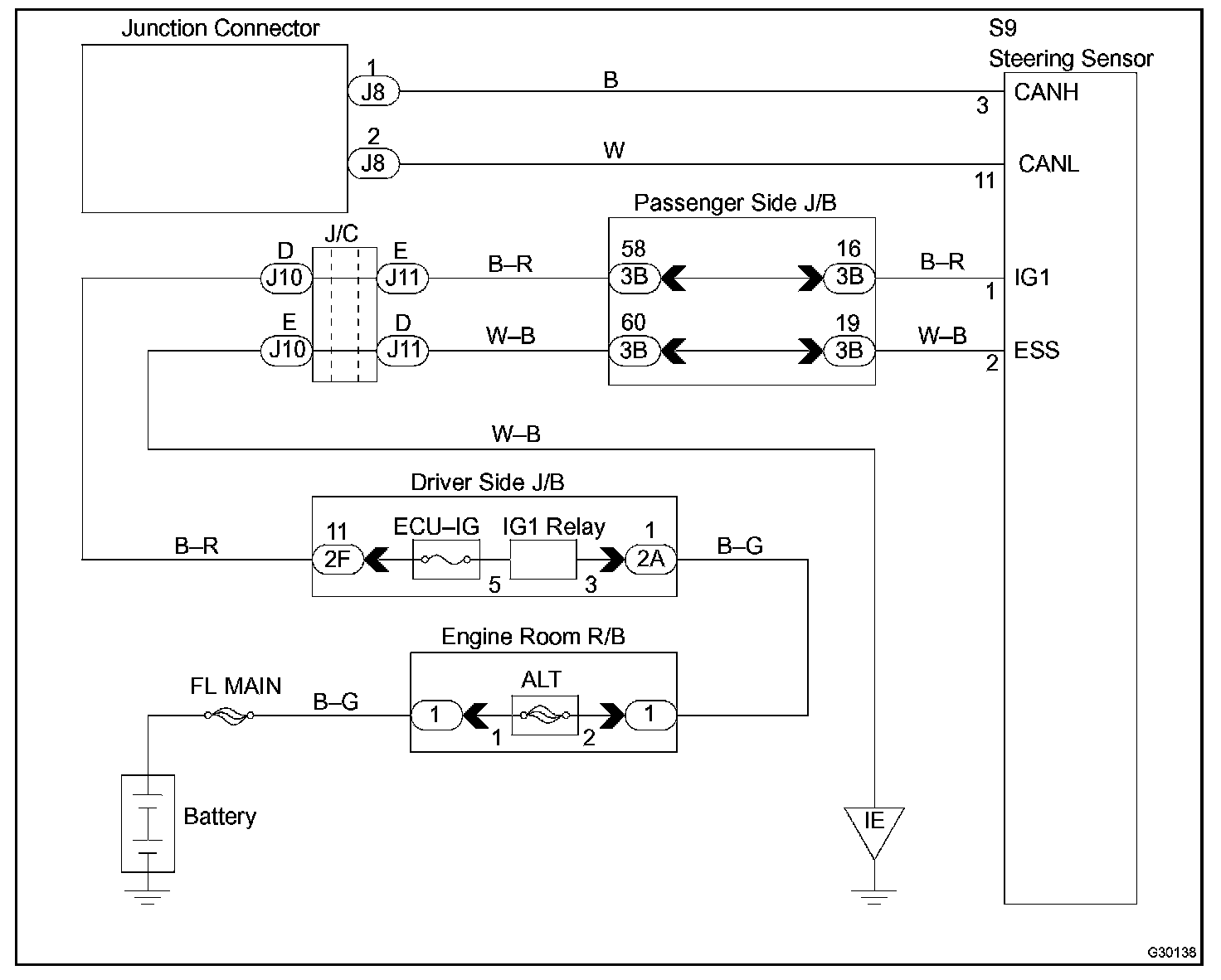

Wiring Diagram:
Step 1 - 2:

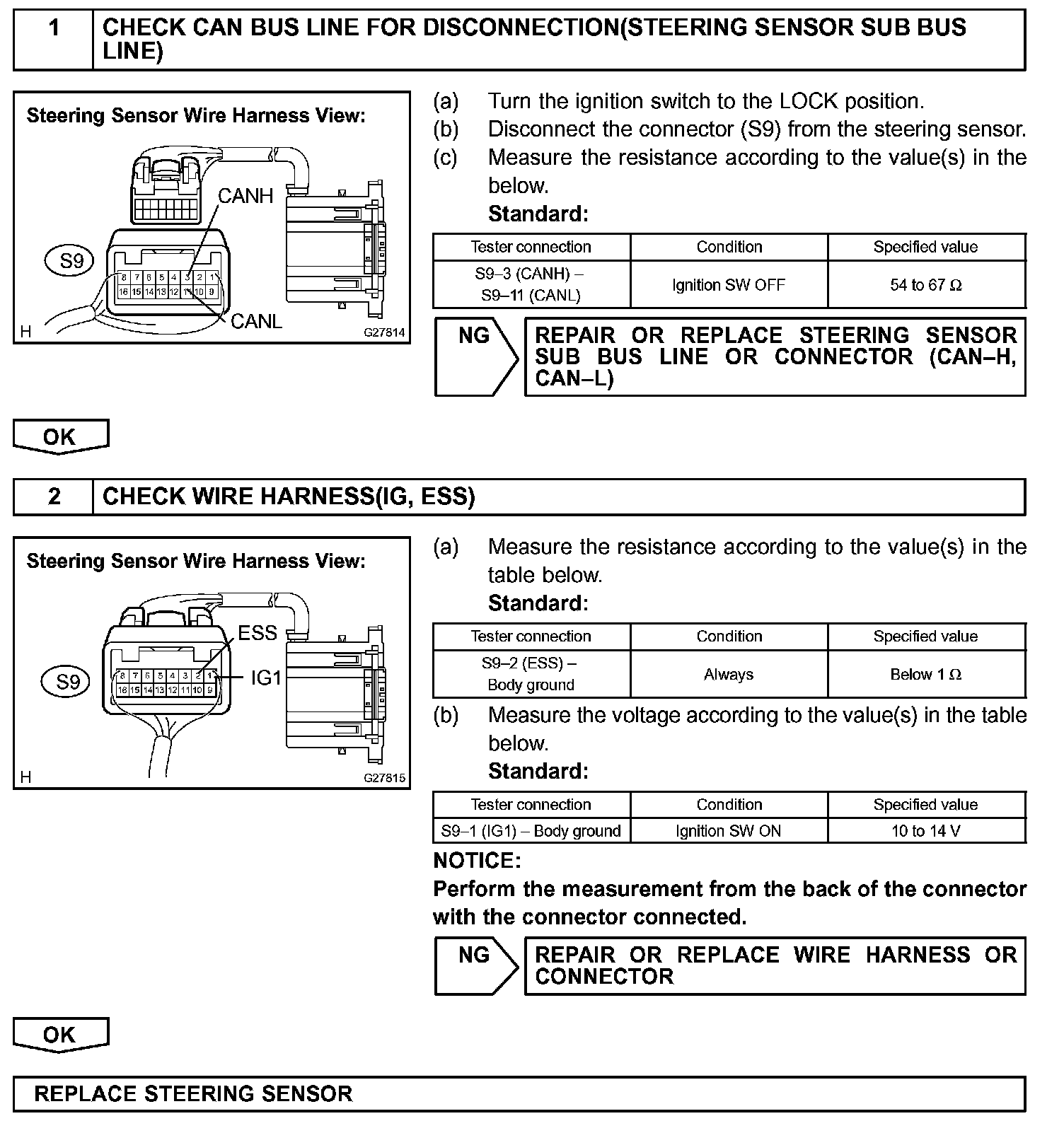

INSPECTION PROCEDURE
