Ignition Switch Circuit
IGNITION SWITCH CIRCUITCIRCUIT DESCRIPTION
When the ignition switch is turned ON, the battery positive voltage is applied to terminal IG of the multiplex network body ECU.

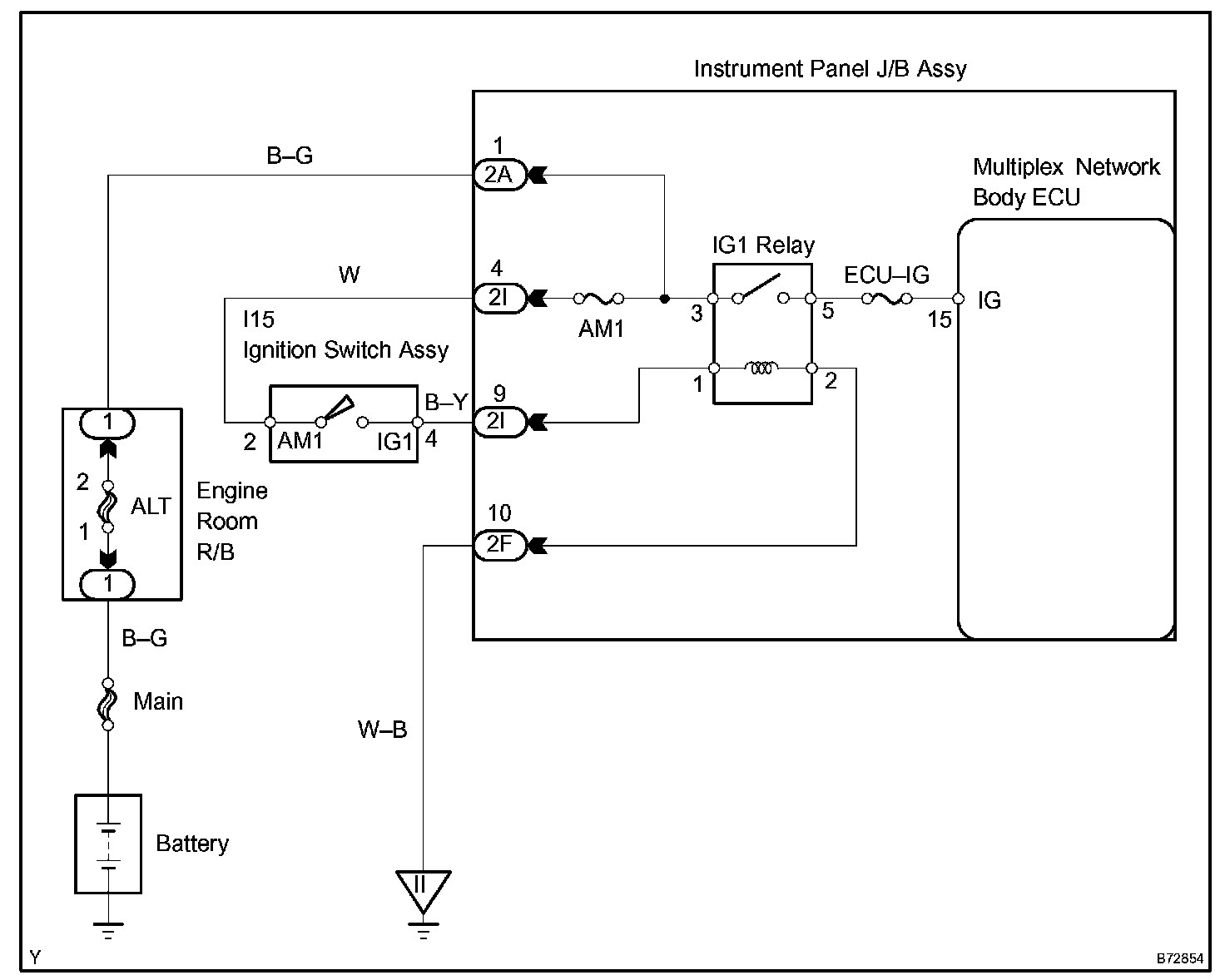

Wiring Diagram:

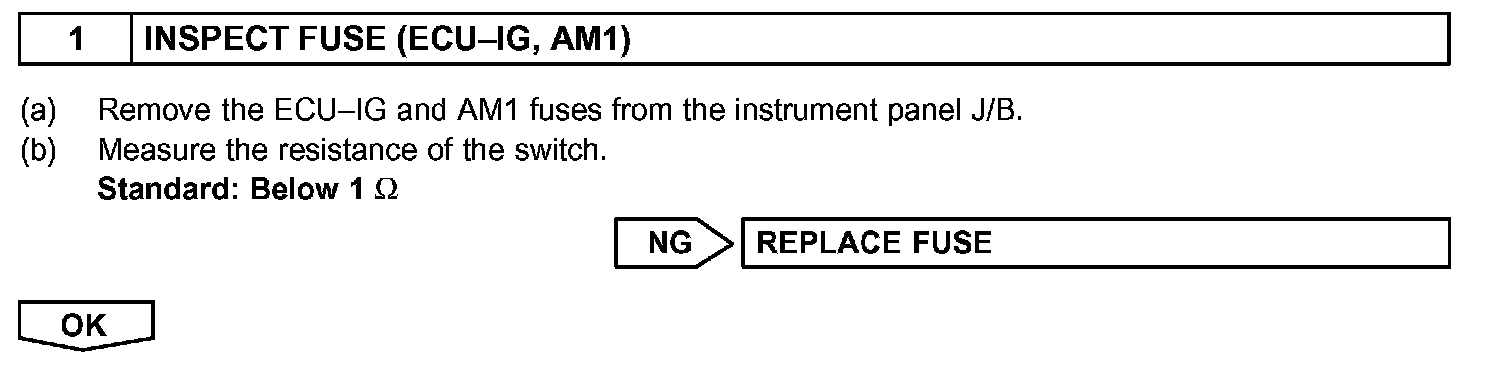

Step 1:

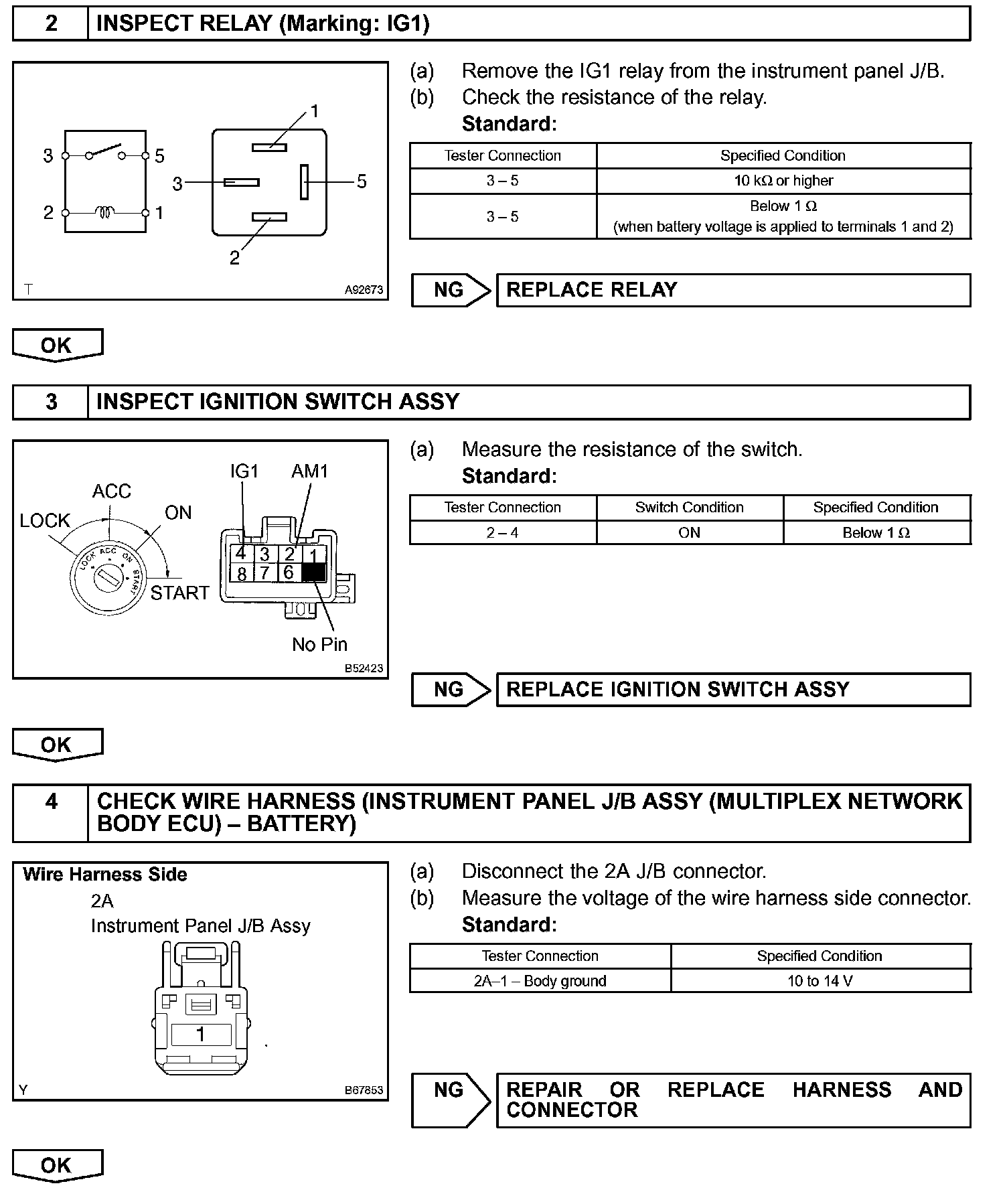

Step 2 - 4:

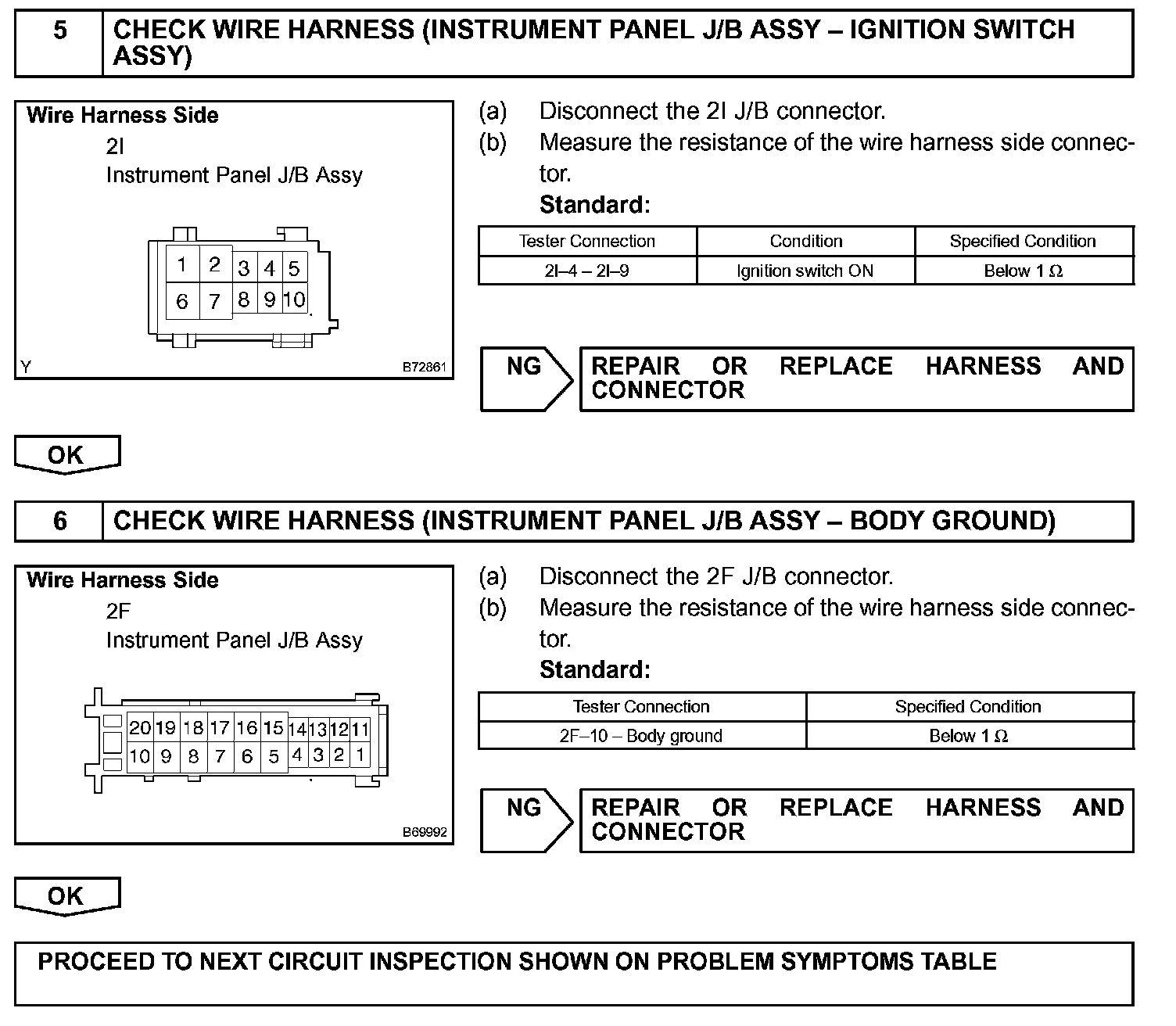

Step 5 - 6:
INSPECTION PROCEDURE
