Steering Pad Switch Circuit

STEERING PAD SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit sends an operation signal from the steering pad switch to the radio and navigation assy.

If there is an open in the circuit, the audio system cannot be operated by the steering pad switch.

If there is a short in the circuit, the resulting condition is the same as if the switch were continuously depressed. Therefore, the radio and navigation assy cannot be operated by the steering pad switch, and the radio and navigation assy itself does not function.

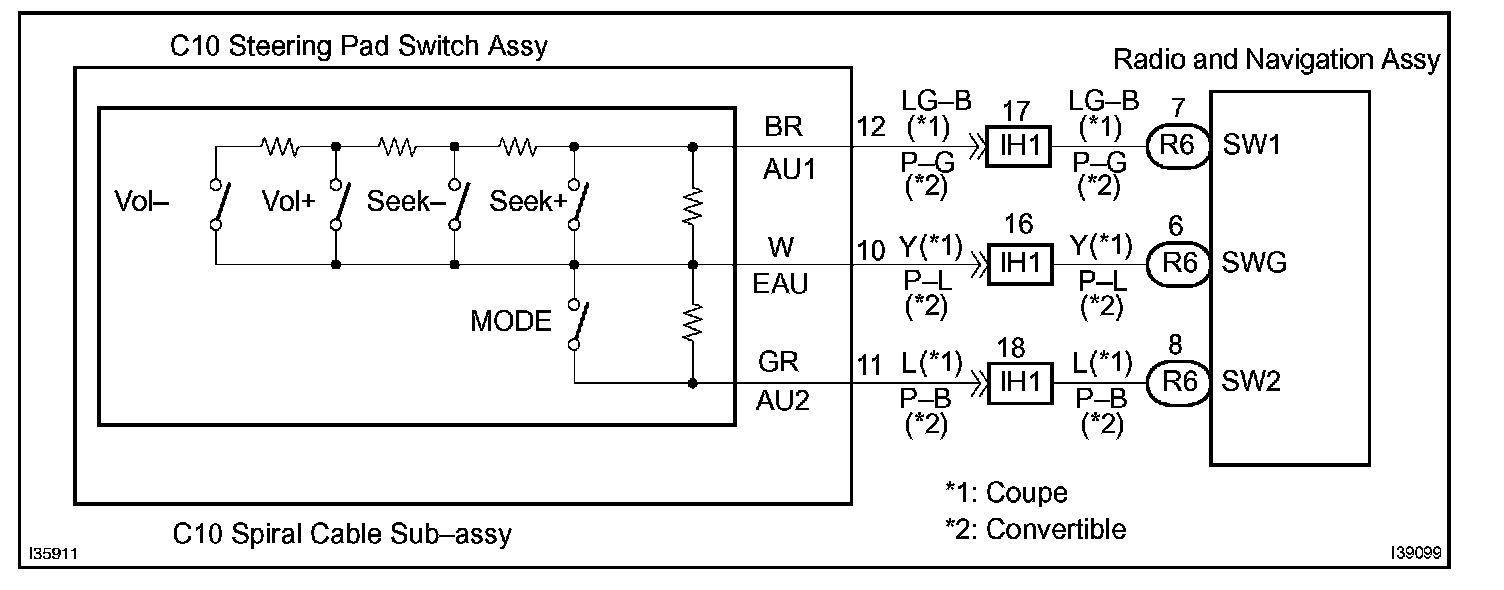

Wiring Diagram:

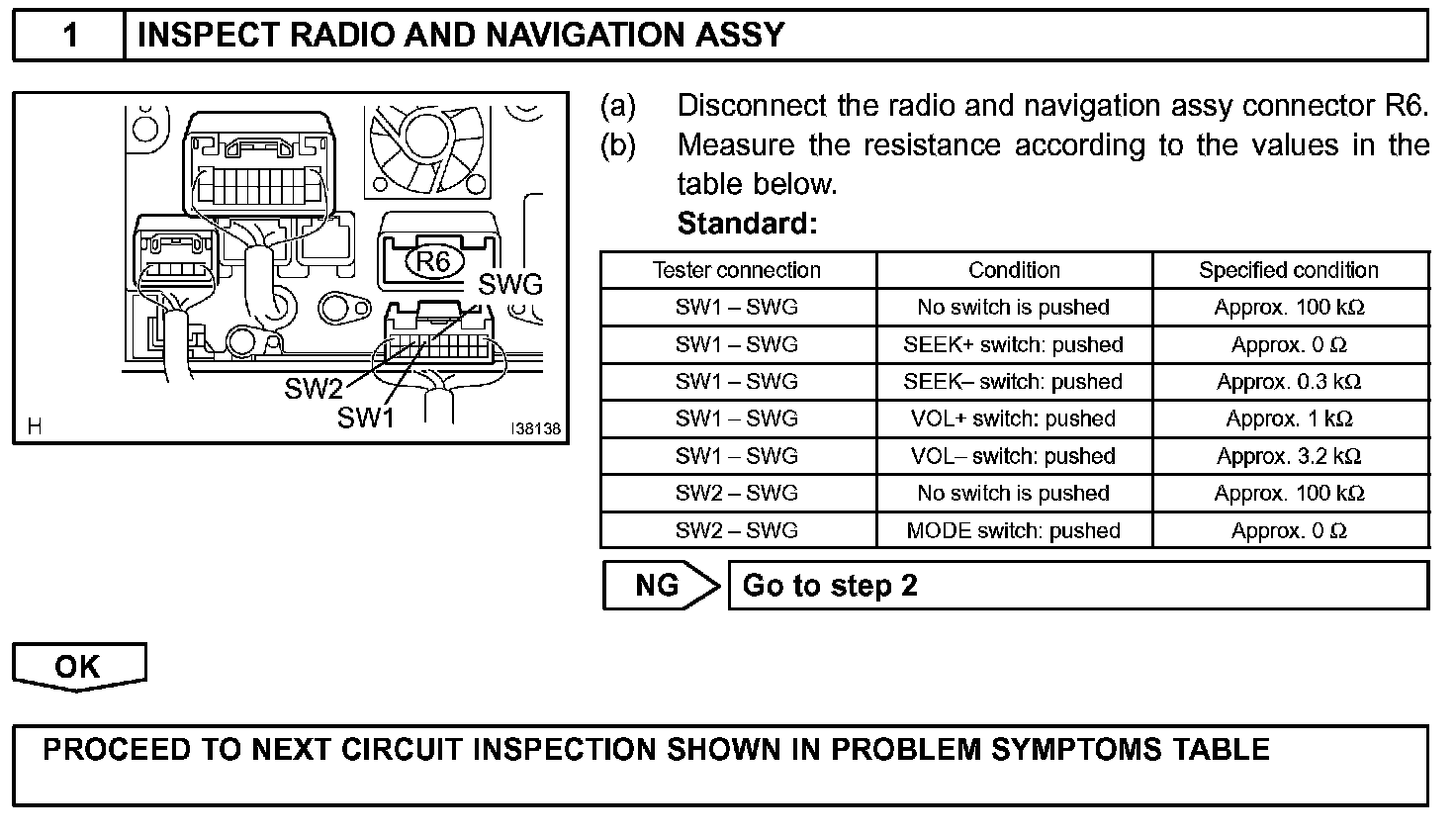

Step 1:

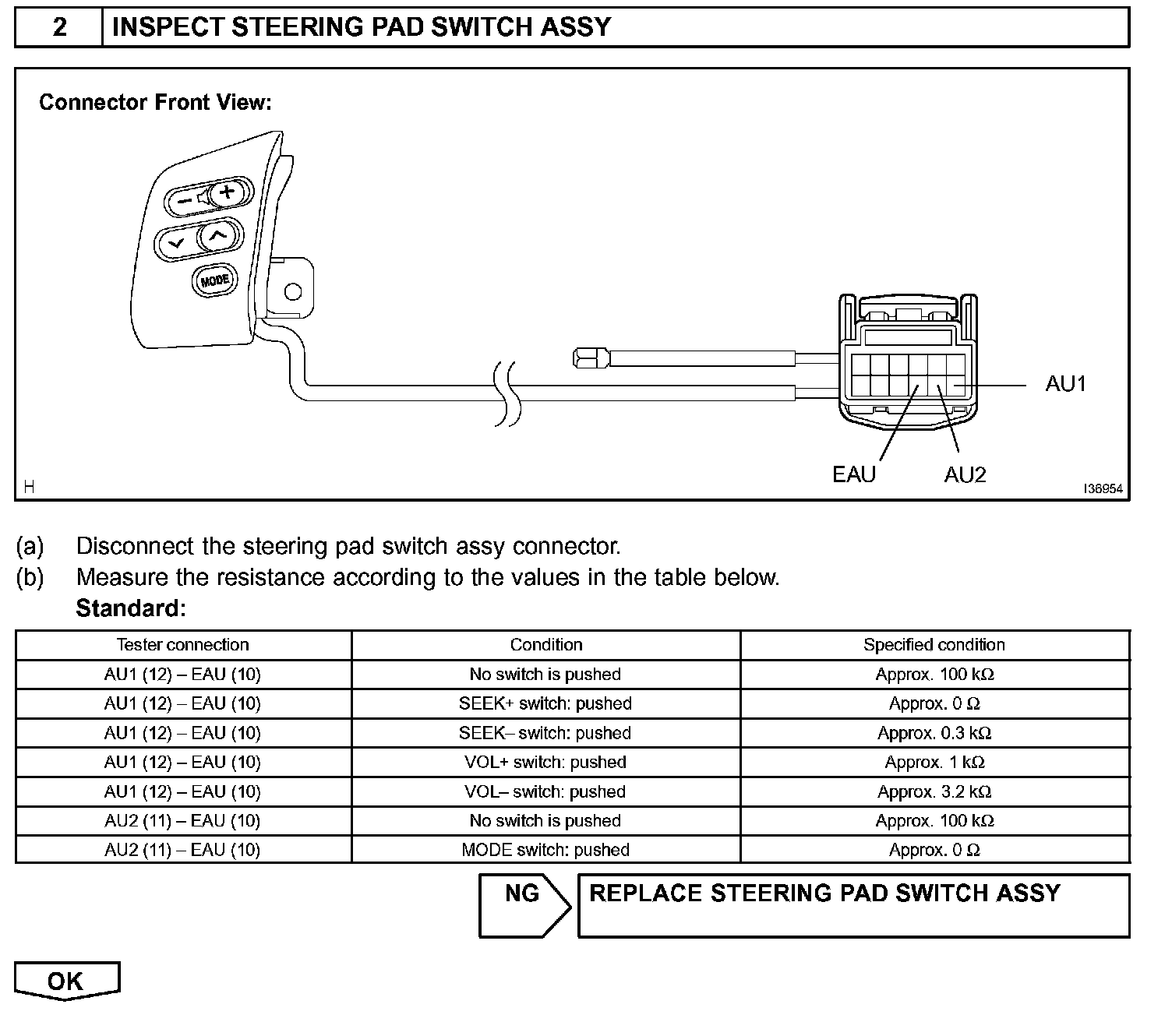

Step 2:

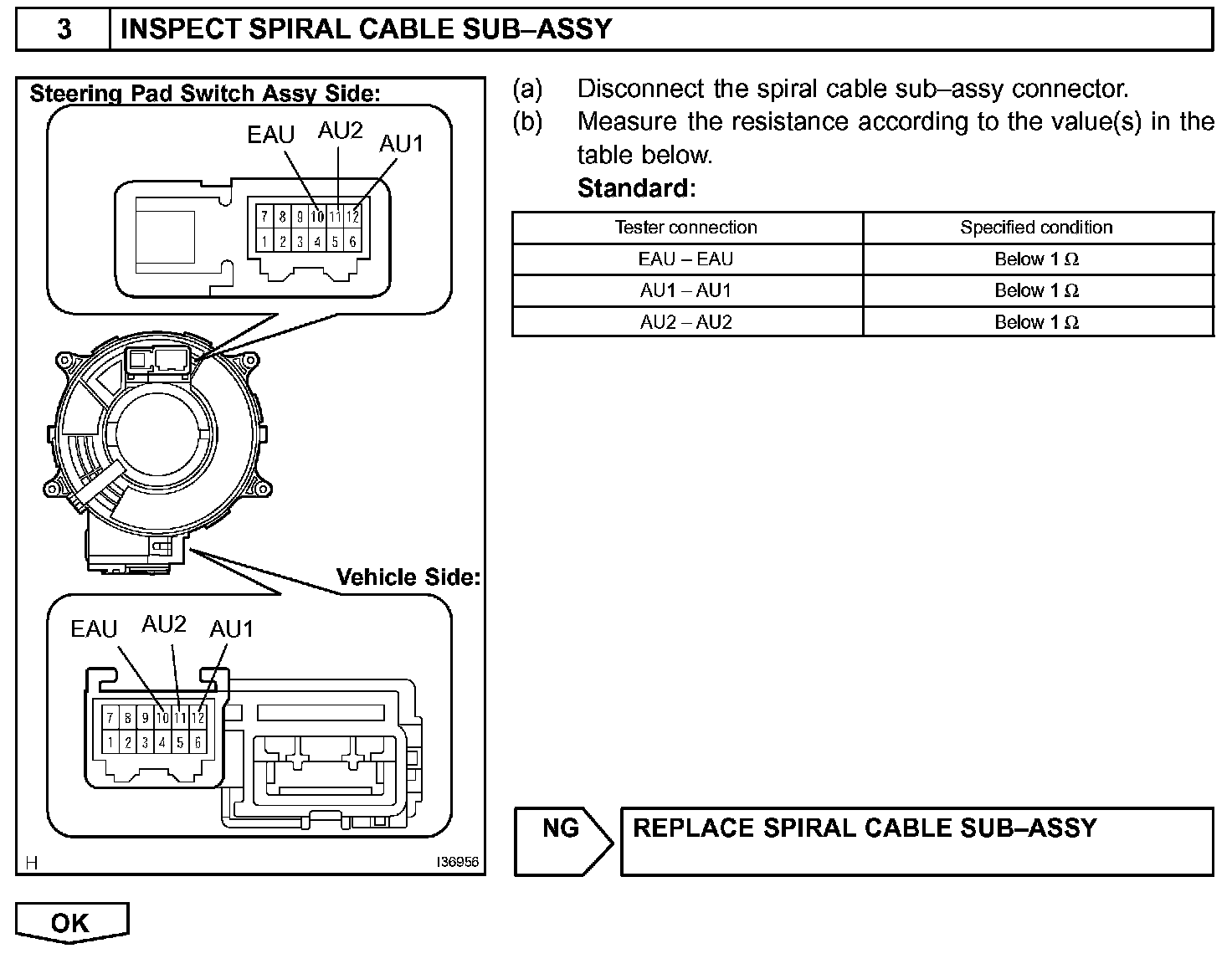

Step 3:

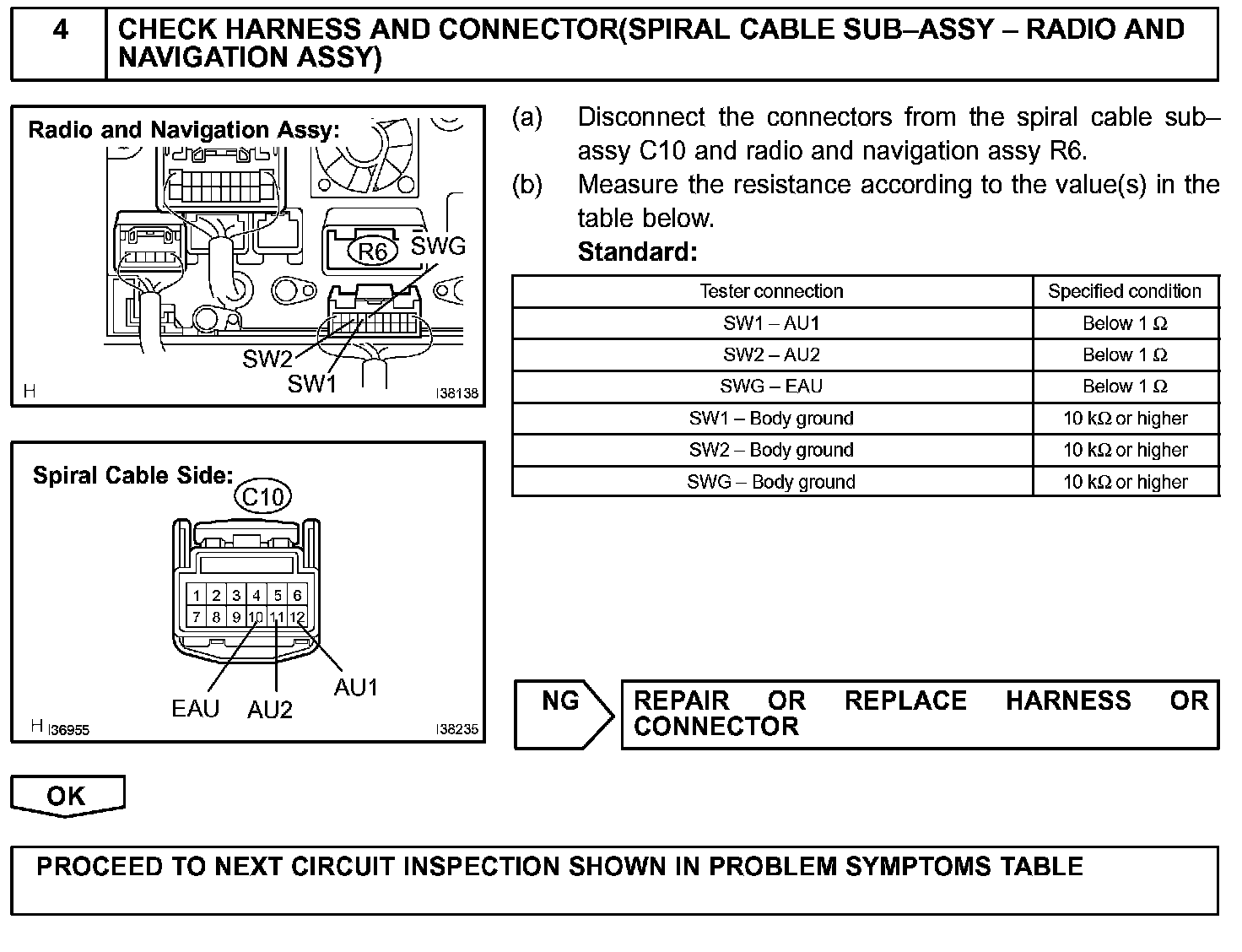

Step 4:

INSPECTION PROCEDURE
