Pinout Values and Diagnostic Parameters

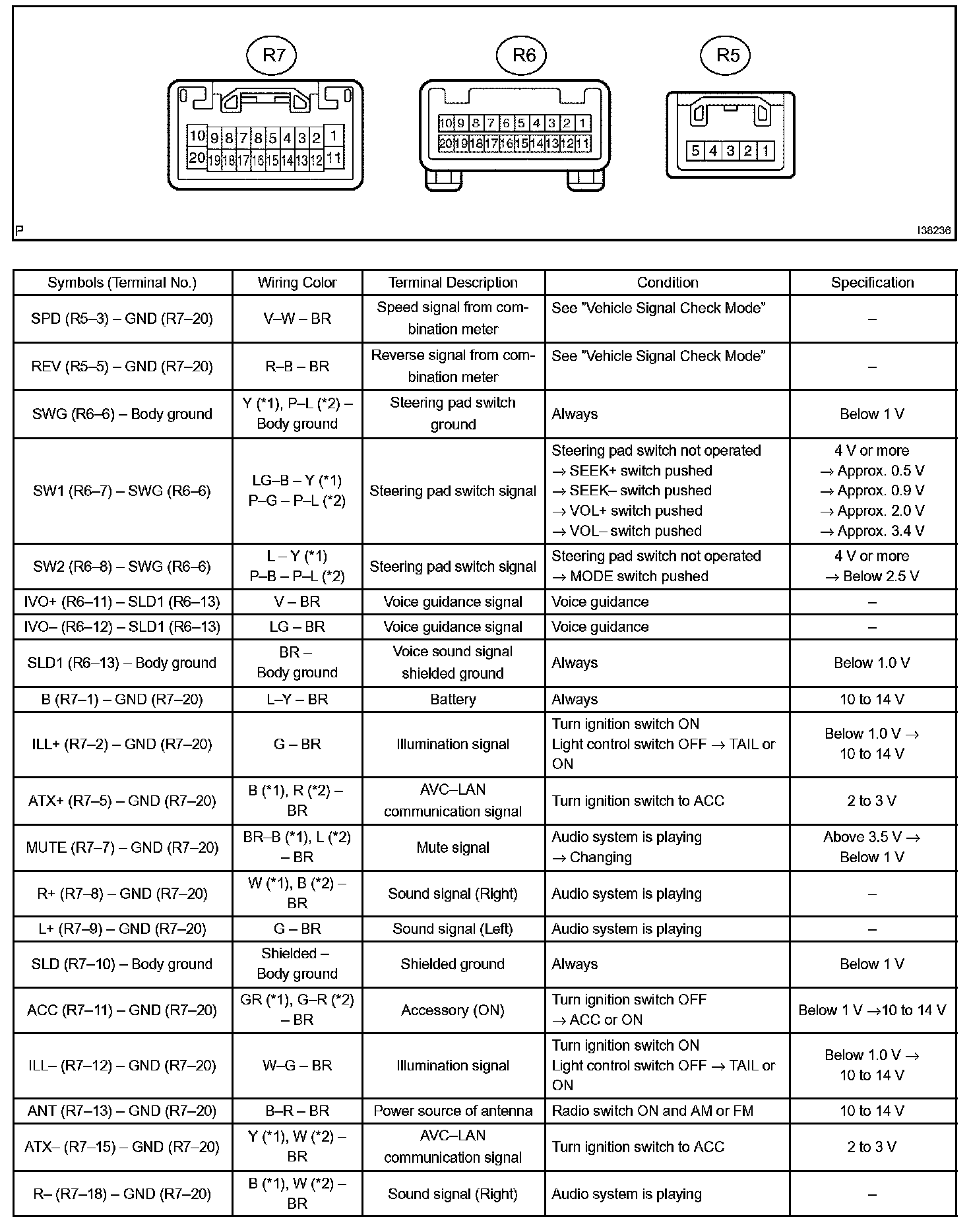

Terminals Of ECU/Pinouts - Radio And Navigation Assy Part 1:

Terminals Of ECU/Pinouts - Radio And Navigation Assy Part 2:

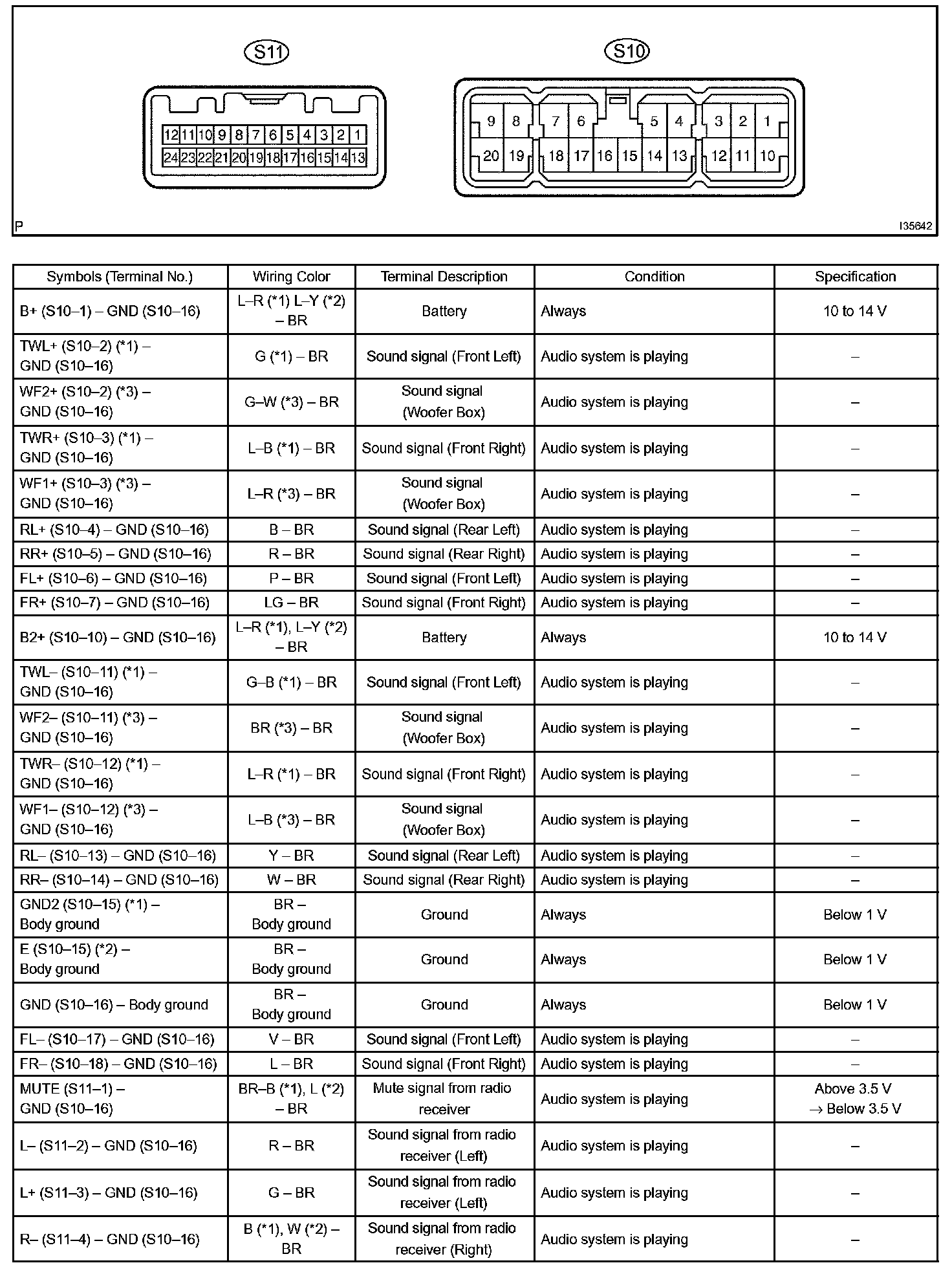

Terminals Of ECU/Pinouts - Stereo Component Amplifier Part 1:

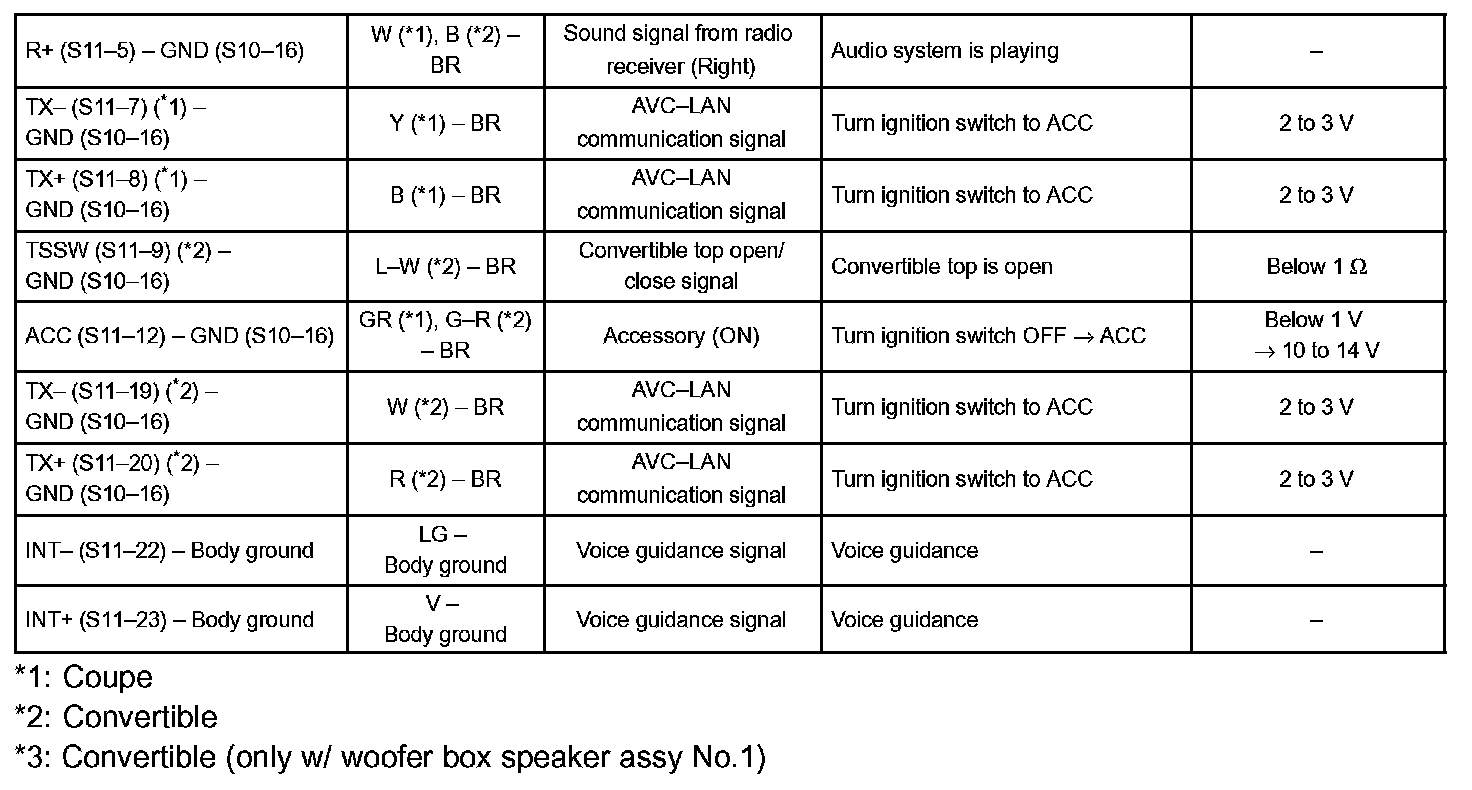

Terminals Of ECU/Pinouts - Stereo Component Amplifier Part 2:
