Amplifier: Service and Repair

Audio & Visual System - Part 2:

STEREO COMPONENT AMPLIFIER ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
2. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH

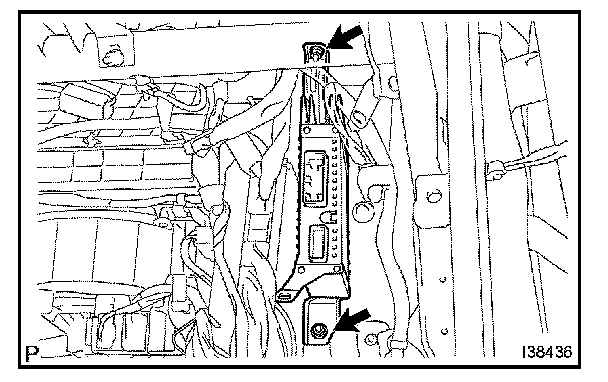

3. REMOVE STEREO COMPONENT AMPLIFIER ASSY
a. Disconnect the connectors.
b. Remove the 2 nuts and stereo component amplifier assy.
