Front No.1 Speaker Assy

FRONT NO.1 SPEAKER ASSY

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
3. REMOVE FRONT ARMREST BASE PANEL UPPER LH
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH




5. REMOVE FRONT NO.1 SPEAKER ASSY
a .Disconnect the connector.

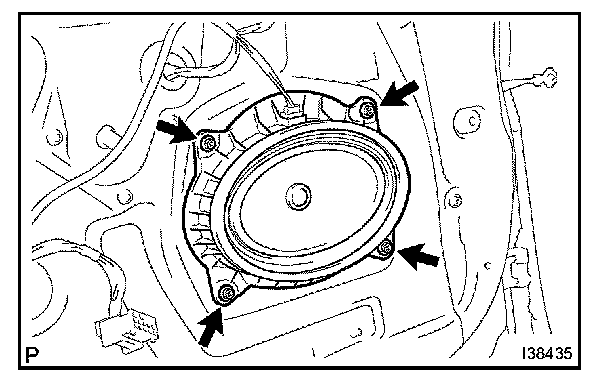

b. Remove the 4 screws and front No.1 speaker assy.




6. INSTALL FRONT NO.1 SPEAKER ASSY

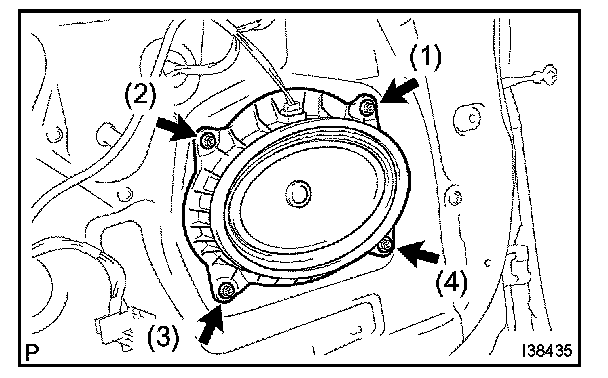

a. Install the front No.1 speaker assy with the 4 screws.

NOTE: Install them in the order shown in the illustration.

b. Connect the connector.
