Front No.2 Speaker Assy

FRONT NO.2 SPEAKER ASSY

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

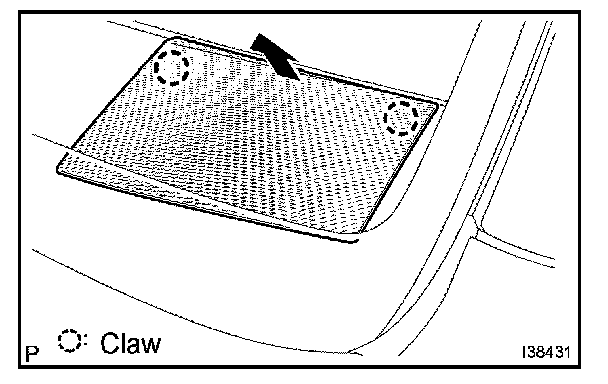

1. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY
a. Disengage the 2 claws and remove the instrument panel speaker panel sub-assy.

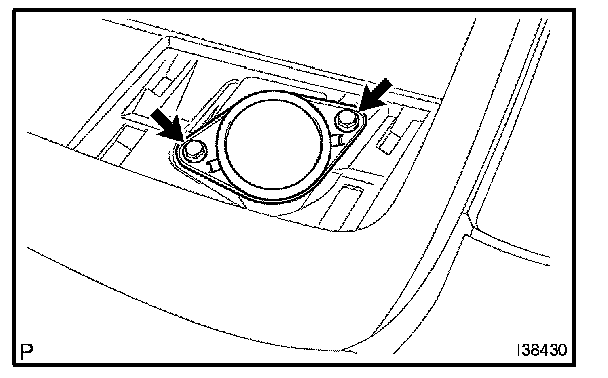

2. REMOVE FRONT NO.2 SPEAKER ASSY
a. Remove the 2 bolts.
b. Disconnect the connector and remove the front No.2 speaker assy.
