Rear Speaker Assy (Convertible)

REAR SPEAKER ASSY (CONVERTIBLE)

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE COWL SIDE TRIM SUB-ASSY LH
3. REMOVE REAR SEAT ASSY
4. REMOVE CENTER PILLAR UPPER END WEATHERSTRIP LH
5. REMOVE CUP HOLDER NO.2
6. REMOVE QUARTER TRIM PANEL SUB-ASSY UPPER LH
7. REMOVE QUARTER TRIM PANEL LOWER LH
8. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH




9. REMOVE REAR SPEAKER ASSY
a. Disconnect the connector.

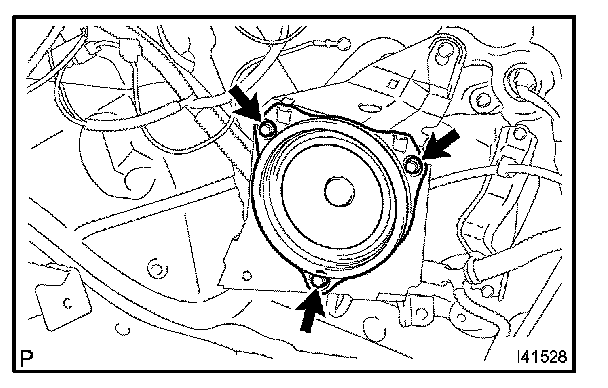

b. Remove the 3 screws and rear speaker assy.




10. INSTALL REAR SPEAKER ASSY
a. Install the rear speaker assy with the 3 screws.

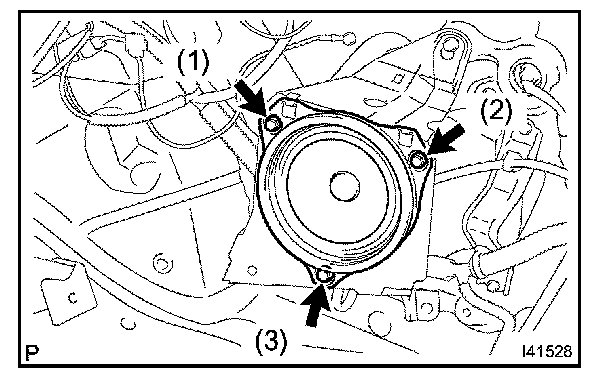

NOTE: Install them in the order shown in the illustration.

b. Connect the connector.
