W/Box Speaker Assy No.1

W/BOX SPEAKER ASSY NO.1

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE REAR SEAT ASSY




2. REMOVE W/BOX SPEAKER ASSY NO.1
a. Disconnect the connector.

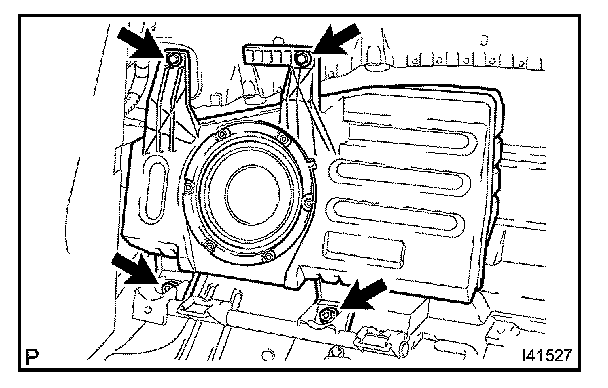

b. Remove the 2 bolts, 2 nuts and w/ box speaker assy No.1.
