SPEAKER CIRCUIT

CIRCUIT DESCRIPTION
The sound signal that has been amplified by the stereo component amplifier is sent to the speaker from the stereo component amplifier through this circuit.

If there is a short in this circuit, the stereo component amplifier assy detects it and stops output to the speaker. Thus sound can not be heard from the speaker even if there is no malfunction in the stereo component amplifier assy or speaker.

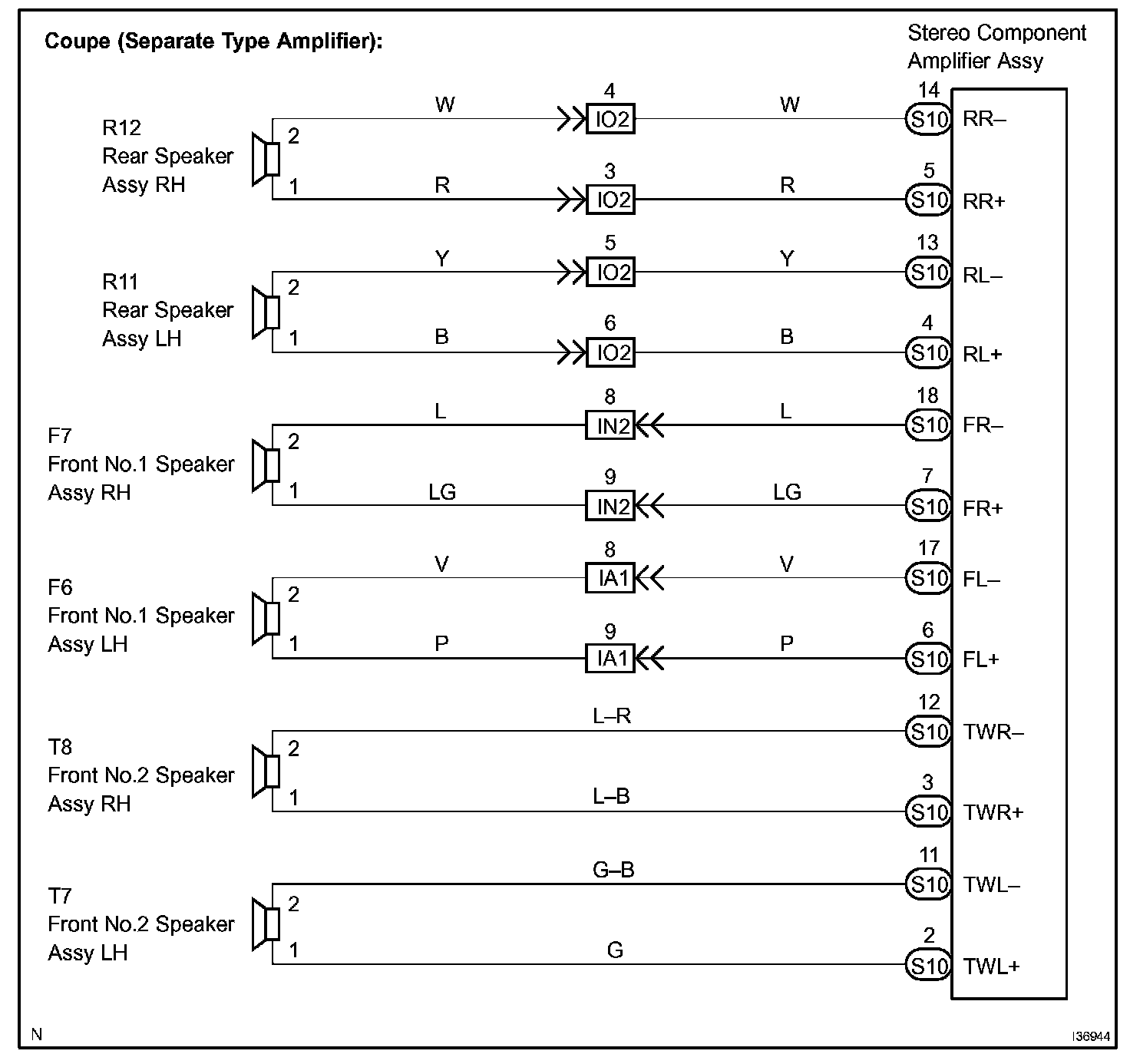

Wiring Diagram Part 1:

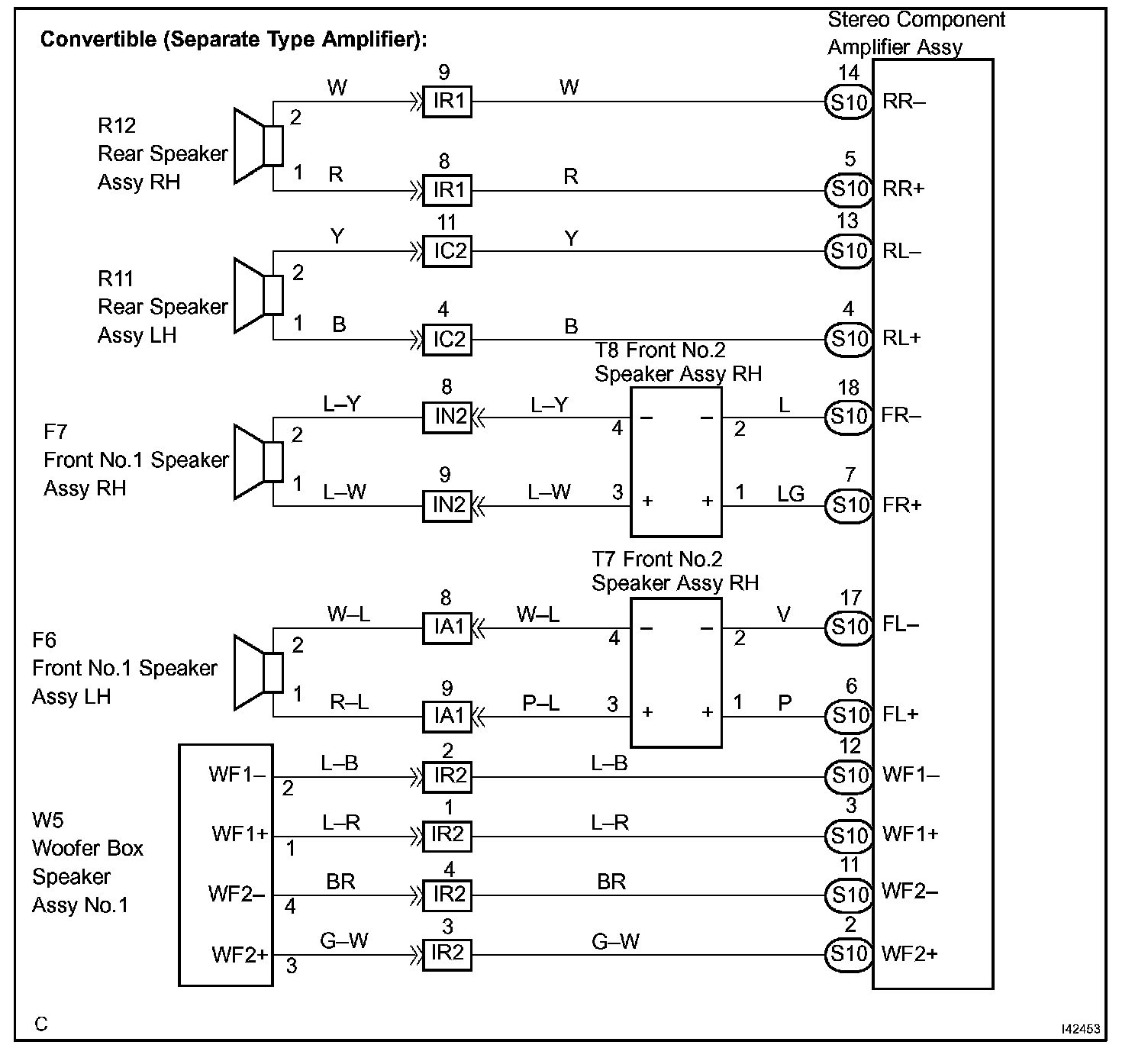

Wiring Diagram Part 2:

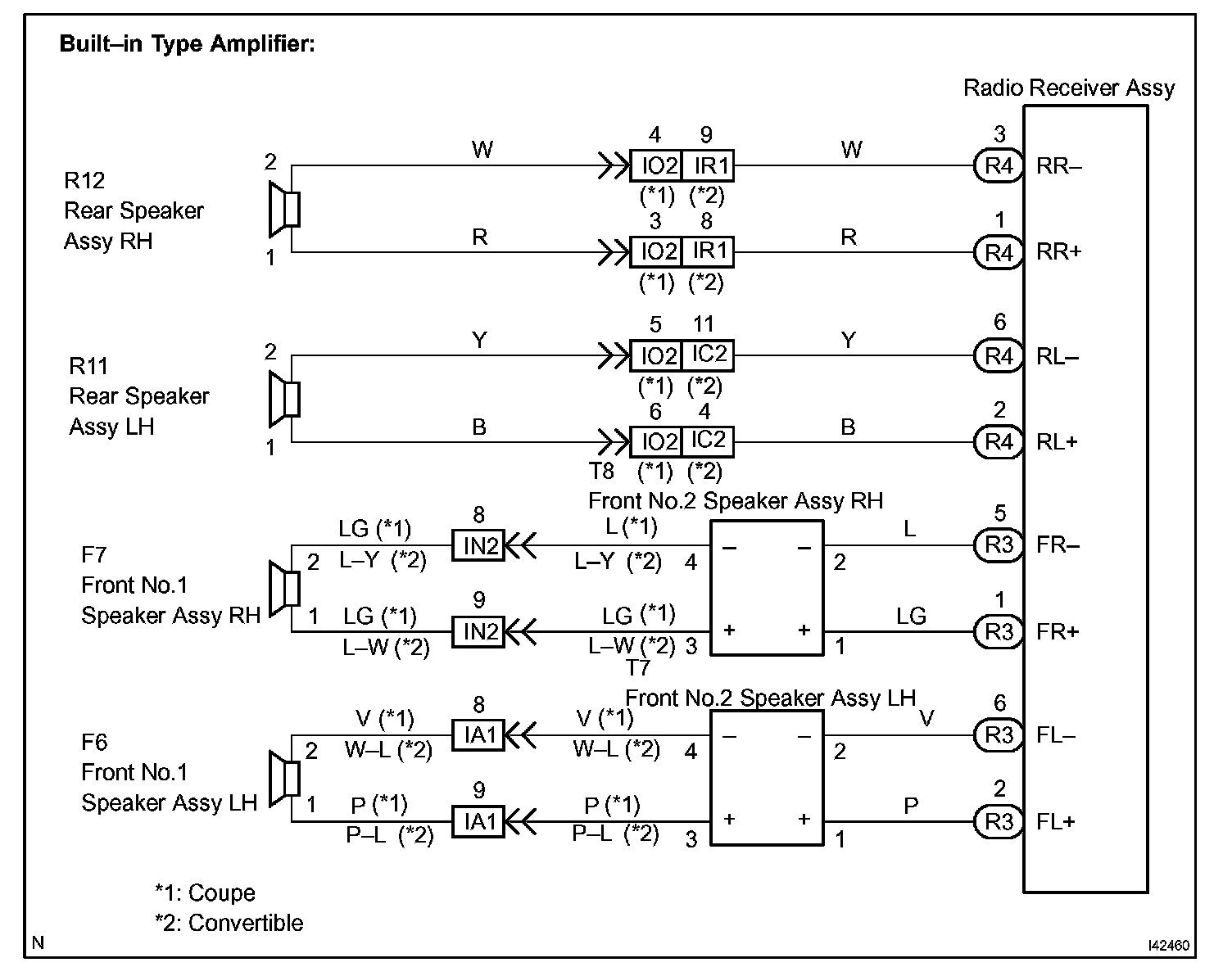

Wiring Diagram Part 3:

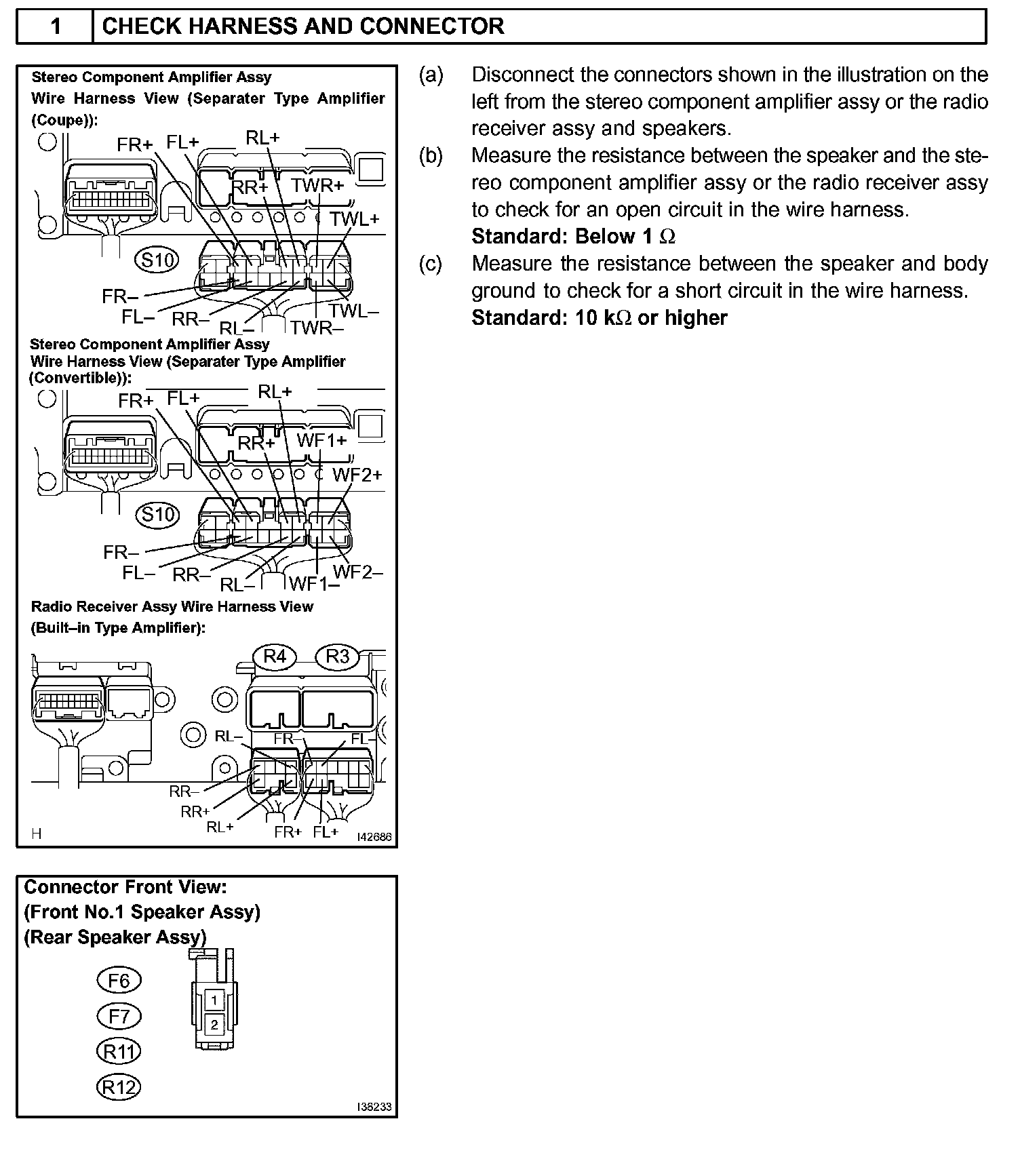

Step 1:

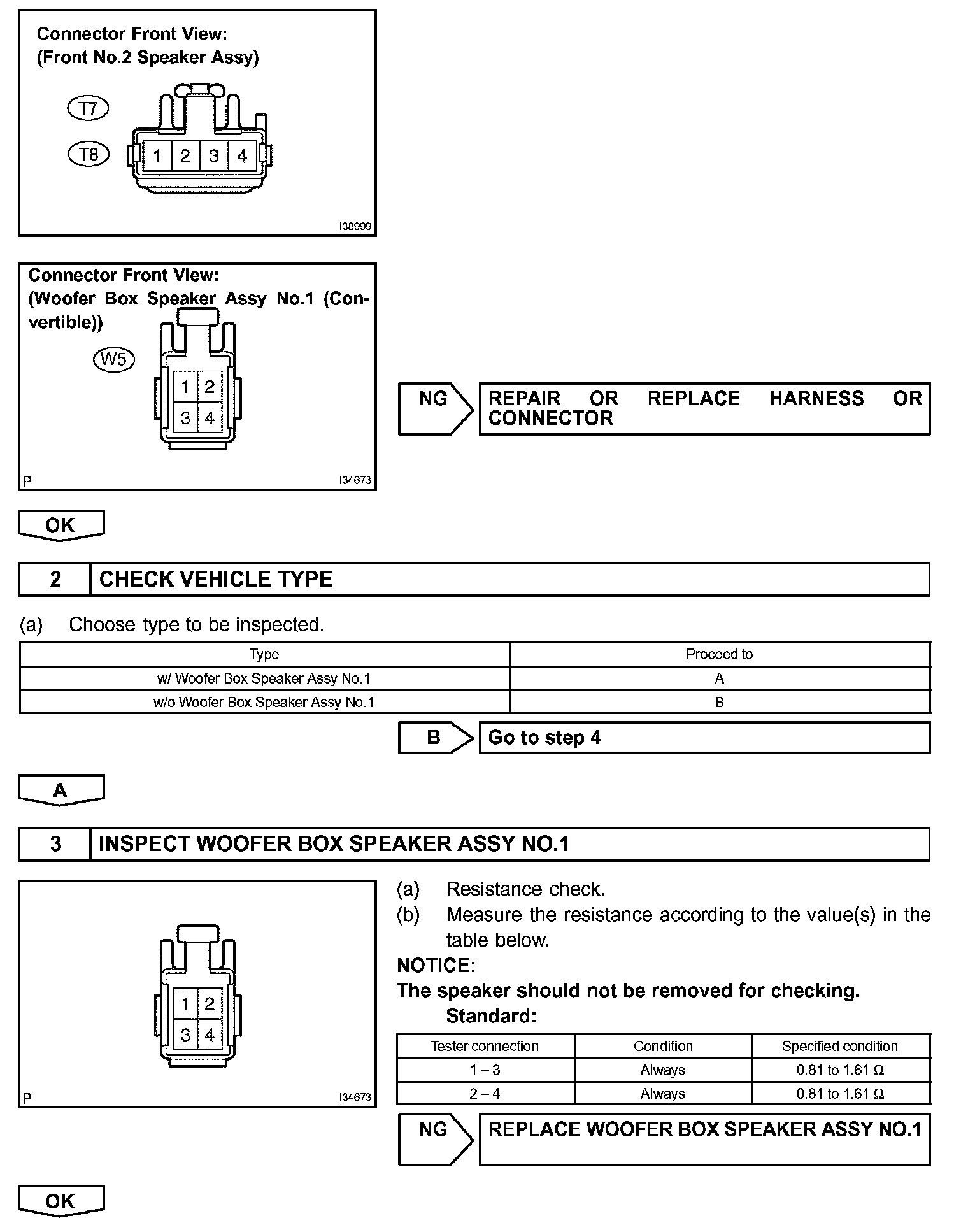

Step 1 (Continued) - 3:

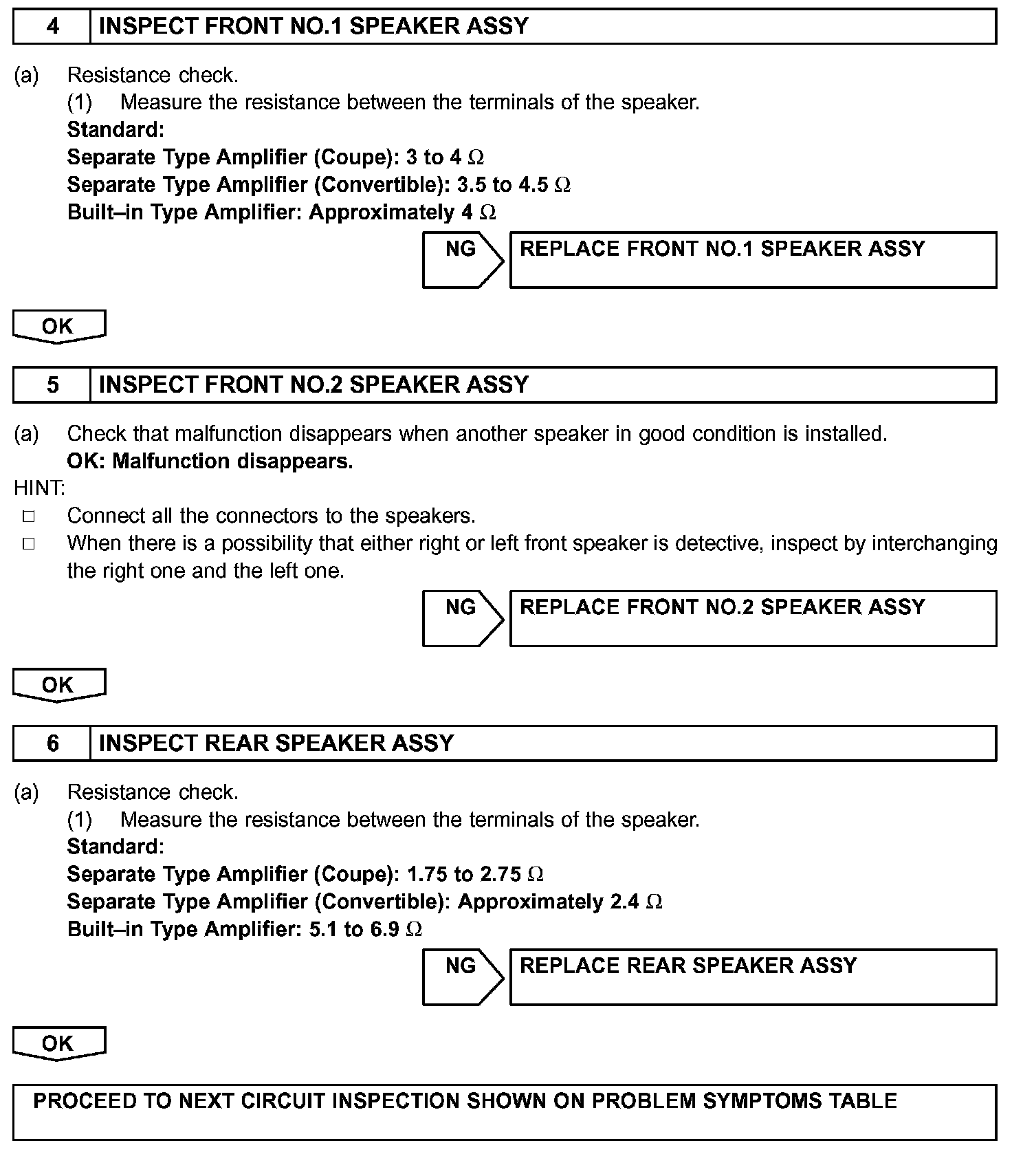

Step 4 - 6:

INSPECTION PROCEDURE
