Coupe

ADJUSTMENT

HINT: A bolt without a torque specification is shown in the standard bolt chart.







1. INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSY

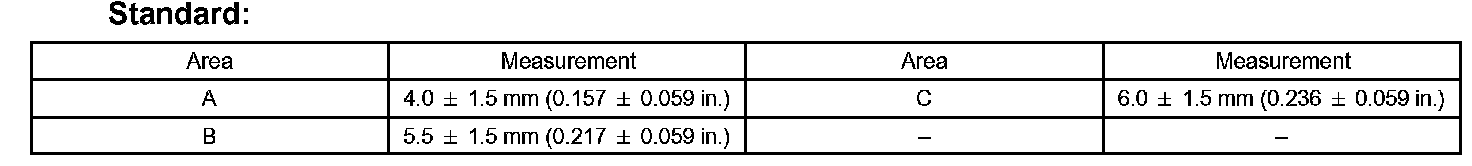

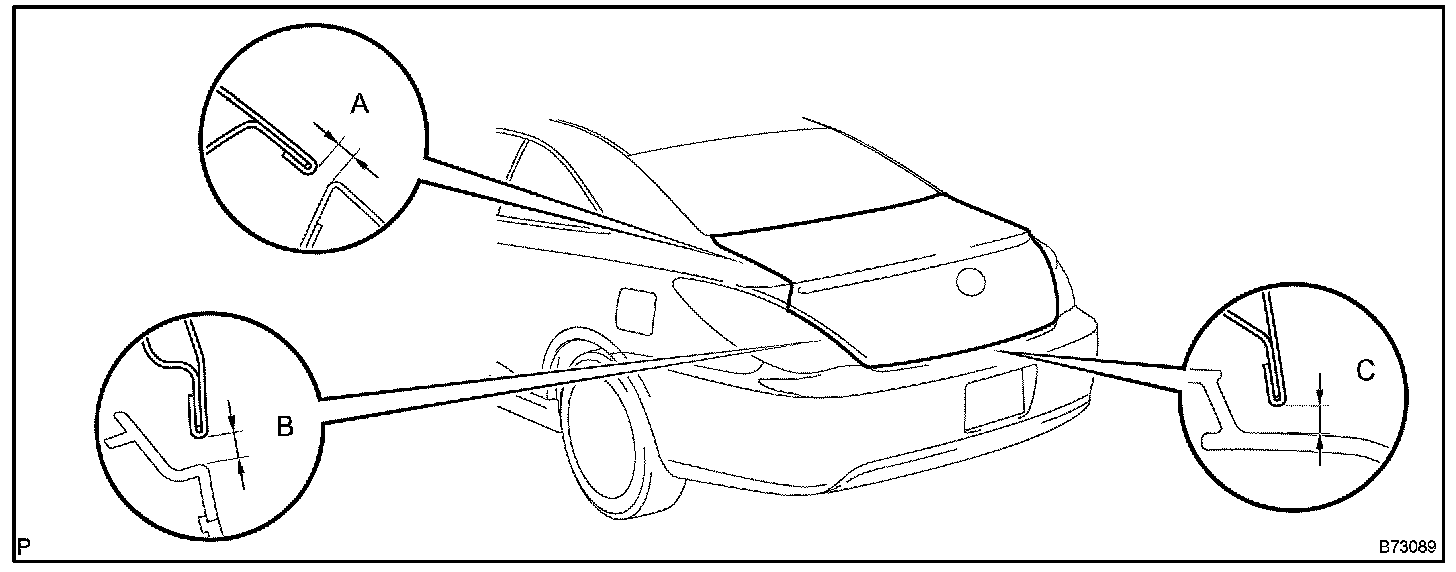

a. Check that the clearance measurements of areas A to C are within the standard range.




2. ADJUST LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSY

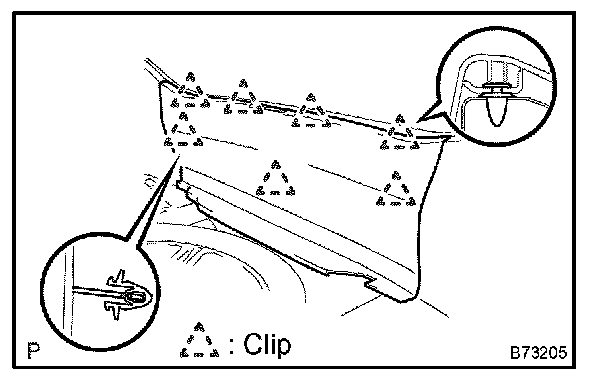

a. Using a clip remover, remove the 16 clips and trim cover.

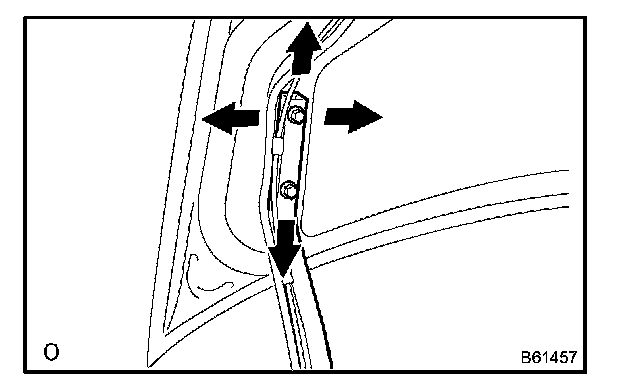

b. Adjust the door horizontally and vertically by loosening the door side 's hinge bolts.
c. Tighten the door side's hinge bolts after the adjustment.

Torque: 8.0 Nm (82 kgf.cm, 71 in.lbf)




d. Adjust the striker.
1. Using a screwdriver, disengage the 7 clips and remove the rear floor finish plate.

HINT: Tape the screwdriver tip before use.

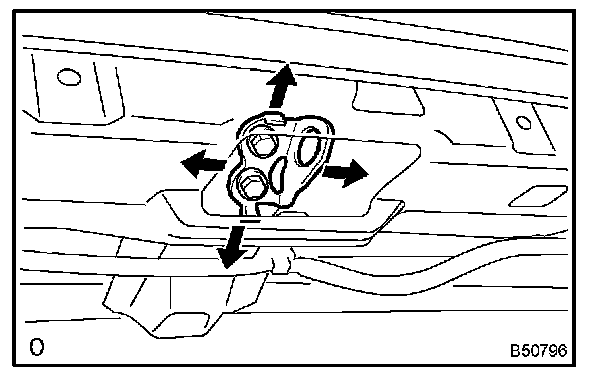

2. Using a hammer and a brass bar, tap the striker to adjust it.

HINT: Adjust the door lock position by moving the striker so that the door striker can enter smoothly.

3. Tighten the 2 bolts after the adjustment.

Torque: 5.5 Nm (56 kgf.cm, 49 in.lbf)
