Component Inspection

INSPECTION

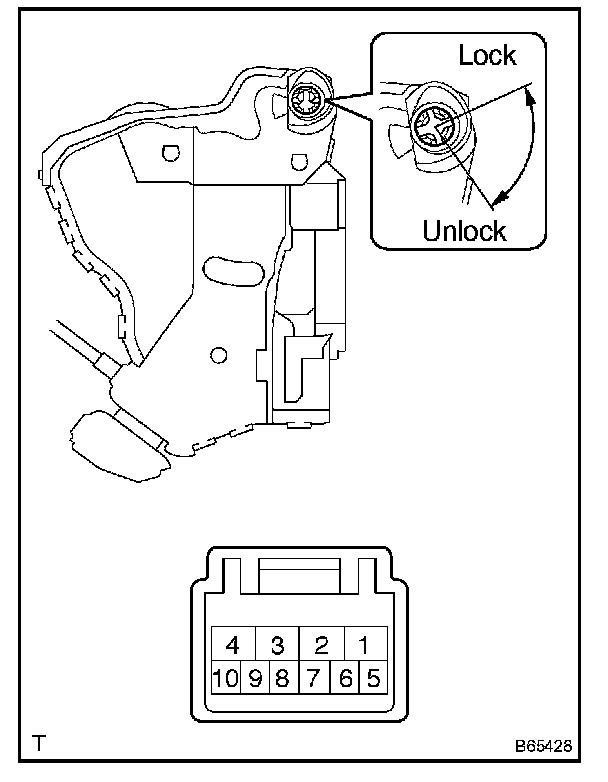

1. INSPECT FRONT DOOR LOCK ASSY LH

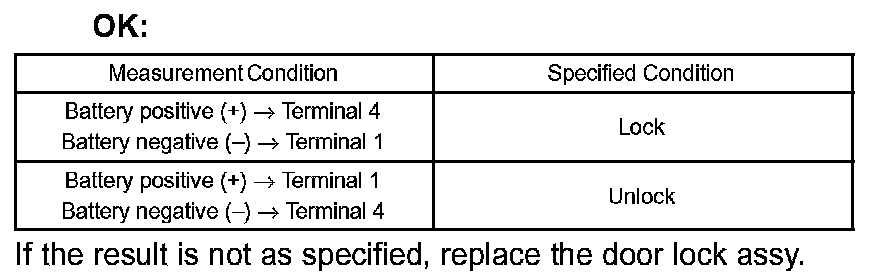

a. Apply battery voltage to the door lock and check operation of the door lock motor.

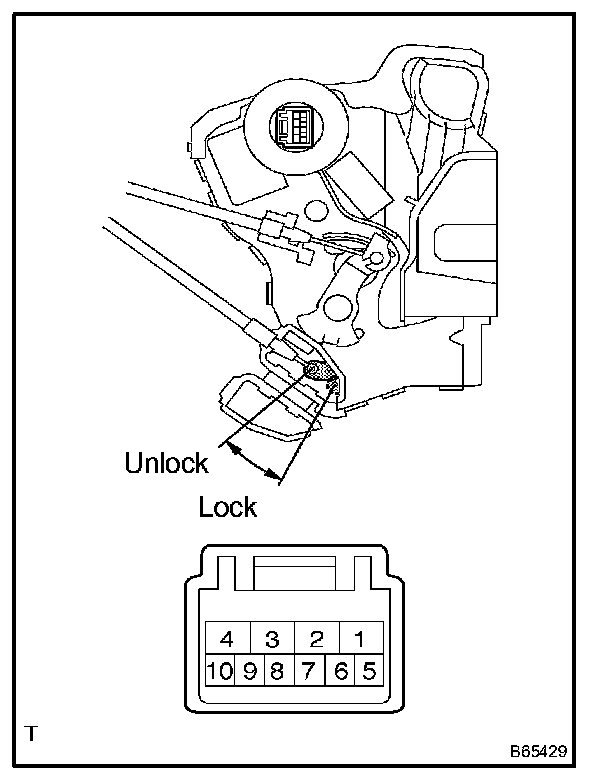

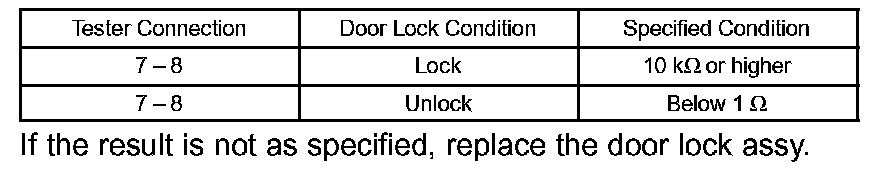

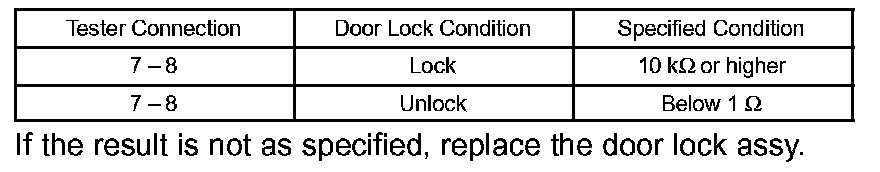

b. Measure the resistance of the position switch.




Standard:

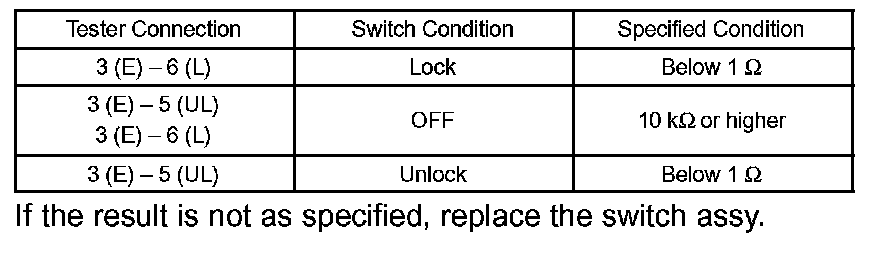

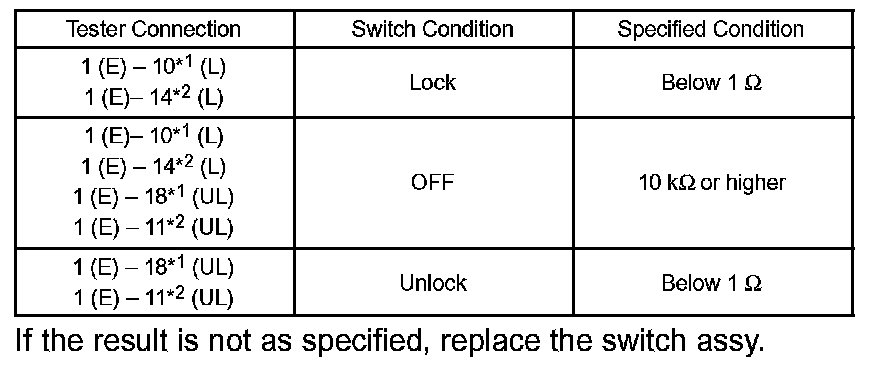

c. Measure the resistance of the door lock and unlock switch.




Standard:

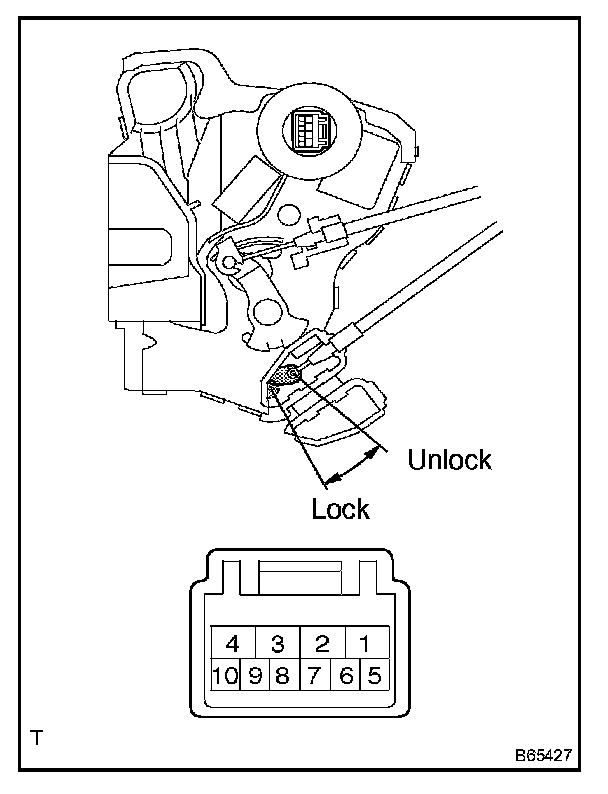

2. INSPECT FRONT DOOR LOCK ASSY RH

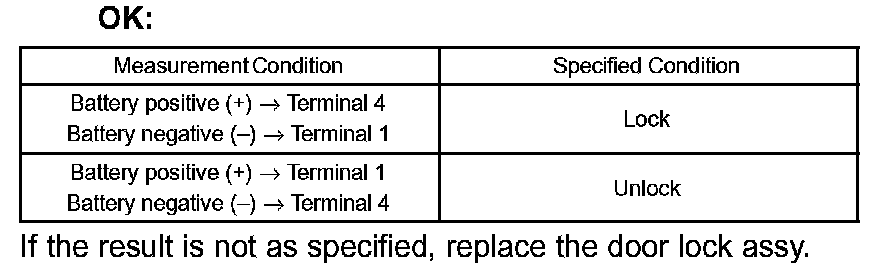

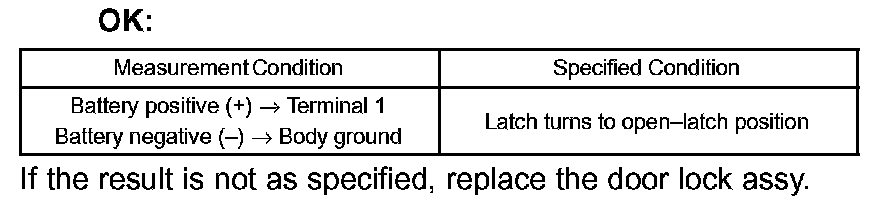

a. Apply battery voltage to the door lock and check operation of the door lock motor.

b. Measure the resistance of the position switch.




Standard:

3. INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSY




a. Check operation of the door lock.
1. Using a screwdriver, move the latch to the full latch position.




2. Apply battery voltage to the door lock and check operation of the latch.

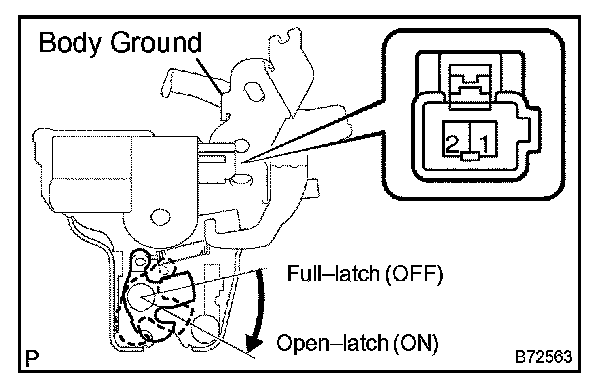

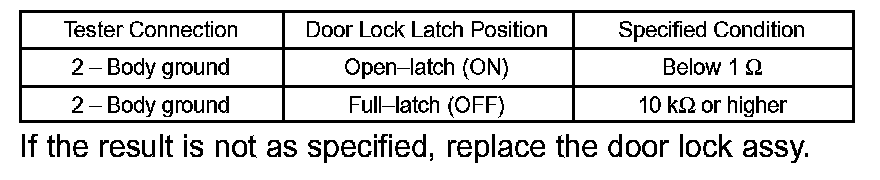

b. Measure the courtesy switch resistance.




Standard:

4. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY




a. Measure the resistance of the door control switch.




Standard:

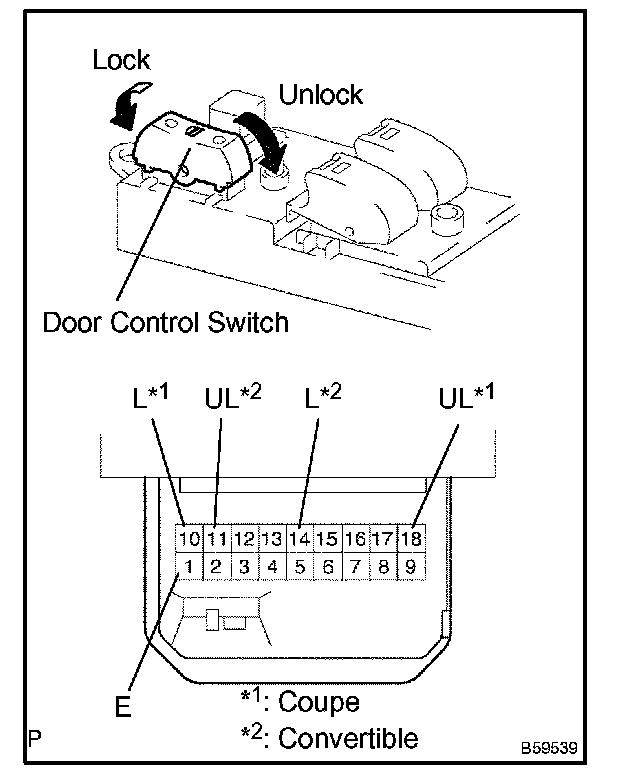

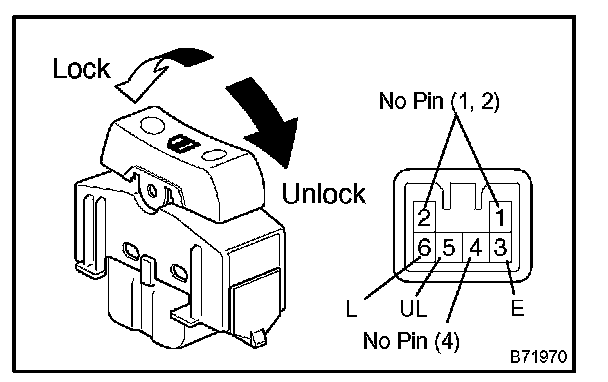

5. INSPECT DOOR CONTROL SWITCH ASSY




a. Measure the resistance of the switch.




Standard:
