Pre-Check
DTC CHECK/CLEARCHECK OUTPUT OF DTC BY DOOR OPEN INDICATOR
a. Inspect the battery positive voltage.
Standard: 11 to 14 V (when engine is stopped)
b. Check DTC outputs.
1. Check that the door open indicator turns on when one of the doors is opened.
HINT: If the indicator does not turn on, the problem may be among the following: a defective door open indicator LED, a short circuit in the wire harness, a defective courtesy lamp switch contact or a defective multiplex network body ECU.

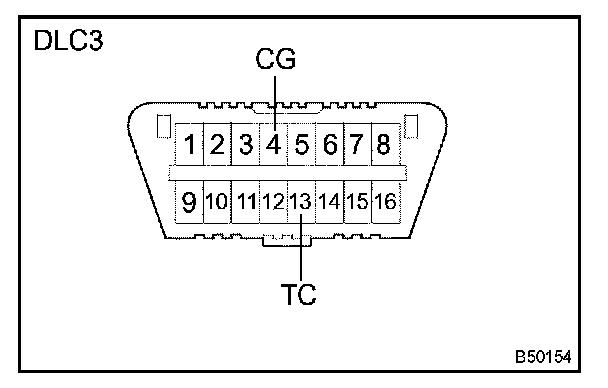

2. Using SST (diagnosis check wire No. 2), short-circuit terminals TC (13) and CG (4) of the DLC3.
SST 09843-18040
NOTE: Do not short-circuit any other terminals.

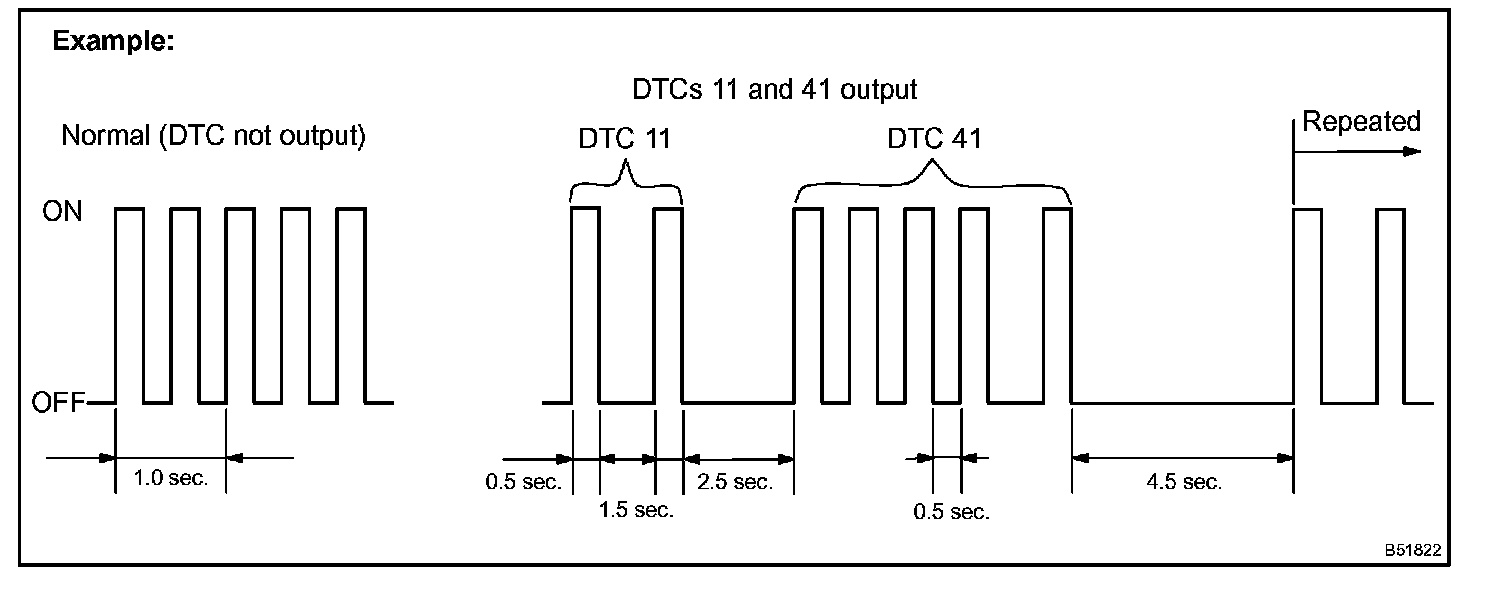

3. Turn the ignition switch ON and observe how many times the door open indicator flashes.
HINT: When 2 or more codes are output simultaneously, the codes will be displayed in numerical order.
