Power Mirror Control System

INSPECTION

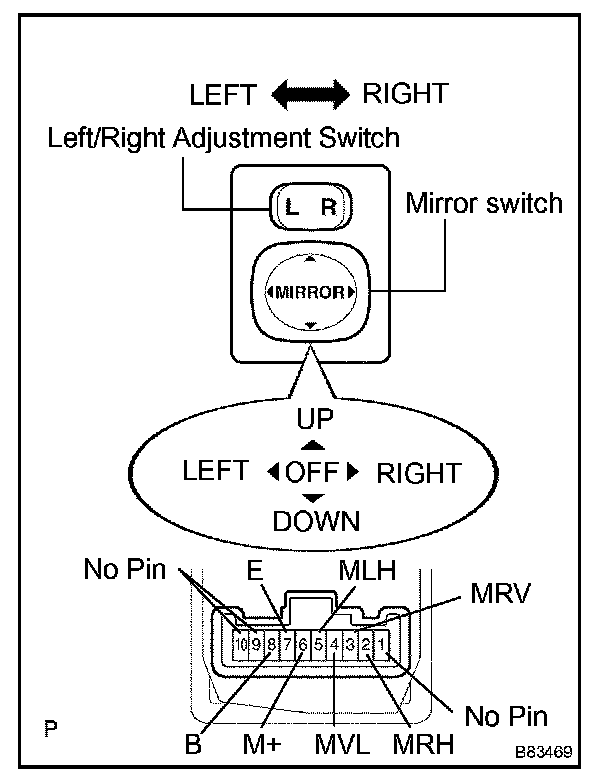

1. INSPECT OUTER MIRROR SWITCH ASSY

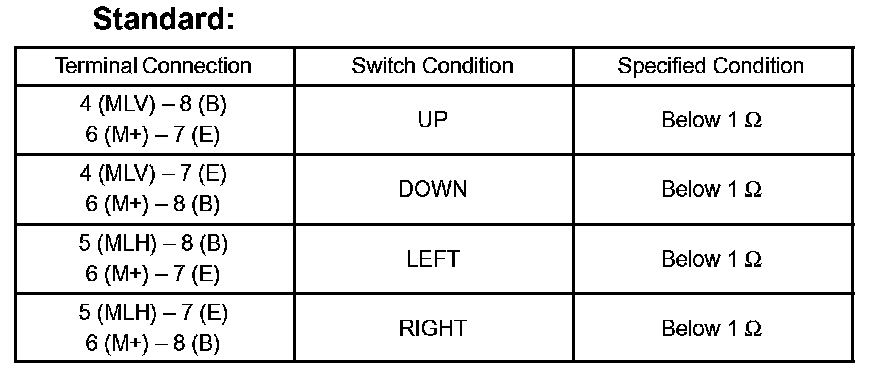

a. Select "L" on the left/right adjustment switch:
Measure the resistance of the switch.
If the result is not as specified, replace the switch assy.

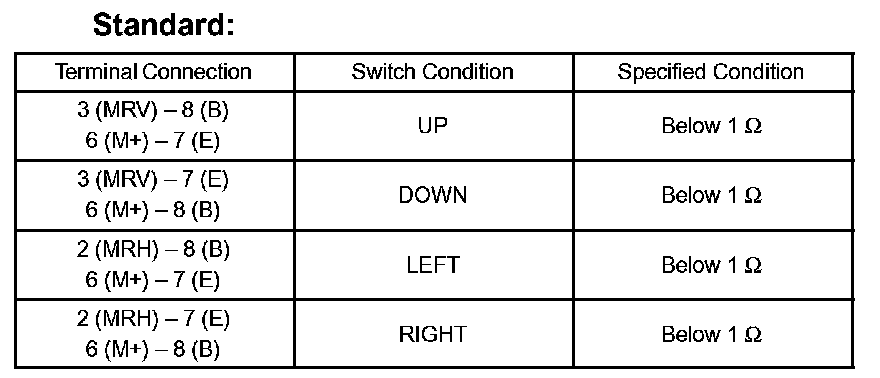

b. Select "R" on the left/right adjustment switch:
Measure the resistance of the switch.
If the result is not as specified, replace the switch assy.

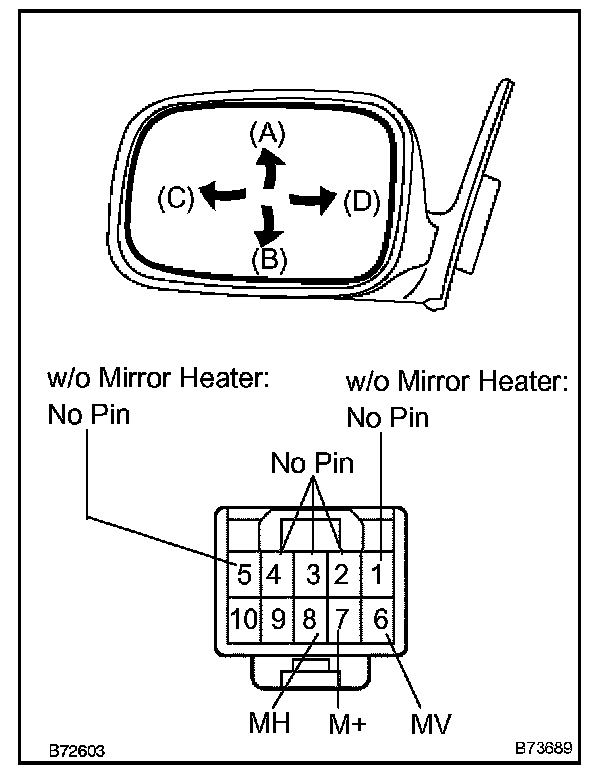

2. INSPECT OUTER REAR VIEW MIRROR ASSY LH
a. Disconnect the mirror connector.

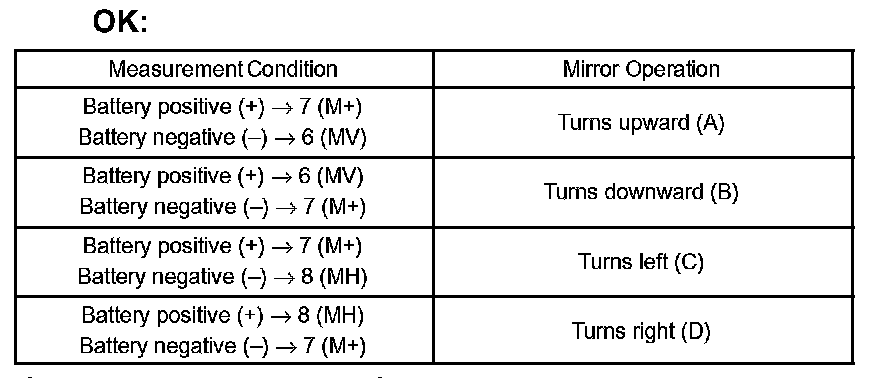

b. Apply battery voltage and check operation of the mirror.
If the result is not as specified, replace the mirror assy.

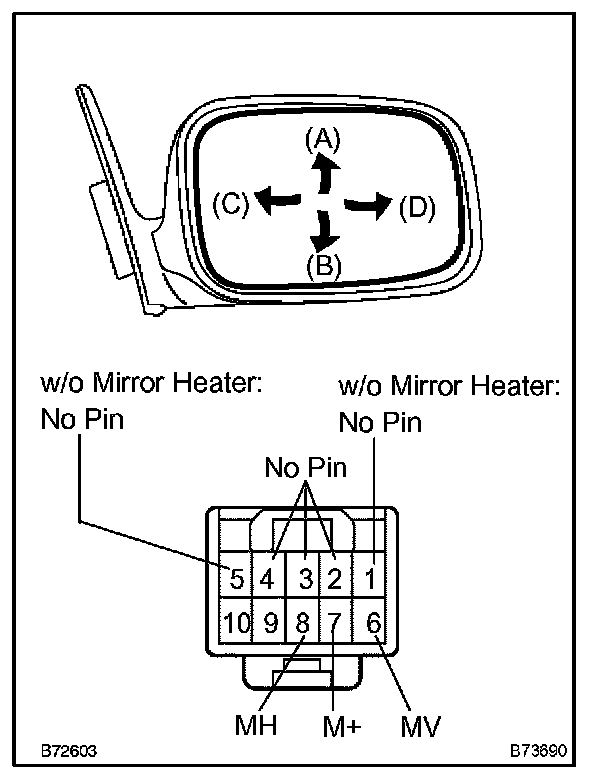

3. INSPECT OUTER REAR VIEW MIRROR ASSY RH
a. Disconnect the mirror connector.

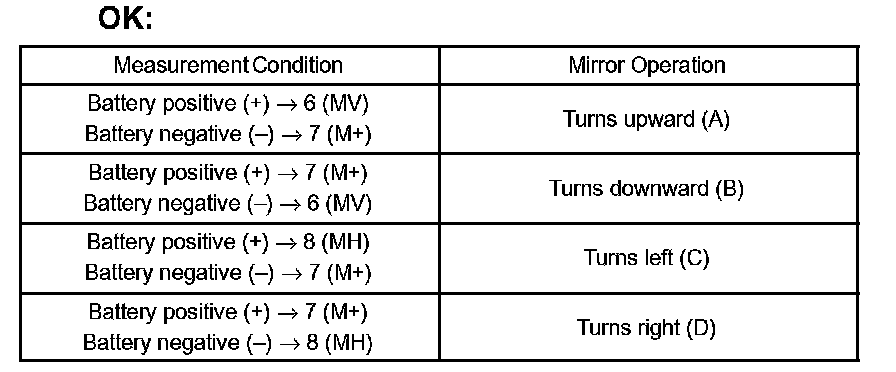

b. Apply battery voltage and check operation of the mirror.
If the result is not as specified, replace the mirror assy.
