Exploded Views

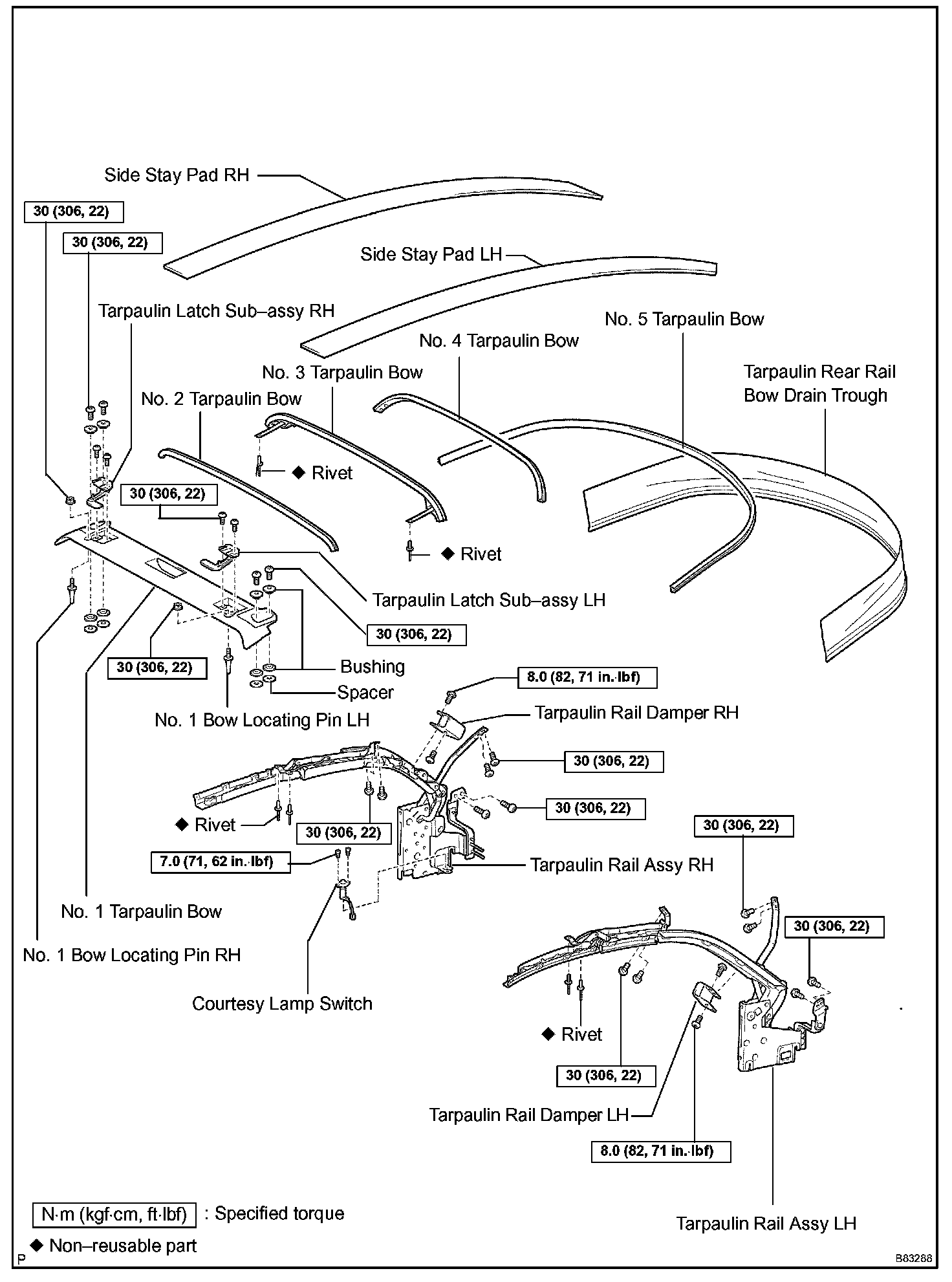

Soft Top (Convertible) - Part 1:

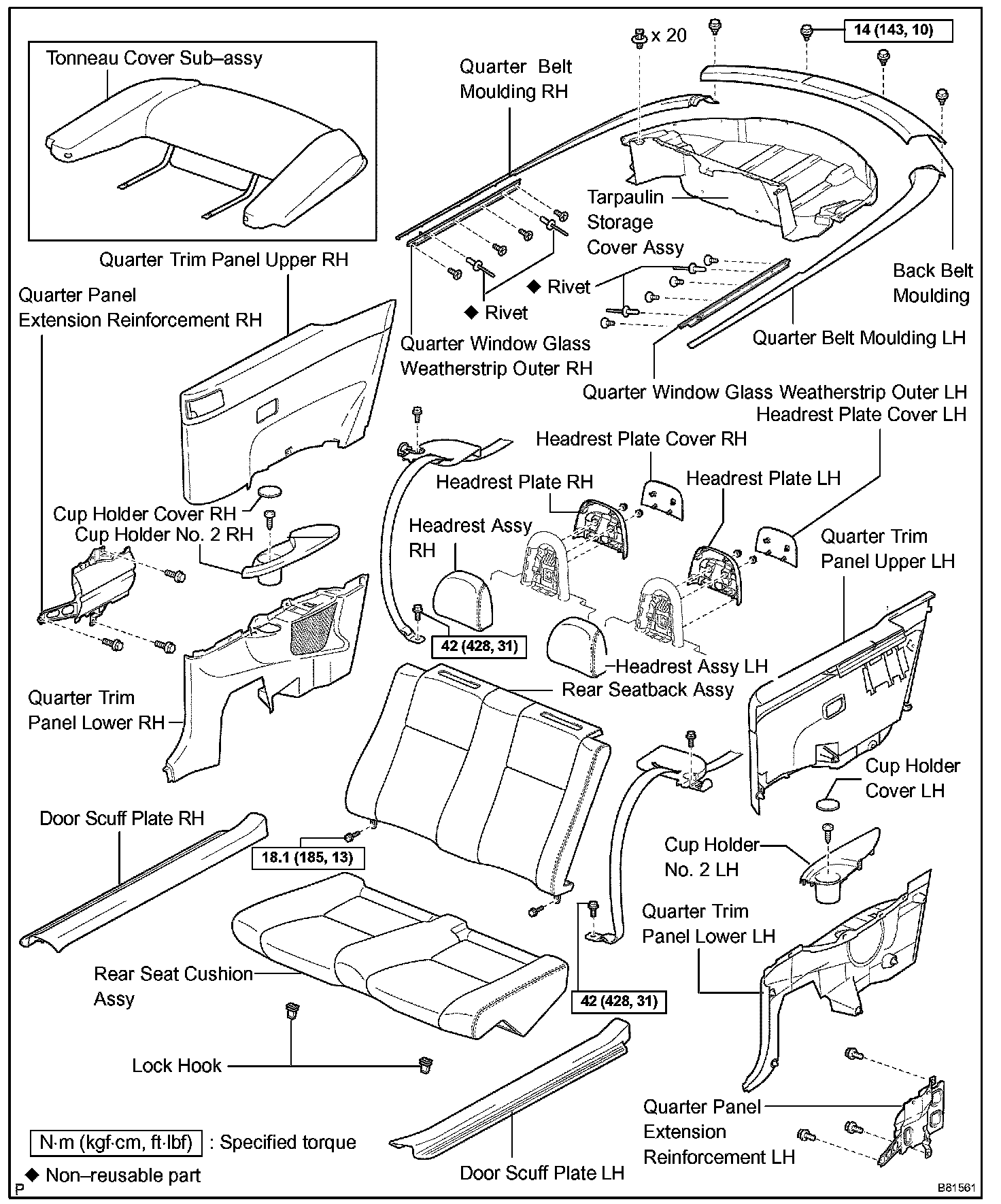

Soft Top (Convertible) - Part 2:

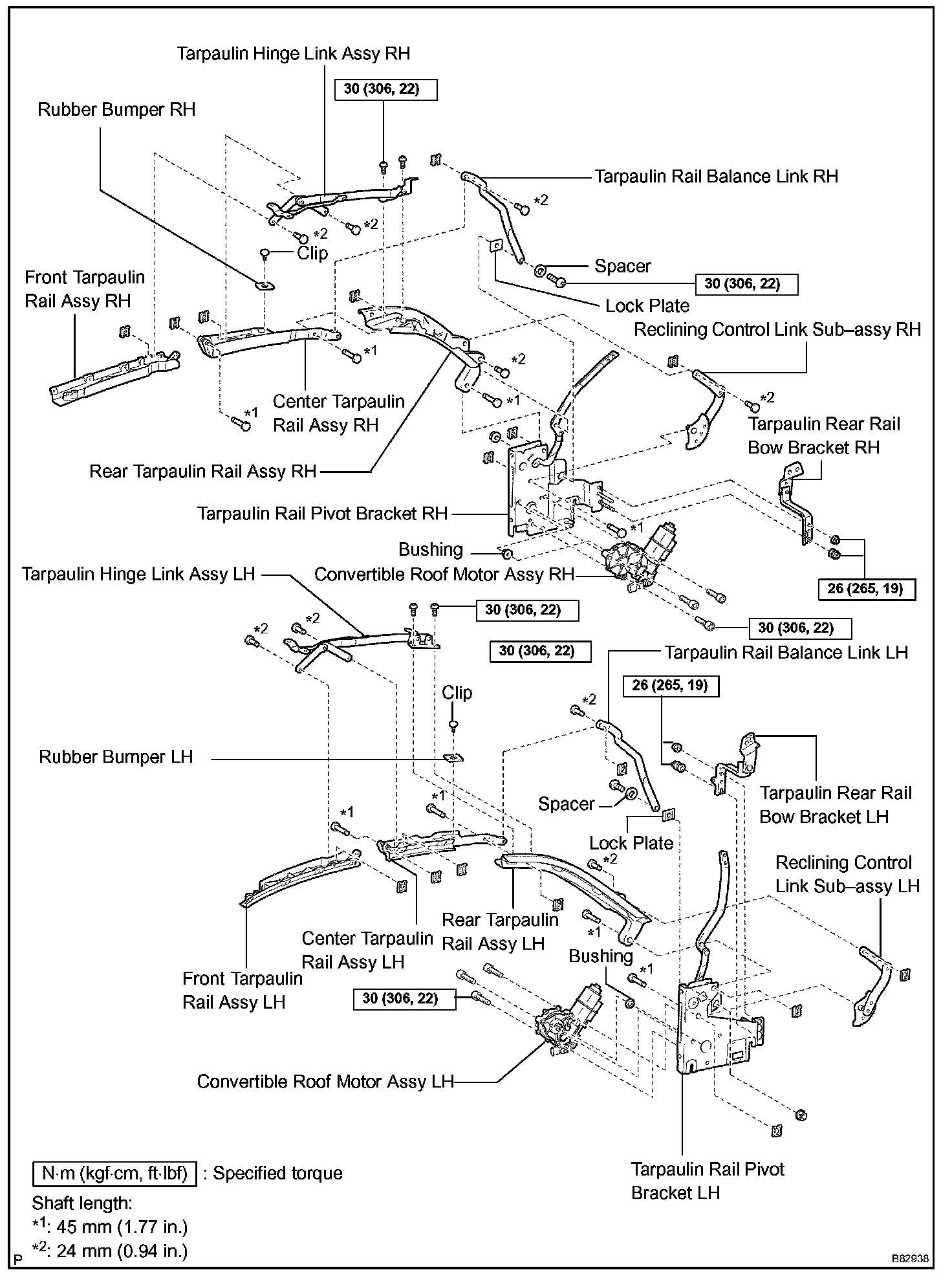

Soft Top (Convertible) - Part 3:

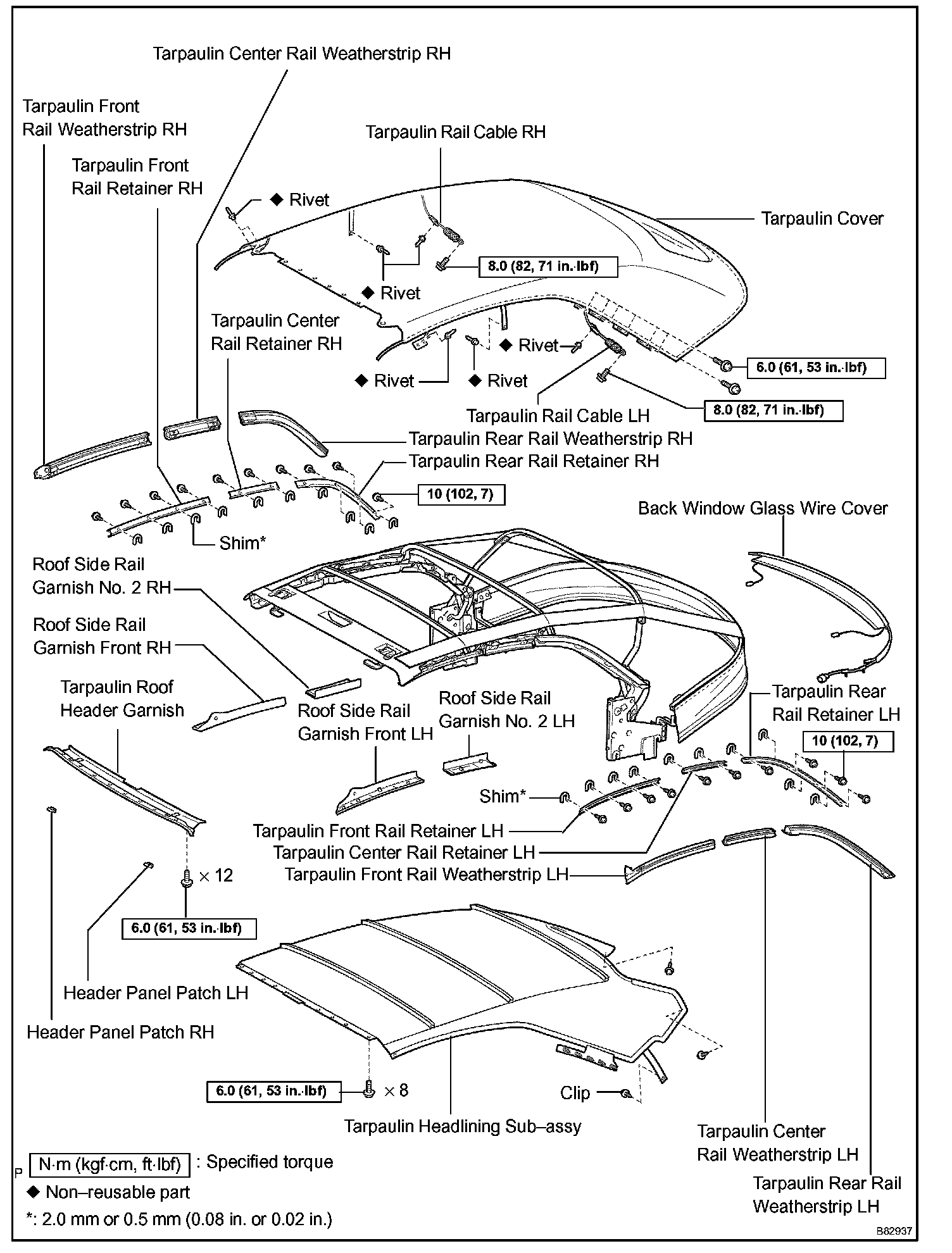

Soft Top (Convertible) - Part 4:
Soft Top (Convertible) - Part 5:
