Component Inspection

INSPECTION

1. INSPECT CONVERTIBLE ROOF MOTOR

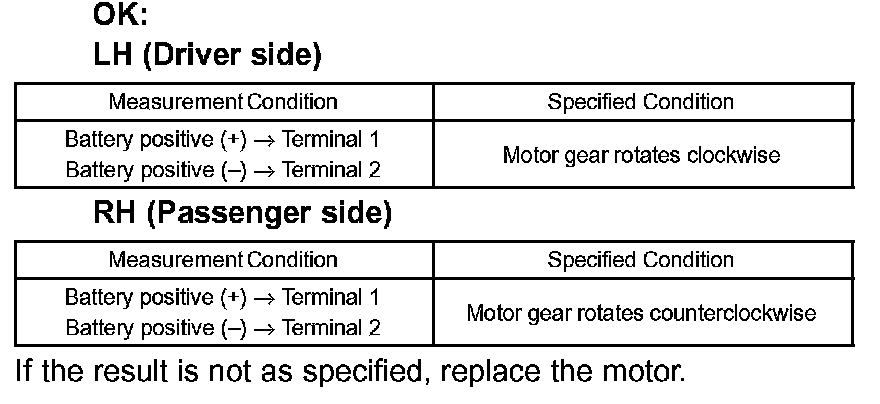

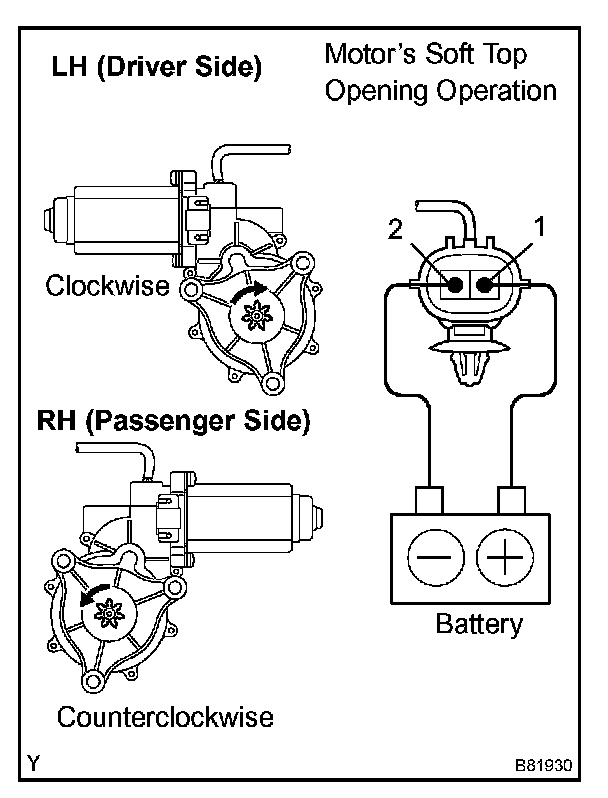

a. Motor's soft top opening operation:
Inspect operation of the roof motor.

1. Connect the battery's positive (+) lead to terminal 1 and the negative (-) lead to terminal 2.




2. Check that the motor operates smoothly.

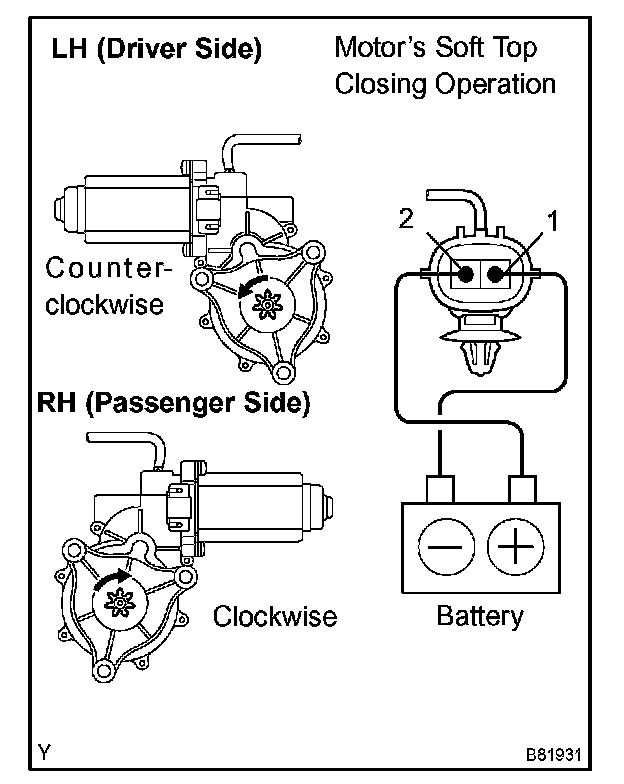

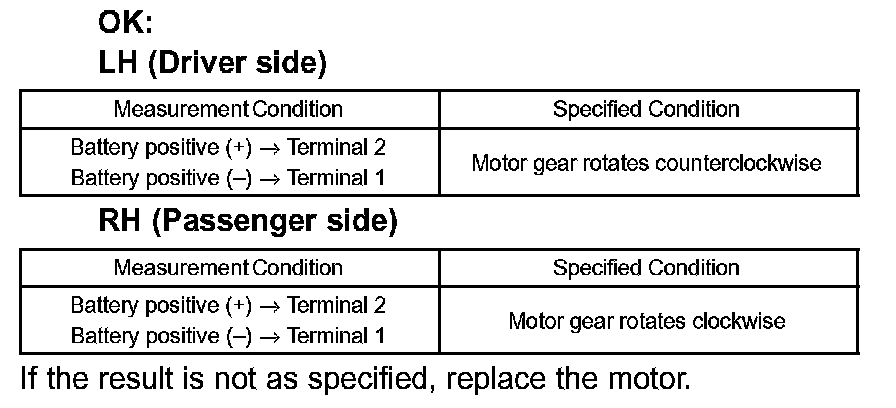

b. Motor's soft top closing operation:
Inspect operation of the roof motor.

1. Connect the battery's positive (+) lead to terminal 2 and the negative (-) lead to terminal 1.




2. Check that the motor operates smoothly.

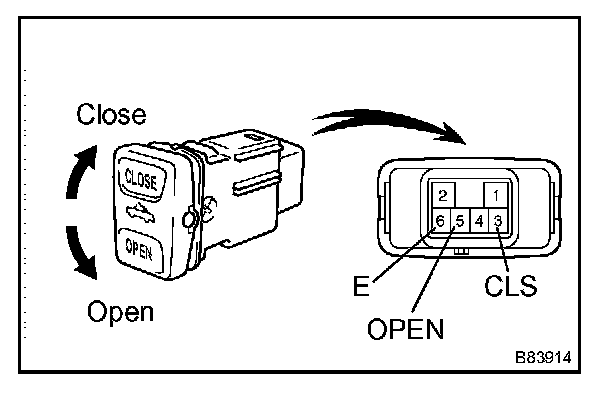

2. INSPECT CONVERTIBLE ROOF CONTROL SWITCH

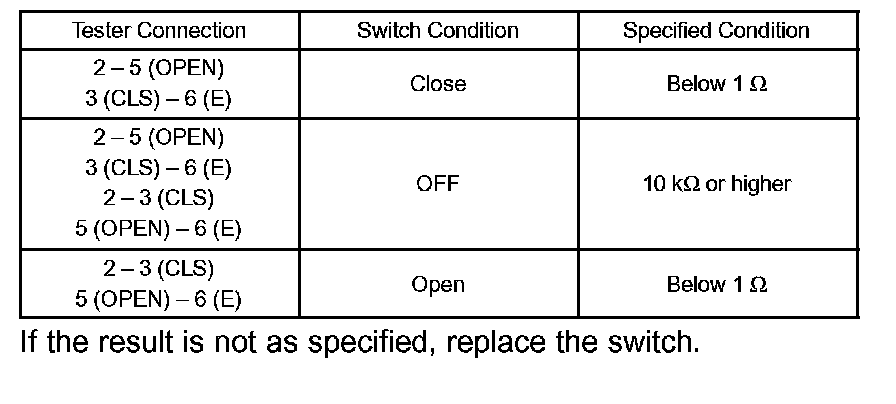

a. Measure the resistance of the convertible roof control switch.




Standard:
