Convertible Roof Control Switch Circuit

CONVERTIBLE ROOF CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The convertible roof control switch is installed in the instrument panel. Pressing the convertible roof control OPEN/CLOSE switch opens/closes the soft top. While the switch is pressed, the soft top, front door windows and quarter windows will move according to a set pattern.

A wire harness connects the convertible roof control switch and the convertible roof control ECU. If the roof's operating conditions are met, the roof motors, door window motors and quarter window motors will operate according to switch input.

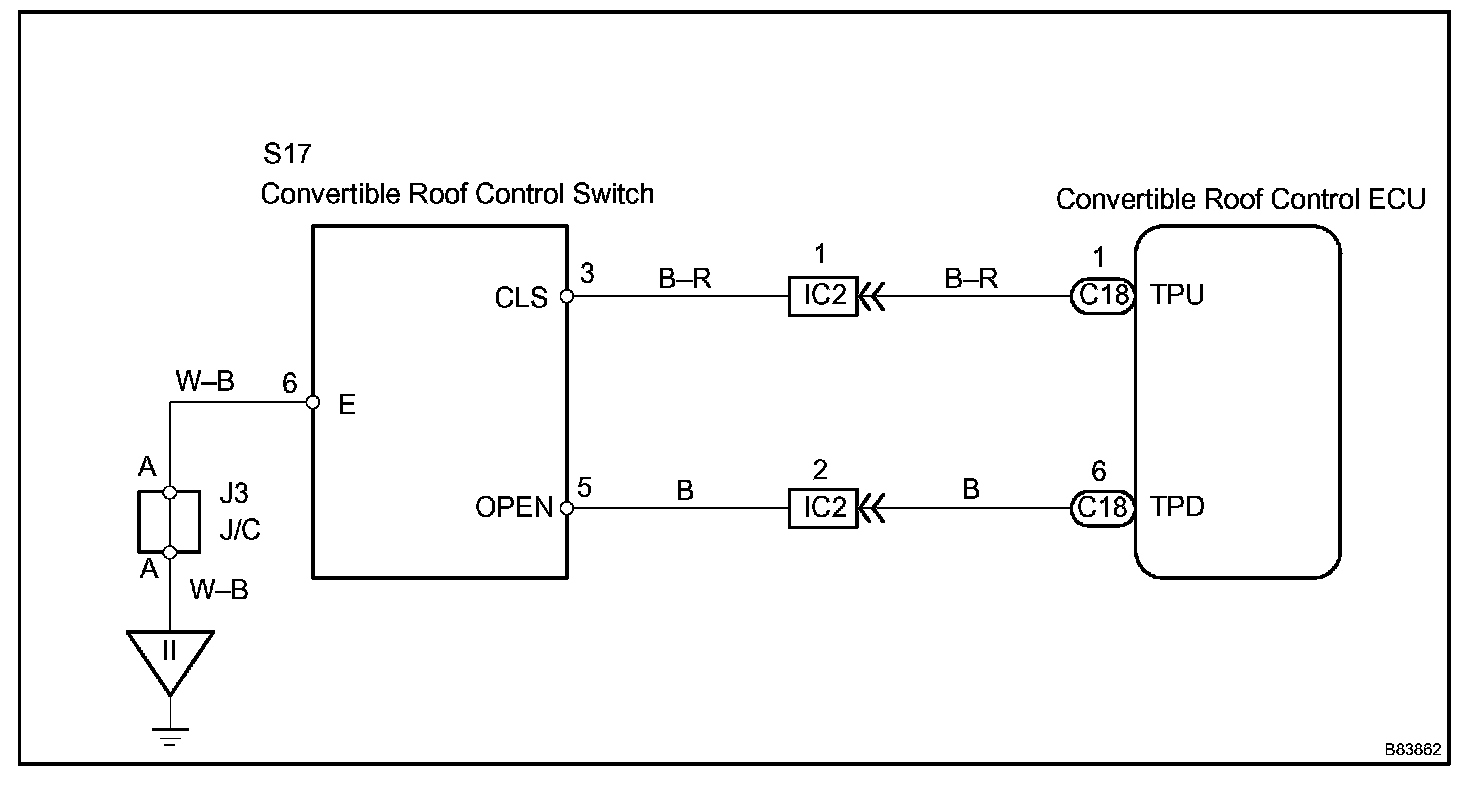

Wiring Diagram:

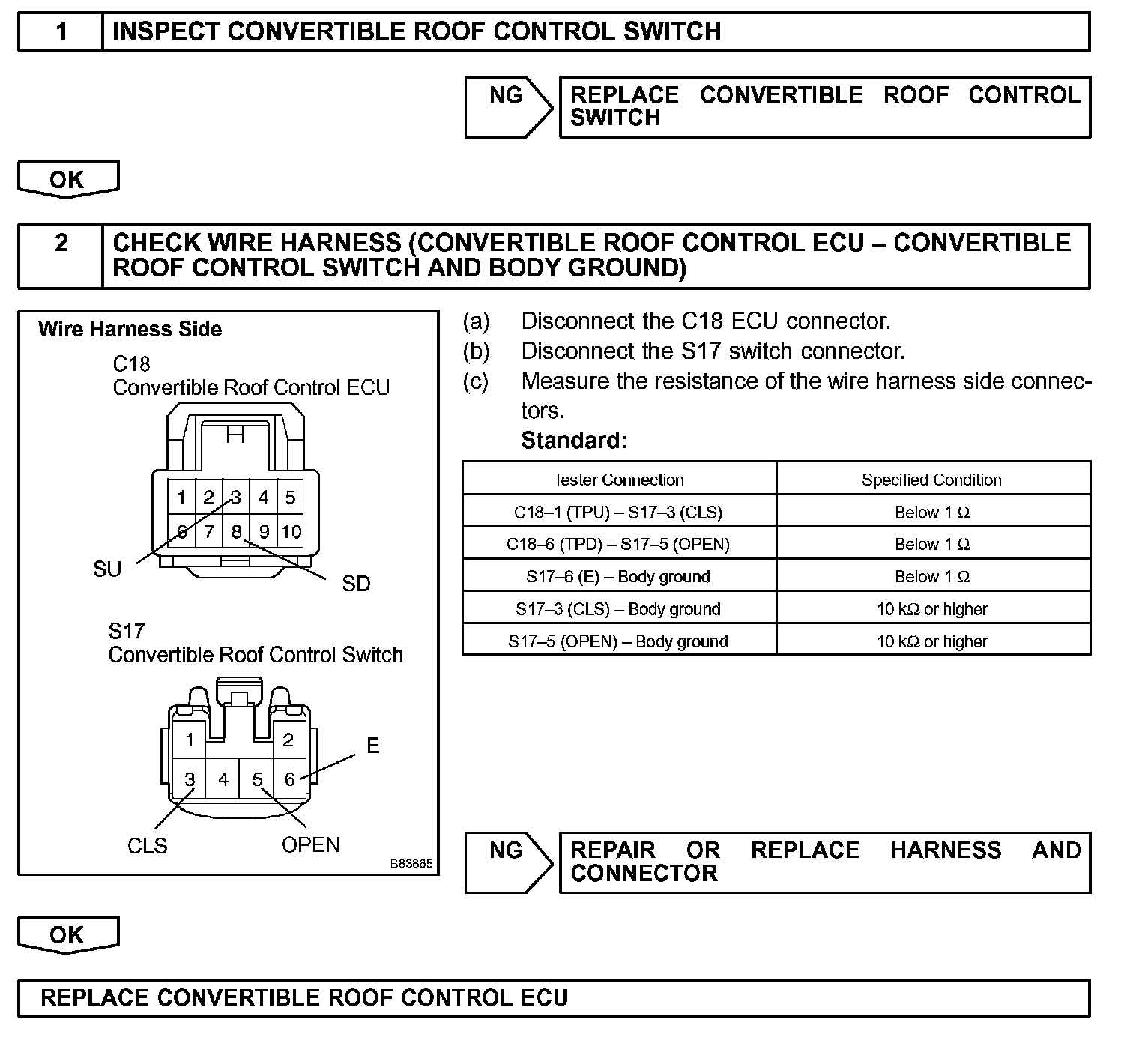

Step 1 - 2:

INSPECTION PROCEDURE
