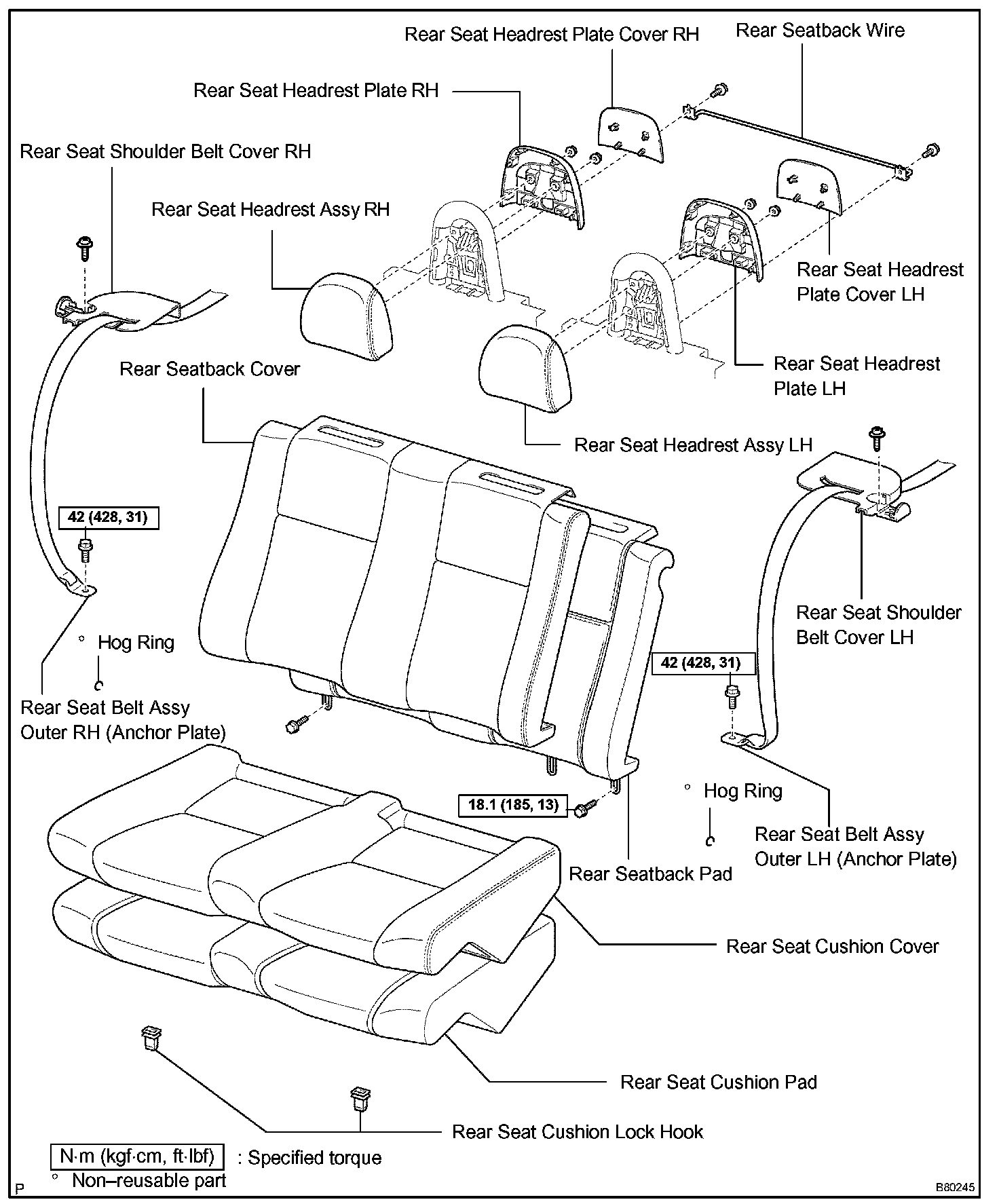

Rear Seat Assembly (Convertible)

Rear Seat Assy (Convertible):

OVERHAUL

HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- A bolt without a torque specification is shown in the standard bolt chart .

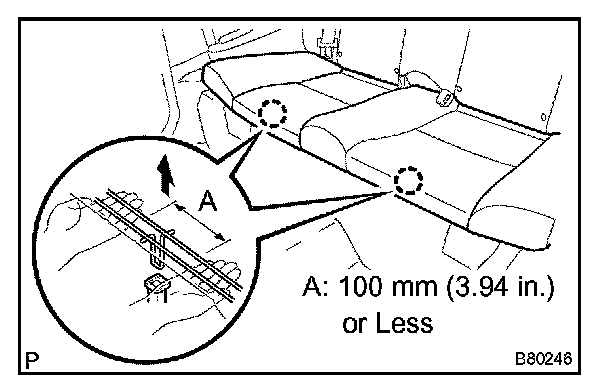

1. REMOVE REAR SEAT CUSHION ASSEMBLY
a. Pull up the 2 front portions of the seat cushion, then remove it.

NOTE: The cushion frame deforms easily. To avoid deforming the seat cushion, place your hands near the hook as shown in the illustration, and then pull up on the seat cushion. Do the same for the other hook.

2. REMOVE REAR SEAT CUSHION COVER
a. Remove the hog rings and seat cushion cover from the seat cushion pad.

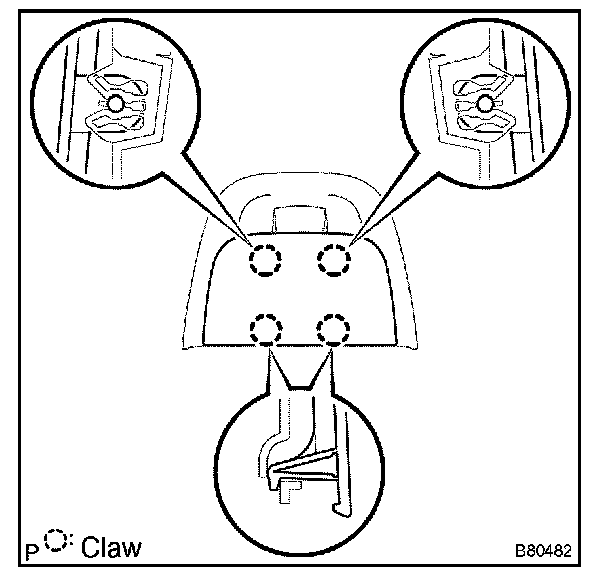

3. REMOVE REAR SEAT HEADREST PLATE COVER LH
a. Using a screwdriver, disengage the 4 claws and remove the plate cover.

HINT: Tape the screwdriver tip before use.

4. REMOVE REAR SEAT HEADREST PLATE COVER RH

HINT: Use the same procedures described for the LH side.

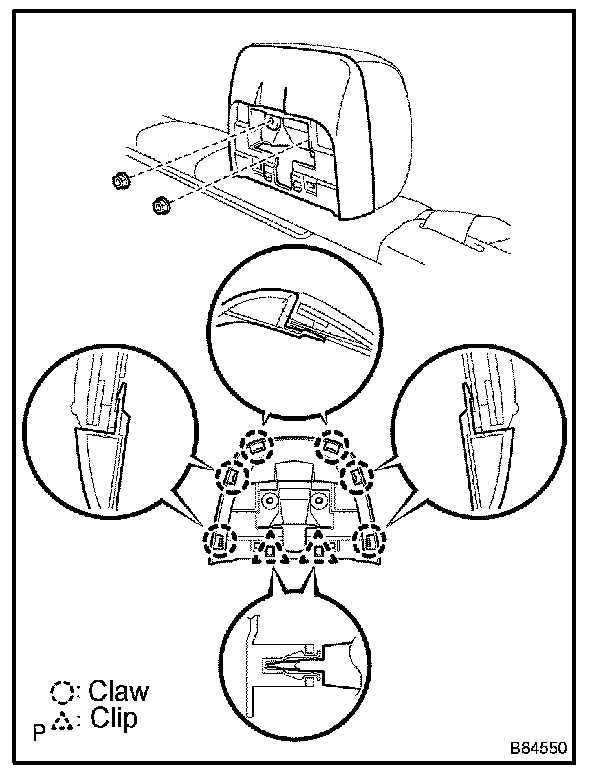

5. REMOVE REAR SEAT HEADREST PLATE LH
a. Remove the 2 nuts.
b. Disengage the 6 claws and 2 clips. Then remove the plate.

6. REMOVE REAR SEAT HEADREST PLATE RH

HINT: Use the same procedures described for the LH side.

7. REMOVE REAR SEAT HEADREST ASSEMBLY LH
8. REMOVE REAR SEAT HEADREST ASSEMBLY RH

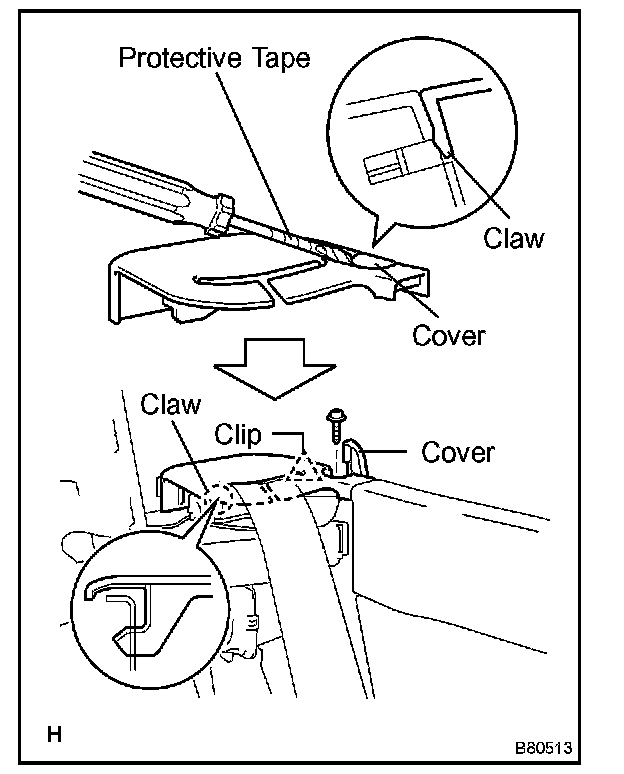

9. REMOVE REAR SEAT SHOULDER BELT COVER LH
a. Using a screwdriver, disengage the claw and turn over the cover.

HINT: Tape the screwdriver tip before use.

b. Remove the screw.
c. Using a screwdriver, disengage the clip and claw. Then remove the belt cover.

HINT: Tape the screwdriver tip before use.

10. REMOVE REAR SEAT SHOULDER BELT COVER RH

HINT: Use the same procedures described for the LH side.

11. REMOVE REAR SEATBACK ASSEMBLY
a. Remove the 2 bolt and 2 rear seat outer belt anchors.




b. Remove the 2 bolts.

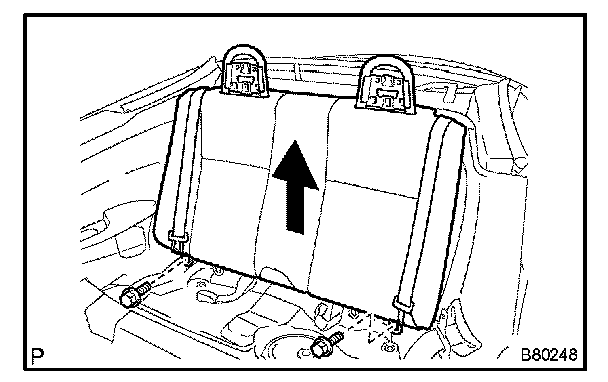

c. Remove the seatback in the direction indicated by the arrow in the illustration.

12. REMOVE REAR SEATBACK COVER
a. Remove the hog rings and seatback cover from the seatback pad.

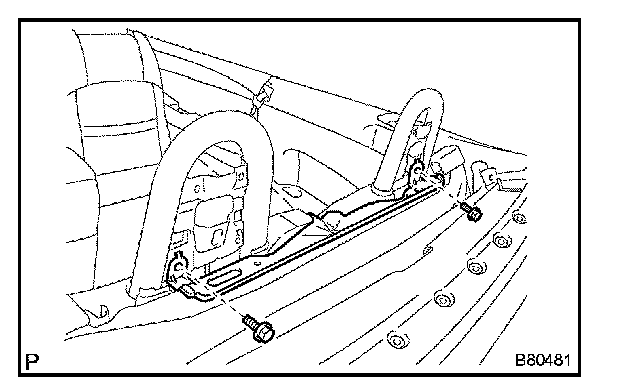

13. REMOVE REAR SEATBACK WIRE
a. Remove the 2 bolts and seatback wire.




14. INSTALL REAR SEATBACK COVER

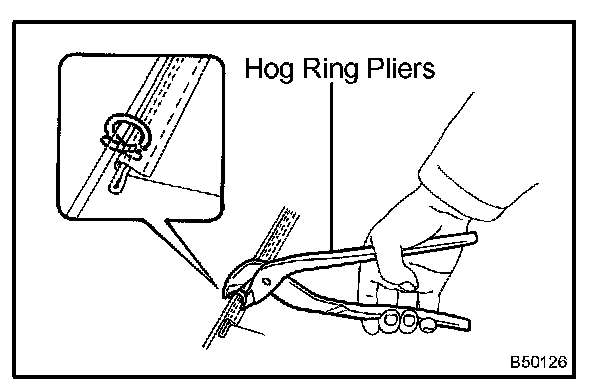

a. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

15. INSTALL REAR SEATBACK ASSEMBLY
a. Install the seatback with the 2 bolts.

Torque: 18.1 Nm (185 kgf.cm, 13 ft.lbf)

b. Install the 2 rear seat outer belt anchors with the 2 bolts.

Torque: 42 Nm (428 kgf.cm, 31 ft.lbf)

16. INSTALL REAR SEAT CUSHION COVER
a. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.

NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

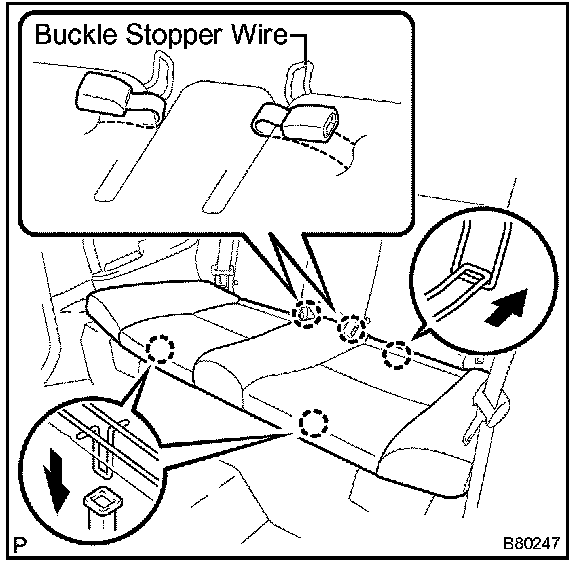

17. INSTALL REAR SEAT CUSHION ASSEMBLY
a. Insert the inner belts through the slits on the seat cushion as shown in the illustration.
b. Attach the seat cushion's rear hook to the seatback assembly's hook.
c. Attach the seat cushion's 2 front hooks to the rear seat cushion lock hooks.

HINT: Confirm that the seat cushion is firmly installed.
