ABS W/EBD & BA & TRAC & VSC System

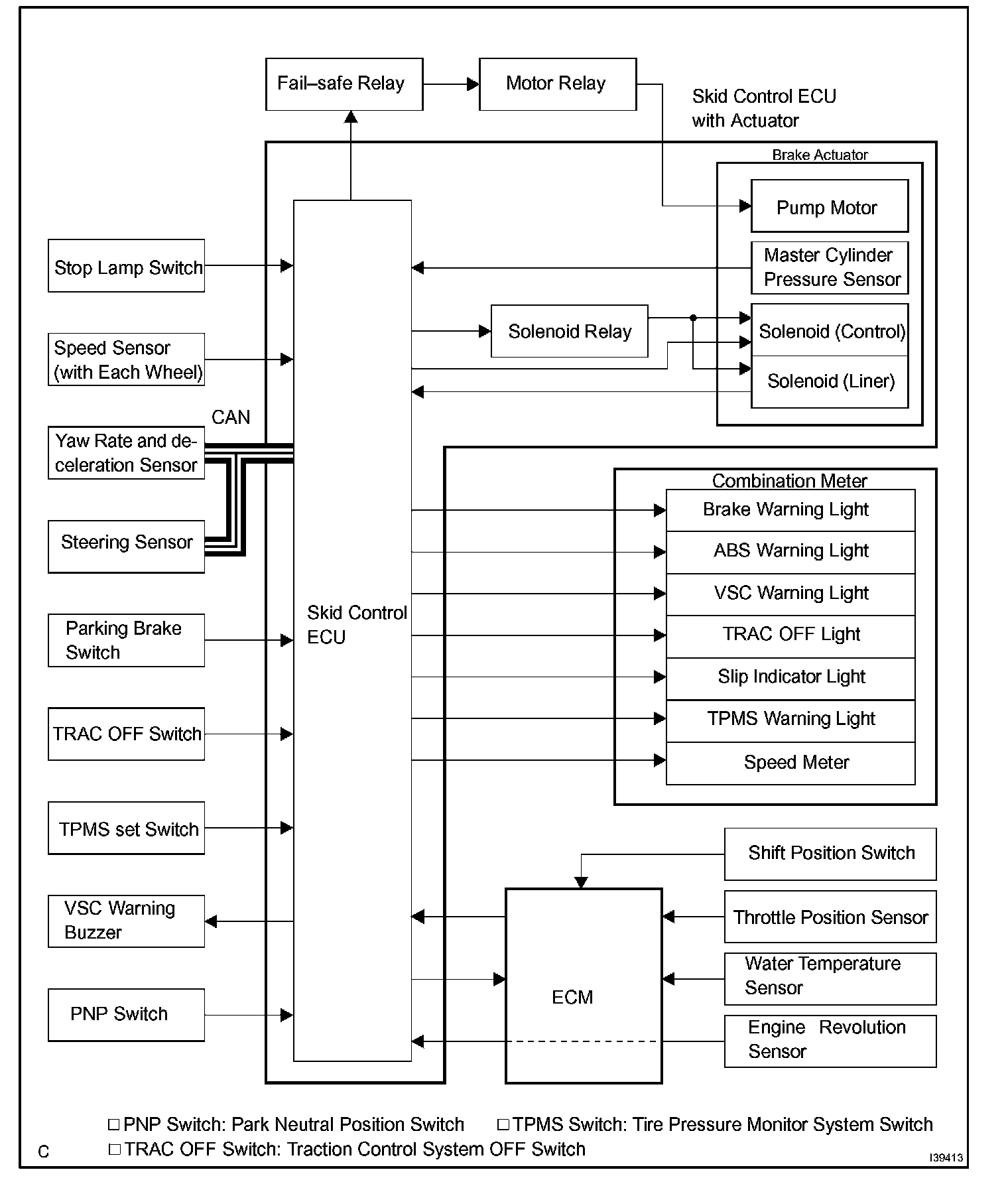

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

1. SYSTEM DESCRIPTION

HINT:
- The skid control ECU is a single unit with ABS & TRACTION ACTUATOR.
- The skid control ECU also works as a TPMS (Tire Pressure Monitor System) ECU.

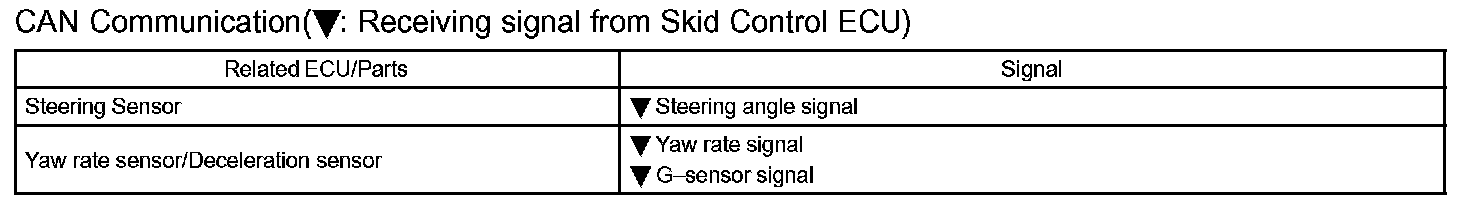

- The yaw rate sensor and deceleration sensor are combined and in a single unit. This unit communicates with the skid control ECU through CAN communication.

a. ABS
(Anti-lock Brake System)
The ABS helps prevent the wheels from locking when the brakes are applied firmly or when braking on a slippery surface.

b. EBD
(Electronic Brake force Distribution)
The EBD control utilizes ABS, realizing proper brake force distribution between front and rear wheels in accordance with driving conditions.

In addition, during cornering braking, it also controls the brake forces of the right and left wheels, helping to maintain vehicle behavior.

c. BA (Brake Assist)
The primary purpose of the brake assist system is to provide an auxiliary brake force to assist the driver who cannot generate a large enough brake force during emergency braking, thus helping to maximize the vehicle's brake performance.

d. TRAC
(Traction Control)
The TRAC system helps prevent the drive wheels from slipping if the driver presses down on the accelerator pedal excessively when starting off or accelerating on a slippery surface.




e. VSC
(Vehicle Stability Control)
The VSC system helps prevent the vehicle from slipping sideways as a result of strong front wheel skid or strong rear wheel skid during cornering.

2. ABS with EBD & BA & TRAC & VSC OPERATION
a. Skid control ECU calculates vehicle stability tendency based on the signal of sensors, speed sensor, yaw rate sensor and steering angle sensor. And it judges whether the control of engine output torque by electronic control throttle and of wheel brake pressure by brake actuator will start or not by the calculation results.
b. The SLIP indicator blinks and the VSC buzzer sounds to inform the driver that the VSC system is operating. The SLIP indicator also blinks when TRAC is operating, and the operation being performed is displayed.

3. FAIL SAFE FUNCTION
a. When a failure occurs in the ABS & BA & TRAC & VSC systems, the ABS warning light and the VSC warning light turns on and the ABS & BA & TRAC & VSC operations are prohibited. In addition to this, when there is a failure that disables the EBD operation, the brake warning light also comes on and the EBD operation is prohibited.
b. If some control is prohibited due to a malfunction during it's operation, that control will be cut off gradually not to change stability of vehicle suddenly.
