TRAC Off Indicator Light, TRAC Off Switch Circuit

TRAC OFF INDICATOR LIGHT, TRAC OFF SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The skid control ECU detects the TRAC control main switch ON/OFF signal and turns the TRAC OFF light on/off. When the TRAC control switch is pressed, the TRAC control does not operate and the TRAC OFF light comes on.

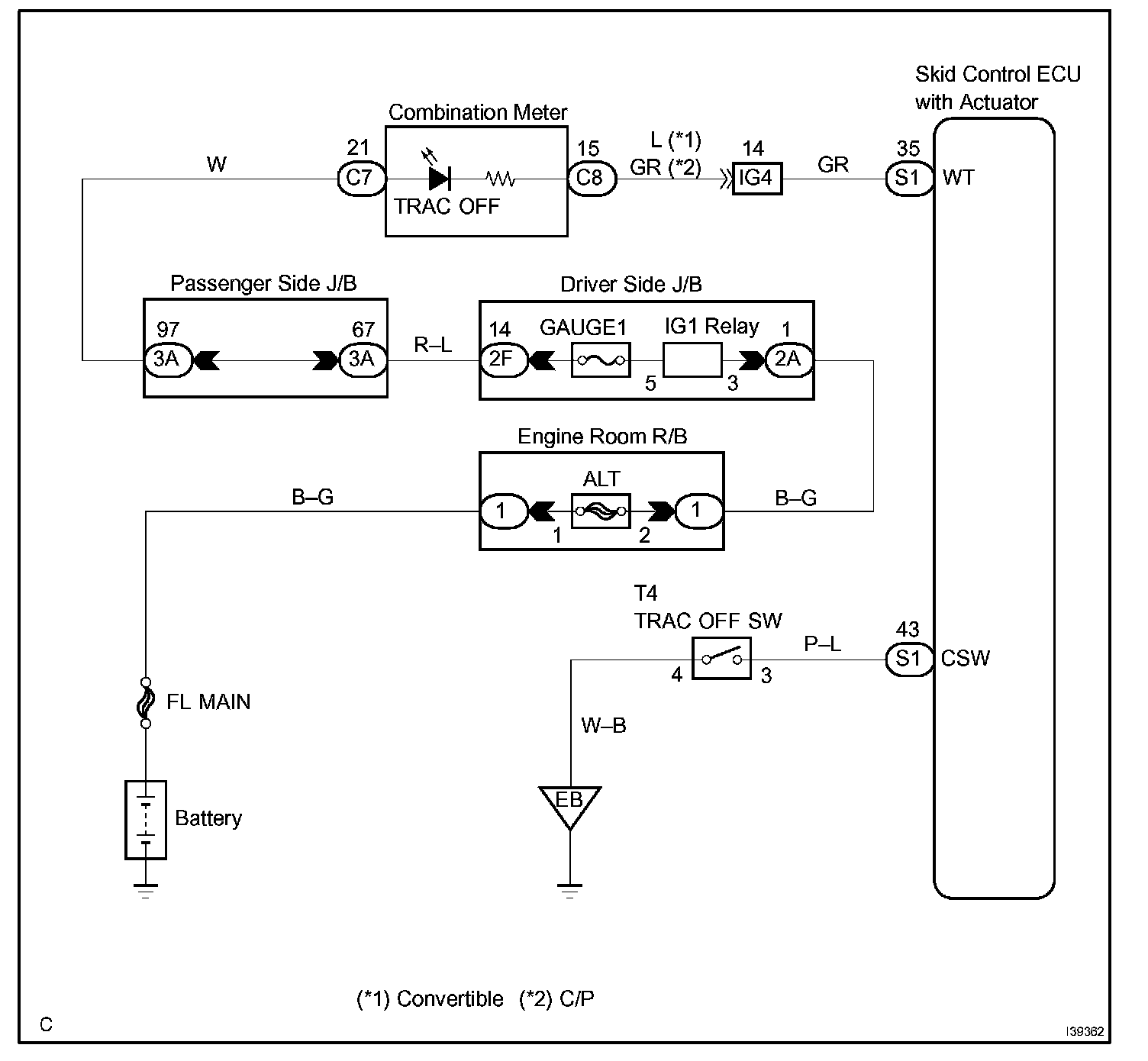

Wiring Diagram:

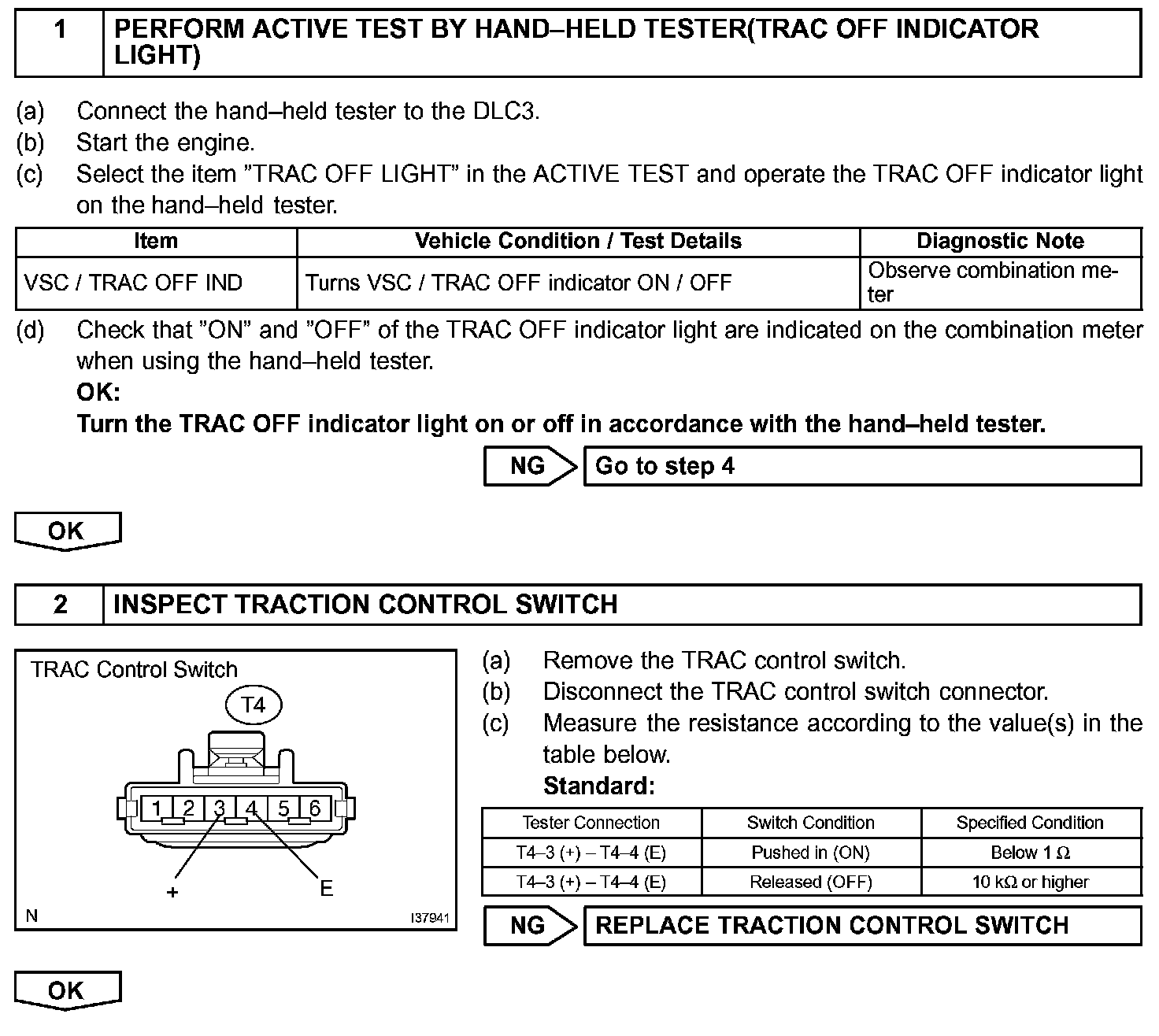

Step 1 - 2:

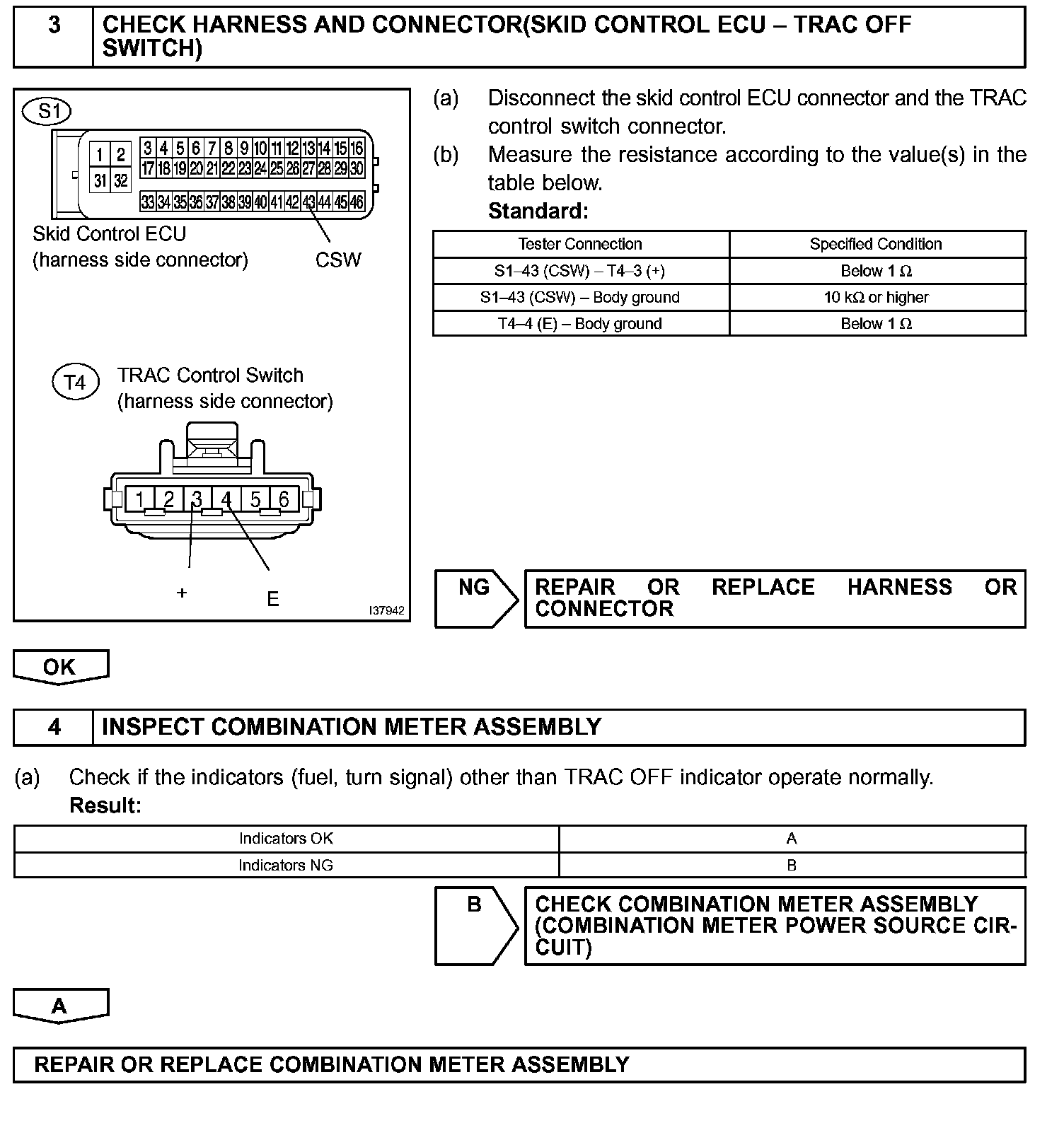

Step 3 - 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
