Without Scan Tool

DTC CHECK (USING SST CHECK WIRE)

Check DTCs.

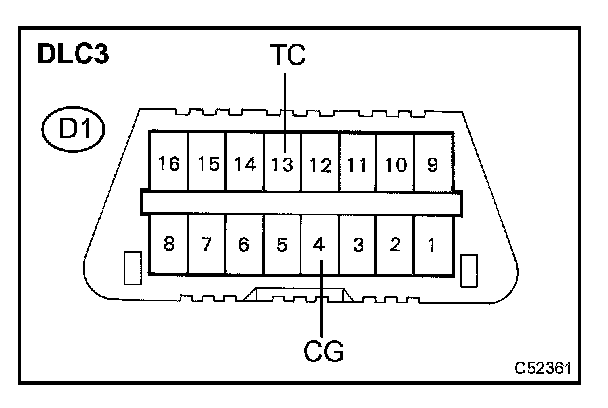

1. Using SST, connect terminals TC and the CG of DLC3.
SST 09843-18040

2. Turn the ignition switch to the ON position.
3. Read the DTC from the ABS warning light on the combination meter assy.

HINT:
- If no code appears, inspect the TC circuit or ABS warning light circuit.

Trouble Area
TC terminal circuit
ABS warning light circuit

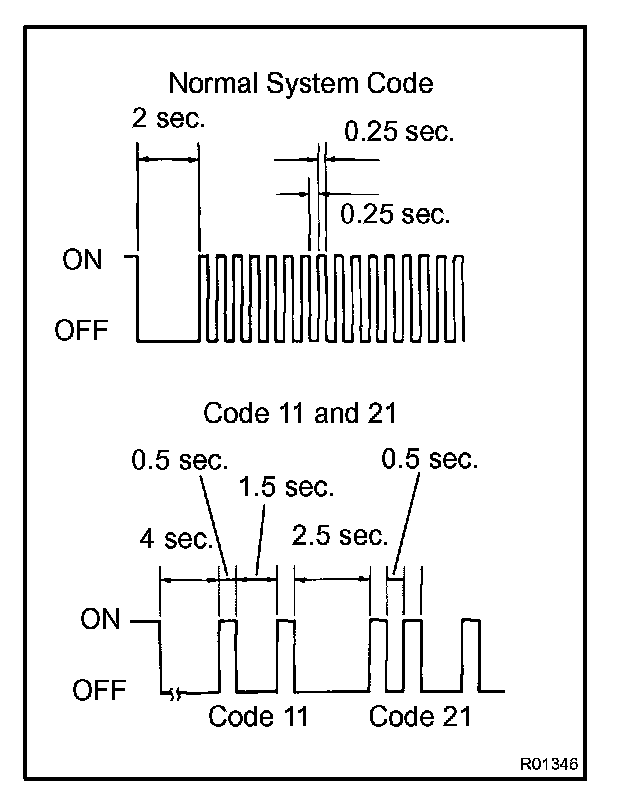

- As an example, the blinking patterns for a normal system code and trouble codes 11 and 21 are shown.

4. Codes are explained in the code table.
5. After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display.

If 2 or more DTCs are detected at the same time, the DTCs will be displayed.

END OF DTC CHECK

a. Turn the ignition switch to the ON position.
b. Check that ABS warning lamp goes off in about 3 seconds.
