Speed Sensor, Front
SPEED SENSOR FRONT LHREPLACEMENT
HINT: Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side.
1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE SPEED SENSOR FRONT LH

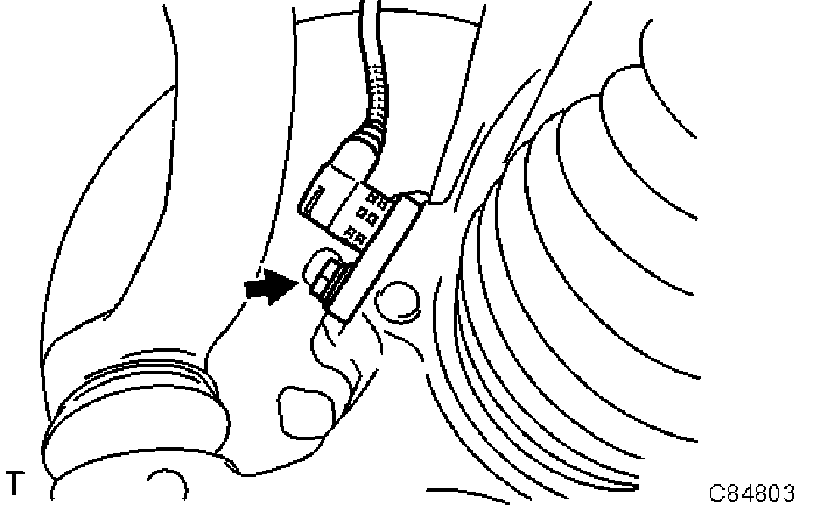

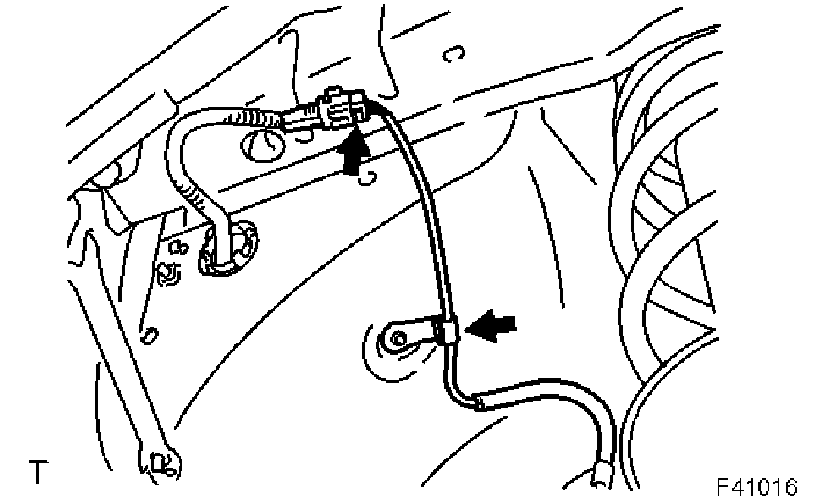

a. Disconnect the speed sensor connector and clamp.

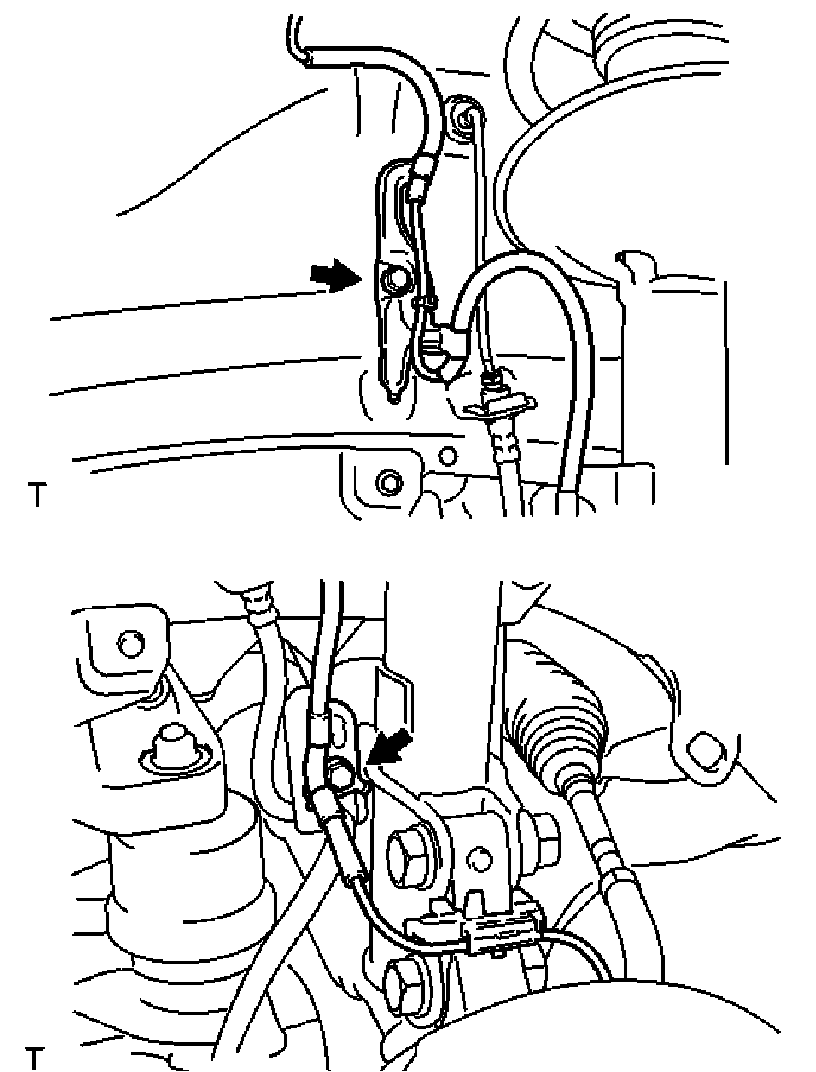

b. Remove the 2 clamp bolts and disconnect the speed sensor harness from the body and shock absorber.
c. Remove the bolt and the speed sensor front LH.
NOTICE: Prevent foreign matter from attaching to the sensor tip.
4. INSTALL SPEED SENSOR FRONT LH
a. Install the speed sensor front LH with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
NOTICE: Prevent foreign matter from attaching to the sensor tip.

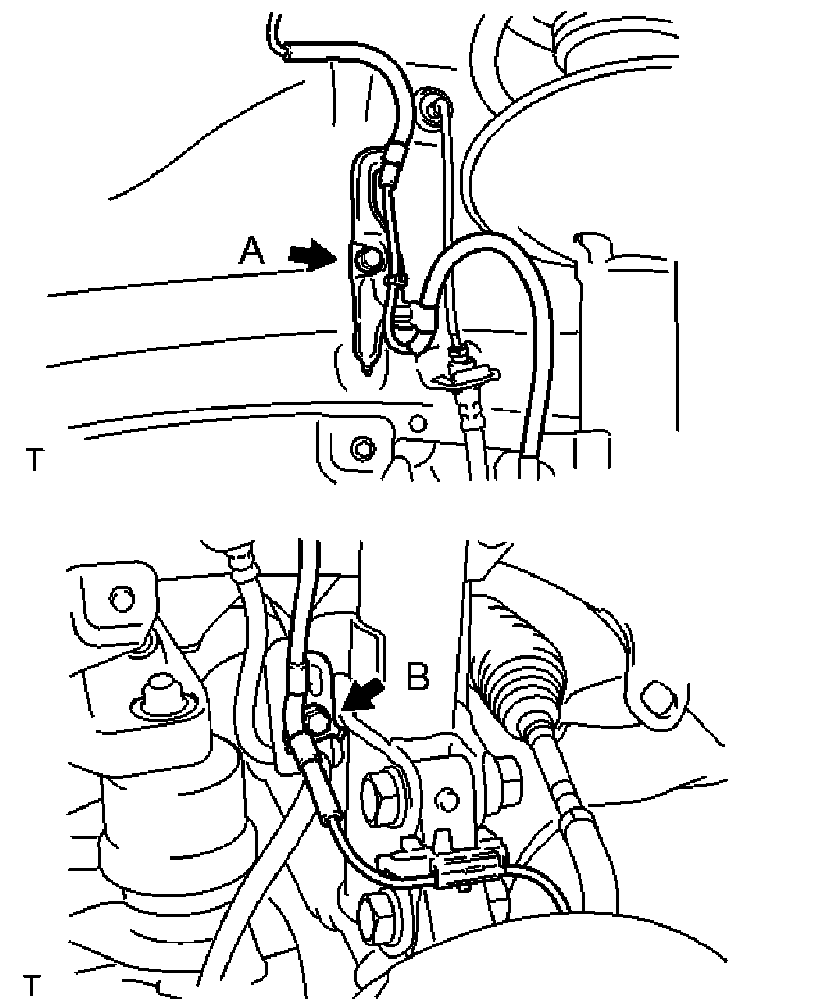

b. Install the sensor harness clamps with the 2 bolts "A" and "B" to the body and shock absorber.
Torque:
Bolt A: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
Bolt B: 19 Nm (192 kgf-cm, 14 ft. lbs.)
c. Connect the clamp to the knuckle.

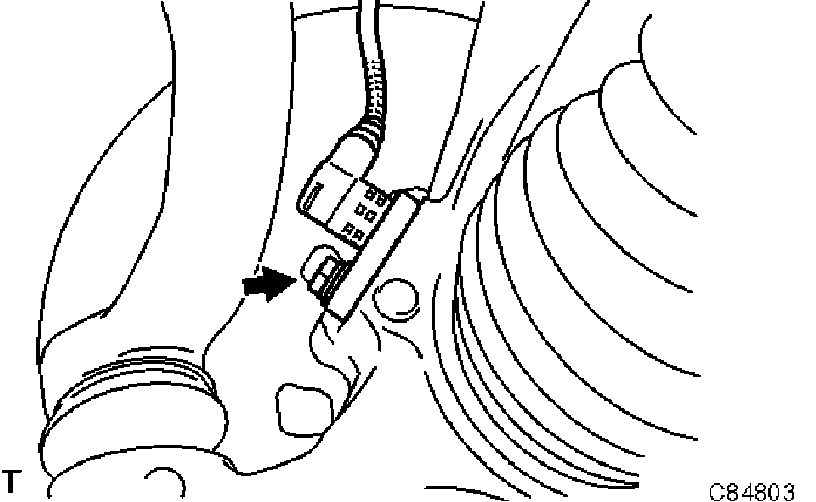

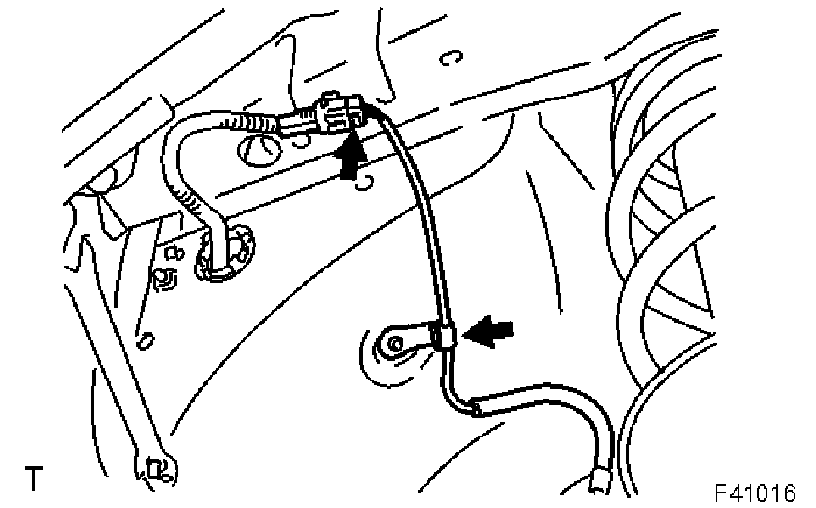

d. Connect the speed sensor connector and clamp.
5. INSTALL FRONT FENDER LINER LH
6. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
7. CHECK ABS SPEED SENSOR SIGNAL
