Clutch Switch Circuit

CLUTCH SWITCH CIRCUIT

CIRCUIT DESCRIPTION

Clutch switch circuit inspection is necessary for M/T vehicle.

When the clutch pedal is released, the ECM receive positive (+) battery voltage through the IG1 Relay and GAUGE1 fuse. While depressing the clutch pedal, the clutch switch assy sends a signal to terminal D of the ECM. The ECM cancels cruise control drive when terminal D receives the signal (voltage of below 1 V).

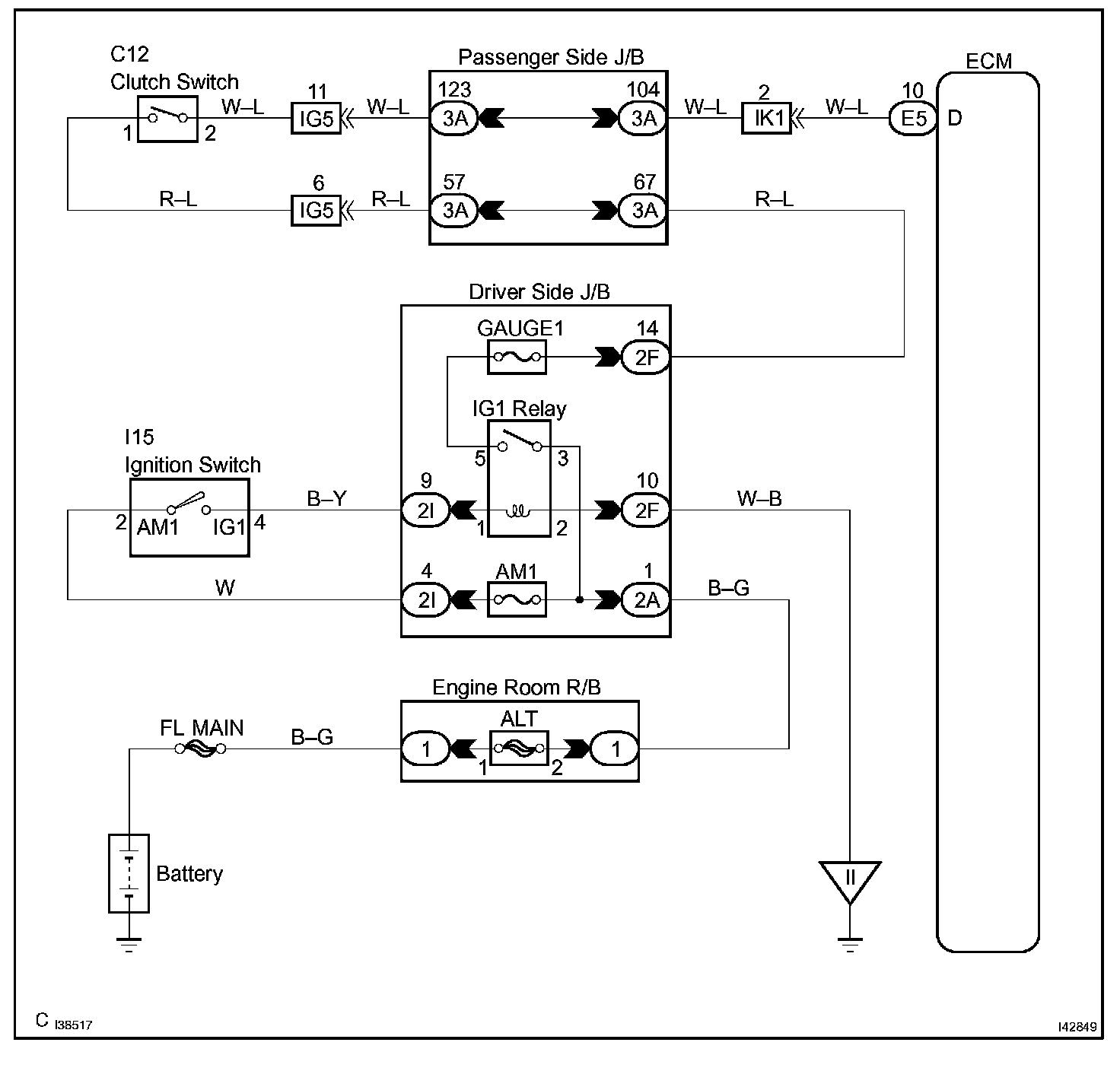

Wiring Diagram:

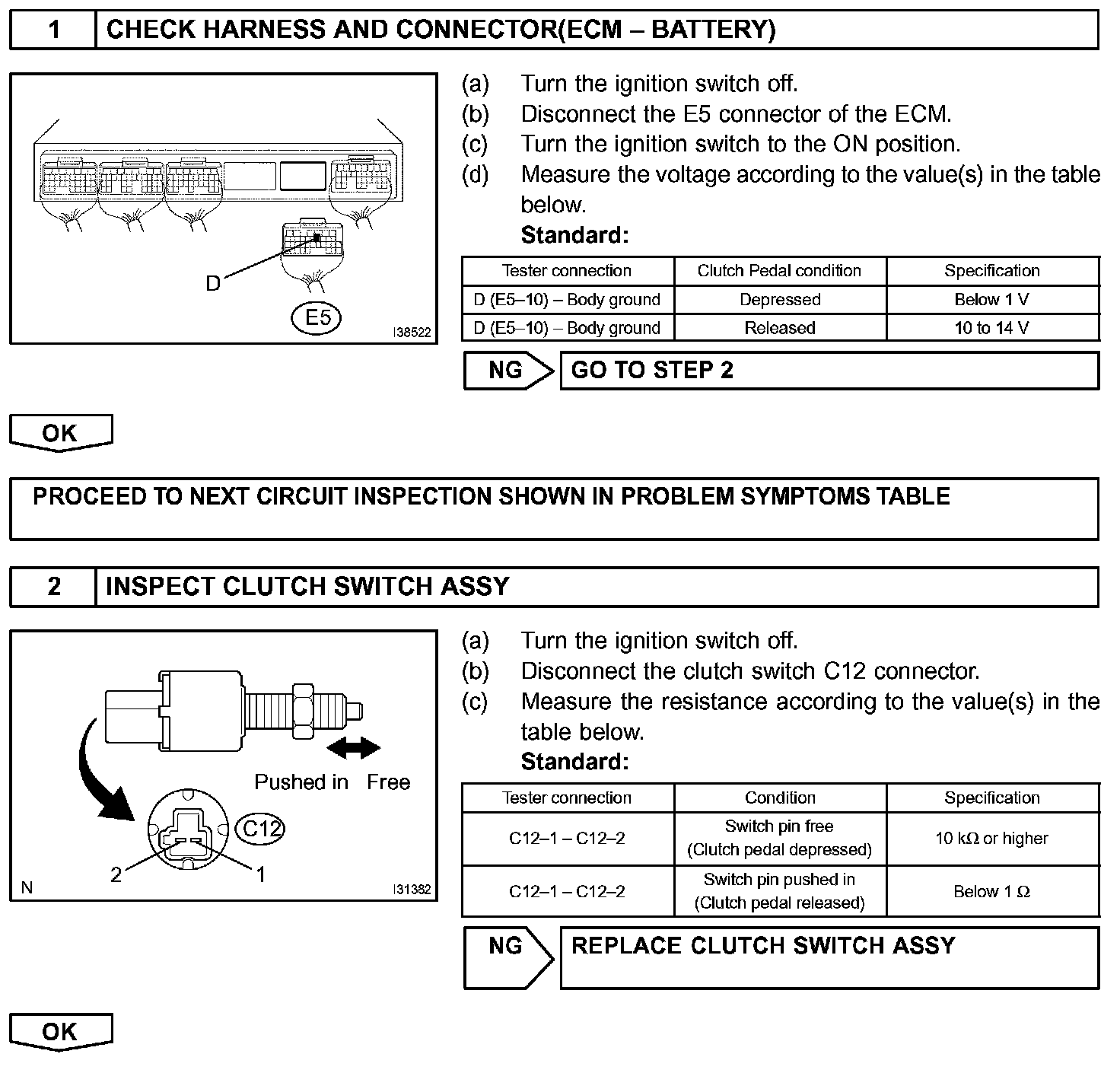

Step 1 - 2:

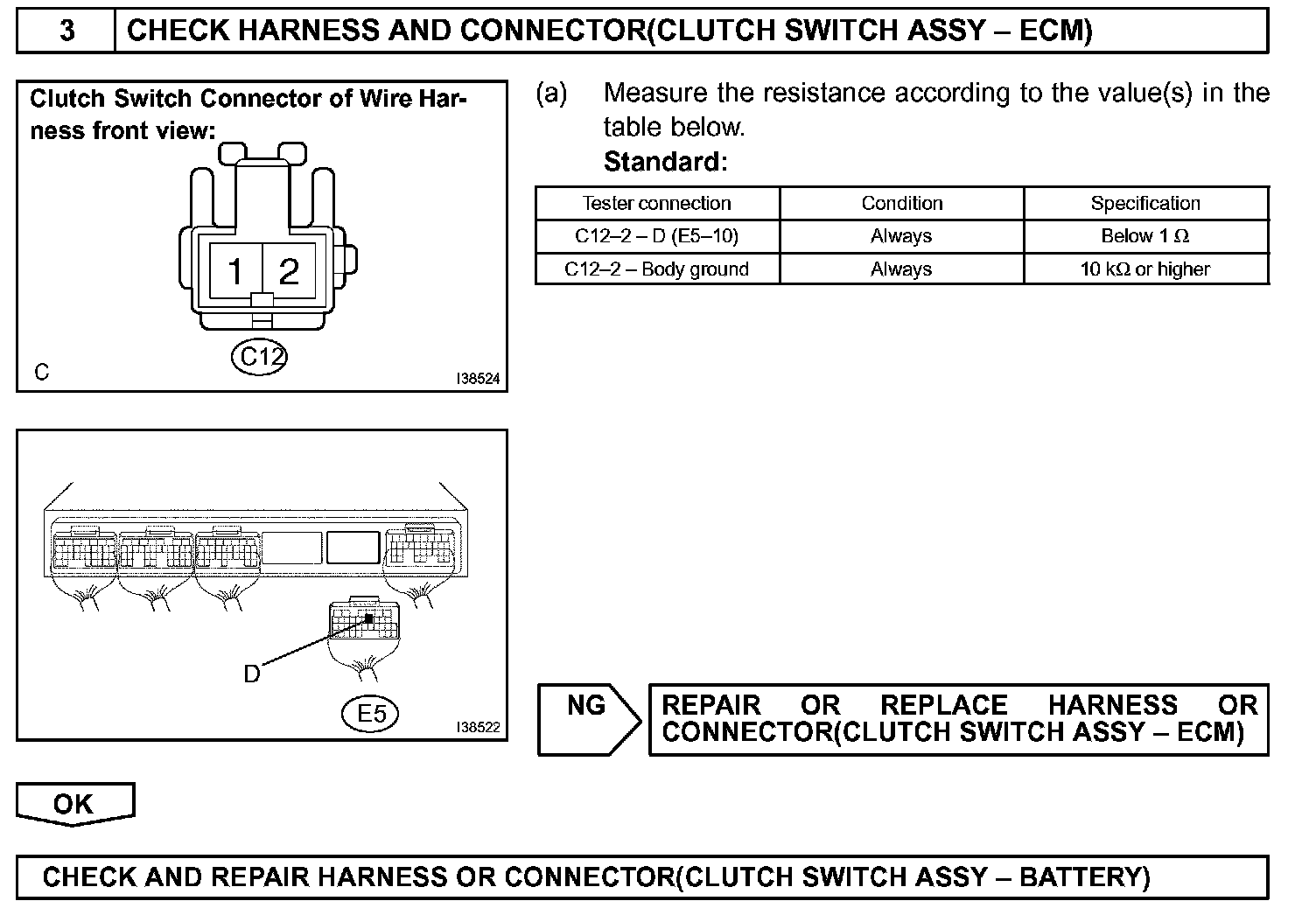

Step 3:

INSPECTION PROCEDURE
