Diesel Data: Automotive Repair

With Manufacturer's Scan Tool

DTC CHECK (USING HAND-HELD TESTER)

Check DTCs using the hand-held tester.




1. Turn the ignition switch off.

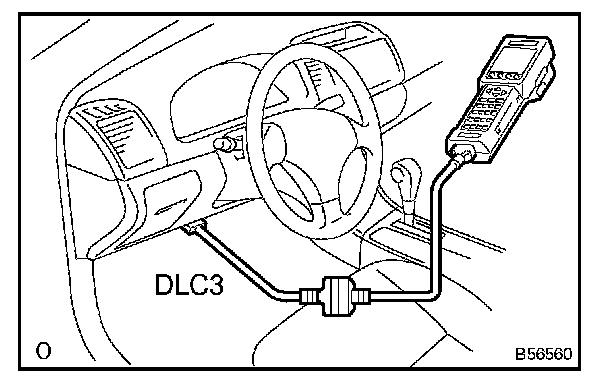

2. Connect the hand-held tester to the DLC3.
3. Turn the ignition switch to the ON position.
4. Read DTCs on the tester screen.
