Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Solara L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
H5 - J3

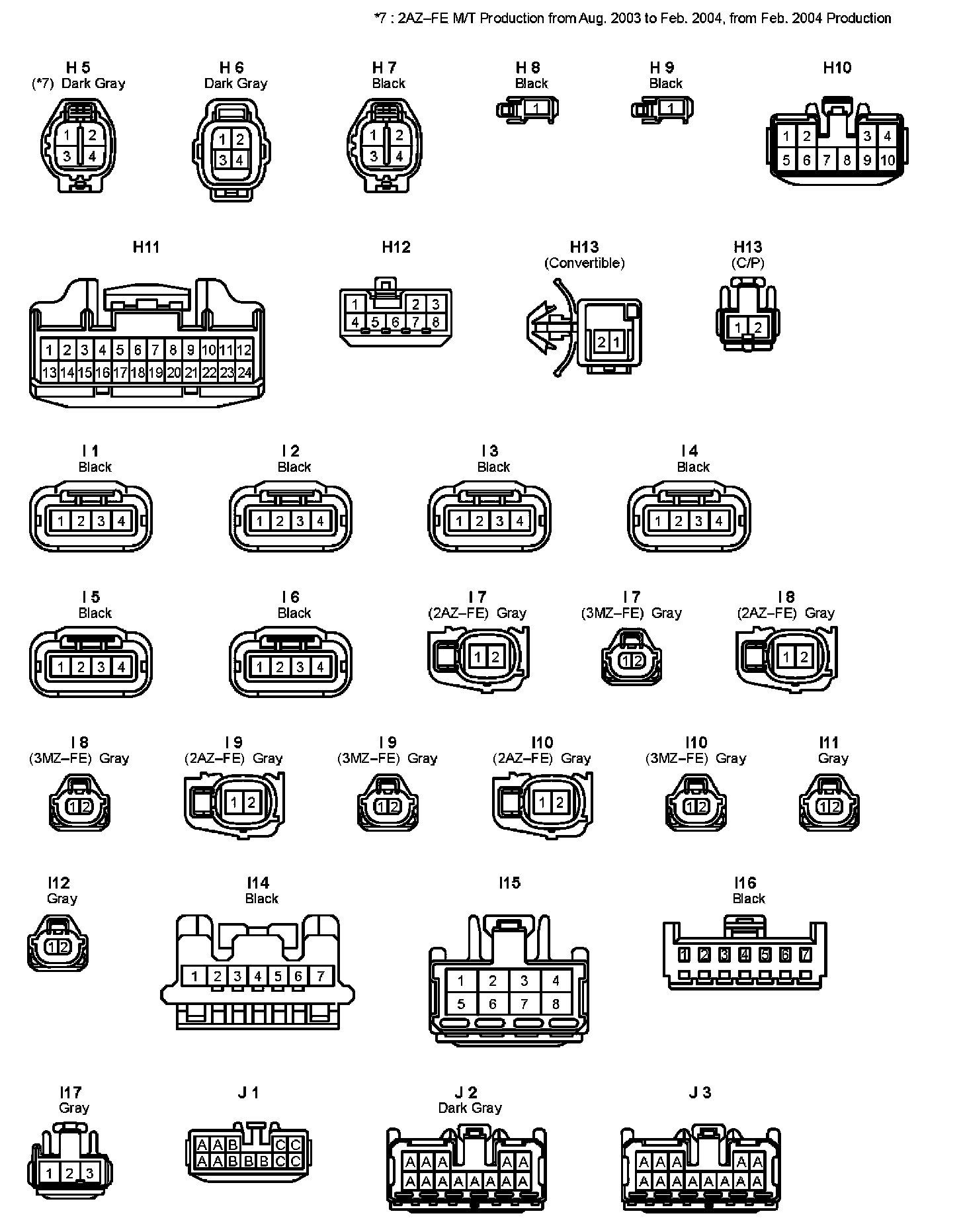

H5 - J3
H5 - J3:
