Solara L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

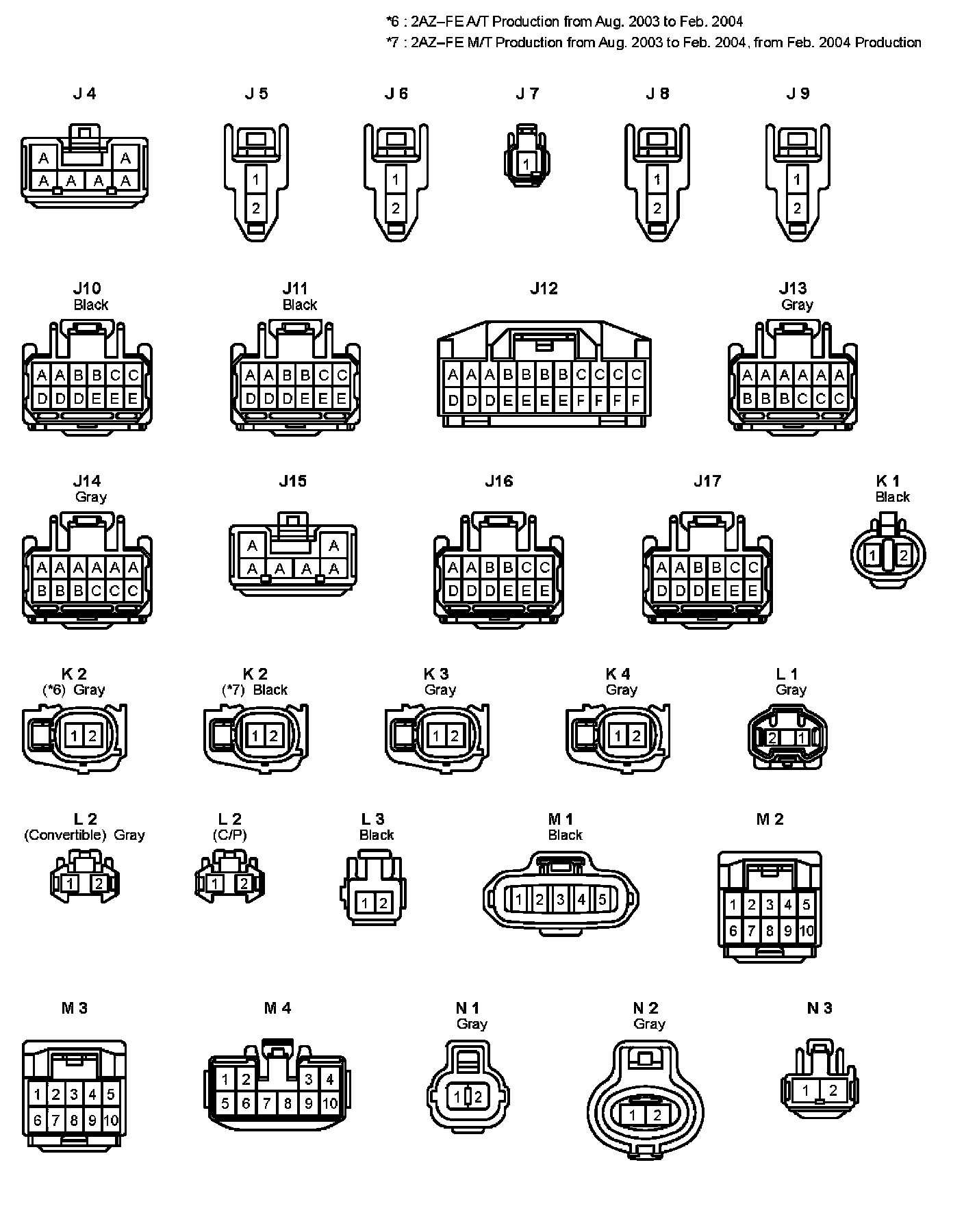

J4 - N3
J4 - N3
J4 - N3:
