Multiple Junction Connector
Multiple Junction Connector

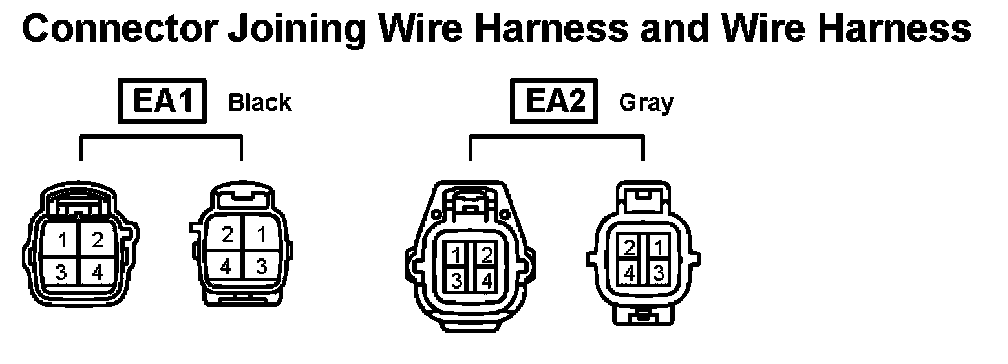

EA1 - EA2:

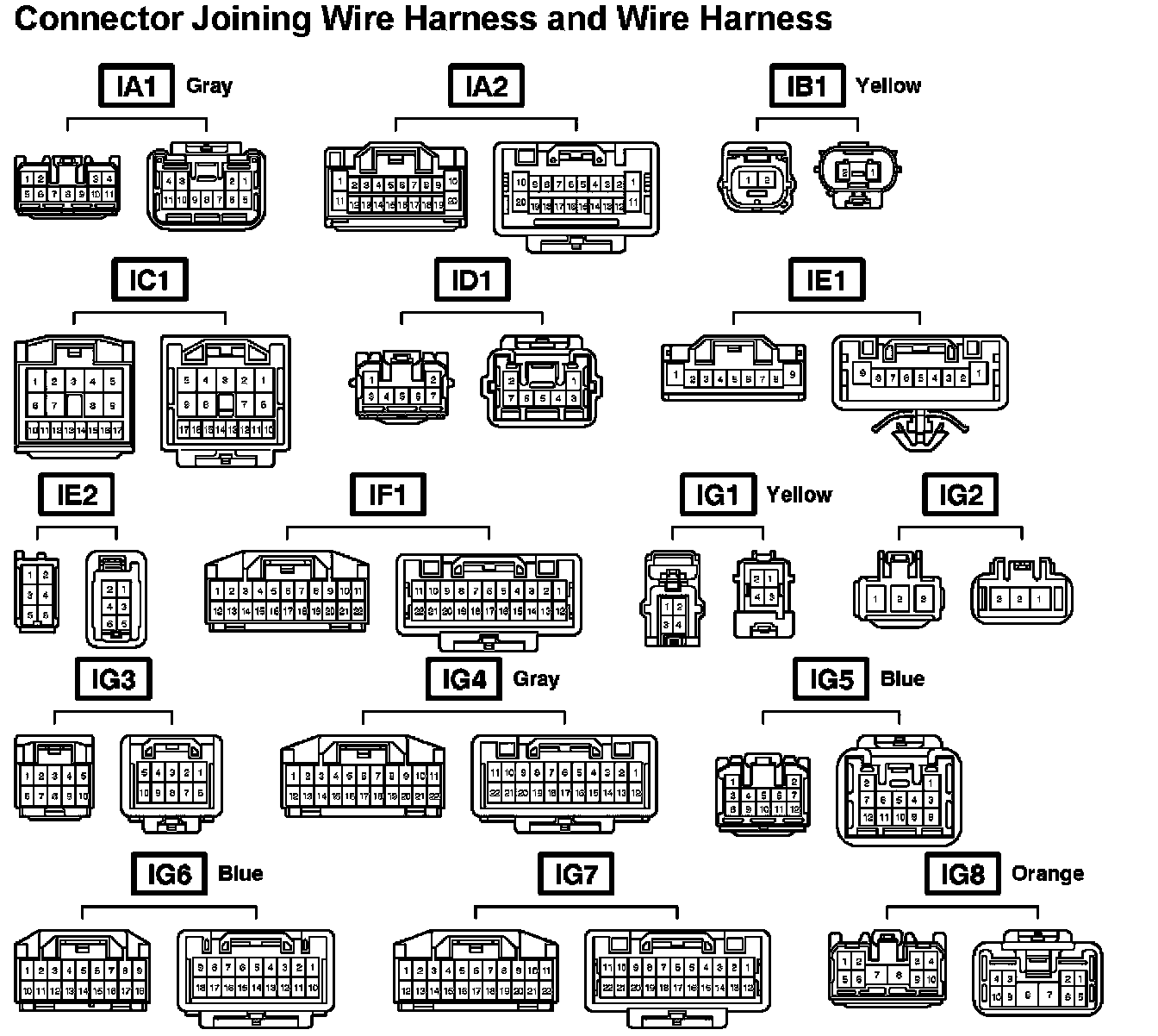

IA1 - IG8:

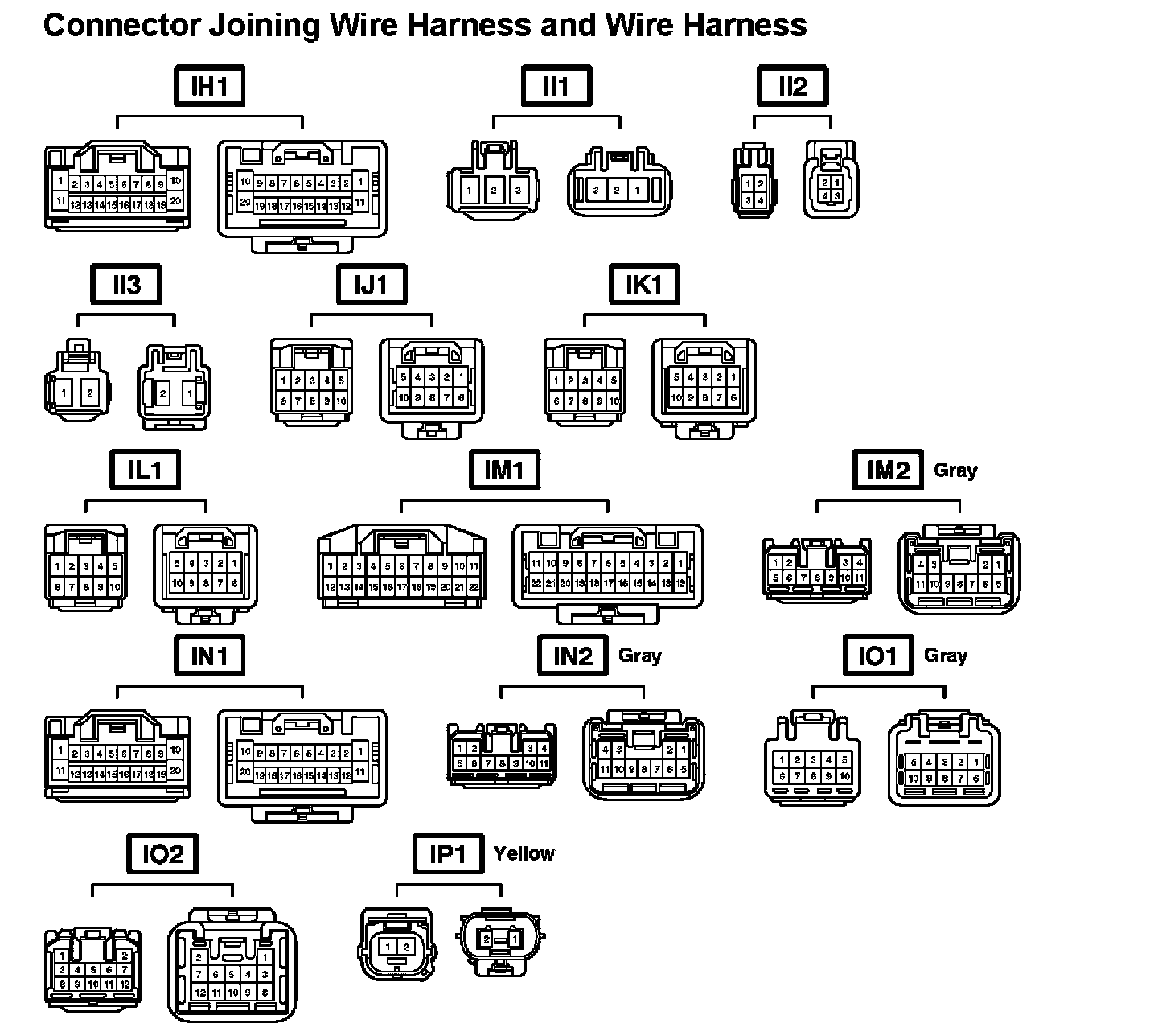

IH1 - IP1:

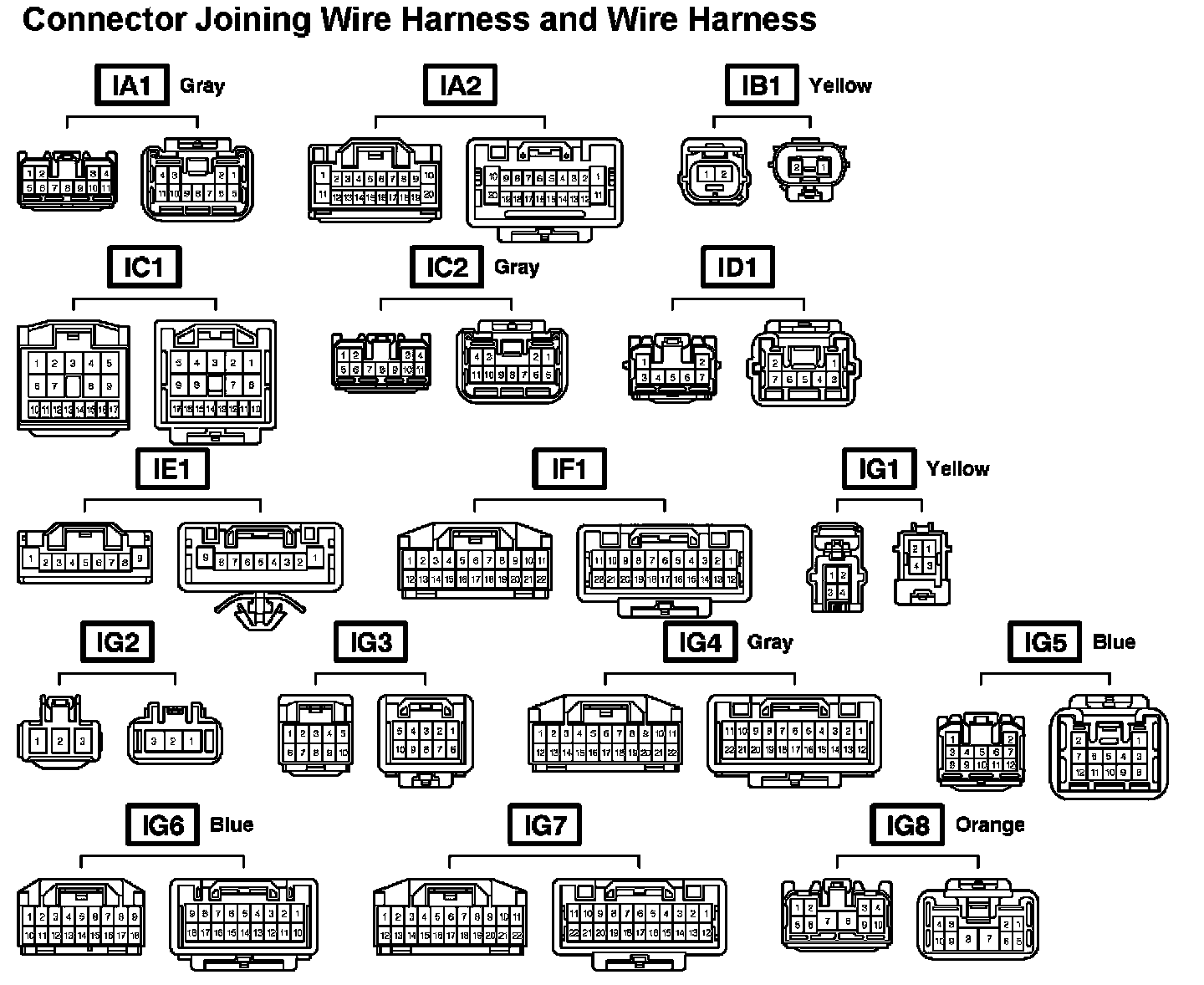

IA1 - IG8:

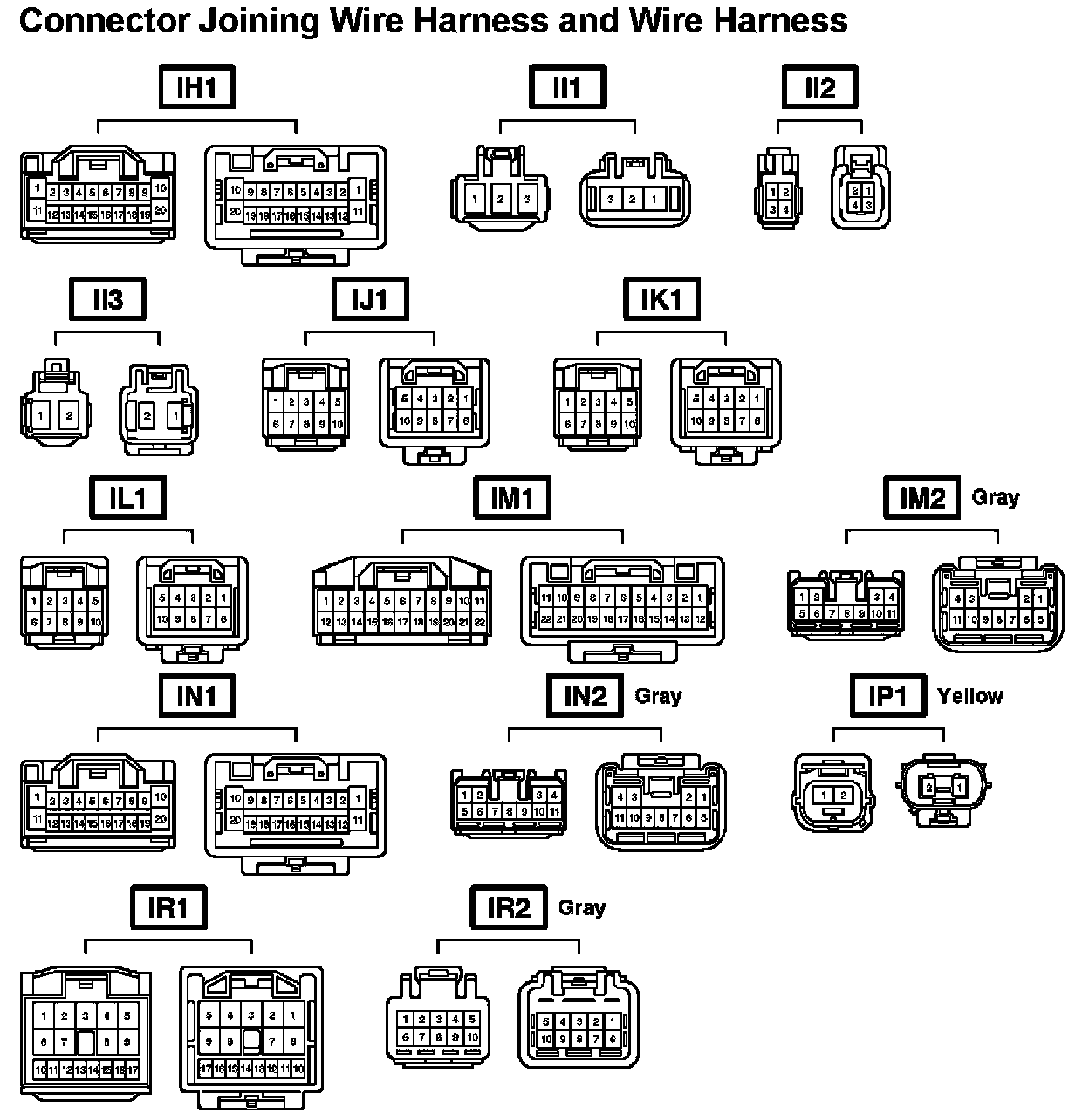

IH1 - IR2:
