Impact Sensor
Impact Sensor

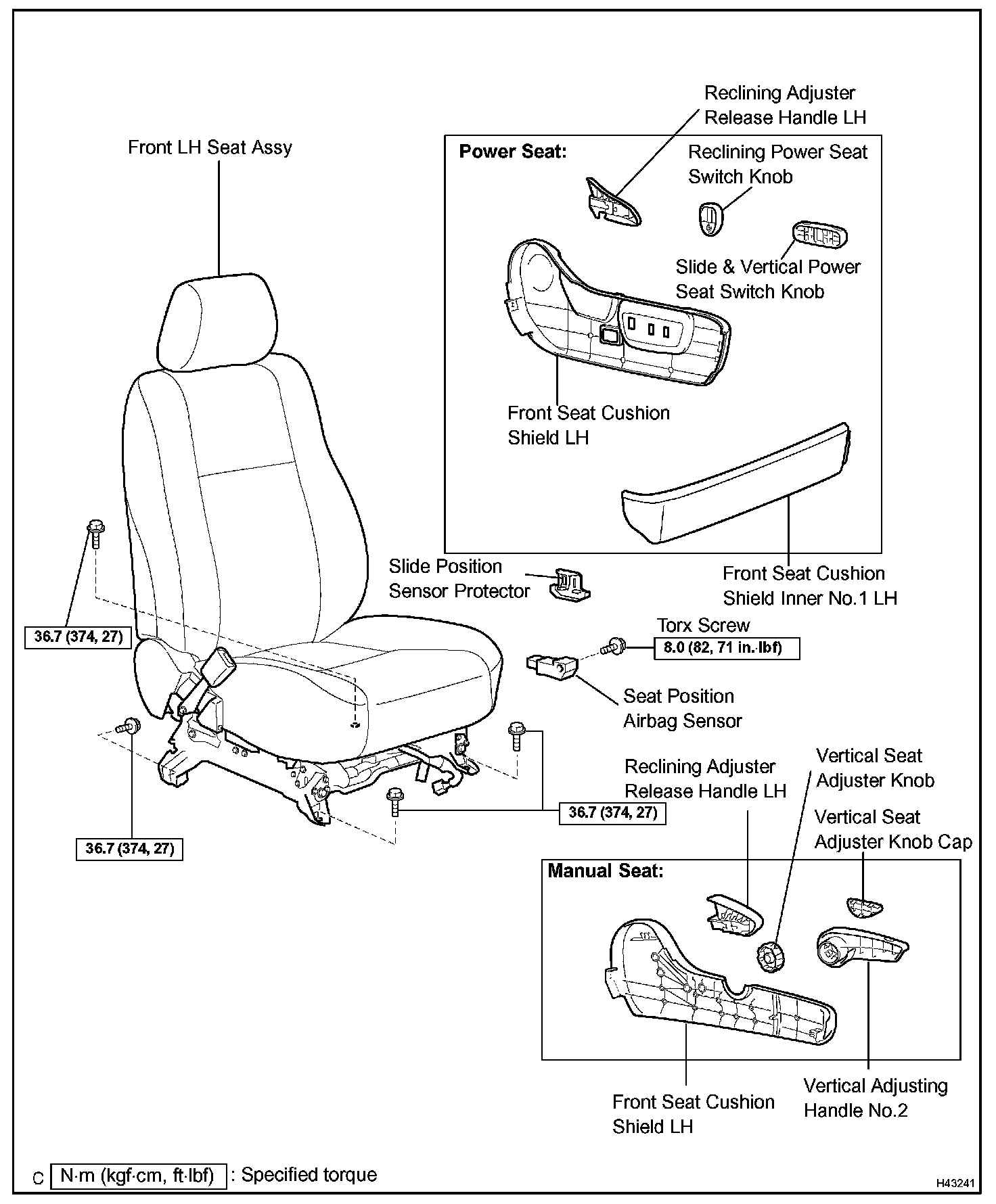

Seat Position Air Bag Sensor:

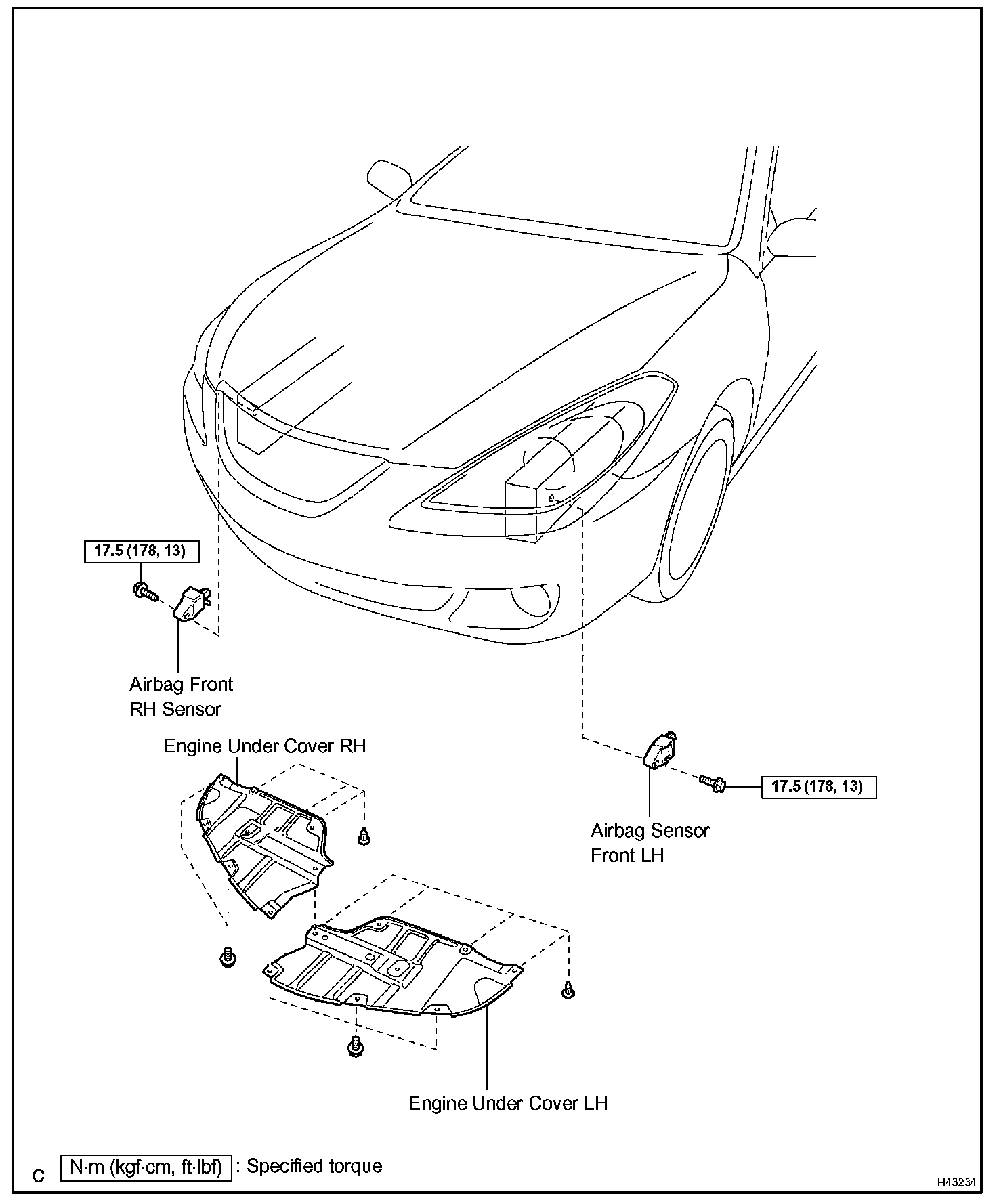

Airbag Sensor Front LH:

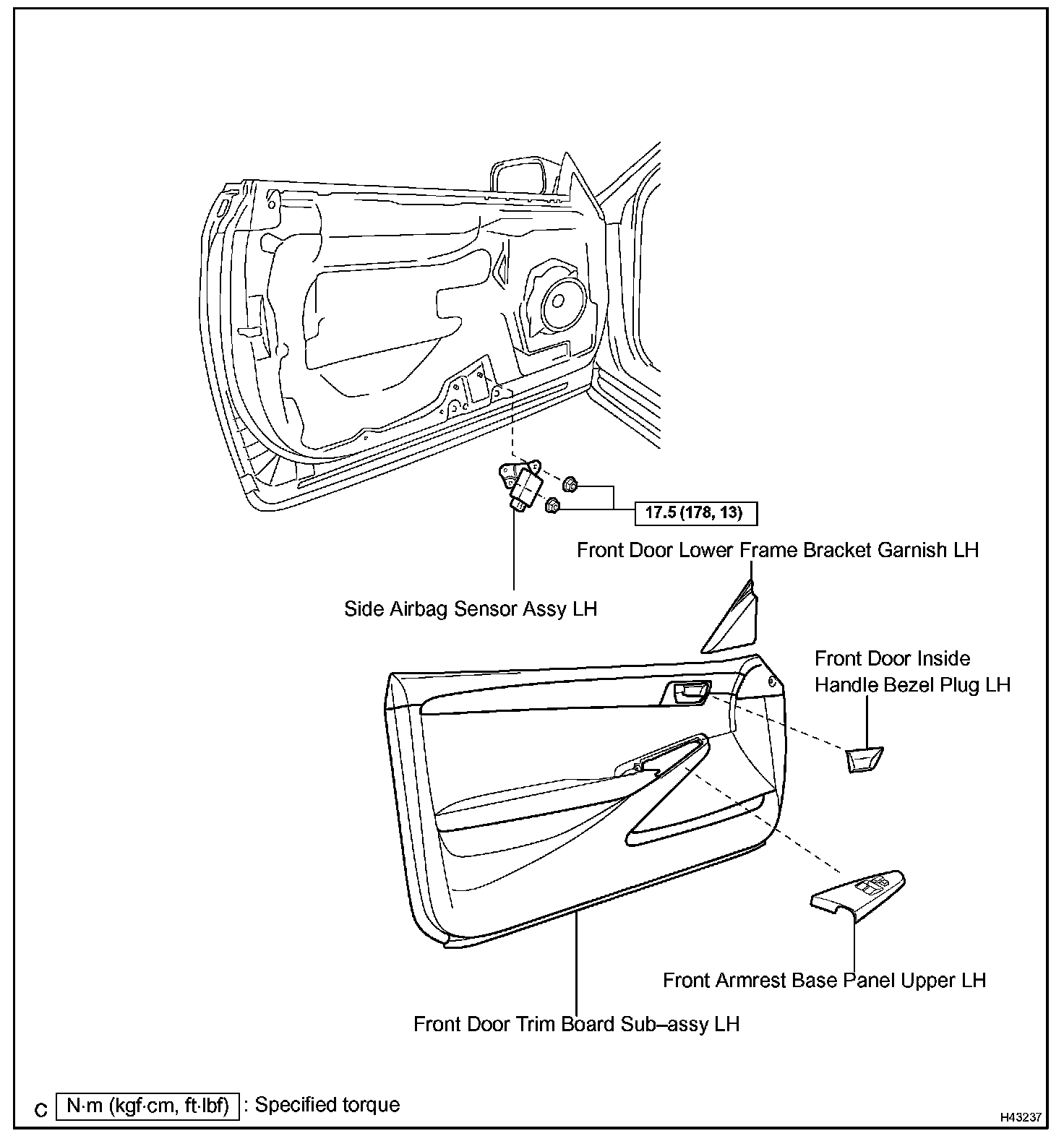

Side Air Bag Sensor Assy LH:

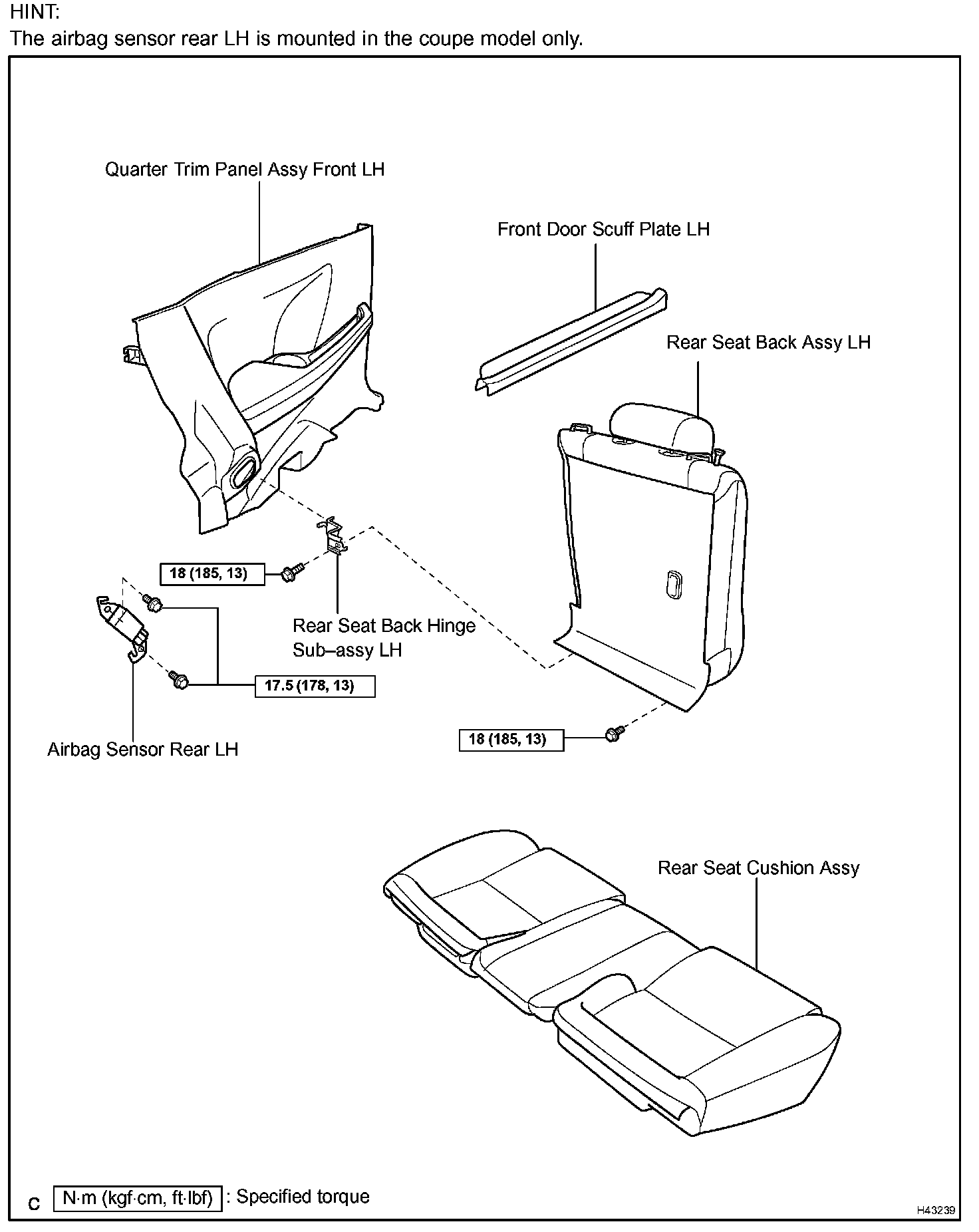

Air Bag Sensor Rear LH:
