Electrical Diagrams

SYSTEM DIAGRAM

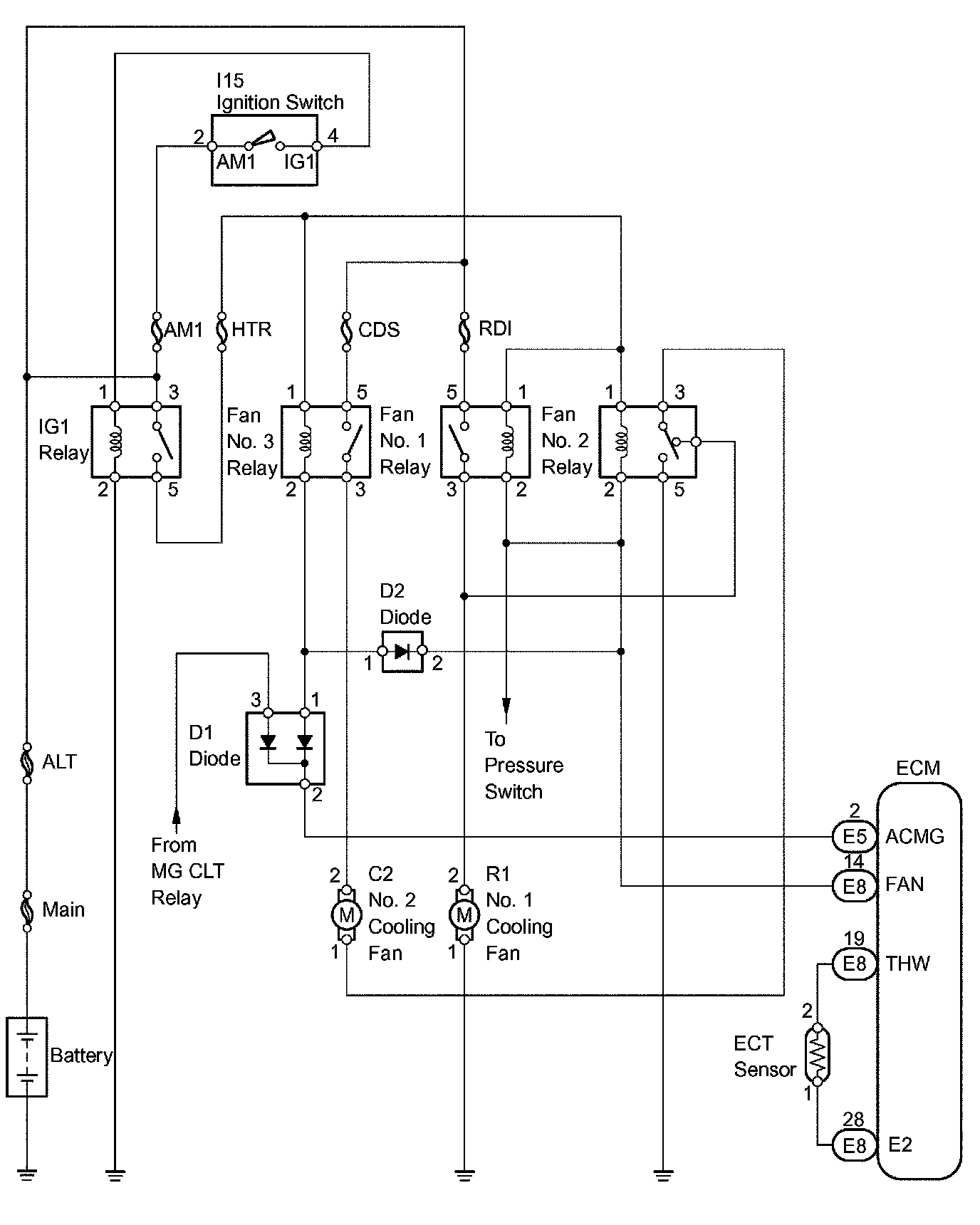

The electric cooling fan system controls the fan motors using the Engine Coolant Temperature (ECT) sensor, and turns the 3 fan relays on and off according to the ECT and the air conditioner's operating condition.
