Home >> Toyota >> 2004 >> Solara L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Head Assembly >> Specifications

Cylinder Head Assembly: Specifications

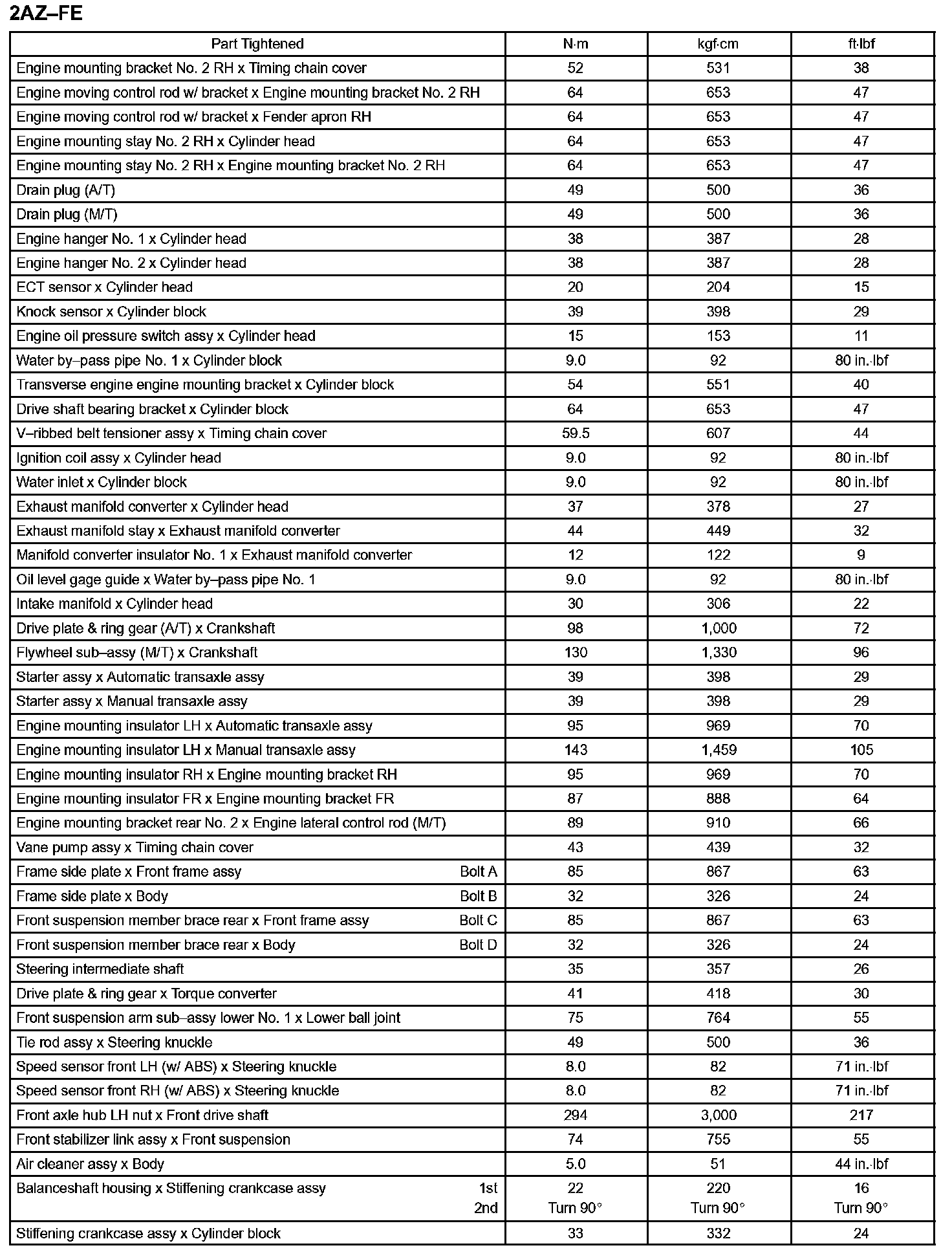

Engine Mechanical - Torque Specification Part 1:

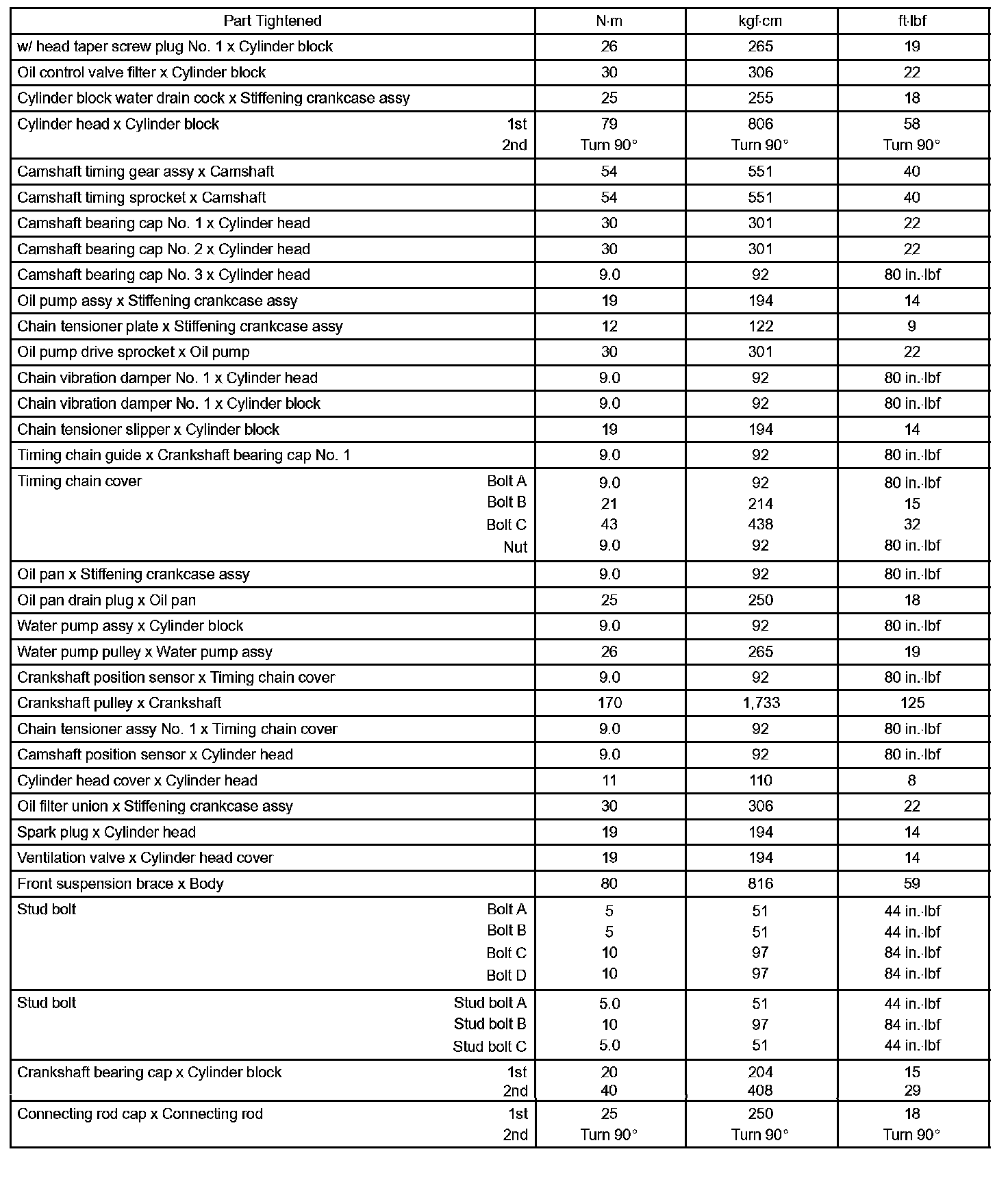

Engine Mechanical - Torque Specification Part 2:
