Combination Meter Disassembly and Assembly

Instrument Panel/Meter - Part 1:

COMBINATION METER ASSY

OVERHAUL

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL LOWER
2. REMOVE INSTRUMENT PANEL FINISH PLATE
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
4. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY

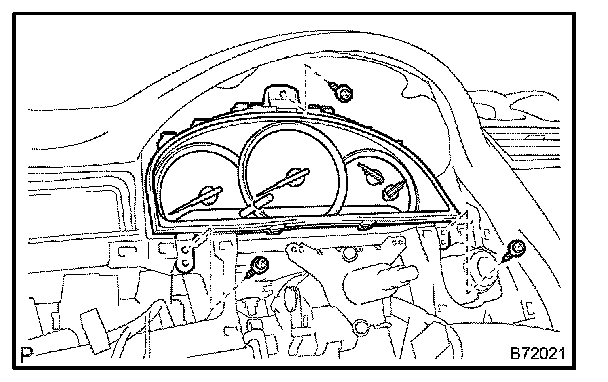

6. REMOVE COMBINATION METER ASSY
a. Remove the 3 screws.
b. Pull out the combination meter assy, then disconnect the connectors.

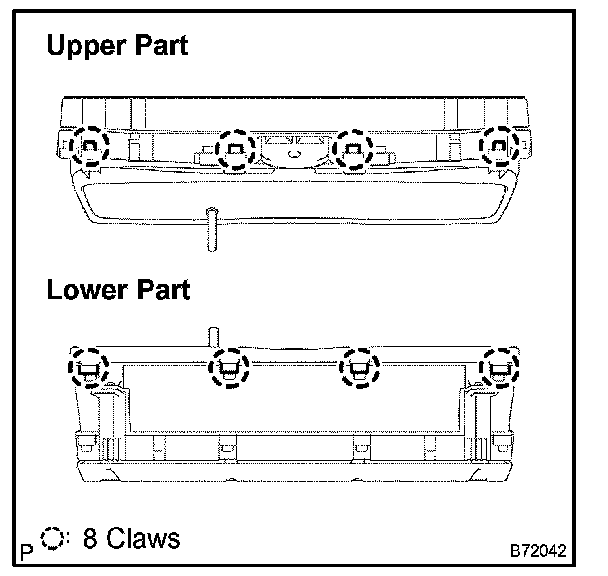

7. REMOVE COMBINATION METER GLASS
a. Disengage the 8 claws and remove the combination meter glass.
