Center Stop Lamp Assy (Convertible)

CENTER STOP LAMP ASSY (CONVERTIBLE)

REPLACEMENT

HINT: Installation is in the reverse order of removal.




1. REMOVE BACK BELT MOULDING

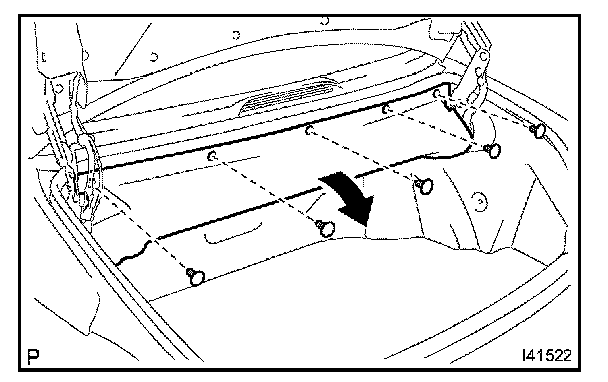

a. Remove the 5 clips and turn up the luggage compartment trim cover front.

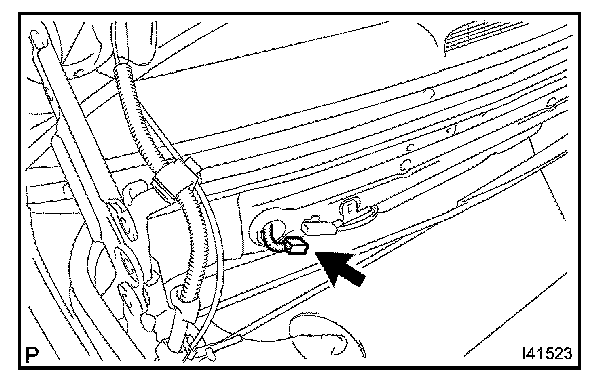

b. Disconnect the connector.

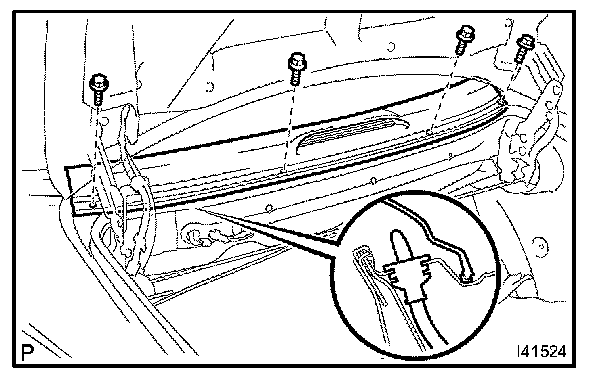

c. Remove the 4 bolts and the grommet, and then remove the back belt moulding.




2. REMOVE CENTER STOP LAMP ASSY

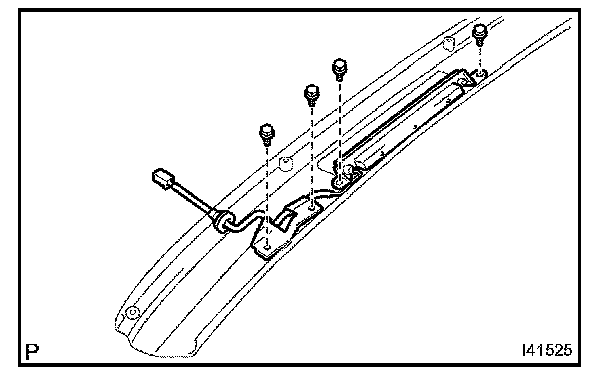

a. Remove the 4 bolts, and then remove the center stop lamp assy.




3. INSTALL CENTER STOP LAMP ASSY

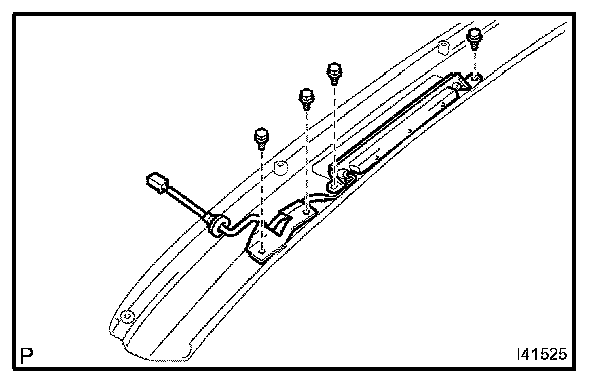

a. Install the center stop lamp assy with the 4 bolts.

Torque: 5.4 Nm (55 kgf.cm, 48 in.lbf)




4. INSTALL BACK BELT MOULDING

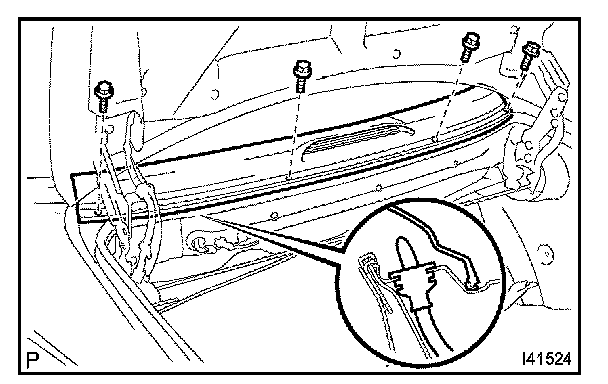

a. Install the back belt moulding with the 4 bolts and the grommet.

Torque: 14 Nm (143 kgf.cm, 10 ft.lbf)

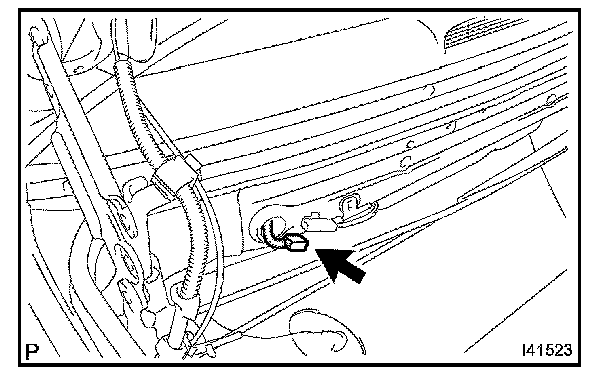

b. Connect the connector.




c. Install the luggage compartment trim cover front with the 5 clips.
